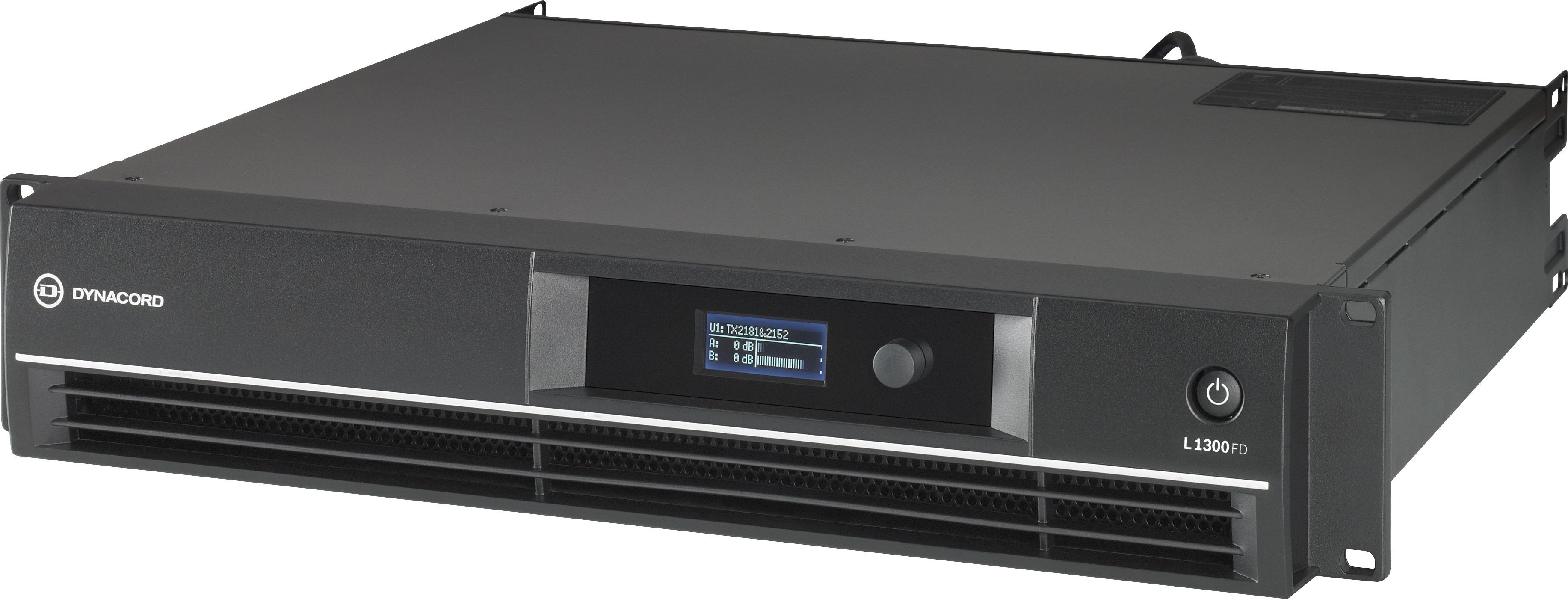

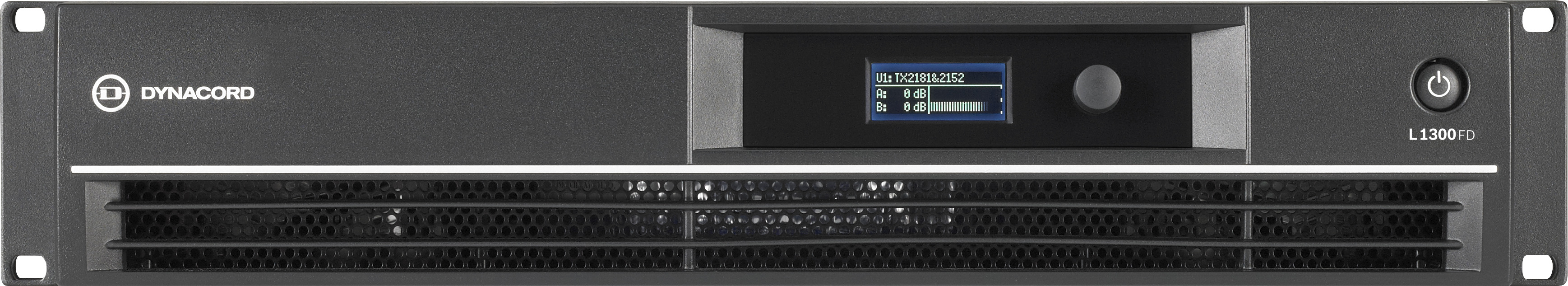

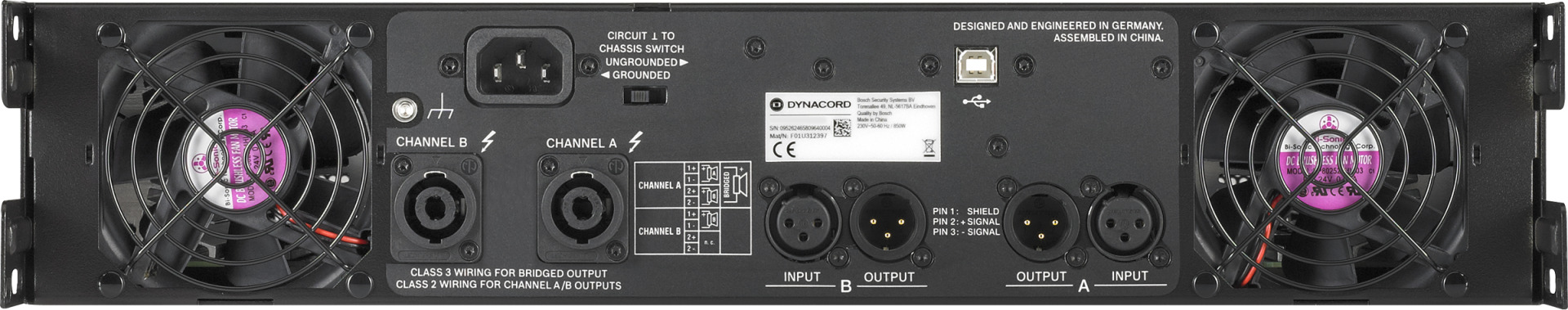

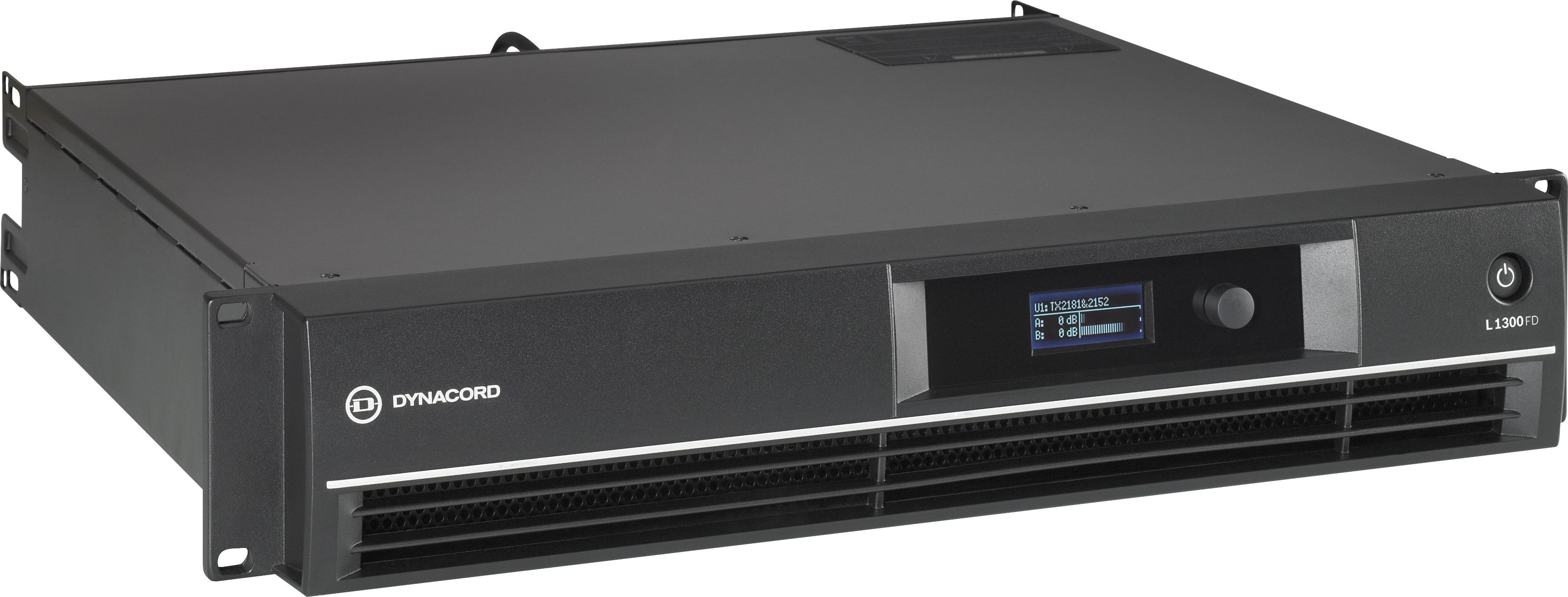

Dynacord L1300FD
Click to expand

Dynacord L1300FD

The Dynacord L1300FD is a professional dual channel, DSP audio amplifier for live and mobile applications. Rated output 2 x 600W at 4 Ohms.

Integrated digital signal processing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability.

The connectivity is optimized for the needs of mobile applications.

A front panel LCD display allows local control and supervision of the amplifier.

Intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.

  • Professional DSP amplifier for live and mobile applications
  • Fully integrated professional speaker processing with FIR drive technology
  • Market-leading acoustic performance and rock solid reliability
  • Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0
4ohms 8ohms 2ohm
List Ex VAT: £665.83
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Load Impedance

2 Ω

4 Ω

8 Ω

Maximum Output Power, Single Channel

1100 W

660 W

350 W

Maximum Output Power, Dual Channel

1000 W

600 W

320 W

Maximum Output Power, Bridged

-

2000 W

1200 W

Maximum Input Level

+21 dBu

Frequency Response (ref. 1 kHz)

10 Hz … 21 kHz (±1 dB)

Input Impedance  (Active Balanced)

20 kΩ

Dimensions (W x H x D)

483 mm x 88 mm x 462.4 mm

Weight

16.2 kg (35.7lbs)

Signal Processing

FIR Filters, Audio Limiters, Output delay per channel, 31 band GEQ per channel, PEQ per channel, Load impedance

Optional

PC remote control software
