Waves System AP420 Wifi | Audio Player & Broadcaster | Wi-Fi connectivity | Built-in scheduler | USB & MicroSD card input | Remote configuration & monitoring | Pro audio quality DAC

The Waves System AP420 Wifi audio player offers endless automated audio streaming possibilities. This version of the AP420 has Wi-Fi connectivity enabling it to be located where there may not be a hard-wired network point.

Whether you have one location or multiple sites, it’s ideal for broadcasting your webradio, playlists or commercial messages. The built-in scheduler enables your background music, store information or promotional messaging to play at just the right time.

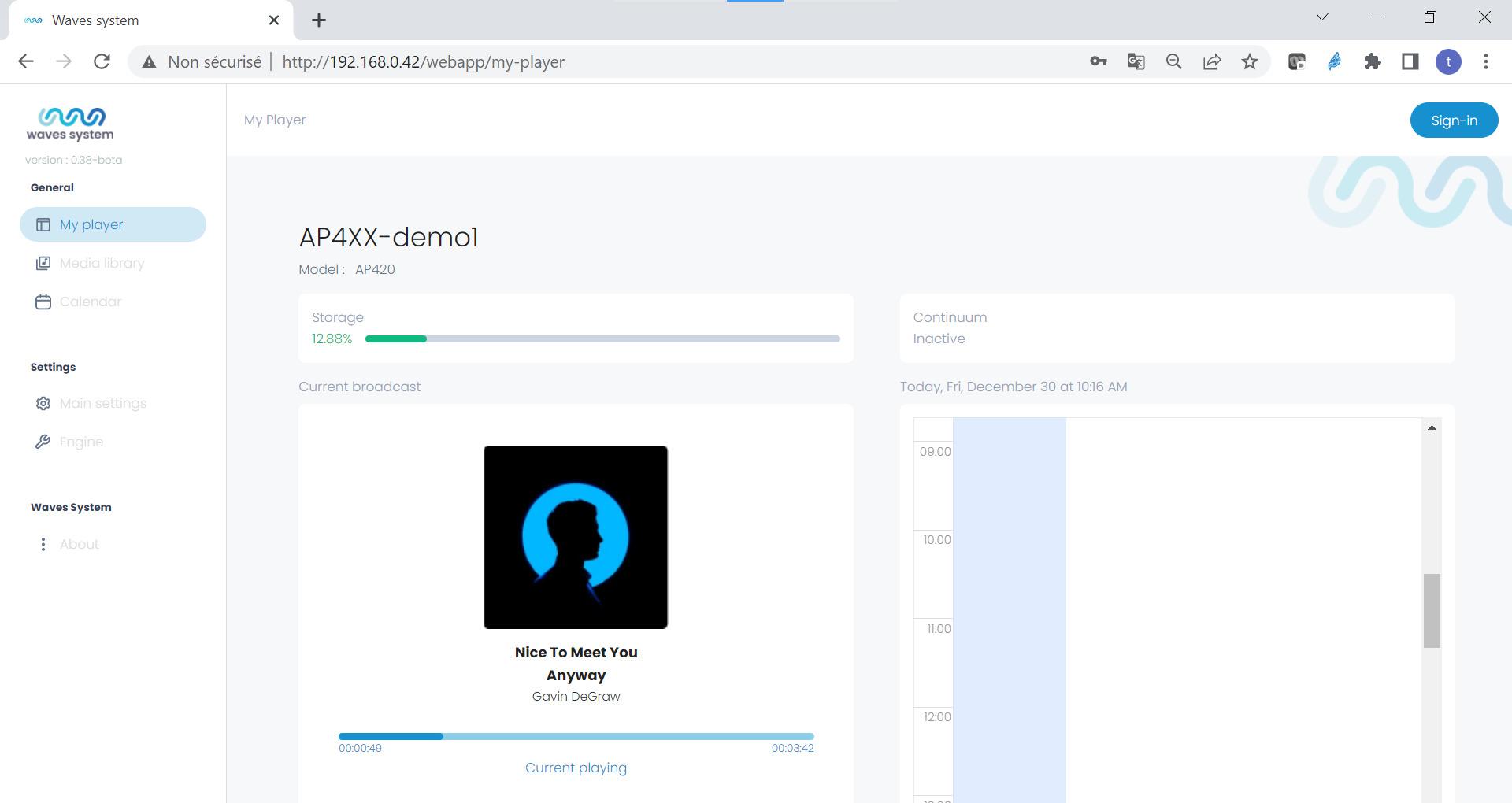

Audio playlists can be configured & monitored remotely via ‘Wavespark’ using the Ethernet port or over Wi-Fi. The AP420 Wifi also supports streaming via Icecast or Shoutcast or local playback via USB input or MicroSD card.

In addition to accepting files on USB & MicroSD cards, the AP420 Wifi has 4Gb memory built in. This can be extended to 64Gb with the optional memory extension - see AP420-64EXT in related products.

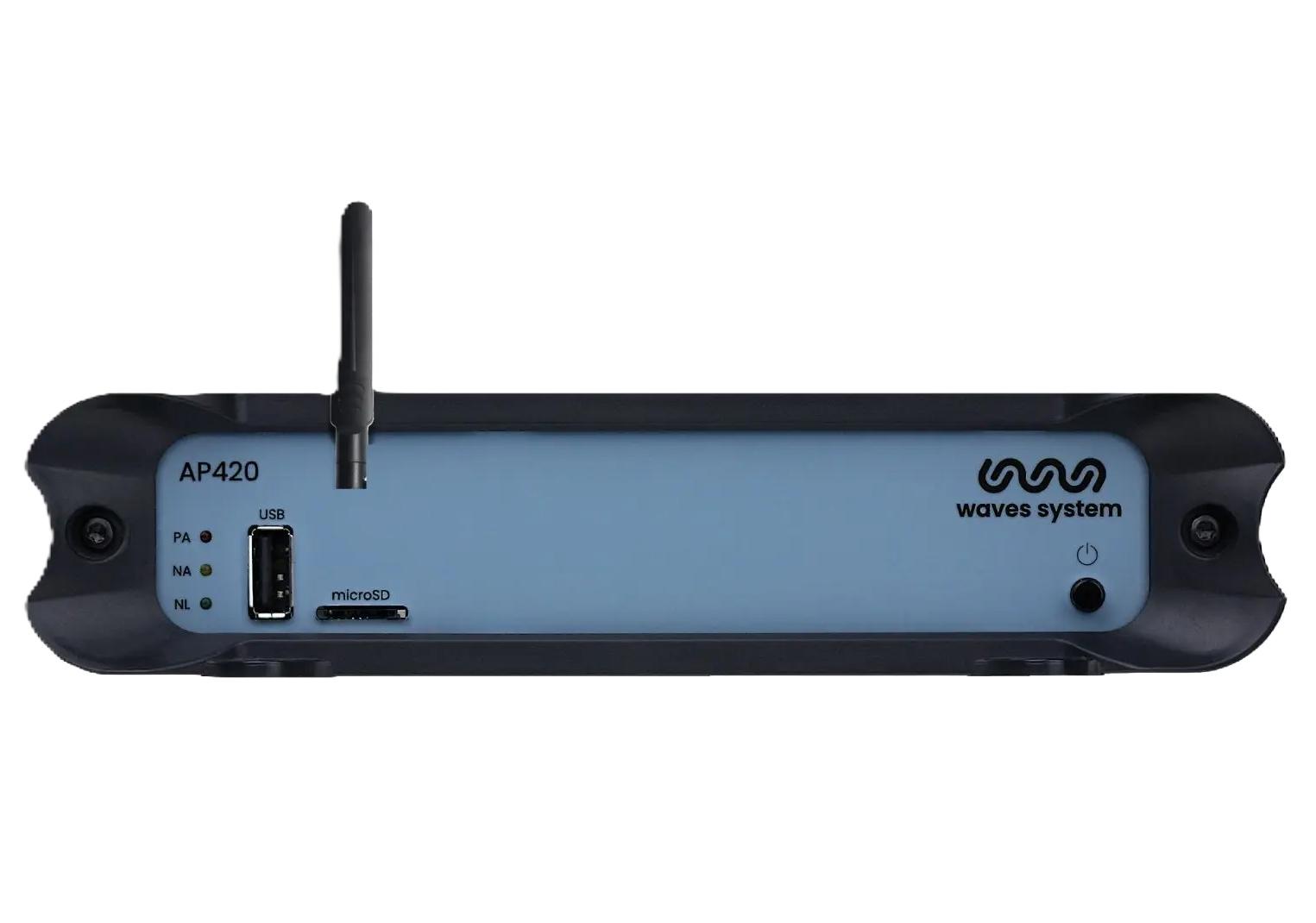

Control is possible via the front panel or your mobile.

The exceptional pro audio quality DAC ensures the best performance and audibility.
The ‘Continuum’ feature facilitates a 24/7 secured broadcast, switching seamlessly to local input if the internet signal is lost.

A single input contact and 2 relay outputs enable connection to an external trigger and devices.

• Built-in Wi-Fi connection, no USB accessories / dongles required.
• Ideal for spaces without network cabling: restaurants, hotels, shops, showrooms.
• Stream and automate your audio: local playlists, web radio, NAS, all managed remotely.

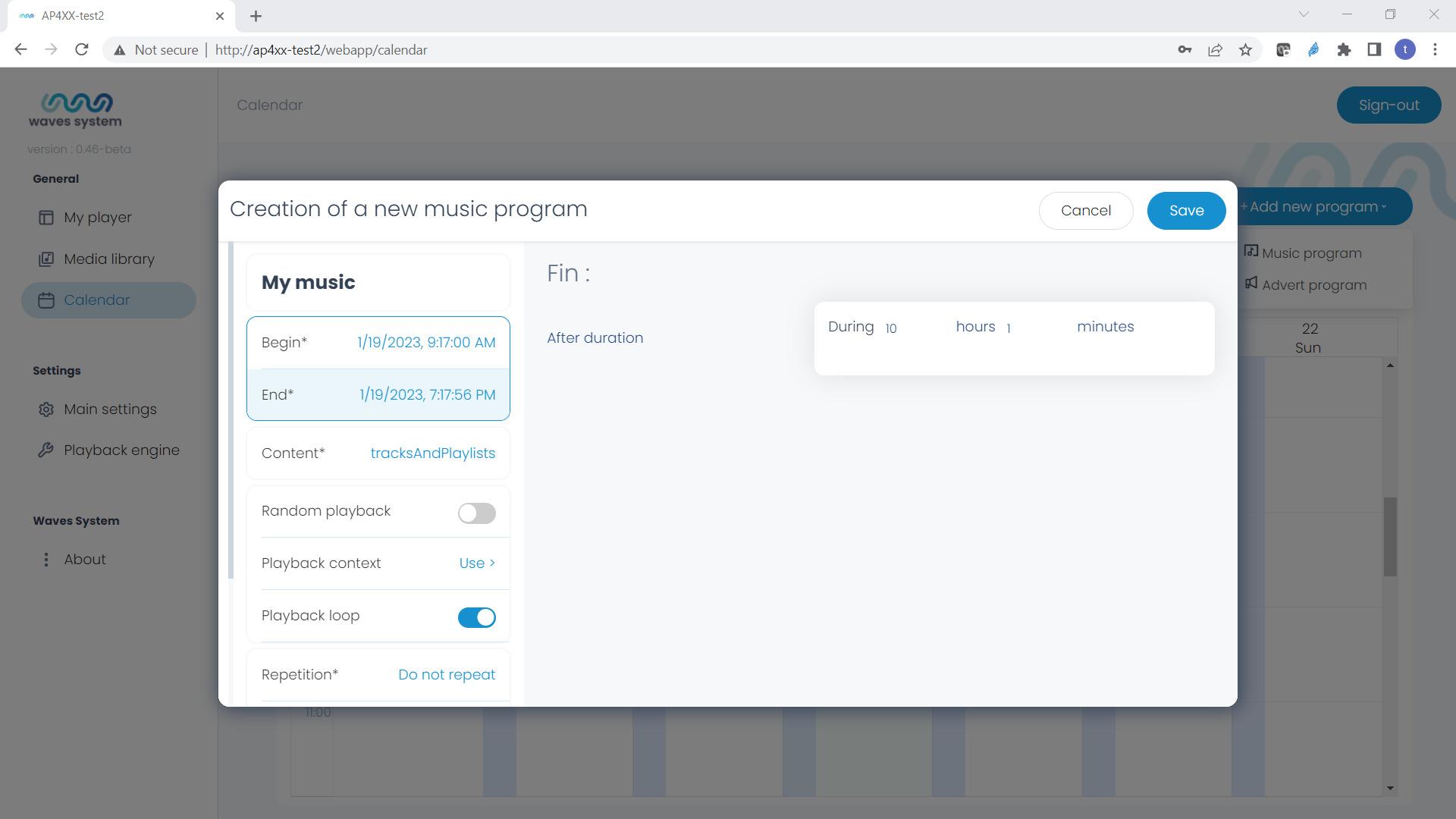

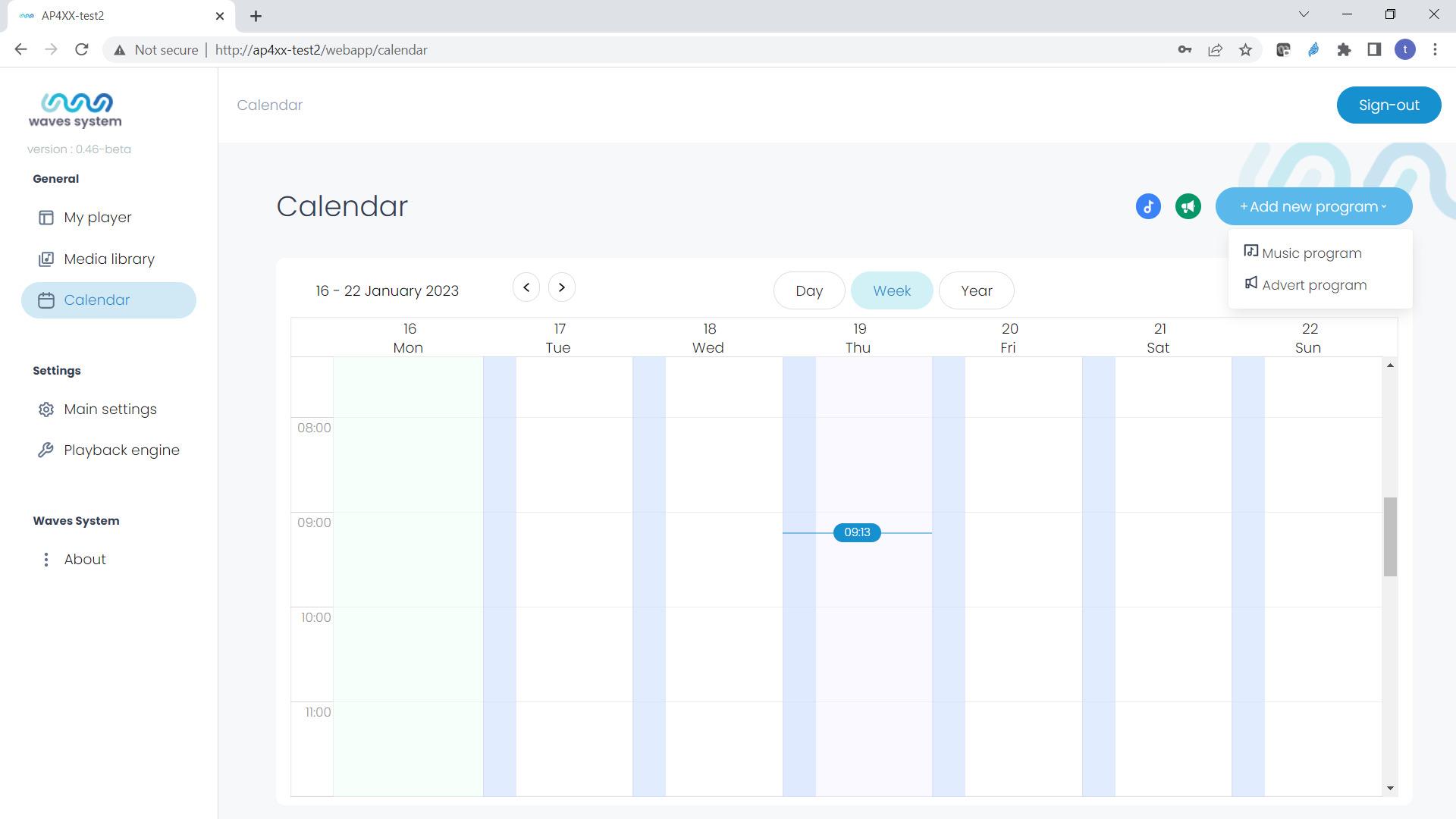

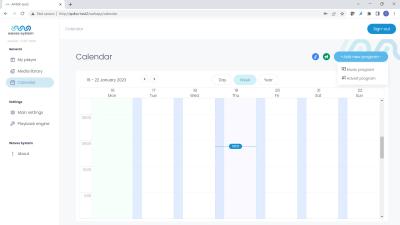

• Automate your announcements and ads with an intuitive scheduling system.
• Guaranteed 24/7 streaming: real-time monitoring and automatic failover to backup content.
• Standby / Power multi purpose switch
• Status LEDs (Network, Activity)
• 4Gb internal memory, extendable to 64Gb with optional card
• MicroSD card slot

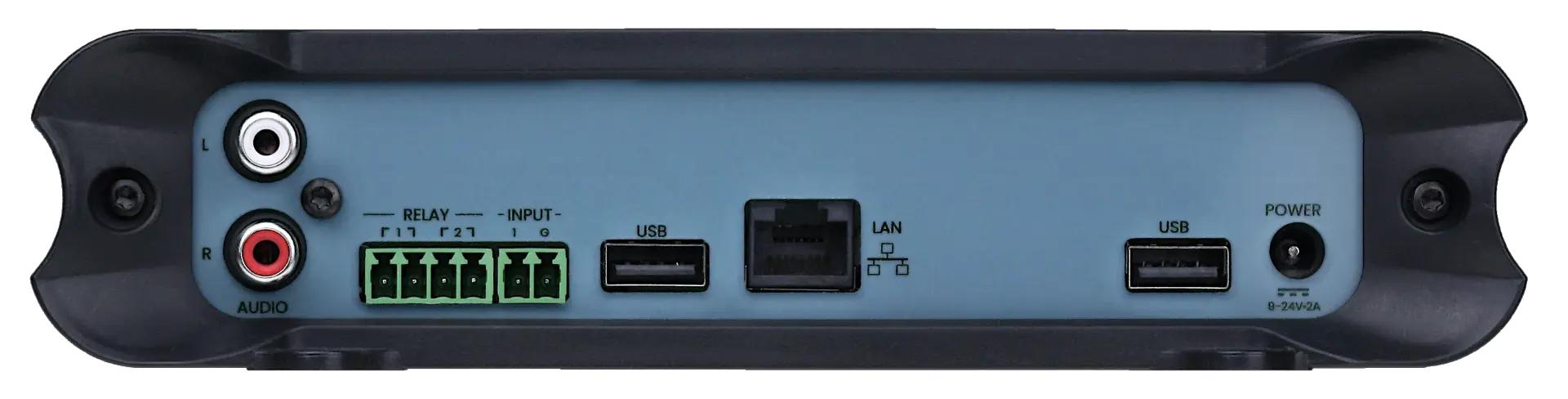

• Unbalanced line-level stereo audio output on standard RCA connectors (configurable level -10 dBv to +4 dBu)
• 10/100 Mb Ethernet on RJ45 connector
• 3 x USB Host 2.0 High Speed (480 Mb/s), type-A receptacle
• 1 input contact on 3.81 mm pluggable terminal block
• 2 MOSFET relays (normally open - 2A per output, max 24 V) on 3.81 mm pluggable terminal block
• Warranty: 3 Years
