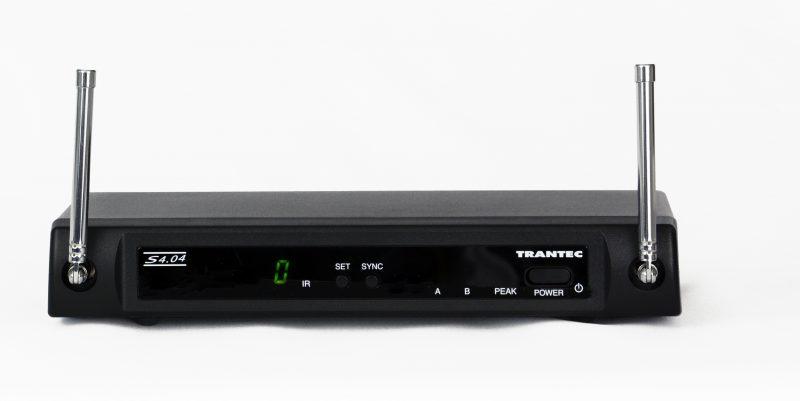

The Trantec S4.04-HD-EB GD5 UHF hand held radio mic system consists of the Trantec S4.04-RX-EB UHF wireless receiver and a Trantec S4.04-HDX-EB hand held wireless mic transmitter.
Four selectable frequencies are available on Channel 70 - licence free.
A compander circuit minimises the effect of ambient noise.
A single AA battery can power the transmitter for up to 10 hours.
| Specifications | |
|---|---|
| Receiver | |
| Diversity Reception | Antenna Diversity |
| Sensitivity | 10uV at 45dBA, S/N |
| Squelch | Tone SQ, Carrier SQ, Noise SQ |
| Audio Frequency Response | 50Hz – 15kHz |
| Audio Output Level (Max.) | Balanced (XLR socket): -20dBu, Unbalanced(1/4″ jack socket): 10dBu |
| Power Supply | 12 VDC 500mA |
| Dimensions | 215(W) x 39(H) x 102(D)mm |
| Weight | 480g |
| Handheld Transmitter | |
| RF Carrier Power | 10 mW |
| Audio Frequency Response | 80 Hz – 15kHz |
| Audio Input Level | 140 dSBPL (maximum) |
| Battery Life | Approx. 10 hours |
| Power Supply | 1 AA size battery, 1.5V |
| Finish | Resin, Coating |
| Dimensions | 250 x 55mm |
| Weight | 245g with battery |
