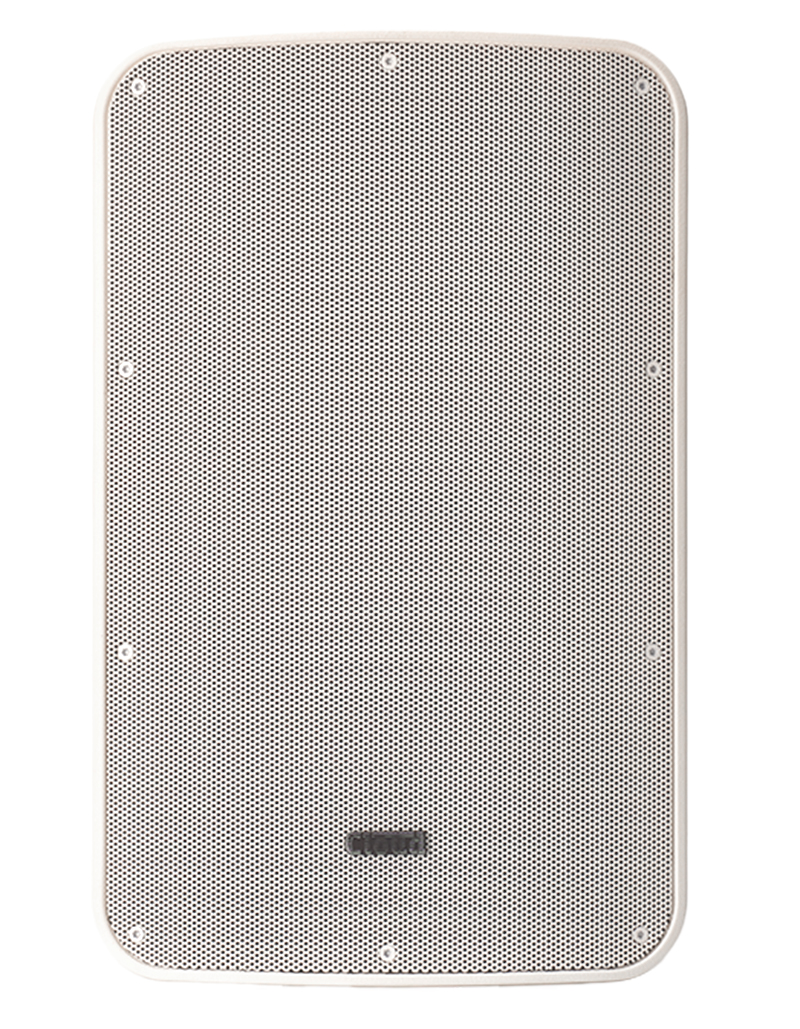

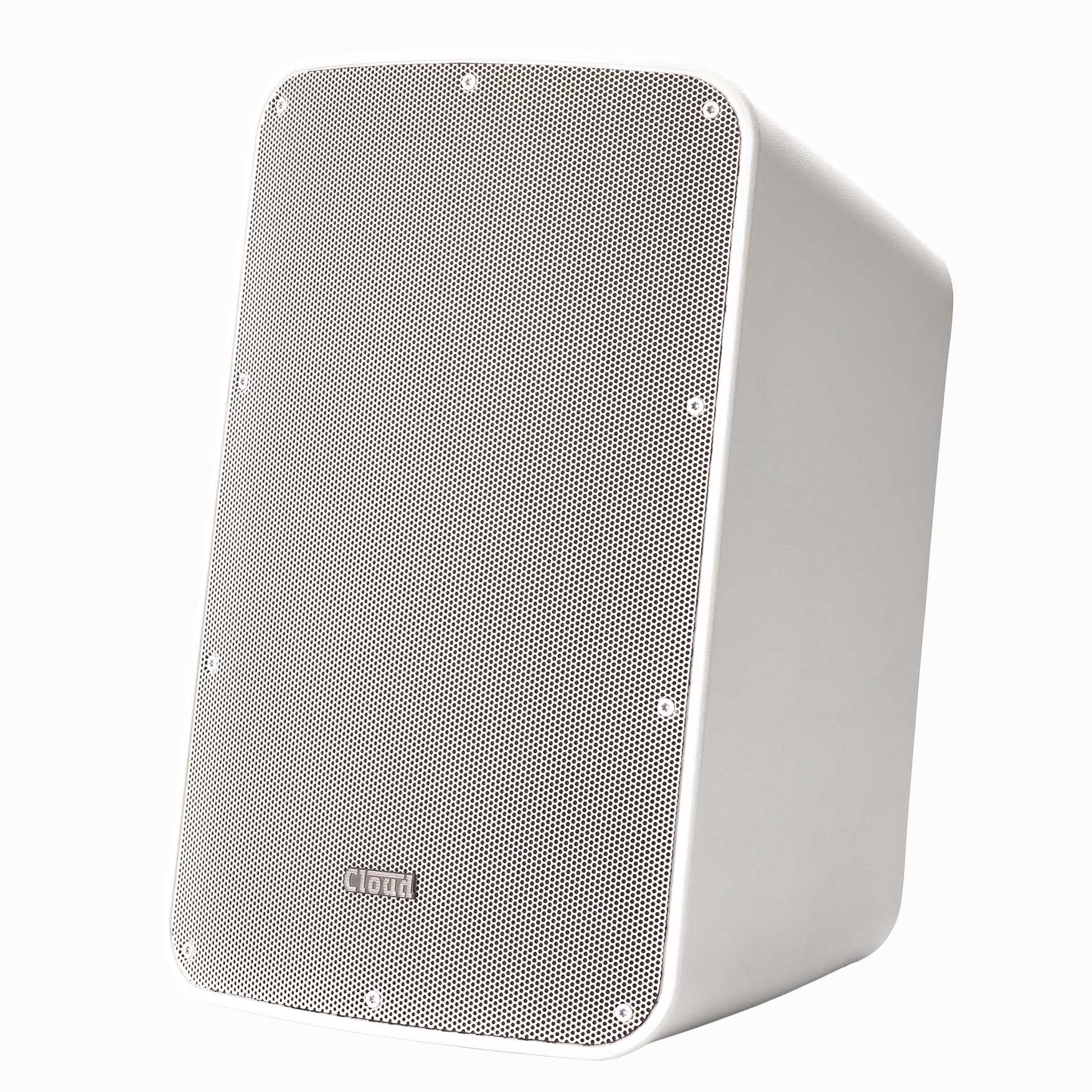

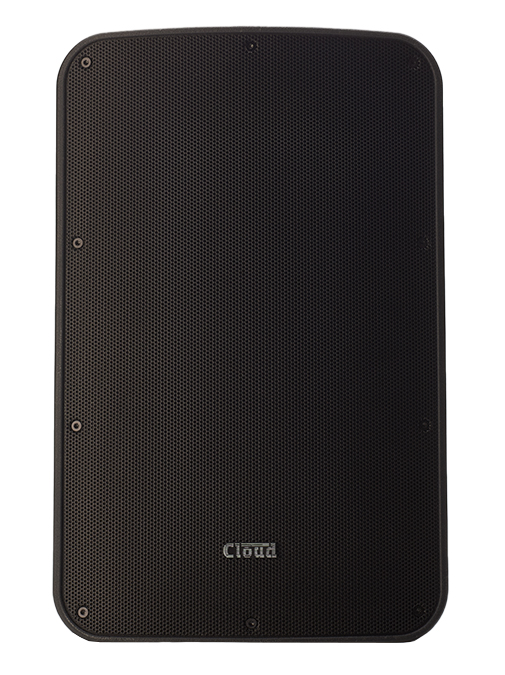

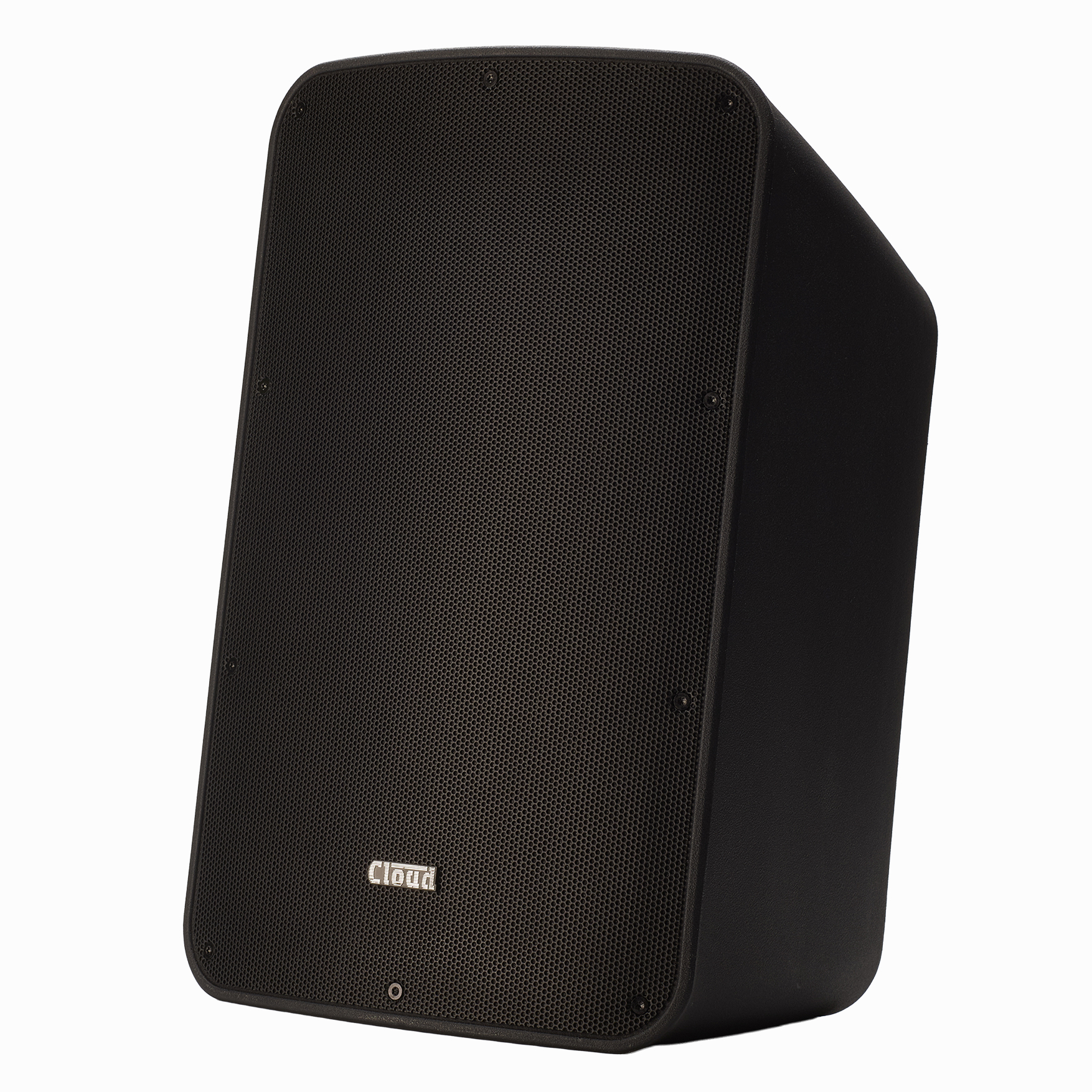

Cloud Electronics CS-S8AW / CS-S8AB
The Cloud CS-S8A is an active 8”, 2-way cabinet loudspeaker, rated 200 Watts, with a built-in, mains-powered, Class D two-channel amplifier with integral DSP to perform crossover and EQ functions.
Brand new - expected Mid September 2025. Please call for up to date ETA.

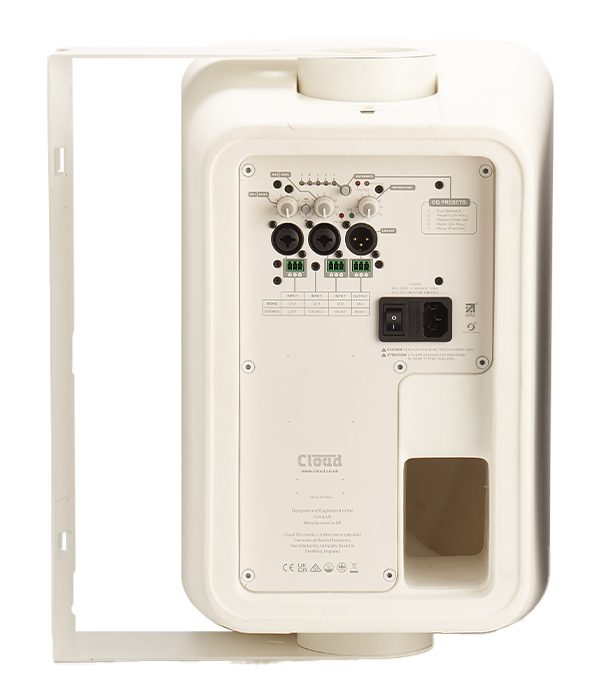

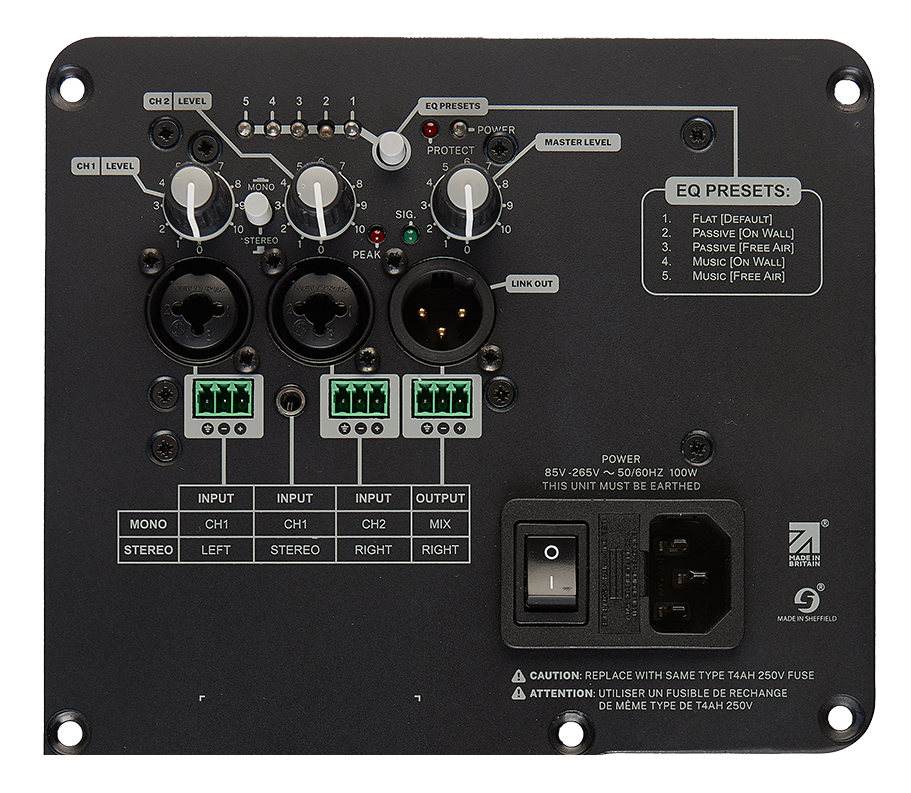

On the rear of the speaker there are two balanced analogue inputs for mic or line signals, a range of user-selectable presets to optimise the frequency response for the room and programme material in use, level control and a link output for connection to further loudspeakers as well as enabling mono/stereo operation.
Stereo or mono mode is selected with a push button: in mono mode, Channels 1 and 2 are mixed and sent to the link output as well as the internal amplifier. In stereo mode, only Channel 1 is fed to the amplifier; Channel 2 is routed to the link output (at line level) for connection to another loudspeaker.
The 8” coaxial speaker uses a 1” diameter HF compression driver mounted within an 8” diameter treated paper LF driver with a treated cloth surround.
Music quality is loud and punchy with high SPL, smooth frequency response, low distortion, and excellent LF and off-axis performance. The excellent acoustic performance makes the CS-S8 ideal for foreground music in gyms, bars and restaurants.

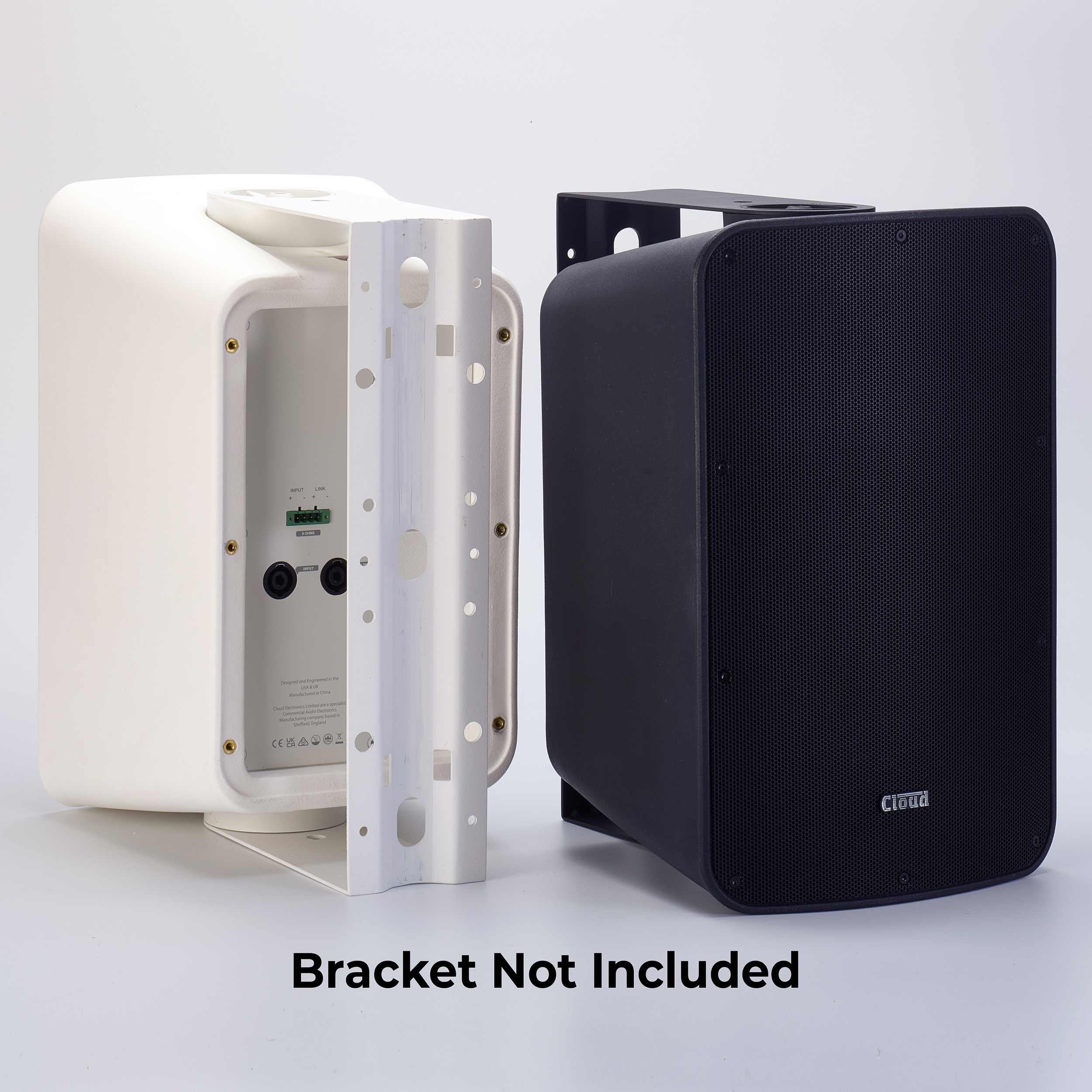

A powder coated steel wall mounting bracket is available separately for either vertical or horizontal mounting. The bracket design includes provision for cable management and it can also be fitted to lighting truss poles or similar. See Related Products.
The Cloud CS-S8A surface mounted cabinet speaker is part of the CS-S series which comprises 8”, 10” and 12” loudspeakers in a choice of low impedance, dual impedance (70V/100V + 8 Ohm), active or active with Dante models. See Related Products.
- Premium drivers for exceptional sound quality and intelligibility
- Coaxial drivers give optimal off axis performance
- High SPL and excellent LF response
- Internal Class D amplifier with DSP
- Bi-amped via DSP-configured crossover
- Amplifier protection against over-temperature and output DC, HF or over-current
- Mains powered via IEC connector
- Two balanced analogue mic/line inputs (Neutrik® Combo XLR/TRS jack and 3-pin Euroblock)
- Dynamic microphones may be connected directly to the inputs
- Additional stereo line input on 3.5 mm TRS jack socket
- Per-input level controls
- Master level control
- Balanced line output (XLR and 3-pin Euroblock) for linking to further loudspeakers
- Five EQ presets: optimise the speaker for different mounting situations and programme material
- Mono/stereo operation – R channel is routed to link output for stereo/different programme use
- LEDs for Power, Signal presence, Peak, Protect and EQ selection
- Designed to be mounted vertically or horizontally
- Corrosion-resistant steel grille
- Optional corrosion-resistant mounting bracket suits either orientation
- Available in Black (CS-S8AB) or White (CS-S8AW).
- Warranty: 5 Years
Sold & priced individually.
 |
