LD Systems VIBZ 6 D

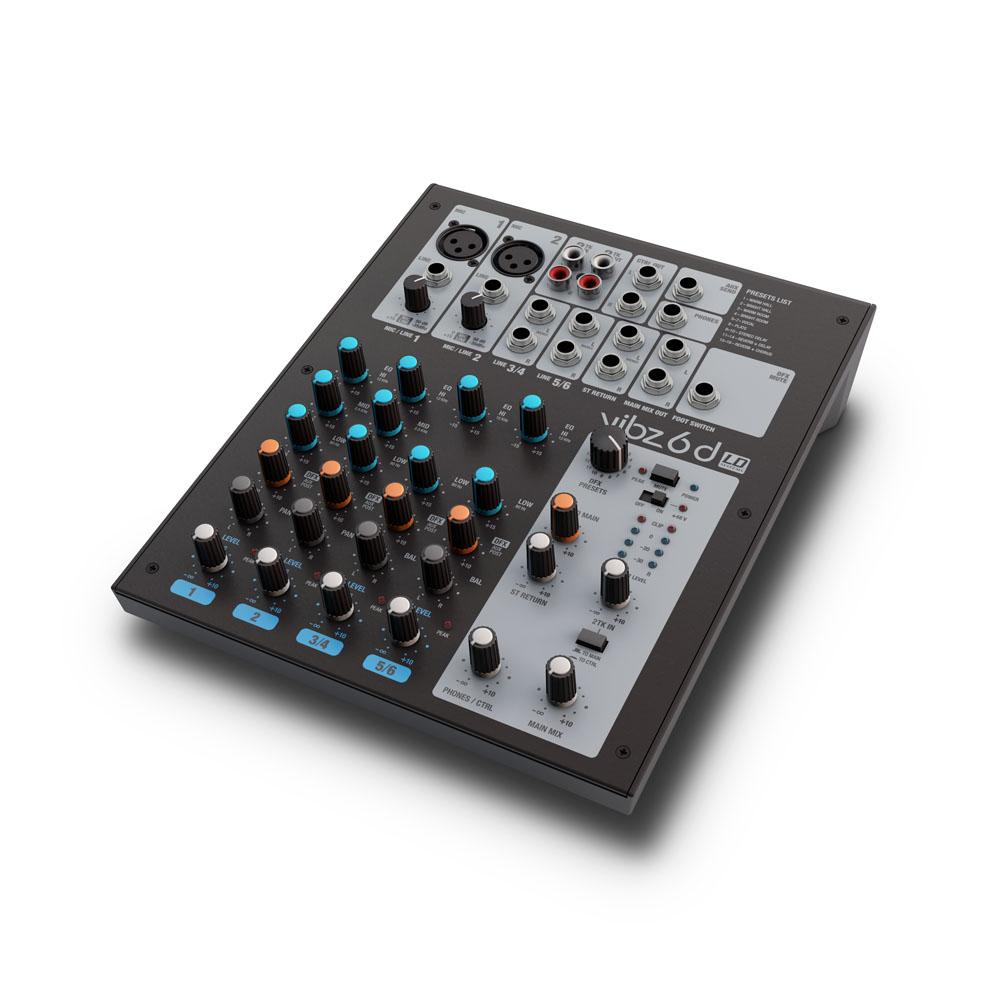

The LD Systems VIBZ 6 D is a compact 6-channel mixer with DFX featuring two balanced microphone inputs with high quality preamps, phantom power and 3-band EQ with +/-15 dB adjustment scope and two stereo line inputs with 2-band EQ, which are mono-compatible.

Ideal for entertainers, small bands, home recording and installations.

The master section of the LDVIBZ6D equipped with adjustable monitor outputs, a headphone jack and 16 digital effects presets, which are foot-switchable.

The mixer also has inputs and outputs for recording and playback devices, is extremely easy to use and offers a warm differentiated sound. The external power supply can be screwed on tightly.

The VIBZ 6 D can be mounted on a microphone stand using the LDVIBZMSADAPTOR which is available separately.

  • 6-channel mixer with 16 digital effects
  • 2 microphone channels with 3-band EQ
  • 2 mono-compatible stereo line channels with 2-band EQ
  • Master, Monitor and headphone outputs
  • Securely fastening external power supply
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Channels

6

Mono Channels:



Mono Mic and Line Input Channels

2

Mono Mic input connectors

6.3 mm TRS, XLR

Mono Mic Input Type

Electronically balanced

Mono Channel Equalizer High

+/- 15 dB @ 12000 Hz

Mono Channel Equalizer Mid

+/- 15 dB @ 2500 Hz

Mono Channel Equalizer Low

+/- 15 dB @ 80 Hz

Controls Mono Mic and Line Input Channels

Gain, Channel Volume, pan, AUX Post, 3-band EQ (High, Mid, Low)

Phantom power

48 V DC switchable

Stereo Channels:



Stereo Line Input Channels

2

Stereo Line Input Connectors

6.3 mm TS

Stereo Line Input Type

Unbalanced

Controls Stereo Line Input Channels

Balance, Channel Volume, AUX (DFX) Post, 2-band EQ (High,Low)

Main Section:



AUX / Effects Send Channels

1 x 6.3 mm stereo jack unbalanced

Stereo AUX Return Channels

1 x stereo: 2 x 6.3 mm TRS

Stereo Tape Out Channel

1 x stereo: 2 x RCA (Cinch)

Stereo Tape In Channel

1 x stereo: 2 x RCA (Cinch)

Unbalanced stereo Main Outputs

1 x 6.3 mm TRS

Stereo Control Room Out

1 x 6.3 mm stereo jack unbalanced

Headphones output

1 x 6.3 mm TRS

Digital Effects Processor

Yes, 24-bit AD/DA Resolution

Number of Presets

16

Footswitch Connector DFX Mute

6.3 mm TRS

Main section controls

2-track Assignment (Main, Contr. Room), Phantom Power, DFX Mute Schalter, DFX Presets, DFX To Main Volume, Stereo Return Volume, Phones / Control Room Volume, Master Volume, 2-track In Volume

Indicators

Phantom Power, Channel Peak, Power, 4-segment Level Meter, DFX Peak / Mute

Power supply

230 V, 18V DC - 1 A, External PSU

Width x Height x Depth

209 mm x 68 mm x 260 mm

Weight

1.45 kg

DOWNLOADS

LD Systems VIBZ 6D User Manual (English)
