LD Systems VIBZ 8 DC
Click to expand

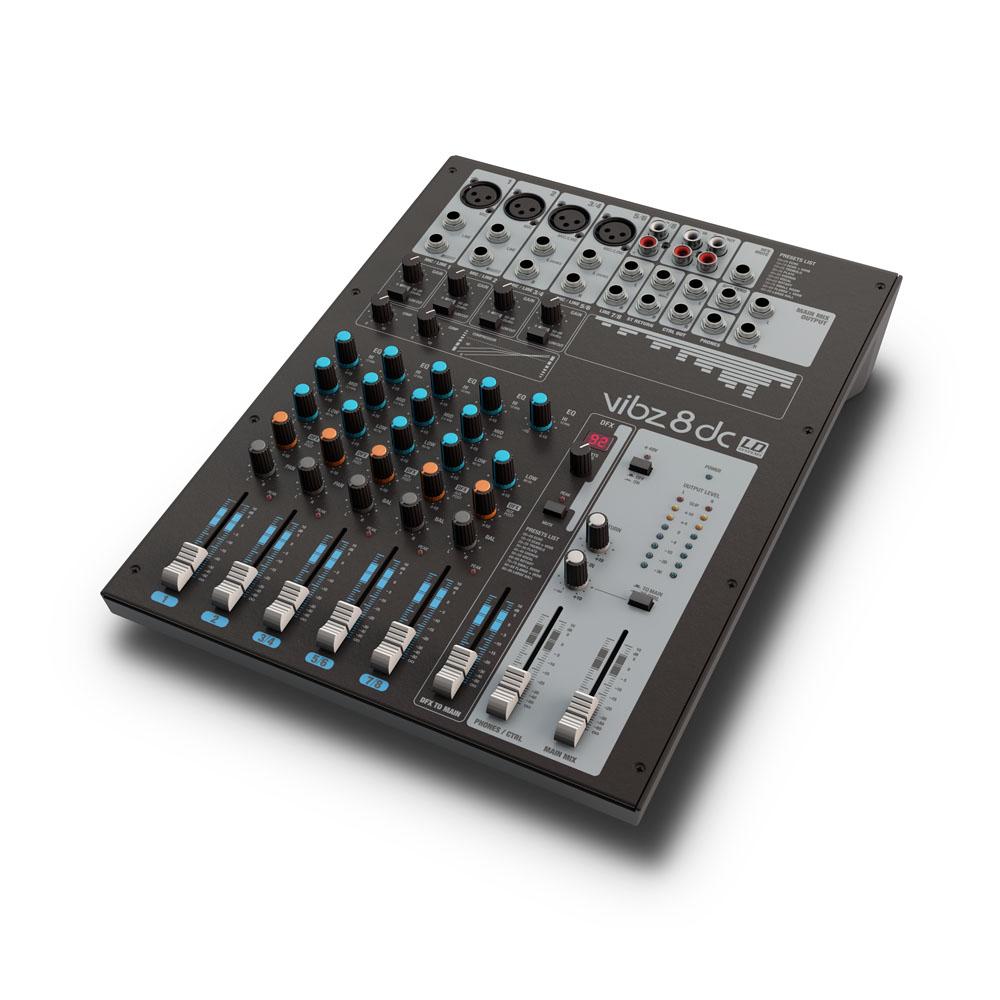

LD Systems VIBZ 8 DC

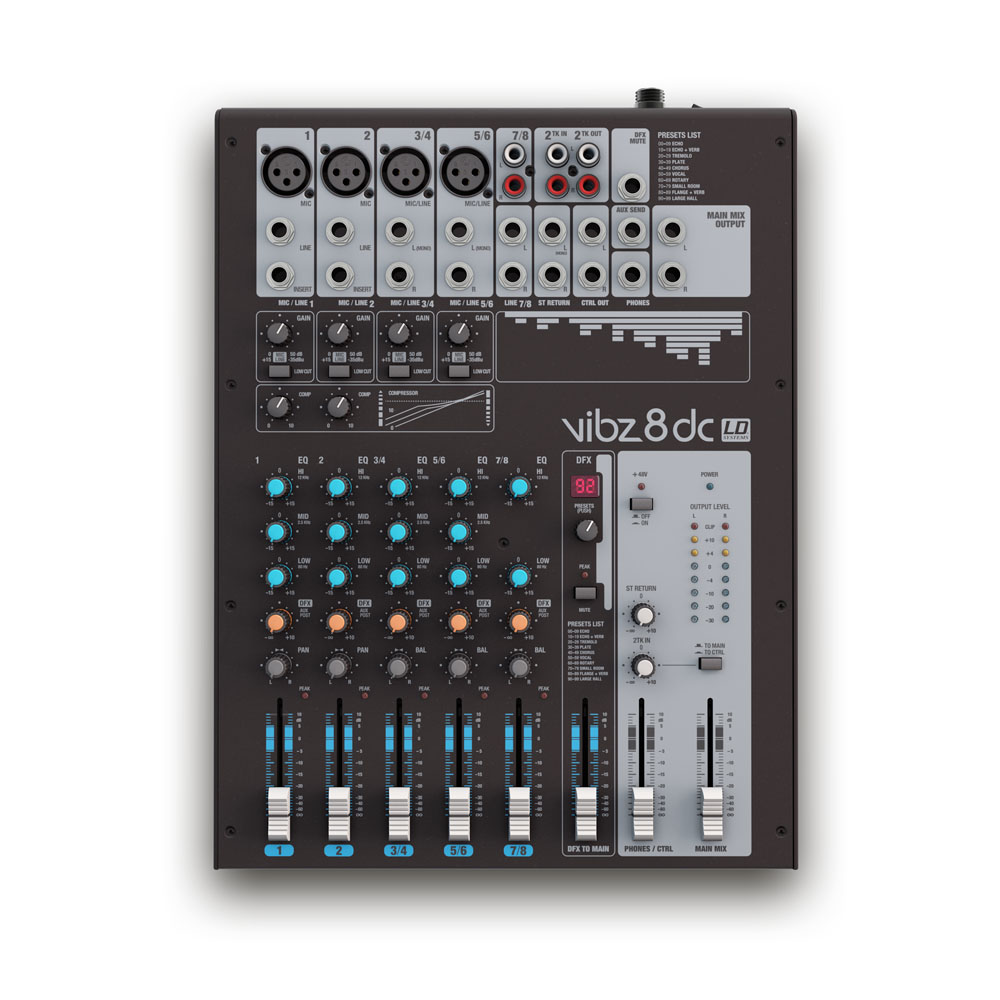

The LD Systems VIBZ 8 DC is a versatile 8 Channel Mixing Console with DFX and Compressor. Four balanced microphone inputs with high-quality preamplifiers, mono compatible stereo channels, an integrated compressor and 100 digital effects with 24-bit resolution turn the VIBZ 8 into a flexible sound control unit.

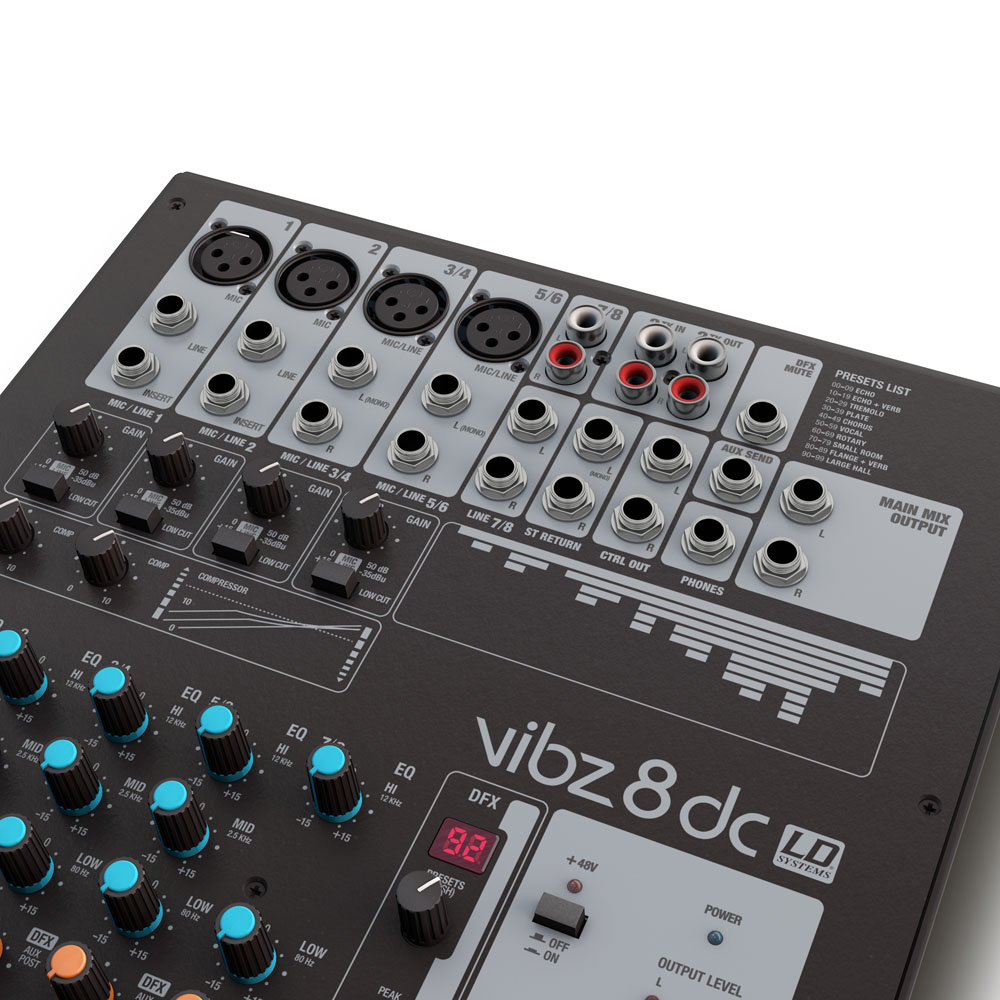

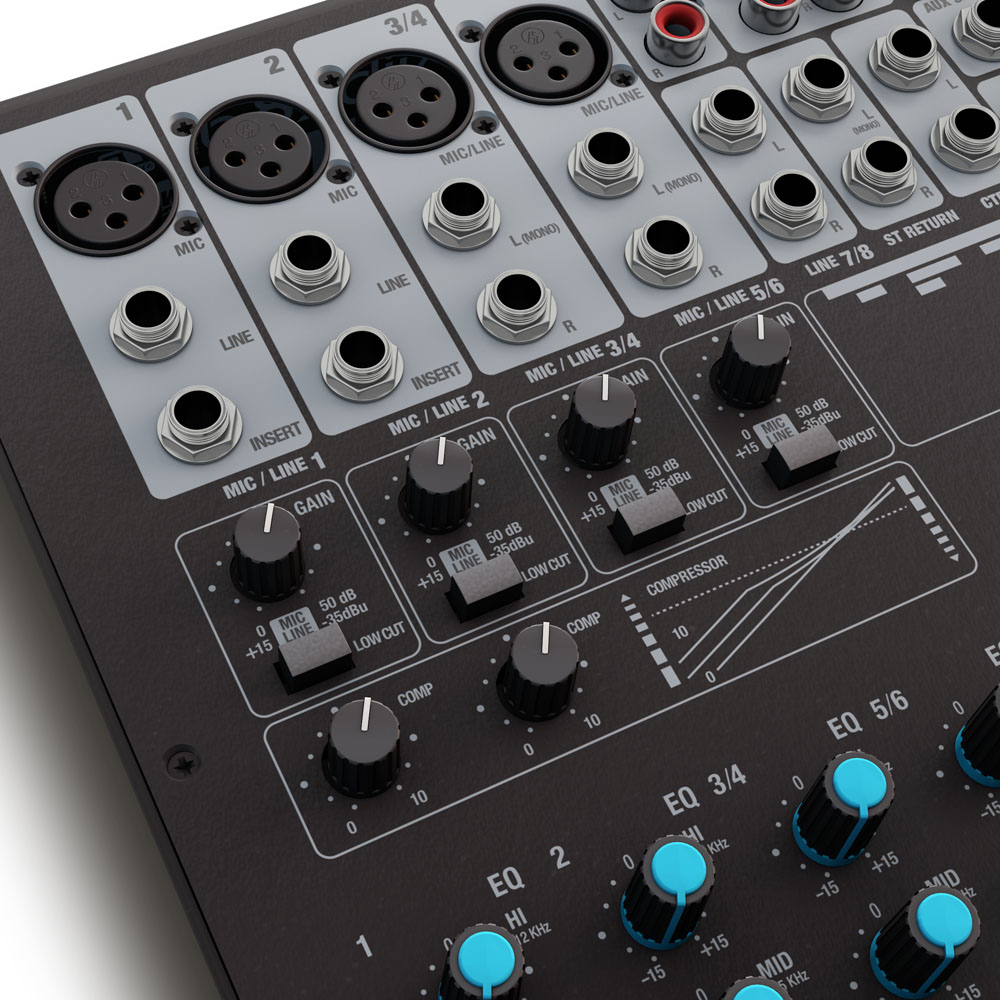

The microphone channels are switchable to line level and are equipped with high-quality preamplifiers and a reduction in bass; two of them also feature inserts for individual signal processing. For an effective sound adjustment, the LDVIBZ8DC
has very precise 3-band EQs with practical selectable mids.

The master section of the mixer features an effects loop, adjustable monitor outputs and a headphone jack. The VIBZ 8 also has inputs and outputs for recording and playback devices, is extremely easy to use and impresses with its transparent and detailed sound. It is ideal for small bands, installations, home recording, and for use as a sub-mixer.

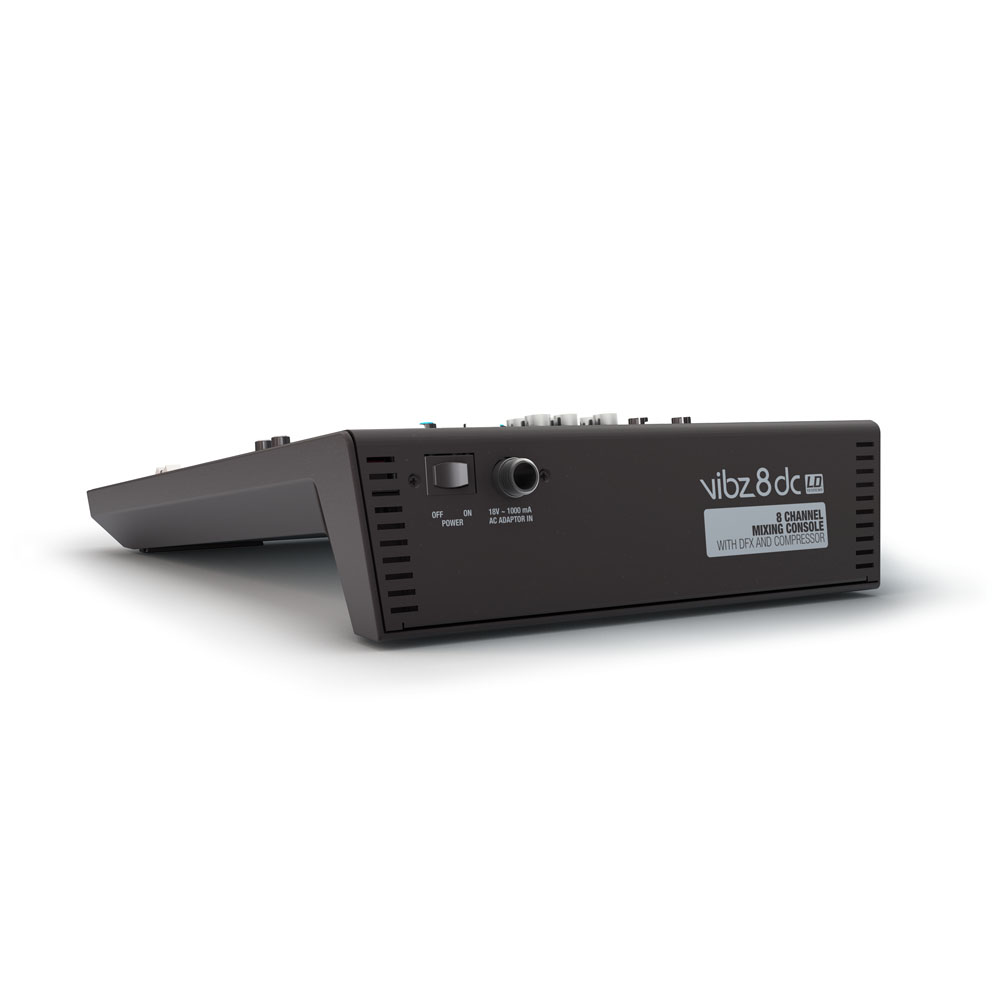

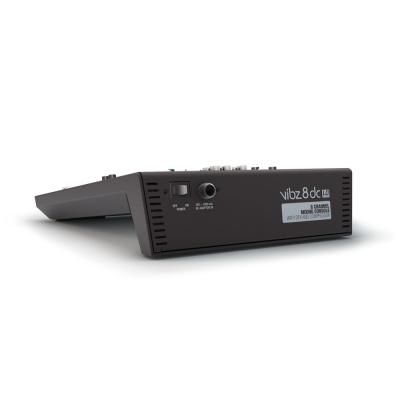

Supplied with an external power supply that can be tightly secured to the mixer.

A foot switch for the effects section and an adapter for mounting the VIBZ 8 on microphone stands (LDVIBZMSADAPTOR) are available separately.

  • 8-channel mixer with 100 digital effects presets
  • 4 microphone channels and 3 stereo line inputs
  • Effective 3-band EQ
  • Sliding adjustable compressor
  • Master, Monitor and headphone outputs
  • Securely fastening external power supply
  • Warranty: 2 Years
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Channels

8

Mono Channels:



Mono Mic and Line Input Channels

4 x 6.3 mm TRS, XLR

Channel Inserts

2 x 6.3 mm TRS

Mono Mic Input Type

Electronically balanced

Mono Line Input Type

Electronically balanced

Mono Channel Equalizer High

+/- 15 dB @ 12000 Hz

Mono Channel Equalizer Mid

+/- 15 dB @ 2500 Hz

Mono Channel Equalizer Low

+/- 15 dB @ 80 Hz

Controls Mono Mic and Line Input Channels

AUX (DFX) Post, pan, 3-band EQ (High, Mid, Low), Compressor (channel 1+2), Gain, Low Cut (75 Hz), Channel Volume

Phantom power

48 V DC switchable

Stereo Channels:



Stereo Line Input Channels

3 x 6.3 mm TRS

Stereo Line Input Type

Unbalanced

Stereo channel equalizer treble

+/- 15 dB @ 12000 Hz

Stereo channel equalizer mids

+/- 15 dB @ 2500 Hz

Stereo channel equalizer bass

+/- 15 dB @ 80 Hz

Controls Stereo Line Input Channels

Channel Volume, 2-band EQ (High,Low), AUX (DFX) Post, 3-band EQ (High, Mid, Low), Gain, Balance, Low Cut

Main Section:



AUX / Effects Send Channels

1 x 6.3 mm stereo jack unbalanced

Stereo AUX Return Channels

1 x stereo (2 x 6.3 mm TRS)

Stereo Tape Out Channel

1 x stereo (2 x RCA (Cinch))

Stereo Tape In Channel

1 x stereo (2 x RCA (Cinch))

Unbalanced stereo Main Outputs

1 x 6.3 mm TRS

Stereo Control Room Out

1 x 6.3 mm TRS

Headphones ouput

1 x 6.3 mm TRS

Digital Effects Processor

Yes, 24-bit AD/DA Resolution

Number of Presets

100

Footswitch Connector DFX Mute

6.3 mm TRS

Main section controls

Phantom Power, DFX Mute Schalter, Stereo Return Volume, Phones / Control Room Volume, Master Volume, DFX Presets, DFX To Main Volume

Indicators

8-segment Level Meter, Channel Peak, Power, Phantom Power, DFX Peak / Mute

Power supply

18V DC - 1 A, External PSU, 230 V

Width x Height x Depth

265 mm x 78 mm x 352 mm

Weight

2.3 kg
