LD Systems DQOR CB W
Click to expand

LD Systems DQOR CB W

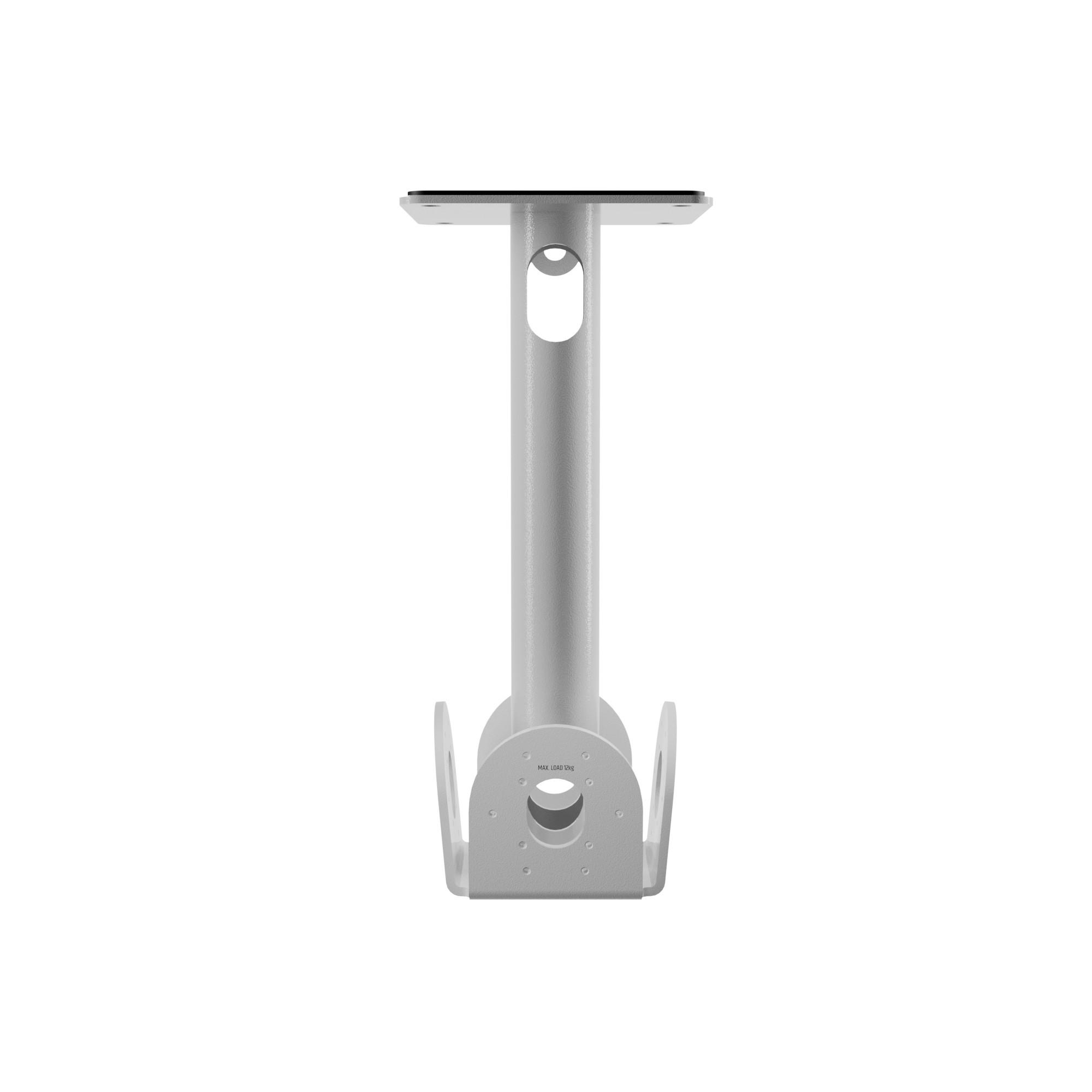

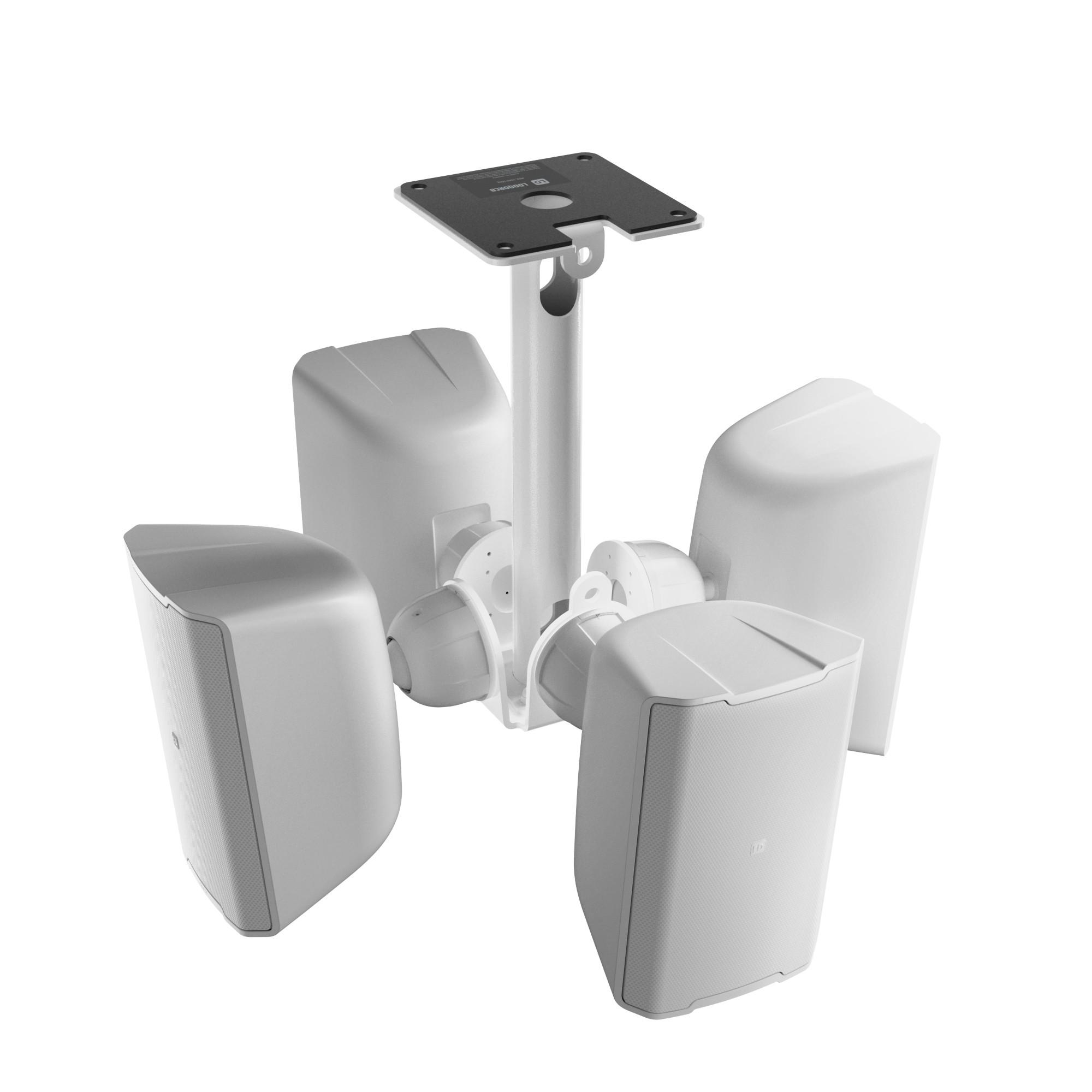

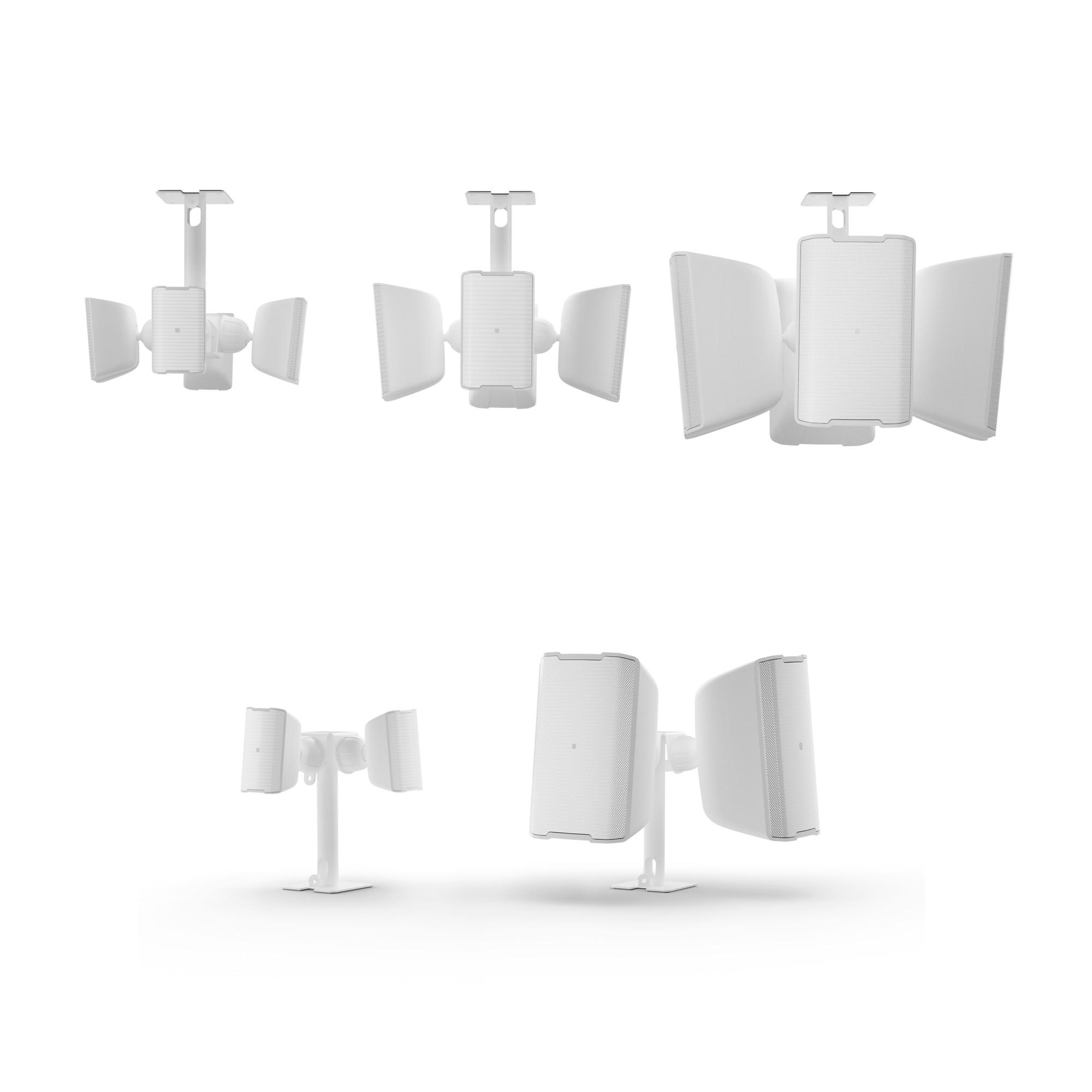

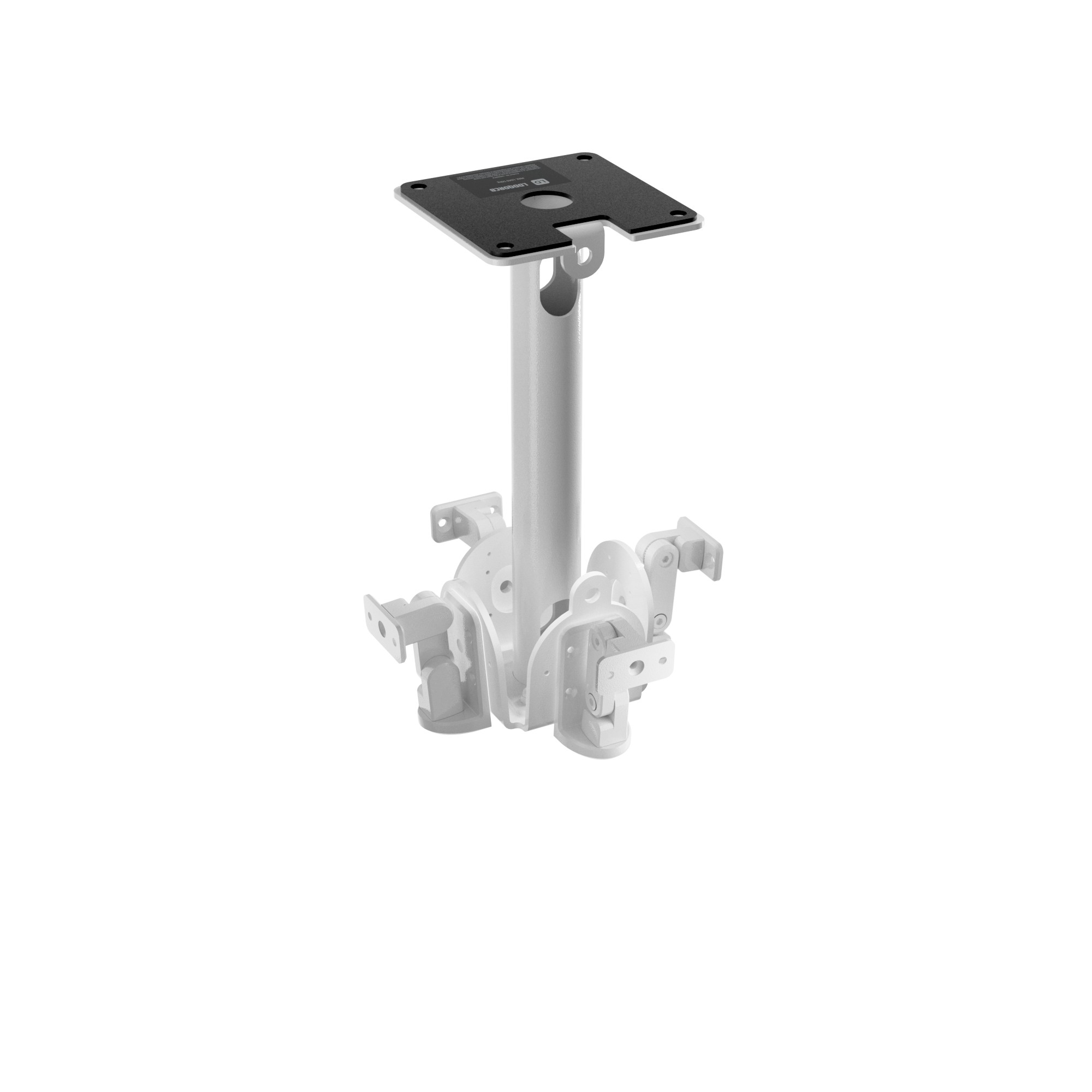

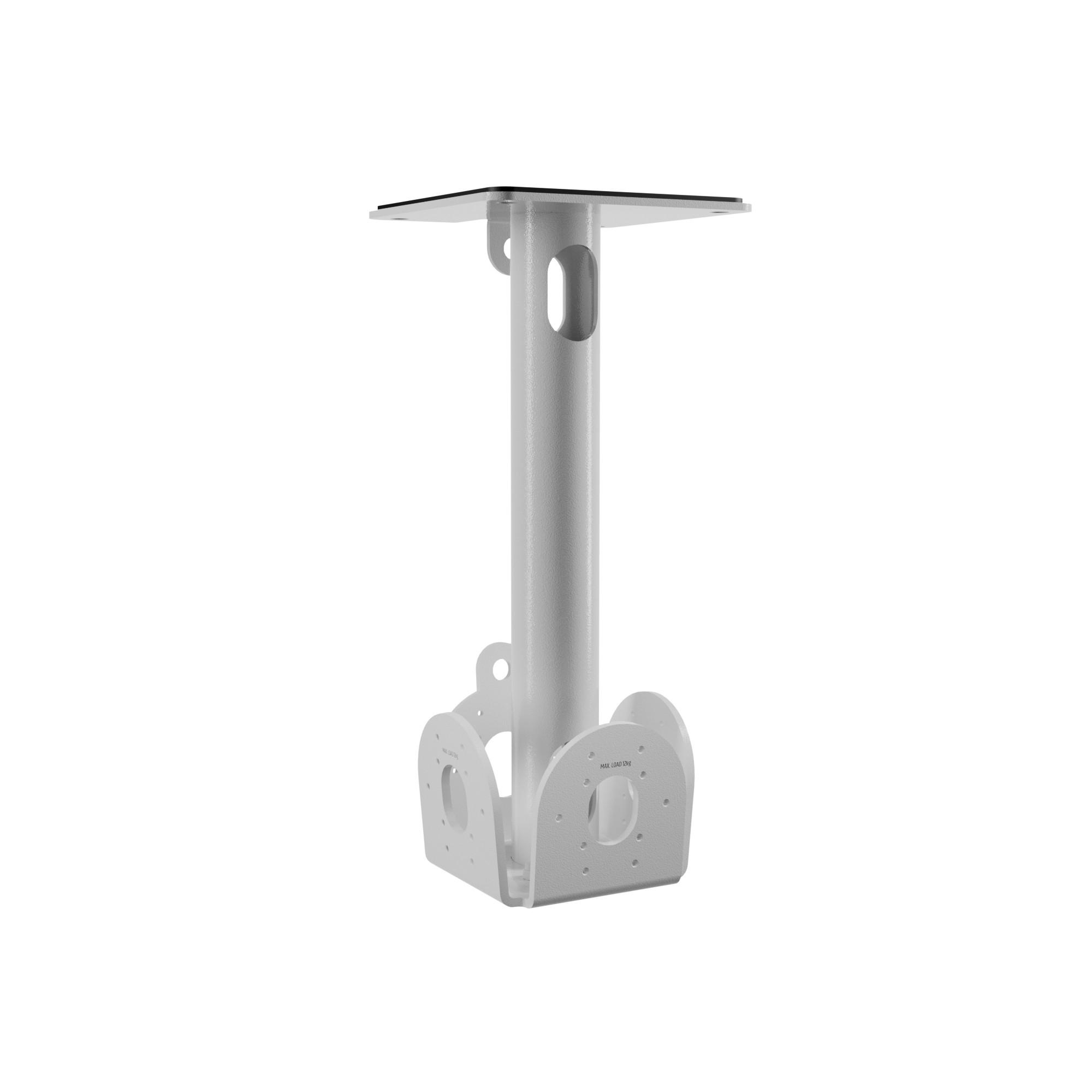

The LD Systems DQOR CB W mounting bracket, in white, enables cluster mounting of up to four white DQOR speakers for full 360 degree coverage. The DQORCBW is used in conjunction with the DQOR wall mounting bracket for flexible positioning.

This rugged, powder-coated steel bracket is available in black or white, and can be used on the ceiling or floor, indoors or outdoors.

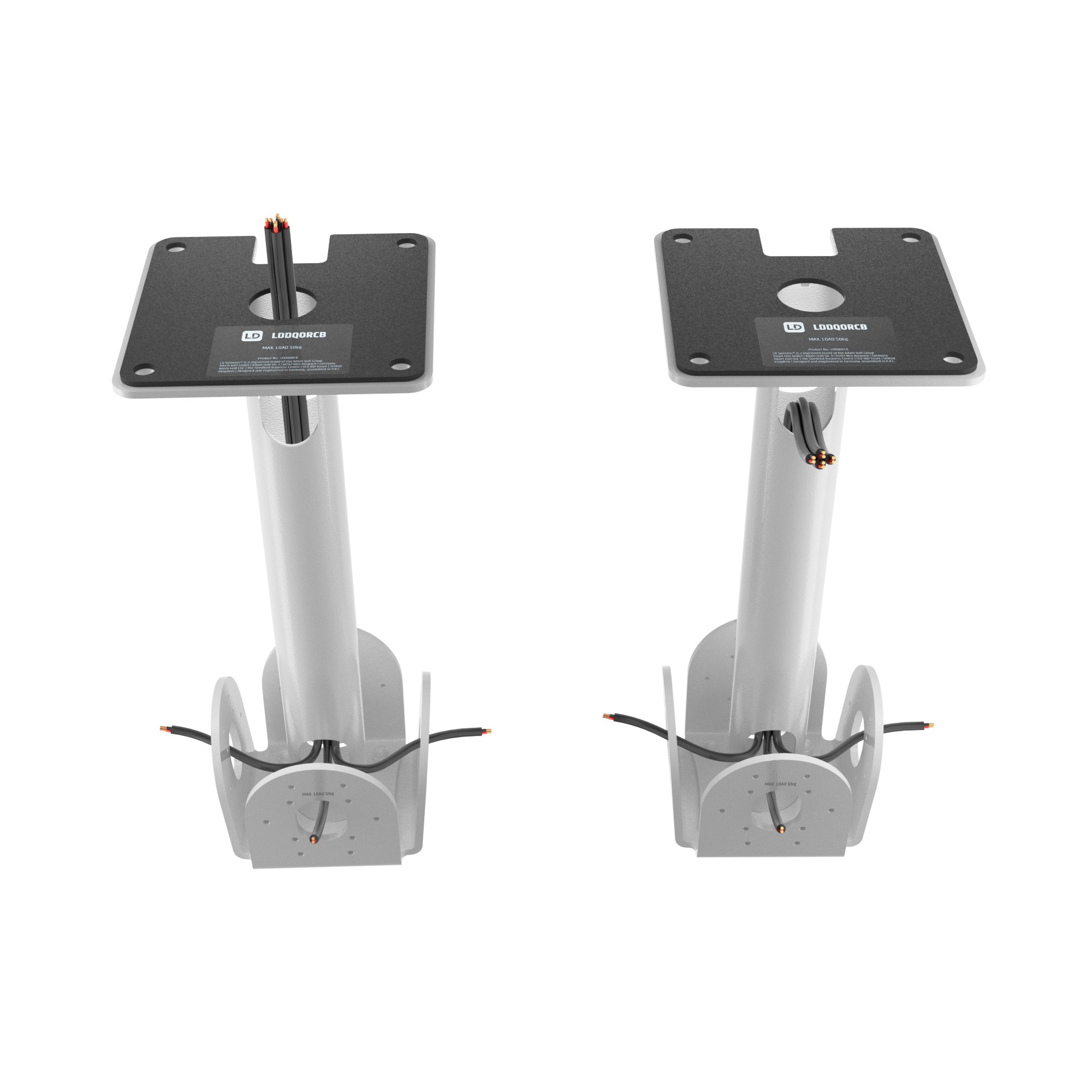

Internal cable routing provides a clean and elegant finish.

Two safety lugs to secure the mounted speakers.

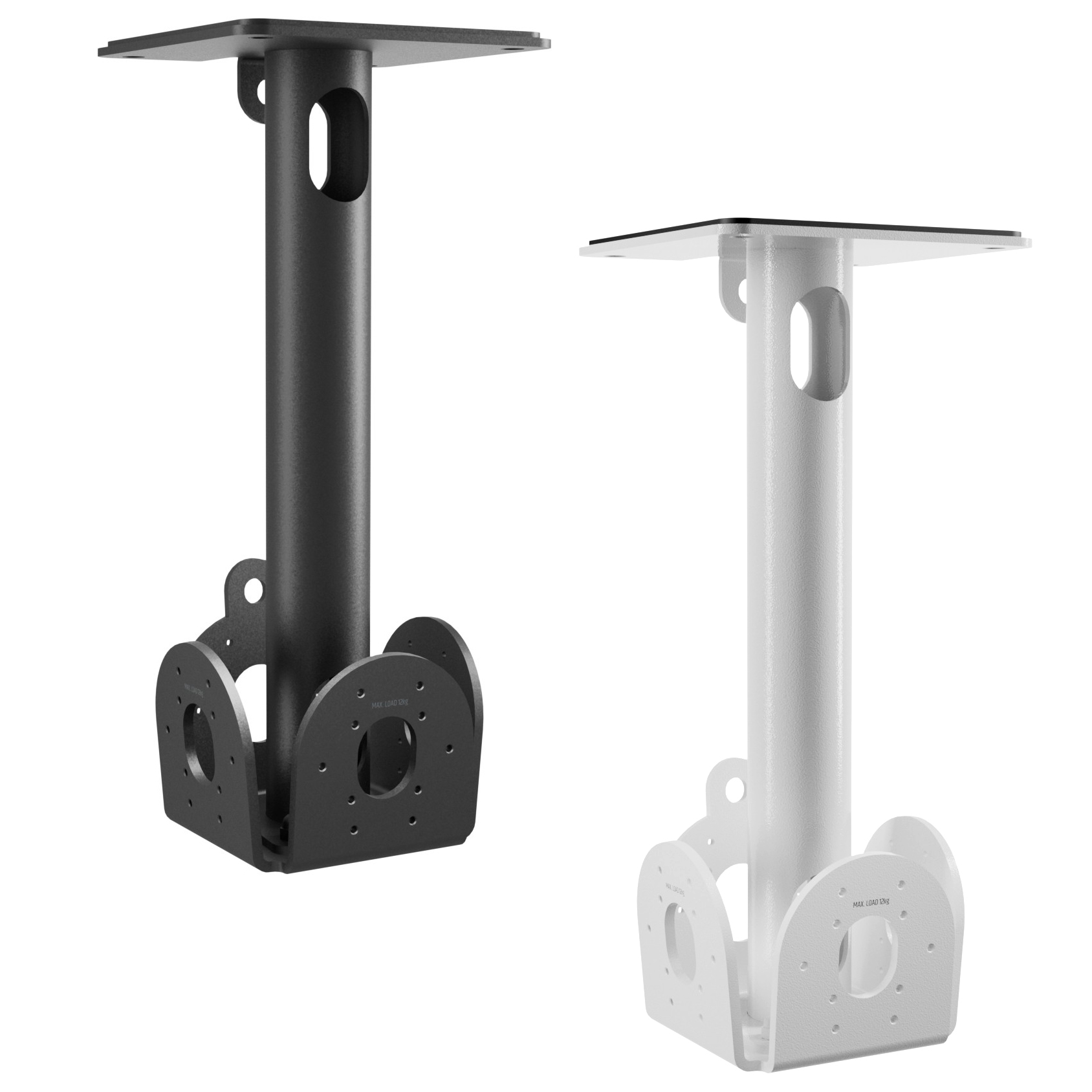

Available in black (LDDQORCB) or white (LDDQORCBW).

The mounting holes in the support plates are also compatible with the wall brackets for CURV500 WMB(W), LDSATWMB10(W/B) and SUWMB10(W/B).

Warranty: 5 Years

List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Product type

Cluster mount bracket for DQOR series

Material

Steel

Colour

Black or White

Surface

Powder-coated

Max. total load (centred)

50 kg

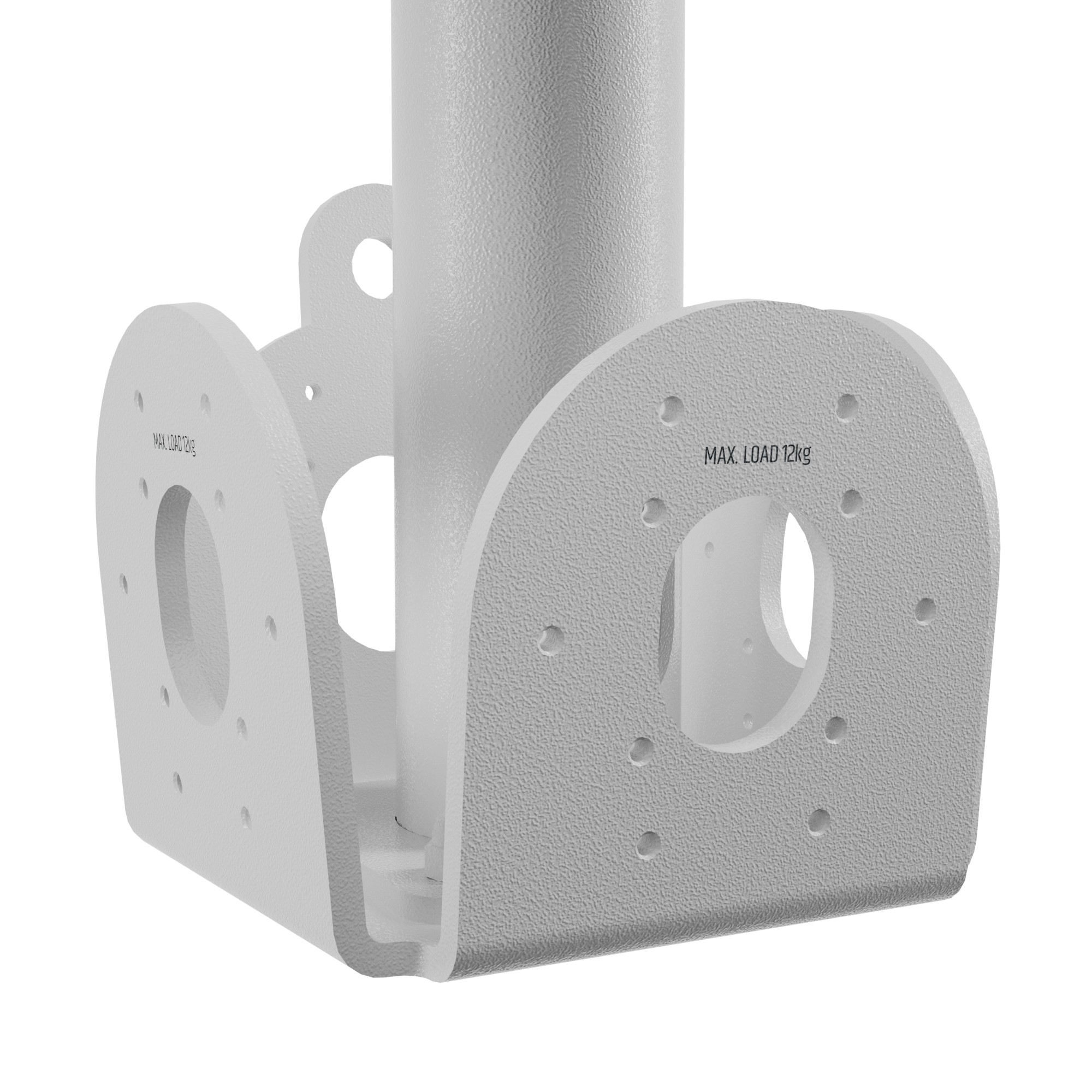

Max. load capacity per carrier plate

12 kg

Width

155 mm

Height

363 mm

Depth

155 mm

Weight

2.95 kg
