LD Systems DQOR 5W

The LD Systems LDDQOR 5W is a white, 2 way cabinet speaker with wide dispersion and balanced sound, offering 70W RMS output power. For use with low impedance audio circuits only.

Sold and priced per pair.

The LDDQOR5 is fitted with a 5” woofer and 1” HF driver. This compact model complements the 3” and 8” variants of the elegantly designed DQOR range for a cohesive appearance throughout your project.

A corrosion resistant aluminium front grill ensures long lasting good looks and together with the weatherized cone provides water resistance for use indoors or outdoors, certified to IP55.

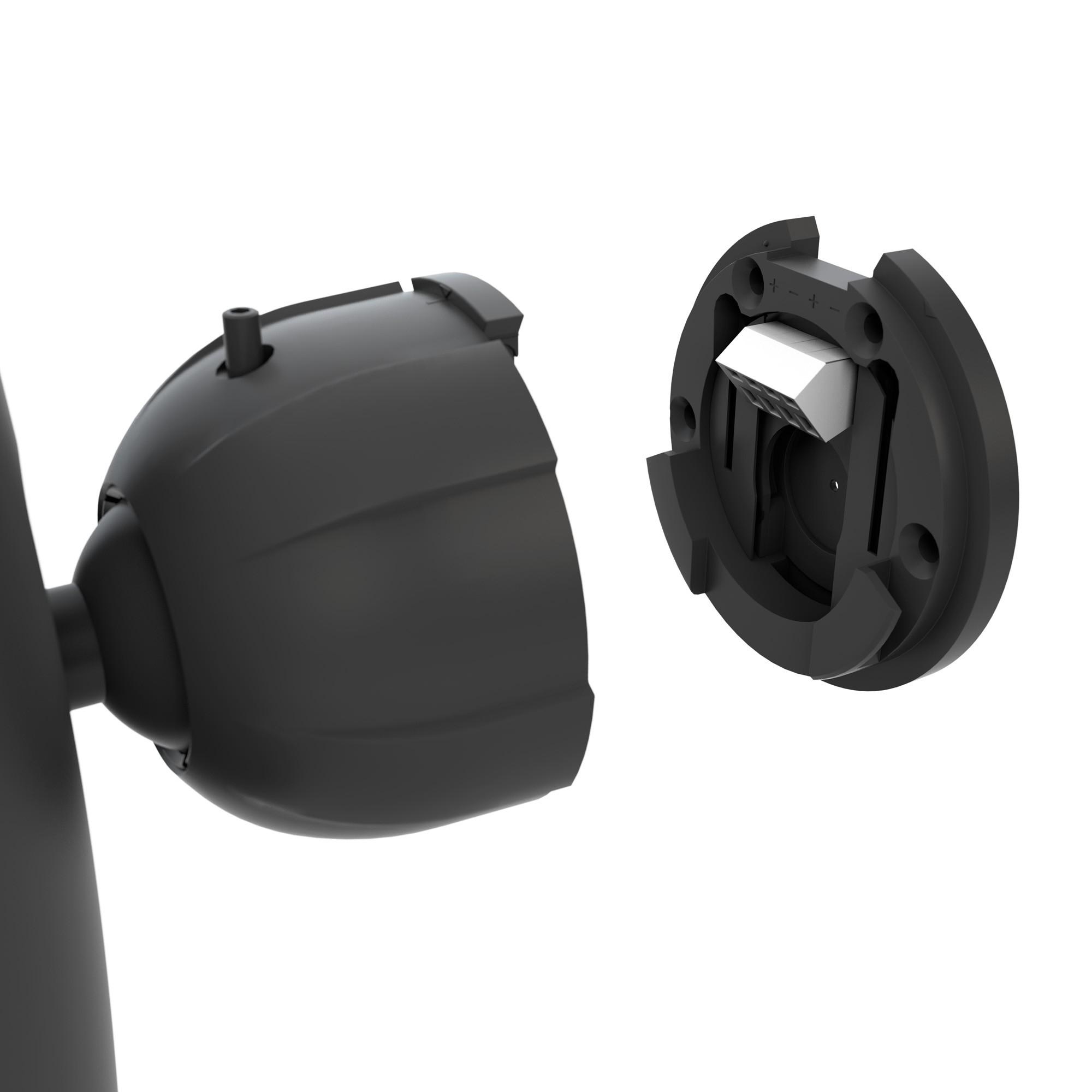

The innovative slide-and-lock wall mount with concealed integrated connections makes for a tidy installation with no visible cables. For full refurb or new build projects this bracket can be fitted as a first fix and capped off with an optional cover, leaving the simple job of sliding the speaker into place once all dust and debris has been removed from site. With a tilt angle of up to 27° and a 45° horizontal swivel angle, DQOR loudspeakers offer flexible positioning to meet your needs.

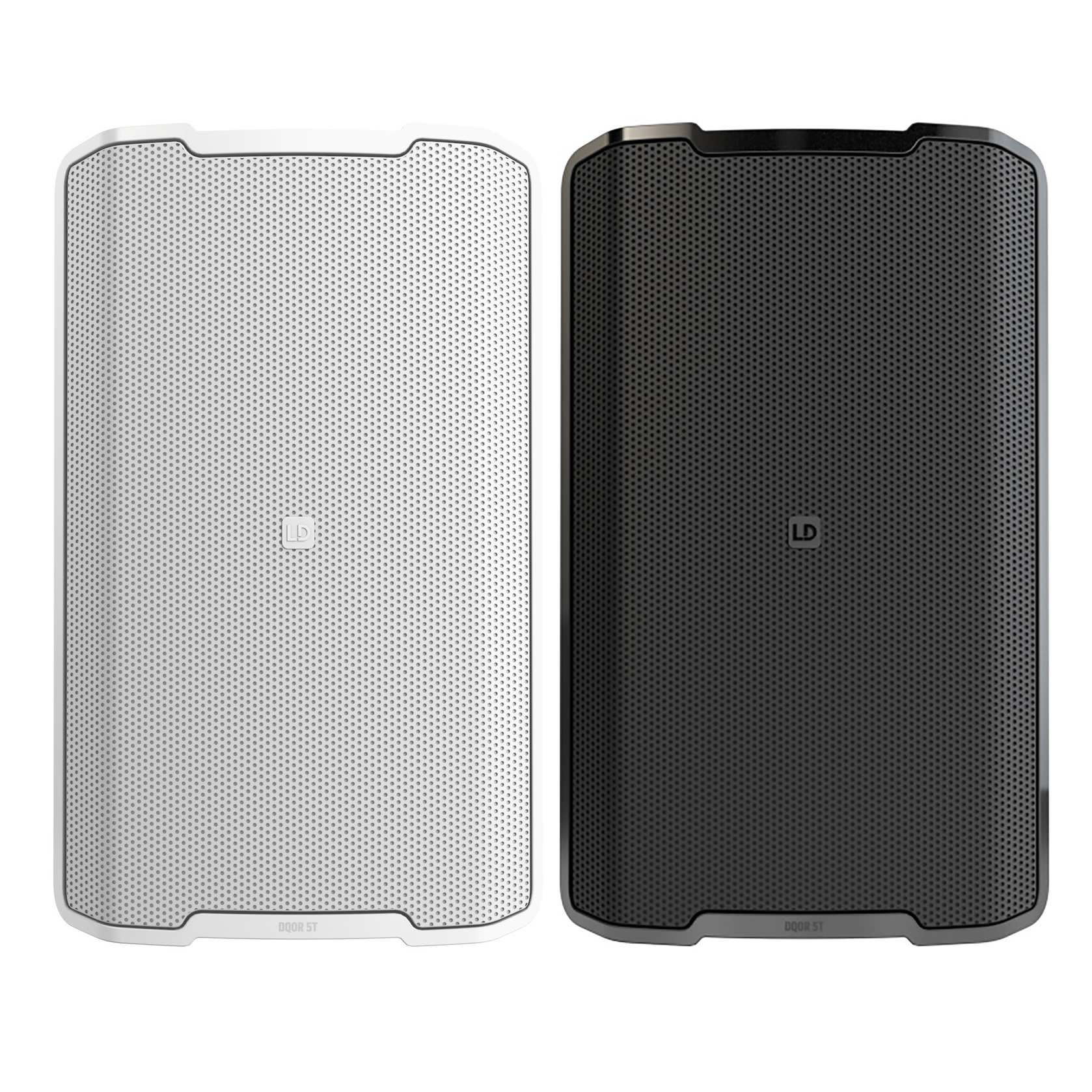

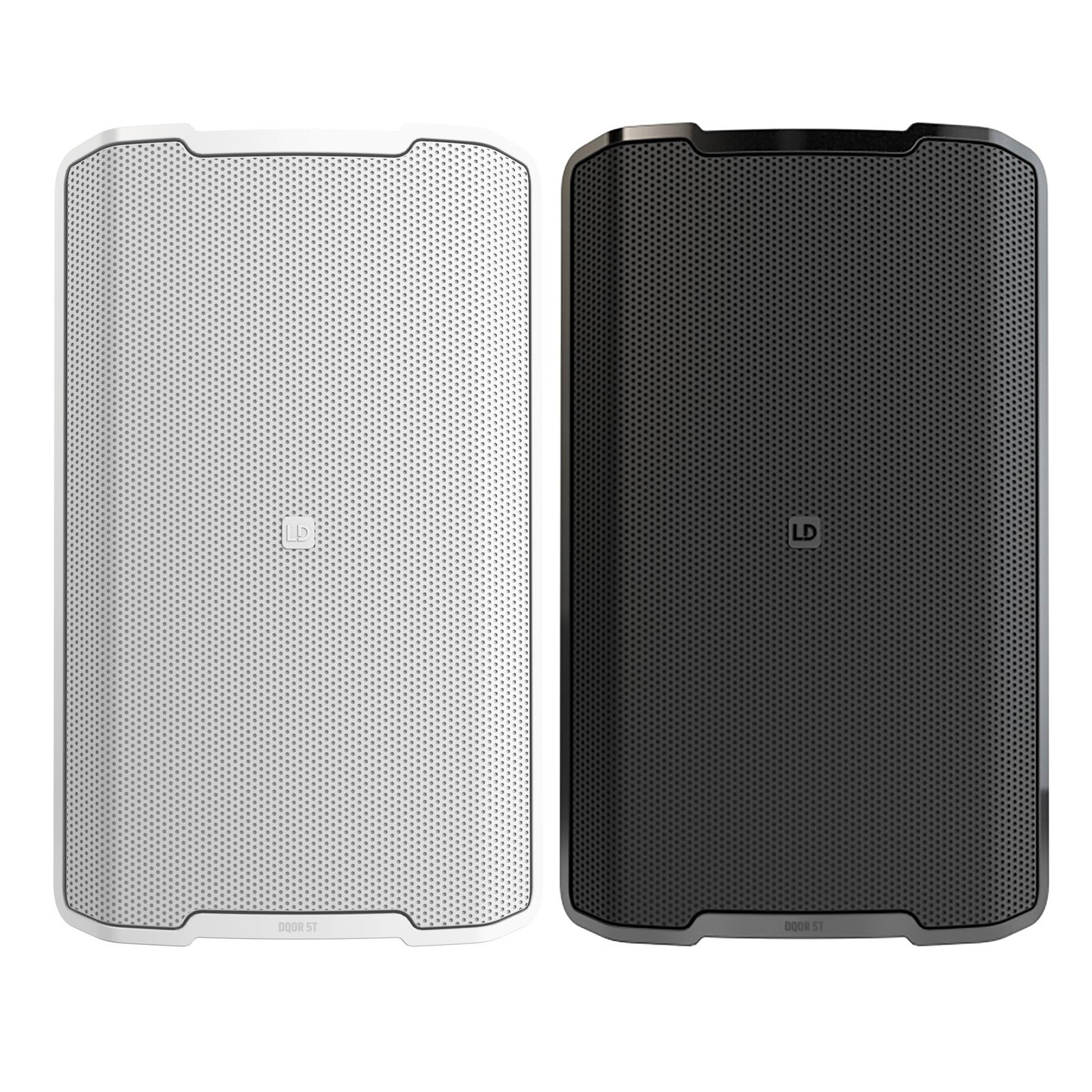

Perfect for background music and also available in black: see LDDQOR 5B.

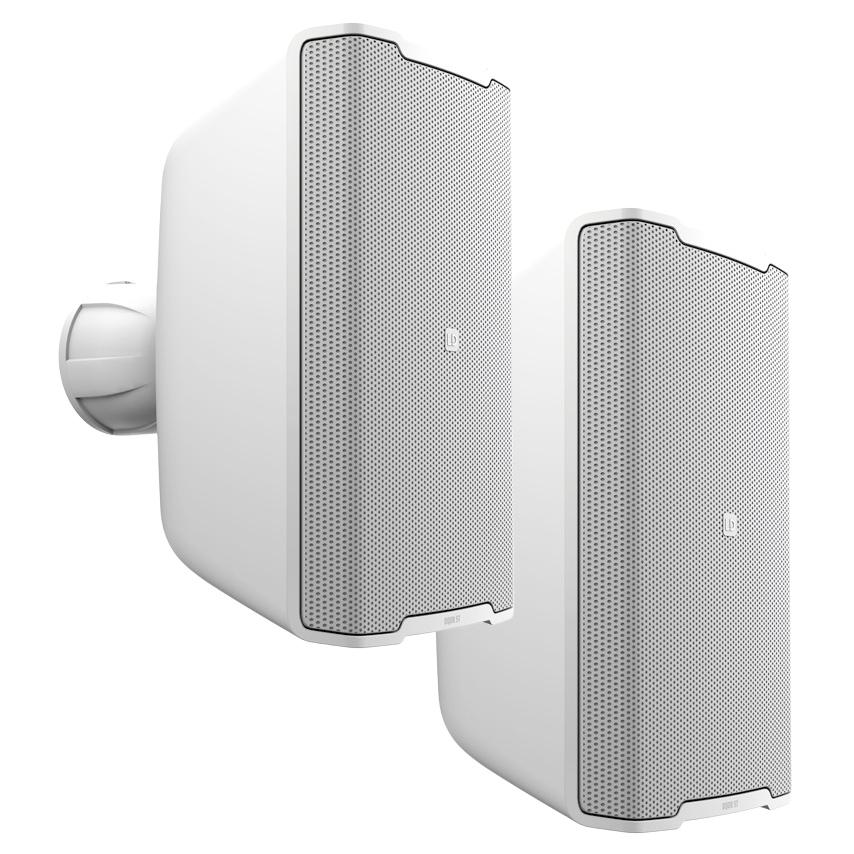

Also available in a 100V line version (with 16ohm compatibility), see LDDQOR 5TB / LDDQOR 5TW.

  • For indoor and outdoor use, rated IP55
  • Corrosion-resistant aluminium front grille
  • Elegant, dynamic design to suit any environment
  • Available in black or white
  • Slide-and-lock wall mount with concealed integrated connections
  • Superb, balanced sound thanks to a 2-way system
  • Weather treated paper cone woofer and FerroFluid™-cooled titanium high frequency driver
  • Wide coverage angle (120° horizontal, 80° vertical)
  • BEM-optimized waveguide for balanced sound
  • 3", 5" and 8" variants available

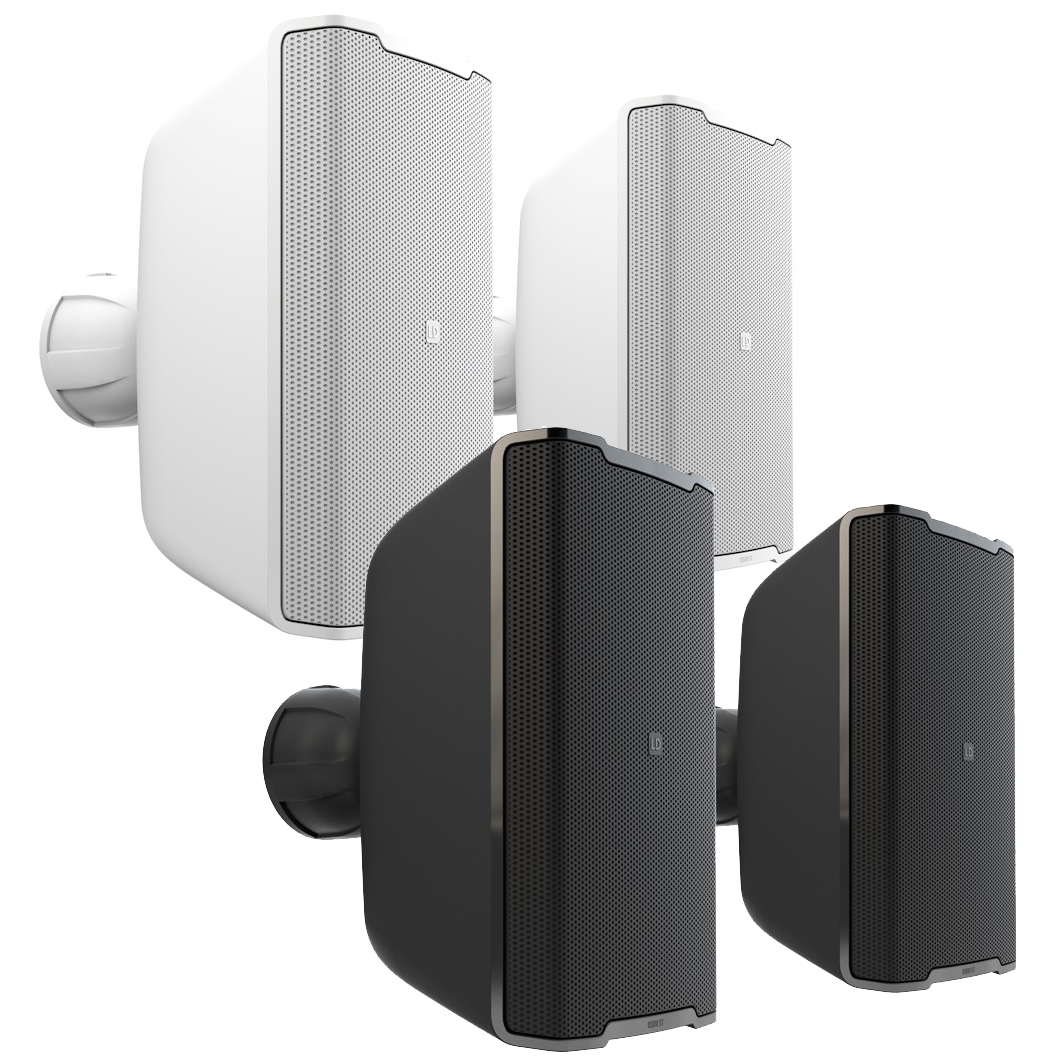

  • Also available as a 70/100V version with multiple power taps see LDDQOR 5T
  • Warranty: 5 Years
IPxx 1e: 8ohms
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Low/mid Woofer dimensions

5 " / 132 mm

Horn

BEM optimized CD Waveguide

HF driver dimensions

1 " / 25.4 mm

Dispersion (H x V)

120° x 80° (-6 dB)

Load rating (RMS)

70 W

Peak power

140 W (>200Hz)

Frequency response

74 - 20000 Hz (-10dB)

SPL (1W/1m)

84 dB

Max. SPL

105 dB

Impedance

8 Ohm(s)

Speaker input connections

4-pole Terminal Block. Pitch 5.08mm

Cabinet material / colour

ABS plastic / Black (RAL 9005)

Protection class IP

55

Height x Width x Depth

253.8 mm x 156.7 mm x 215.3 mm

Weight

2.7 kg
