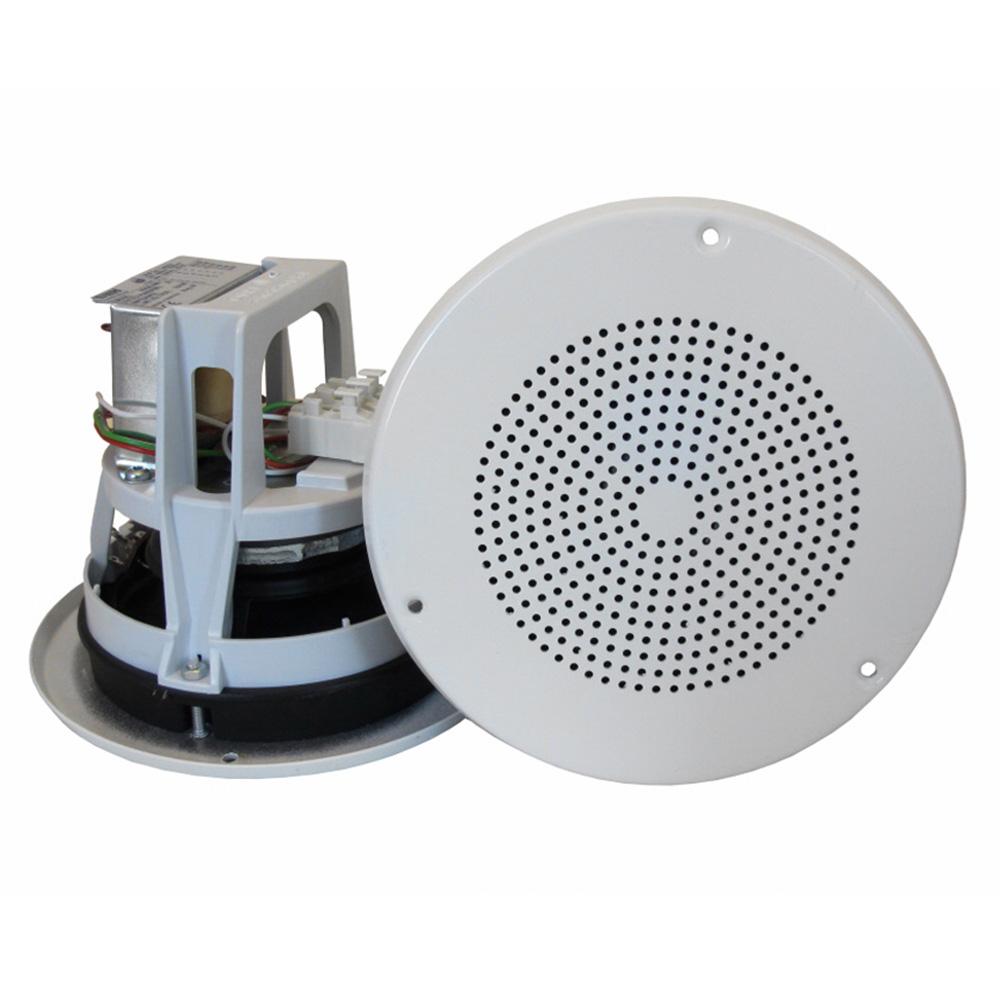

DNH B-560T

The DNH B-560T is a 5", 6 watt ceiling speaker.

Versatile enough for most installations including speech, alarm and music because of its wide frequency range.

Mounting via 3 screws in the front of the loudspeaker.

Warranty: 2 Years

100V
List Ex VAT: £59.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 6W
Impedance 1.67kΩ, 3.33kΩ, 6.67kΩ & 13.33kΩ
Power Taps @ 100V 6W, 3W, 1.5W & 0.5W
Power Taps @ 70.7V 3W, 1.5W, 0.75W & 0.375W
SPL (1W/1m) 90dB
Max SPL (rated/1m) 97dB
Frequency Range (-10dB) 130HZ - 20KHZ
Dispersion 1K Hz / 4K Hz 170° / 60°
Termination Spring Clamps
Material Housing: Aluminium
Colour White (RAL9010)
Dimensions mm 165 Dia. X 105 Height mm.
Weight (kg) 0.8
Mounting 3 screws
