Yamaha VXS1MLW
Click to expand

Yamaha VXS1MLW

The Yamaha VXS1MLW miniature cabinet speaker has a 1.5" full range driver unit with wide horizontal and vertical dispersion. Rated at 10 watts Program, for 8 ohm low impedance sound systems.

White finish. Also available in black.

The stylish cube design is complimented by the dedicated wall mounting bracket.

  • Newly developed 1.5-inch full-range driver unit
  • Wide 170° horizontal and vertical dispersion
  • Compact 62mm x 62mm form blends unobtrusively with any décor

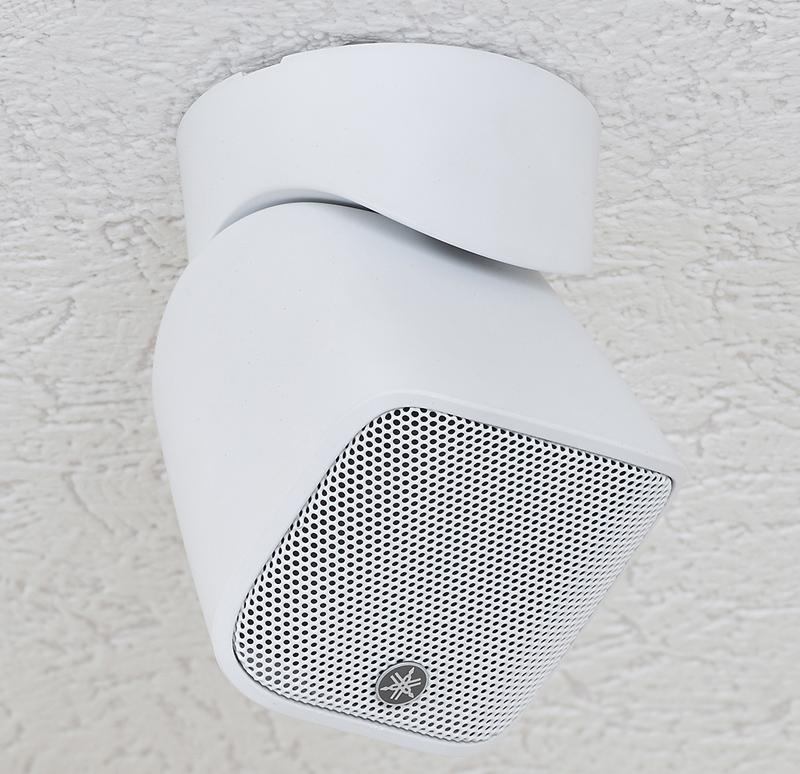

  • Dedicated wall/ceiling mount hardware supplied

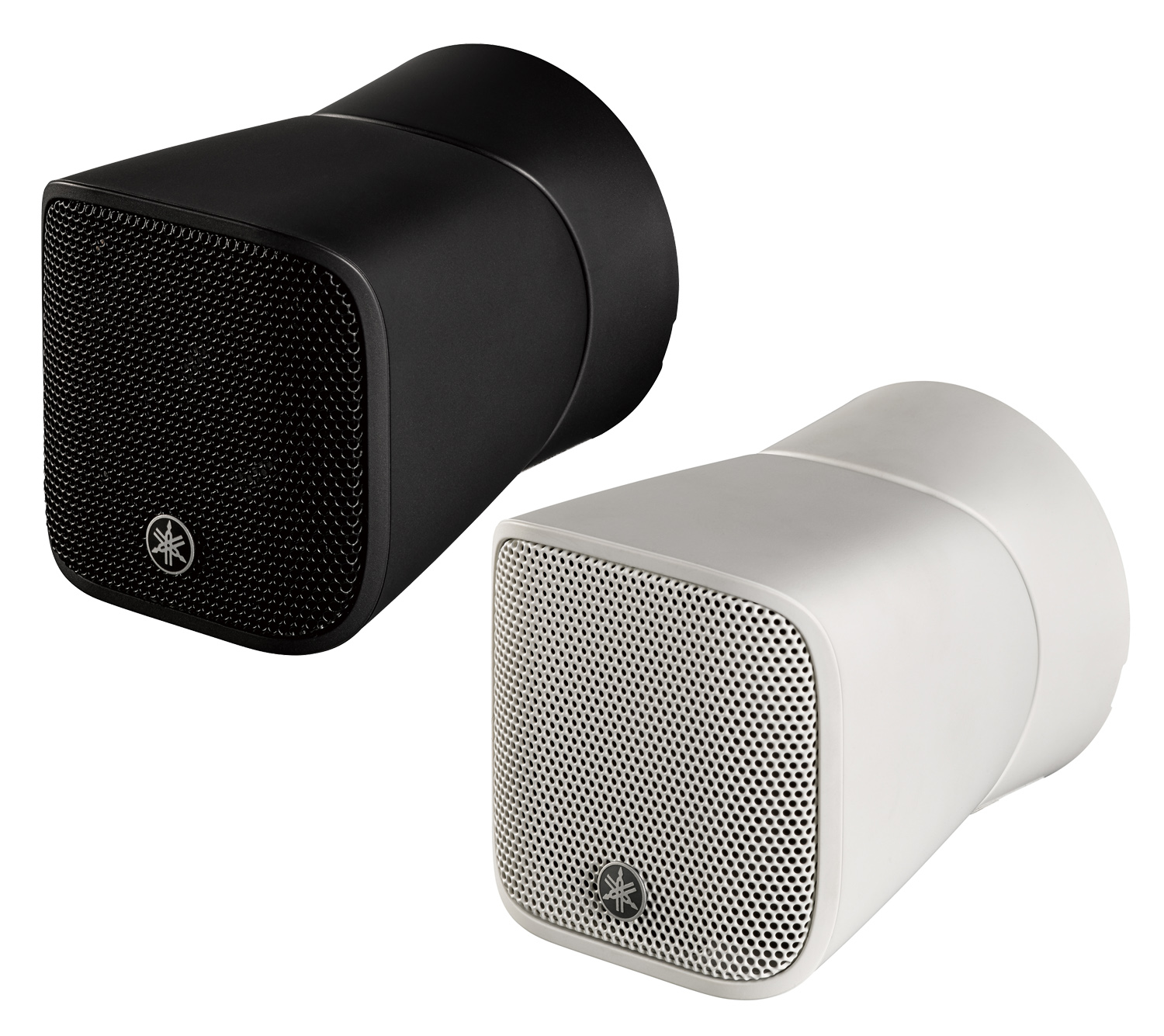

  • Black and white models available
  • Packaging single
  • Paintable enclosures and grilles
  • Available in black (VXS1MLB) or white (VXS1MLW)
  • Warranty: 5 Years.

Click here to download the Yamaha Commercial Installations Brochure.

Click to download the Yamaha Brochure

1e: 8ohms
CONTACT US

SPECIFICATIONS

General specifications

VXS1MLB /  VXS1MLW

Speaker type

Full-range, acoustic suspension type

Frequency range (-10dB)

180Hz-20kHz

Nominal coverage

170° horizontal



170° vertical

Components

LF-HF 1.5" Cone

Power rating

5W noise / 10W programme / 20W peak

Nominal impedance

SPL Sensitivity (1W; 1m on axis)

79dB SPL *1

SPL Peak (Calculated)

92dB SPL *2

I/O connectors

Euroblock (2 pin) × 1

Finish

VXS1MLB: Black (approximate value: Munsell N3),

VXS1MLW: White (approximate value: Munsell N9)

Dimensions W x H x D

62mm (2.4") *3 x 62mm (2.4") *3 x 82mm (3.2") *3

Net weight

0.17 kg (0.37 lbs) *3

Accessories

Wall/Ceiling Bracket

Packaging

Packaged each

Certificate

NFPA70, CE, RoHS
