LD Systems ANNY 12 BPH2 B8

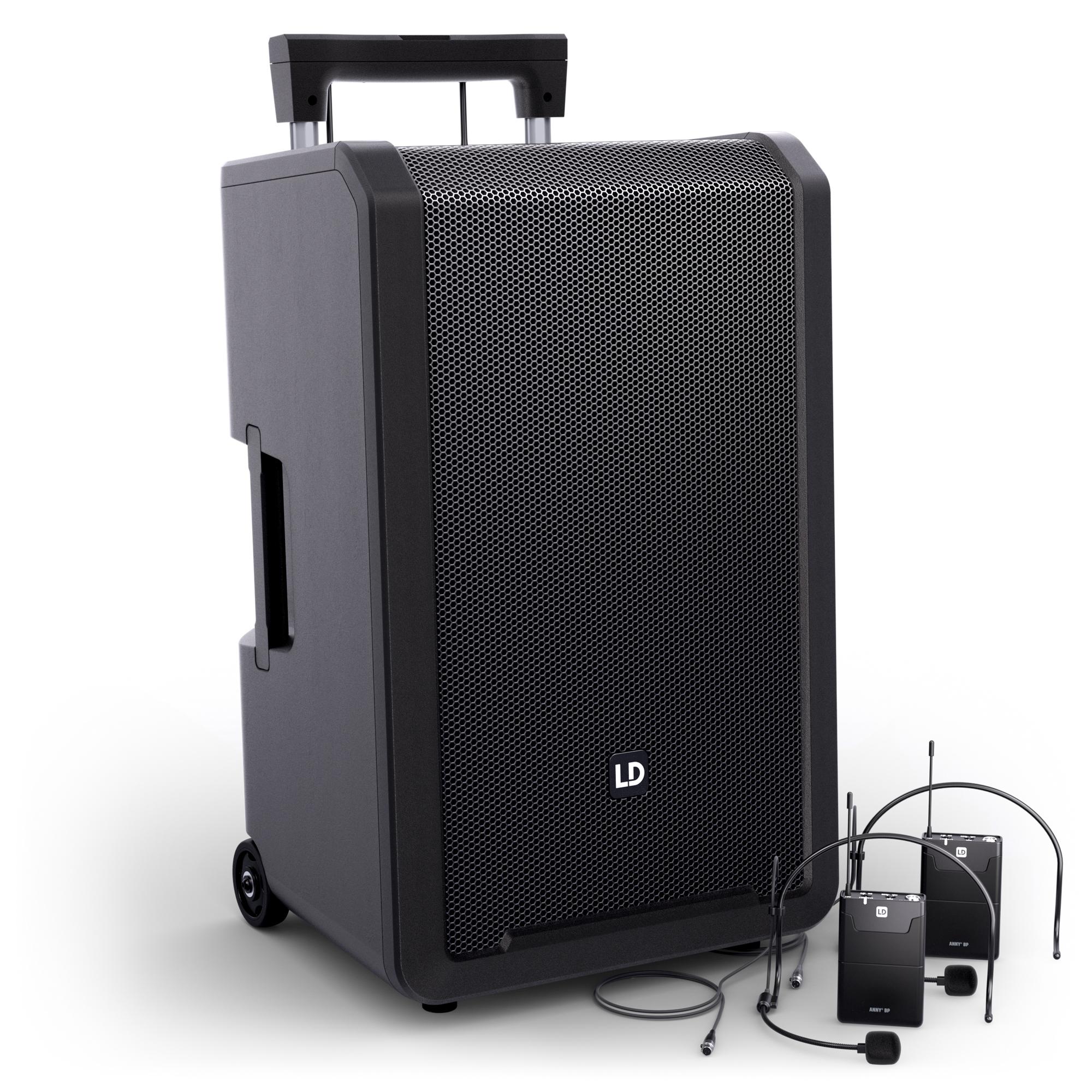

The LD Systems ANNY 12 BPH2 B8 is a portable battery-powered PA system with Bluetooth built into a robust housing for superb durability in everyday portable PA applications. This package includes two headset microphones and wireless bodypack transmitters operating on 823-832MHz & 863-865MHz frequency ranges. (This includes Duplex Gap frequencies which require a Channel 38 licence as well as CH70 licence free frequencies.)

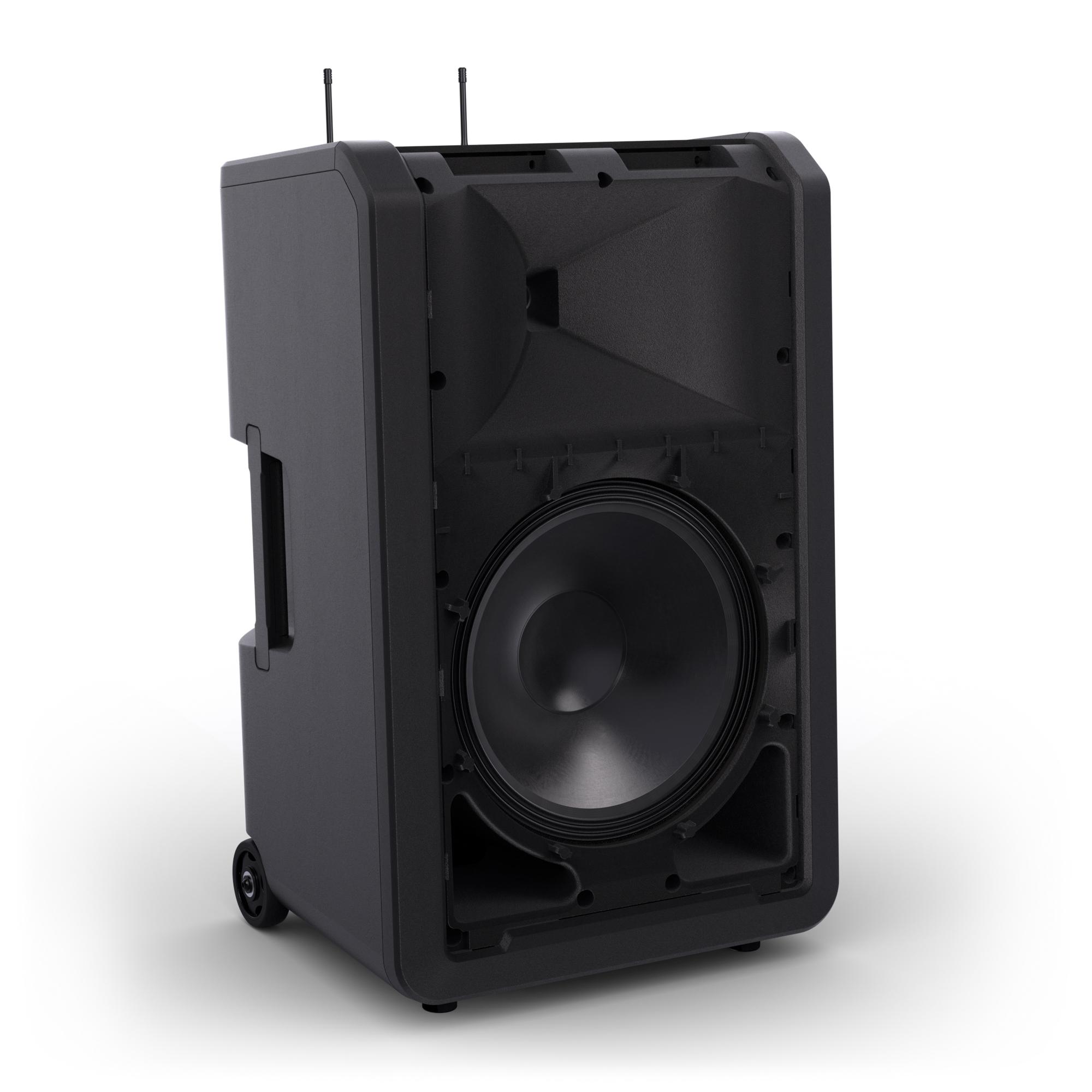

Equipped with a 12‘‘ woofer, 1” tweeter, wheels and extendable telescopic handle, ANNY 12 is rated at 185 Watts RMS, delivering professional sound and offering maximum flexibility in use.

With an integrated 6-channel mixer, 3-band EQ, 5 application presets (MUSIC, LIVE, VOCAL, ECO, FLAT) and effects such as reverb & delay, it combines comprehensive features and outstanding sound quality in a compact and robust design. ANNY 12 impresses with its versatile connection options: two microphone/line combo inputs, one stereo channel with 3.5 mm jack (AUX) and RCA inputs as well as Bluetooth 5.0 with AAC codec.

The footswitch input allows the reverb & delay effects to be easily switched hands-free using an external foot switch while playing or singing.

The “Priority” function can be used to ensure intelligible announcements in any situation. Having selected a microphone in the priority settings, the music will automatically be turned down when the microphone is used.

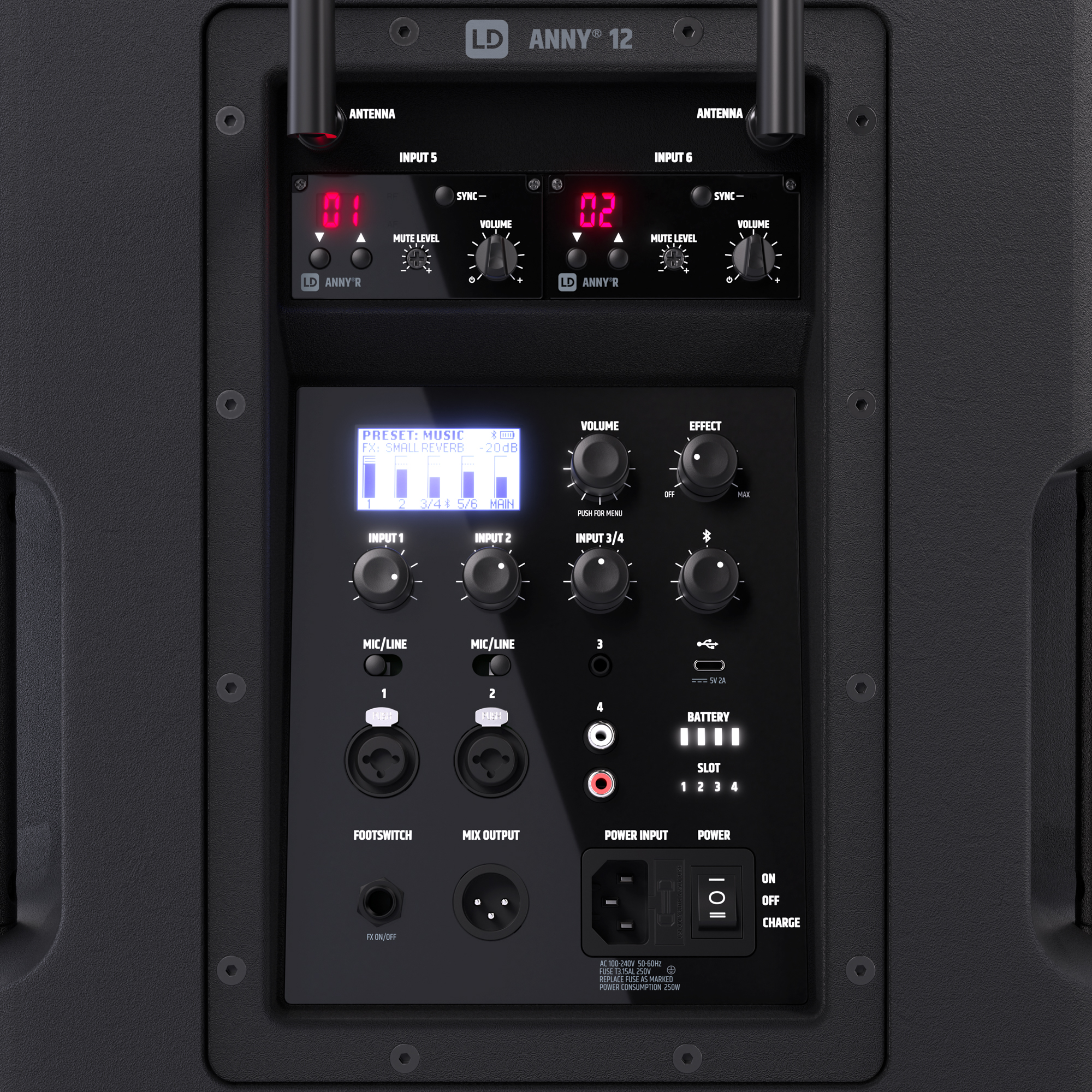

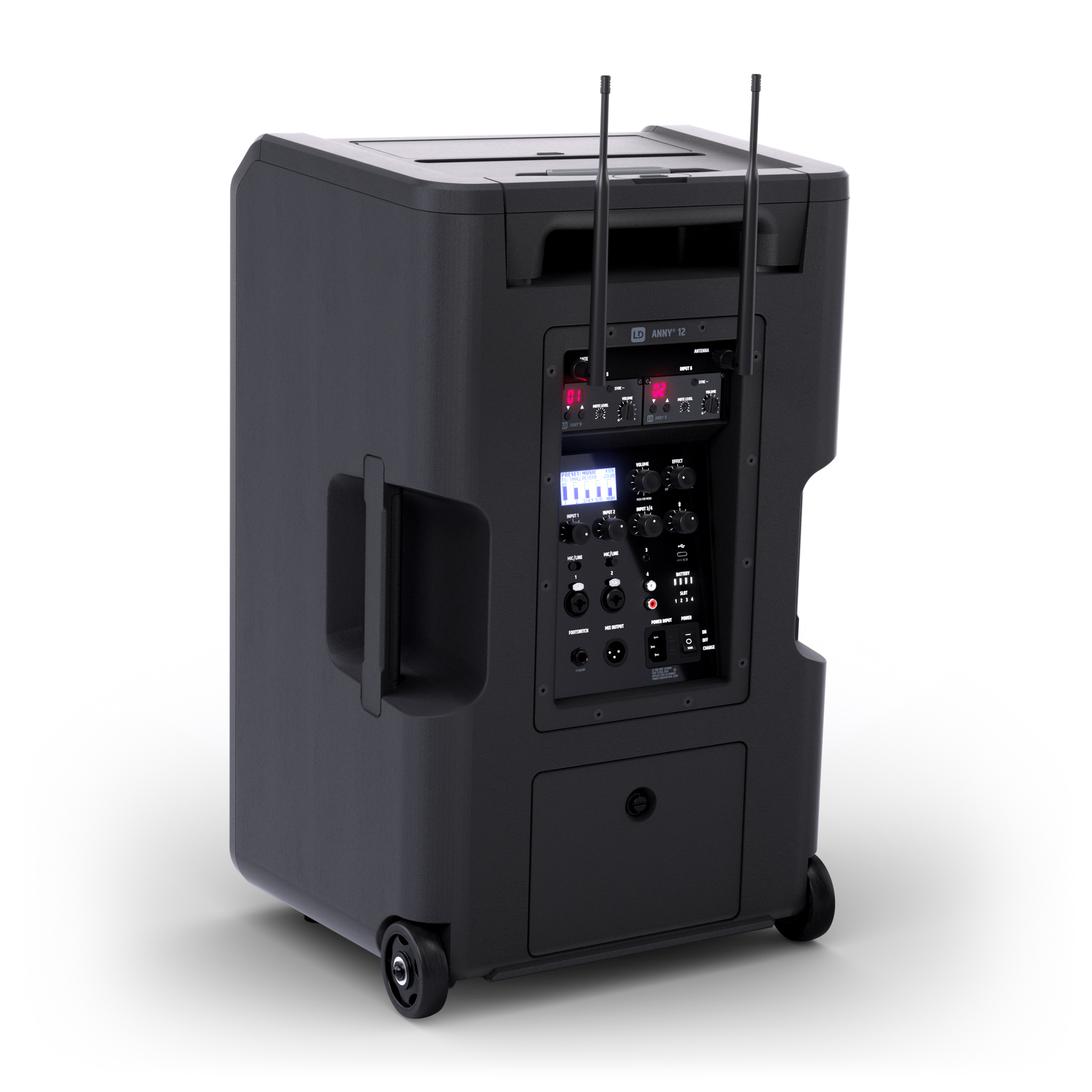

Two receiver module slots on the back enable up to two ANNY wireless microphones to be fitted as required. This ‘BPH2’ package is supplied with both receivers already fitted for use with the supplied beltpack receivers & headset microphones.

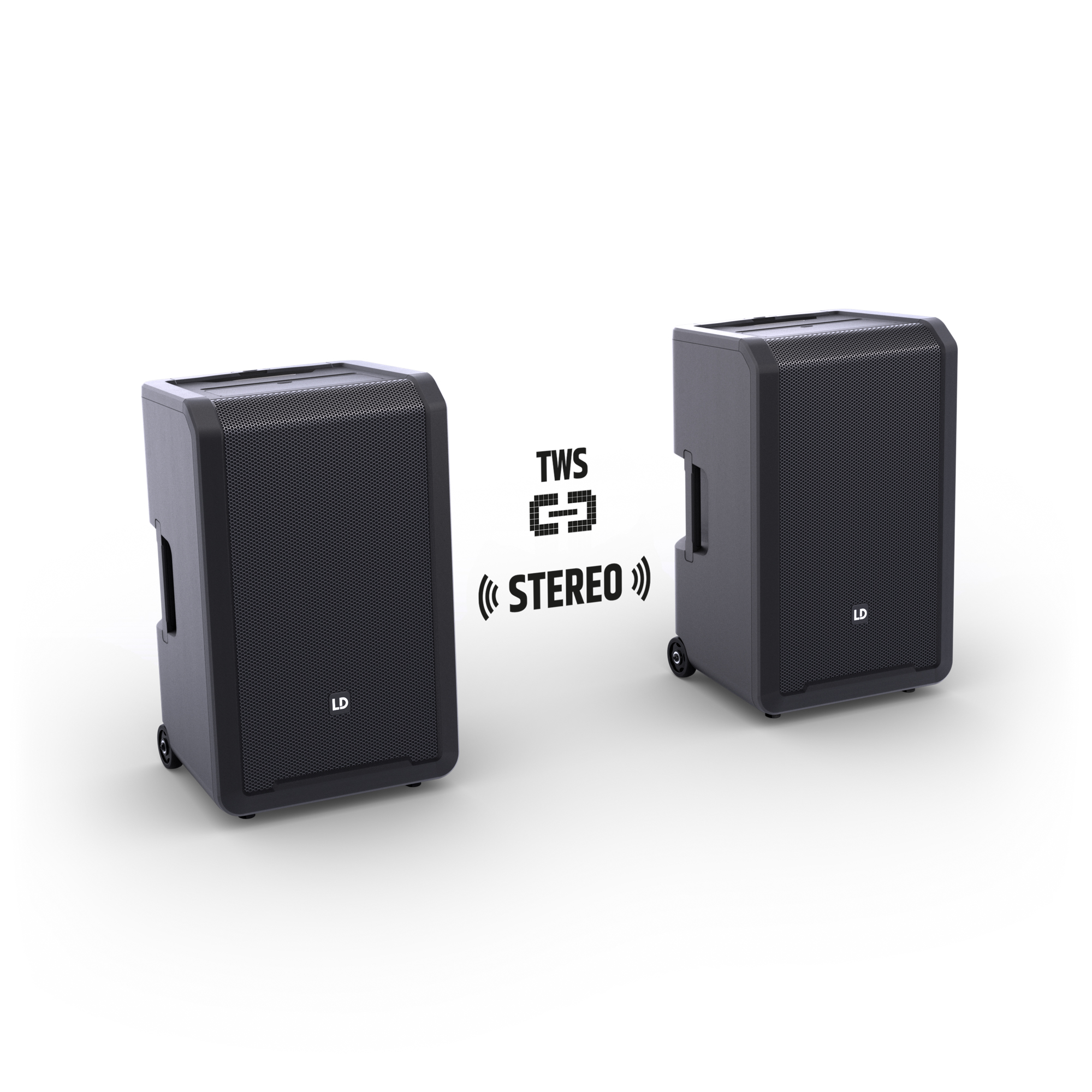

For further versatility, two ANNY 12 speakers can be connected to each other with True Wireless Stereo (TWS) to provide even larger parties and events with powerful sound.

Integrated DynX® DSP (Gen. 2) guarantees a distortion-free, clean and powerful sound even at maximum volume.

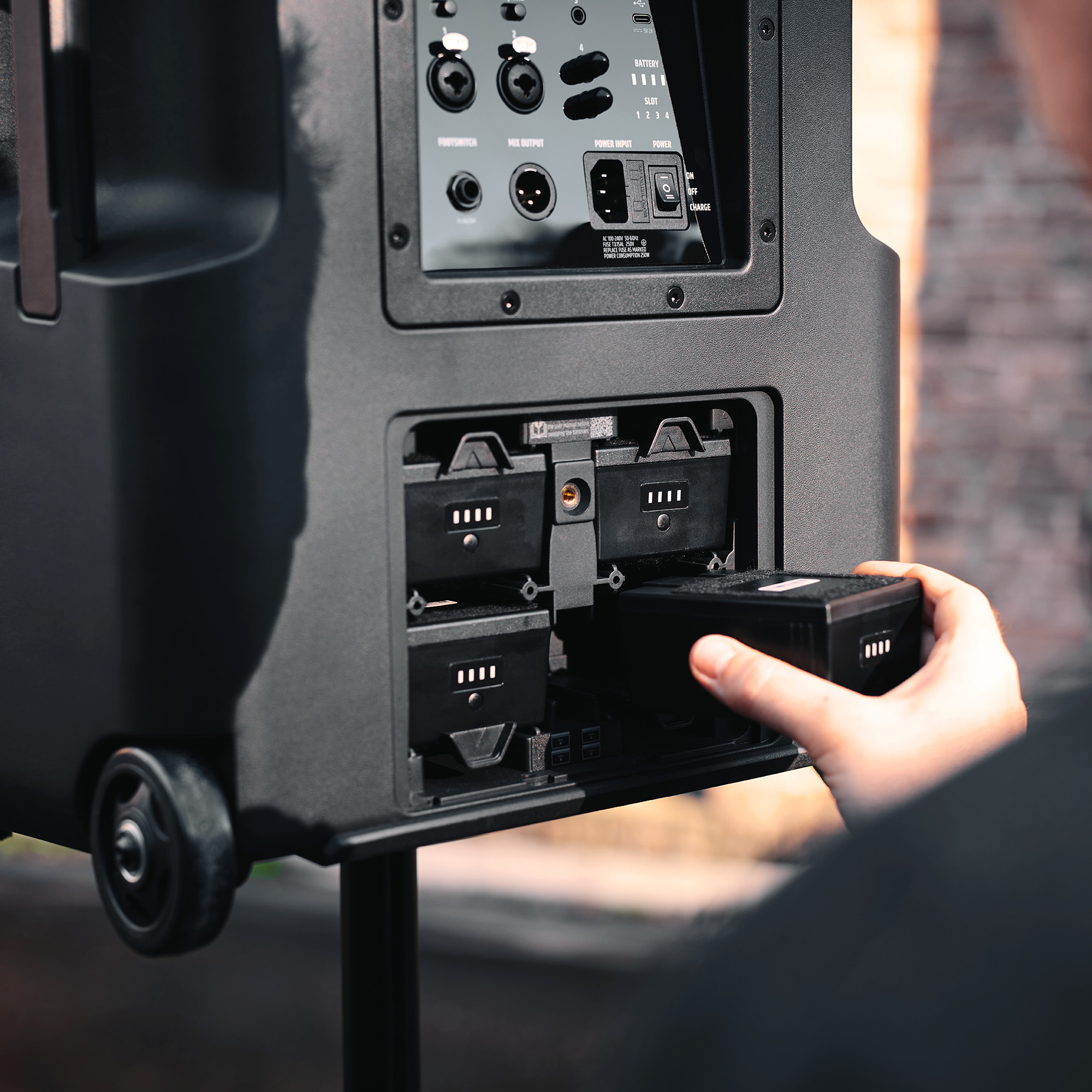

The 4 batteries and the hot-swap function mean that ANNY 12 can be used continuously and without interruption. As long as one of the four batteries is plugged in, ANNY will continue to play at full power, so the empty batteries can simply be swapped with fully charged ones during operation or charged alternately.

When using the energy-saving ECO preset, the batteries last a particularly long time with background music or voice-only applications. At medium volume in this mode, the 4 batteries can last up to 50 hours without having to be changed. For parties at maximum volume, they last an impressive 5 hours in the MUSIC preset.

A USB-C port on the back of ANNY enables mobile phones or tablets to be charged.

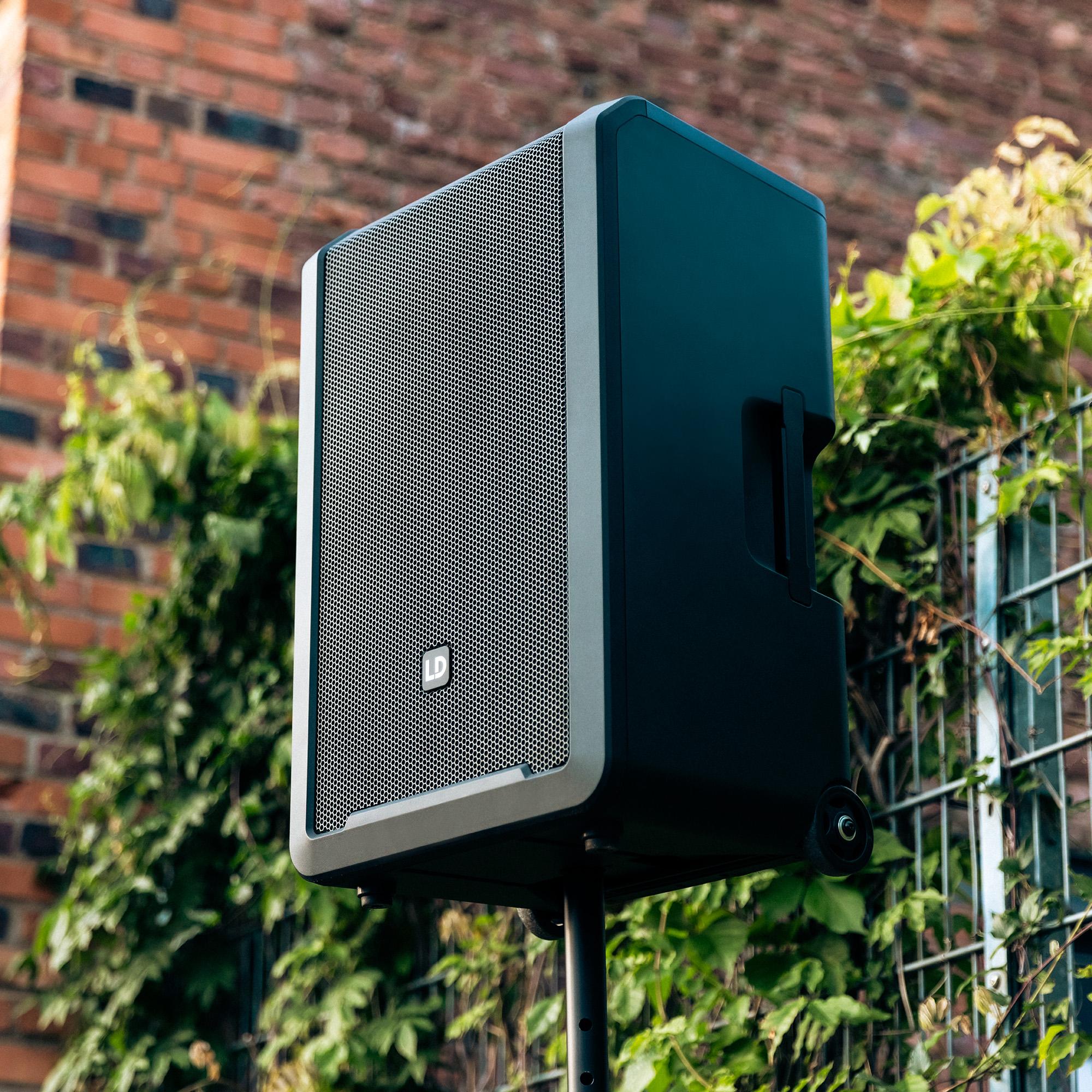

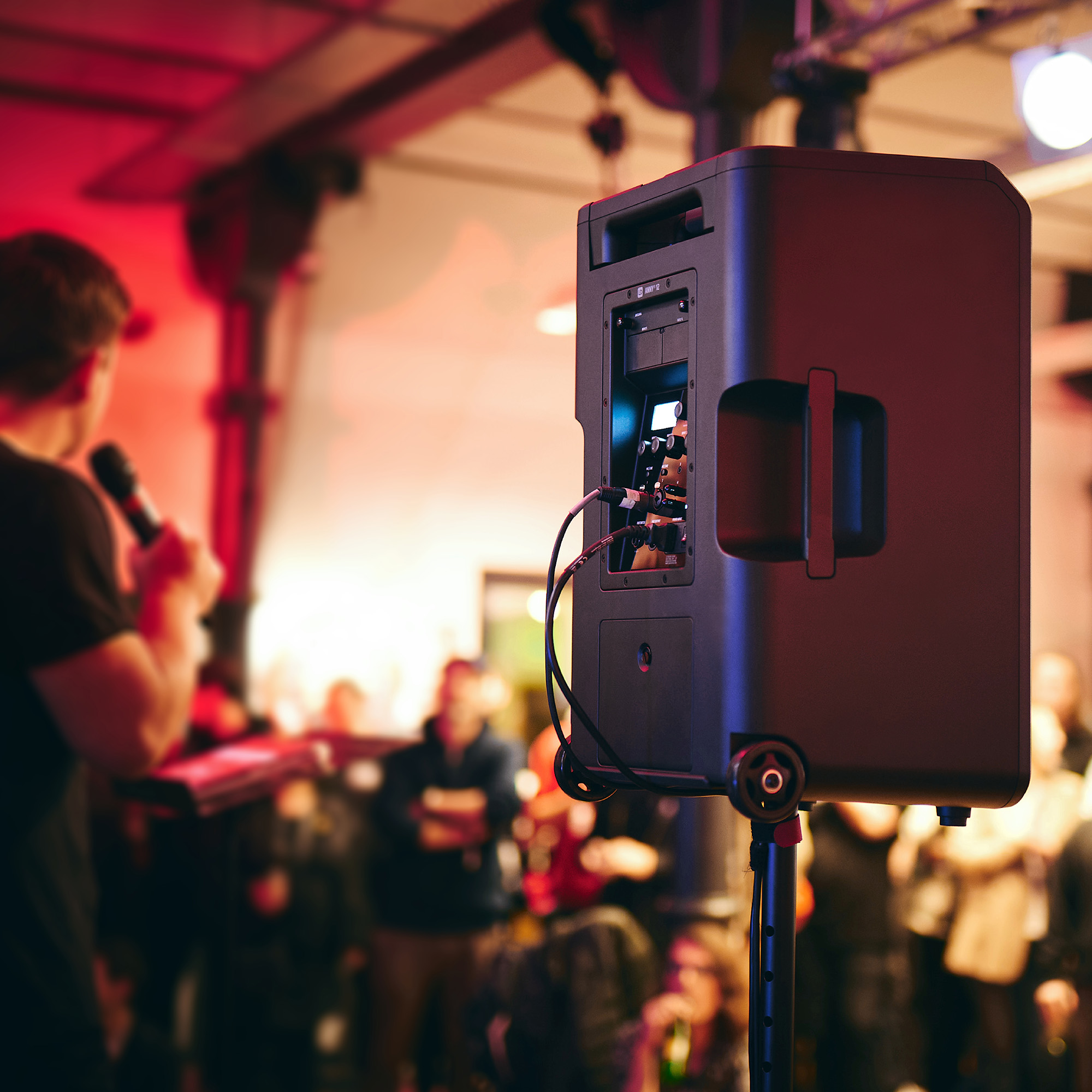

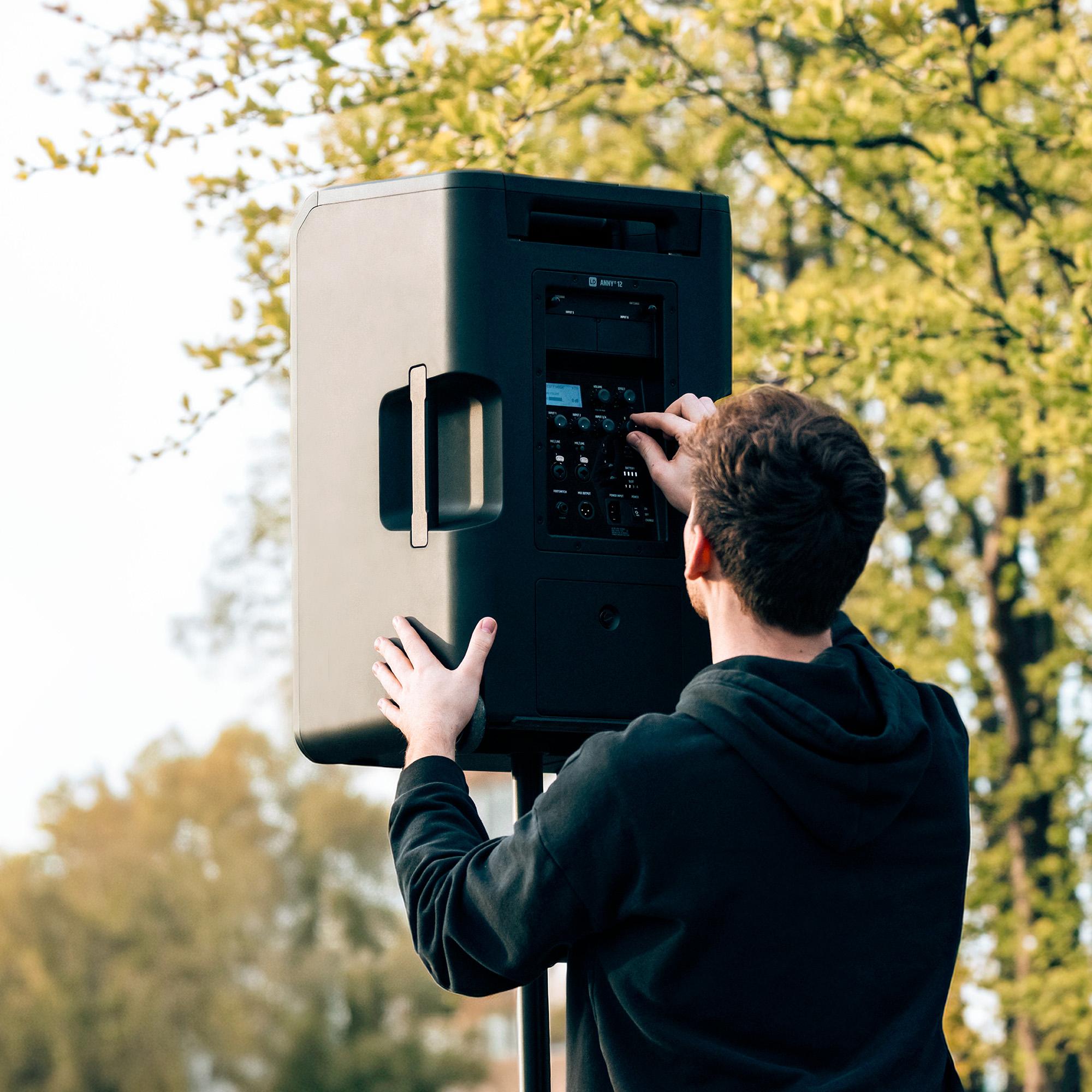

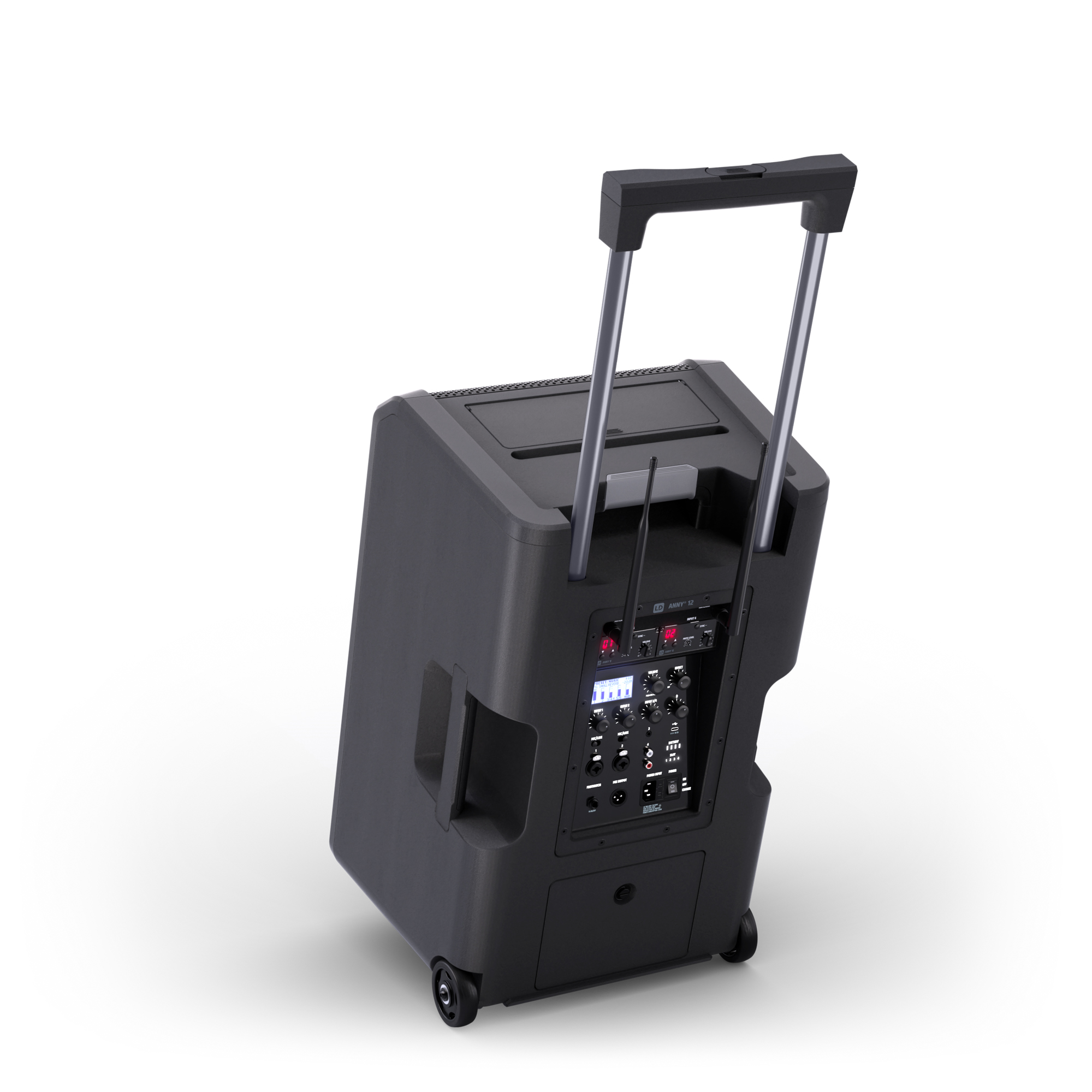

Integrated wheels and an extendable telescopic handle make the speaker easy to move around for optimum performance, whilst mounting it on a speaker stand enables even sound distribution in large audience areas.

ANNY 12 impresses with a robust housing design for superb durability in everyday portable PA applications.

A bespoke, water-repellent protective cover with additional storage space is available as an accessory – please see ‘related products’.

  • All-in-one portable active 2-way full-range loudspeaker
  • 122 dB max. SPL and 185 W RMS / 215 W peak
  • Integrated 6-channel mixer with 3-band EQ, reverb and delay

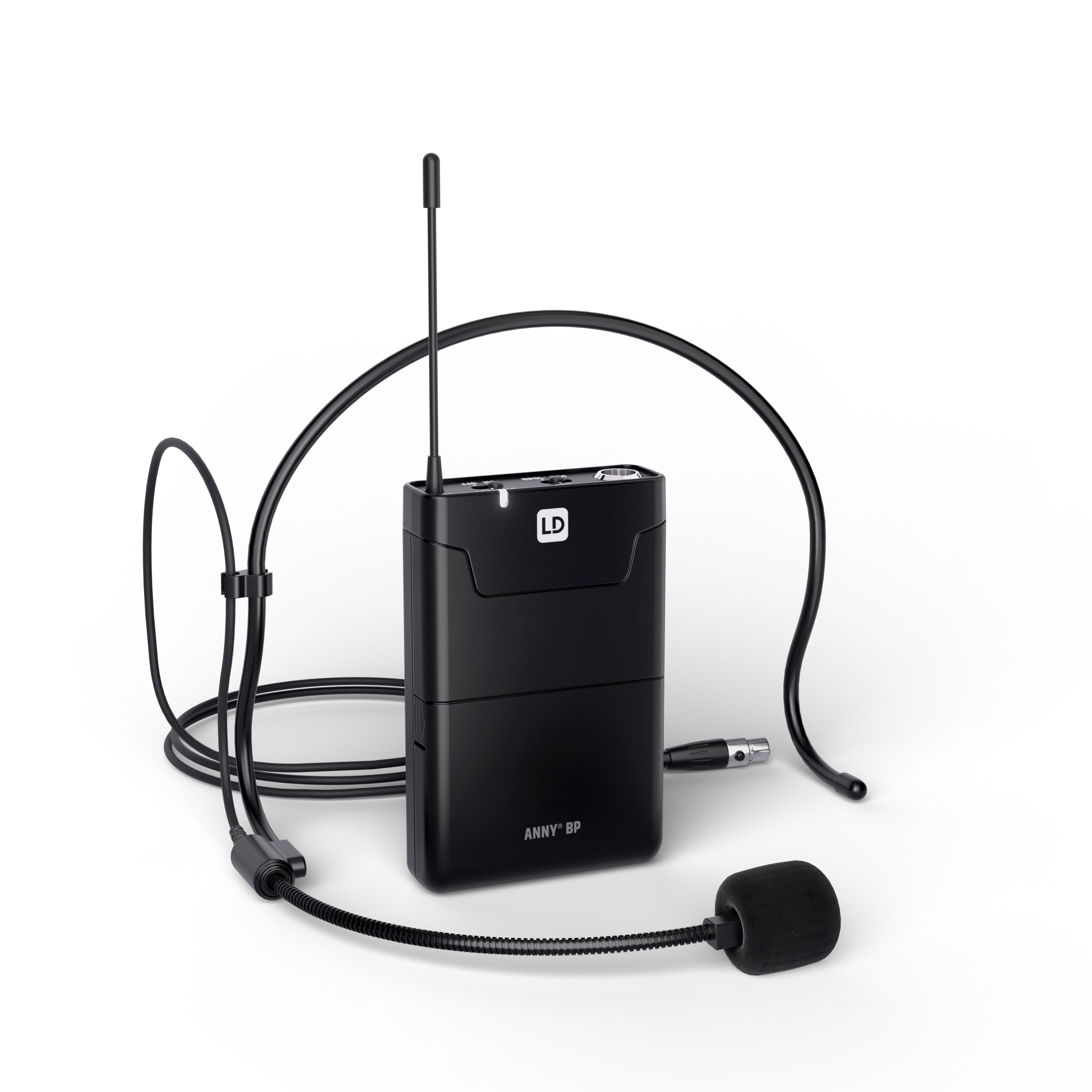

  • 2 × headset microphones with bodypack transmitters incl. AA batteries
  • Long battery life: up to 50 h (ECO mode) / 5 h (max. volume)
  • Hot-swap function with 4 batteries for uninterrupted performance
  • Bluetooth® 5.0 and stereo streaming (TWS) with two ANNY 12
  • Clear and distortion-free sound at maximum volume through
  • DynX® DSP (Gen. 2)
  • 2 × microphone/line inputs for versatile connection options
  • 1 × stereo input with 3.5 mm jack (AUX) or cinch
  • 2 × receiver modules fitted into the rear slots
  • Priority/ducking mode to emphasise the microphone signal
  • Wheels and telescopic handle for easy transport

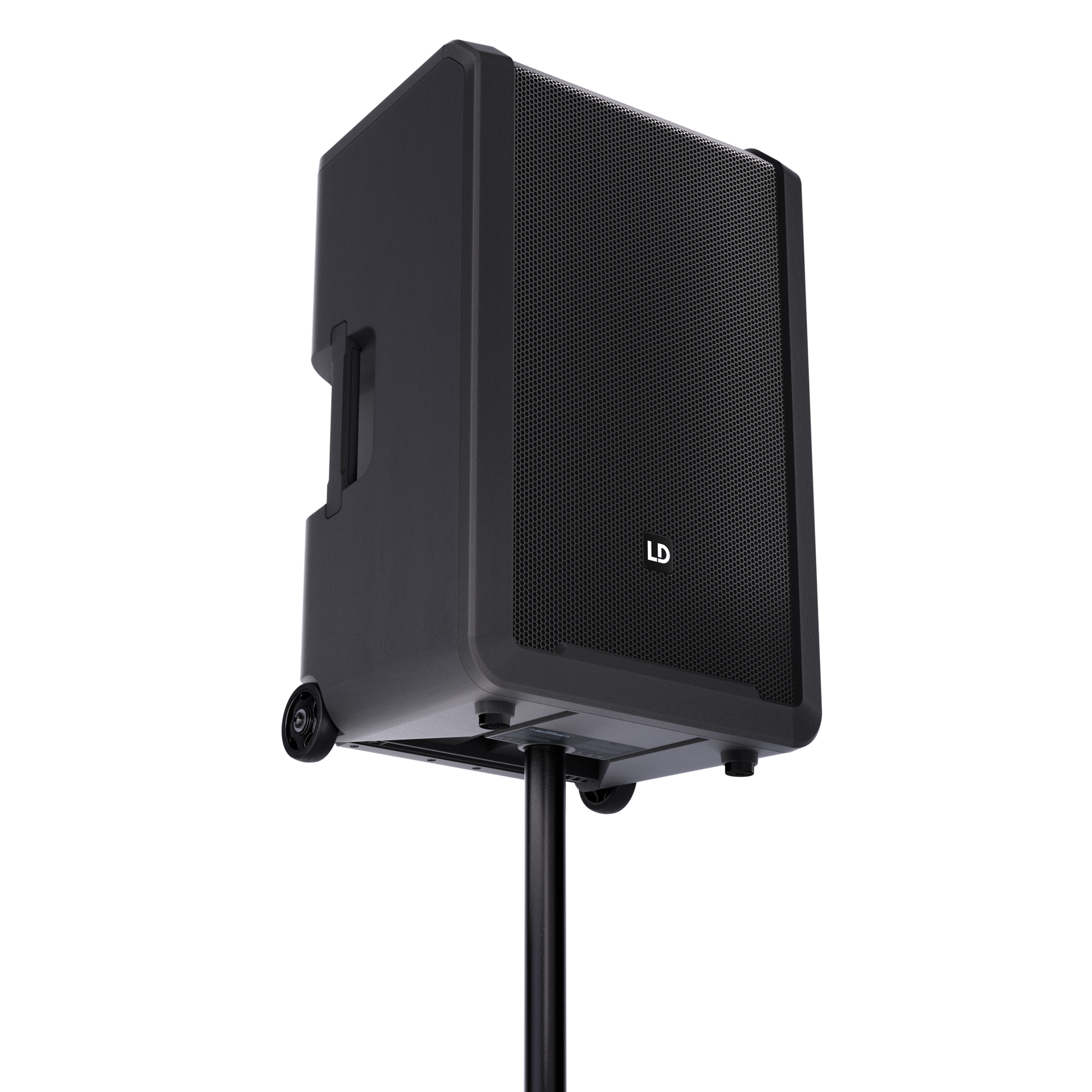

  • 35 mm flange for use with speaker stands
  • USB-C port for charging a tablet or smartphone
  • Footswitch input for hands-free effect control

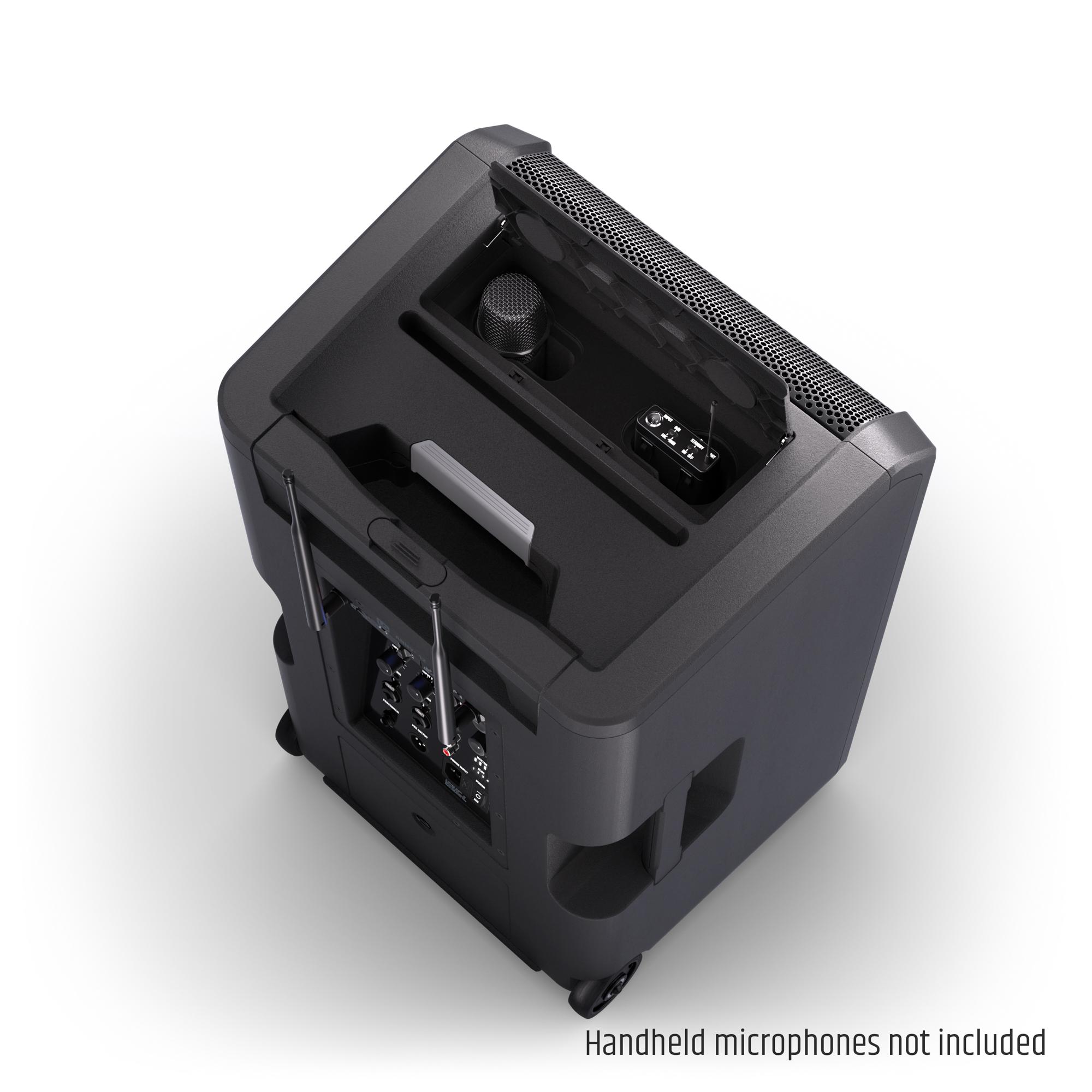

  • Integrated holder for tablet or smartphone
  • Part number ANNY12BPH2B8
  • Warranty: 2 Years
CH38 CH70 bluetooth
CONTACT US

SPECIFICATIONS

Please download the manual for further specifications, including the bodypack transmitter and mic.

RMS output power

185 W

Amp class

Class D

Max. SPL peak

122 dB

Frequency response (-10 dB, rel. Avg)

40 - 20,000 Hz

Speaker system

2-way system

Input connectors

5 x 3.5 mm Jack TRS female

Output connectors

1 x XLR 3-pole male

Bluetooth® version

Bluetooth® 5.0

Supported audio codecs

SBC, AAC

Bass driver

Size: 12 "
Magnet: Neodymium
Voice coil: 2 "

Tweeter

Driver size: 1 ",
Outlet diameter: 36 mm,
Design: Compression driver with CD horn,
Magnet: Ferrite,
Voice coil: 1.4 "

Operation voltage

100 V AC - 240 V AC / 50 - 60 Hz

Power supply type

Switched-mode power supply (SMPS)

Rated power

250 W

Battery technology

Lithium-ion (Li-Ion)

Exchangeable

Yes

Operating voltage

14.8 V

Battery capacity

4 x 6700 mAh

Battery life

5 h (MUSIC) - 50 h (ECO)

Charging time

(100 %): 3 h,

(80 %): 2 h

Dimensions W x H x D

405 mm x 655 mm x 341 mm

Weight

18.925 kg

Included accessories

Mains cable, 4 rechargeable batteries

Related Products

LD Systems ANNY 12 BPH B8

Portable Bluetooth PA Speaker on wheels. 12"+ 1". 185 watts RMS. With headset mic & bodypack transmitter on 823-832MHz & 863-865MHz.

Log In for Trade Prices.

see more
List Ex VAT: Log in
LD Systems ANNY 12

Portable Bluetooth PA Speaker on wheels. 12"+1". 185 watts RMS.

Log In for Trade Prices.

see more
List Ex VAT: Log in

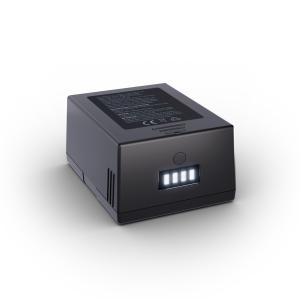

LD Systems ANNY 12 BATTERY
