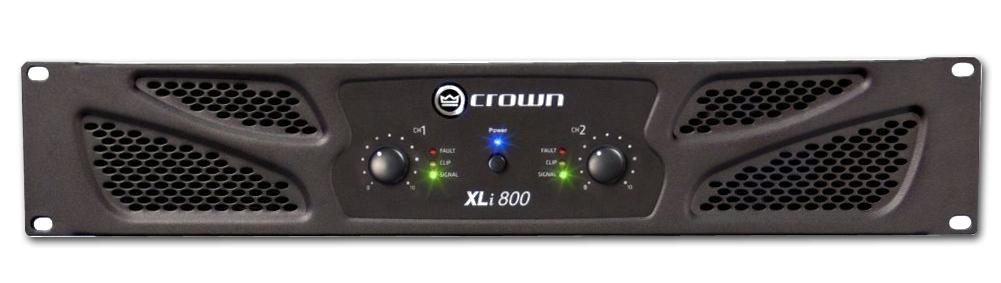

Crown XLi800
Click to expand

Crown XLi800

The Crown XLI800 is a bridgeable, stereo low impedance stereo power amplifier ideal for live sound with superb bass response and clear high frequencies. With bridgeable output for complete flexibiliy.

Features include RCA and XLR inputs, user selectable input sensitivity of 0.755V or 1.4V, Speakon® and binding post outputs, stereo/parallel/bridge-mono mode, power/fault/signal presence/clip indicators, forced-air cooling; and protection against shorts, no-load, on/off thumps and radio-frequency interference.

The power output is highly versatile, with various modes offering from 200 watts at 8 ohms, both channels driven to 600 watts in 8 ohm, bridged mono mode.


  • Stereo/parallel/bridge-mono mode
  • User selectable input sensitivity - 0.775V and 1.4V
  • Electronically balanced RCA & XLR inputs; binding post and Speakon ® outputs
    Efficient forced-air cooling prevents excessive thermal buildup
  • Electronically balanced RCA & XLR inputs; binding post and Speakon ® outputs
  • Two level controls, power switch, power LED, and six LEDs which indicate signal presence, clip and fault for each channel
  • Protection against shorts, no-load, on/off thumps and radio-frequency interference
multi-ch 2U 4ohms 8ohms
List Ex VAT: £487.50
Log in for Trade Prices






Sensitivity (full rated power at 8 ohms)

0.775V or 1.4V

Signal to Noise Ratio
(below rated power 20Hz to 20kHz, A-Weighted)

> 100 dB

Total Harmonic Distortion (THD) (20Hz - 20kHz)

< 0.5%

Inter Modulation Distortion
(60Hz and 7kHz at 4:1 from full rated output to -40 dB)

= / < 0.35%

Frequency Response (at 1W, 20Hz - 20kHz)

0 dB, -1 dB

Crosstalk (below rated power)

at 1kHz: -75 dB
at 20kHz: - 59 dB

Damping Factor (from 10Hz to 400Hz, 8 ohms)

> 200

AC Line Voltage and Frequency Configurations (± 10%)

120VAC 60Hz
220VAC 50/60Hz
230-240VAC 50/60Hz

Dimensions (H x W x D)

3.5" x 19" x 12.4"
(89 x 482 x 315mm)

Net Weight

25.1 lb (11.4 kg)

Net Shipping Weight

29.5 lb (13.4 kg)
