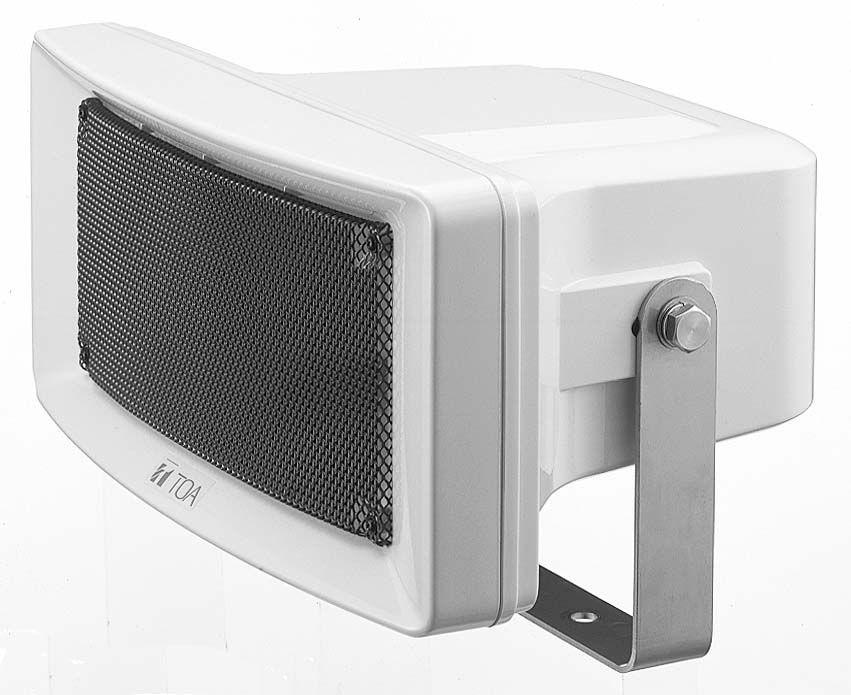

TOA CS-154

The TOA CS154 constant directivity horn loudspeaker is one of our favourite products. It has excellent directivity characteristics for a uniform and clear sound dispersion.

Rated at 15 watts and suitable only for use on 70 / 100 volt line distributed sound systems.

The lightweight ABS resin enclosure of the TOA CS-154 horn speaker is mechanically strong and resistant to impact. The weatherproof polyurethane resin paint and stainless steel mounting bracket and hardware enable the speaker to be used outdoors. Water resistant, rated IP64.

An external rotary impedance selector switch enables the impedance to be changed during and after speaker installation.

100V IPxx
List Ex VAT: £105.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 15W (100V line)
Impedance

100 V line : 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
70 V line : 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W)
SPL (1W/1m) 97dB
Frequency Range (-10dB) 150HZ - 15KHZ
Horizontal Directivity. Constant directivity horn 90° ( 45° horizontal from front axis)
Over 93 dB (1 W, 1 m), 3 kHz at ± 45°
Speaker Component 12 cm cone - type dynamic speaker (treated for splash proof)
Material Horn, cover : .................ABS resin, off - white, paint
Bracket...........................Stainless steel
Grille..............................Aluminium, gray, paint
Screw.............................Stainless steel
Colour Off-White
Dimensions mm 366 (W) x 230 (H) x 272 (D) mm
Weight (kg) 2.8 kg
