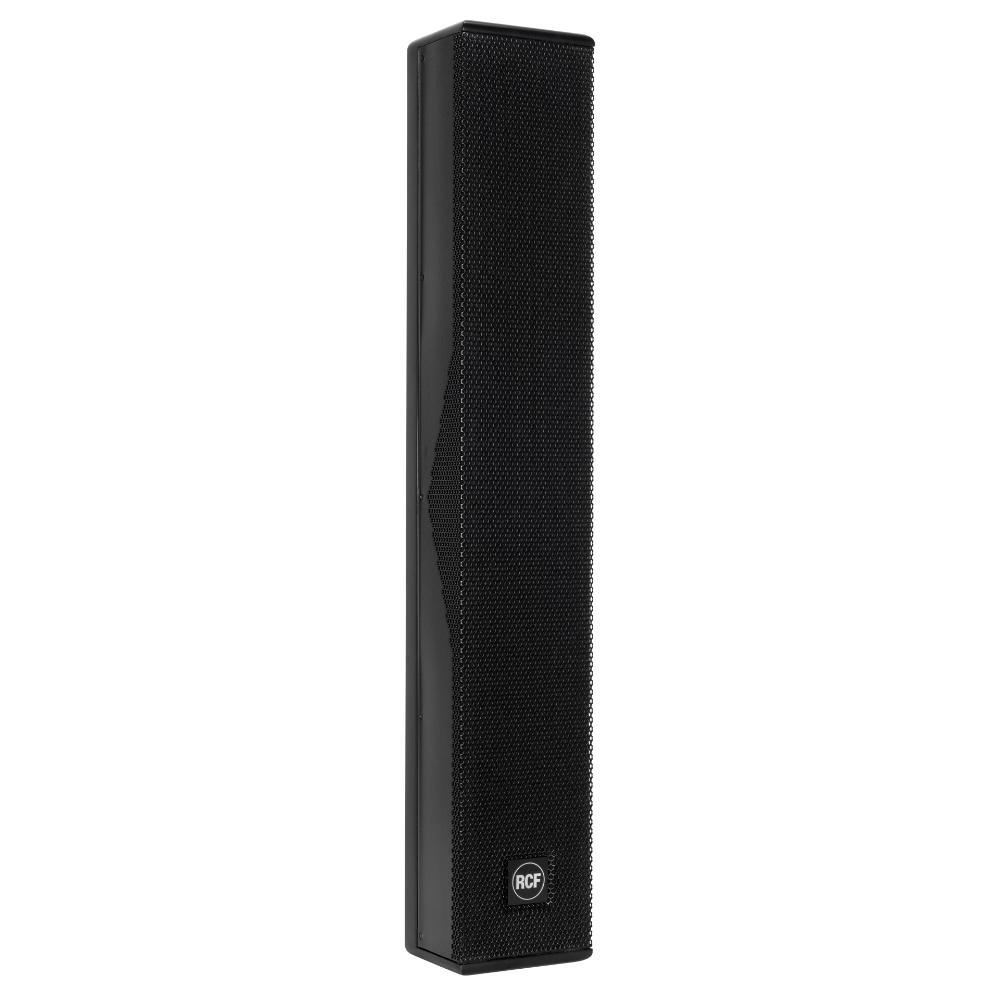

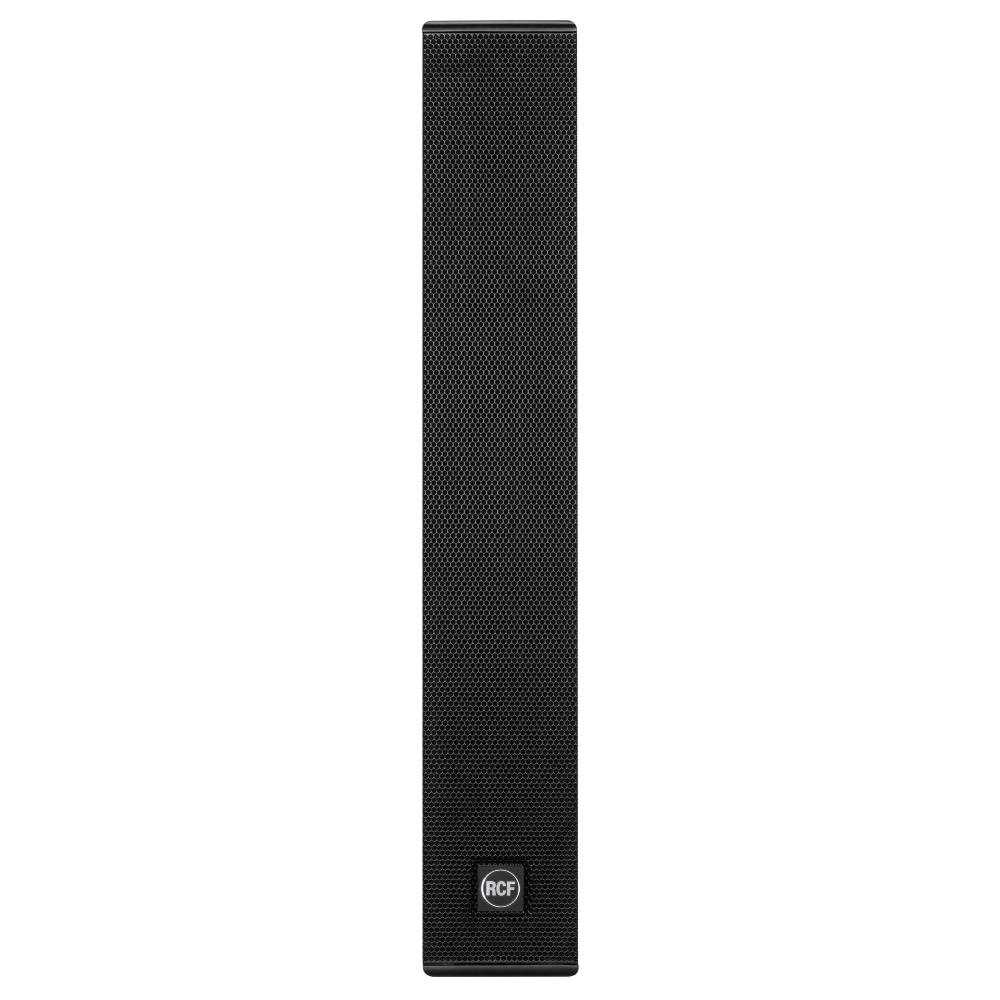

The RCF L2406-T is a full range, compact 3 way column speaker array. Excellent intelligibility and vertical controlled directivity, ideal for church sound systems, auditoria and other permanent sound reinforcement installations.

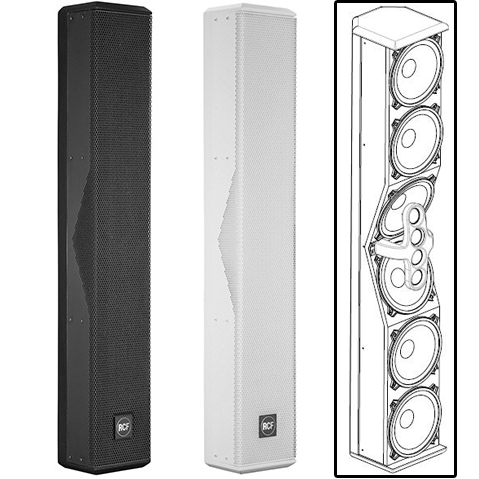

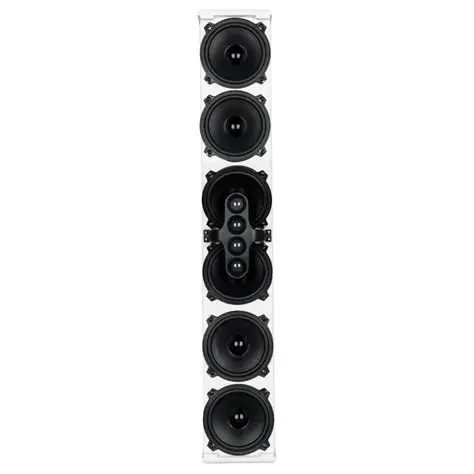

The L2406 is fitted with six 5" woofers and four 1" dome tweeters mounted in front of the two central woofers. This design permits coherent sound dispersion minimizing lobing in a very compact enclosure.

The two central woofers are controlled differently from the other four because of the tweeters in front of them, in order to improve the directivity providing a true cardioid column operation.

The wide coverage horizontal angle and the controlled vertical dispersion allow correct sound reproduction serving a wide area and assistance in limiting feedback and reverberated sound. A speech filter can be activated for enhancing the voice frequencies and improving speech intelligibility. The crossover is designed to avoid secondary lobing creation.

Mounting accessories are provided and are designed to keep the column as close as possible to the wall and simplify the installation allowing suitable tilting.

The RCF L2406T column can be used with a low impedance amplifier to handle 200 W RMS power but can also be used on 100 volt line systems with its integral 60 W line transformer. The crossover is equipped with a circuit to protect the four 1" dome tweeters.

• 3 - Way Sound Column
• 6 x 5" Woofer, 4 x 1" Dome Tweete
• 150° wide horz. coverage angel
• 30° controlled vertical coverage angle
• 200W @ 8 Ohm
• 60W @ 100V
• 100Hz - 20kHz
• 120dB max. SPL
• LICC (Low Impedance Compensated Crossover)
