RCF SUB 8006-AS
RCF SUB 8006-AS
Click to expand

RCF SUB 8006-AS

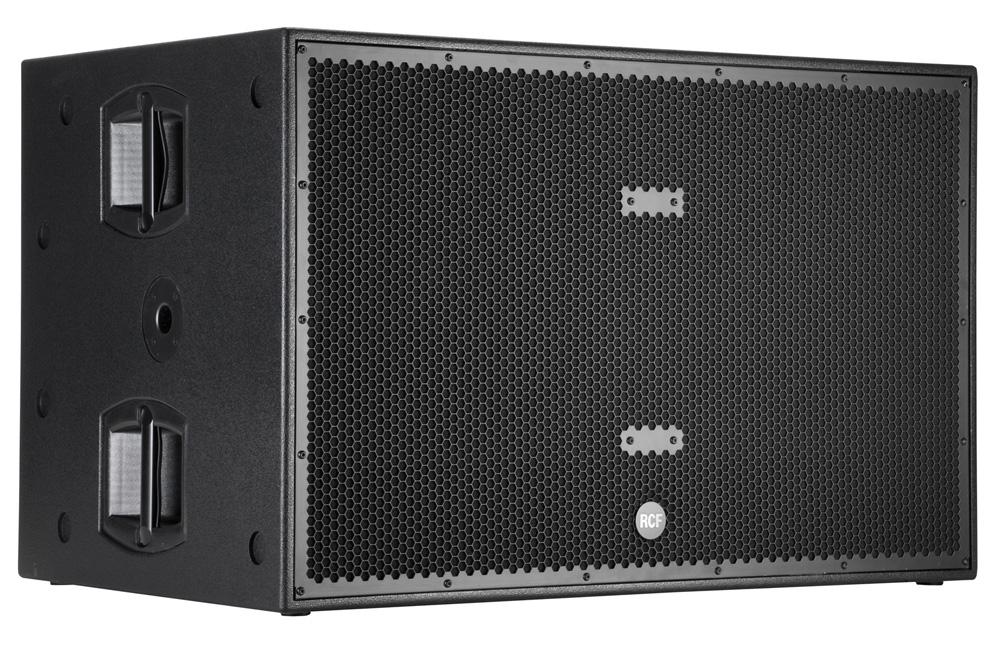

The RCF SUB 8006-AS active high power subwoofer is the largest and most powerful subwoofer in the RCF professional loudspeaker series with 2 x 18" woofers and 4" voice coils.

The highly efficient integral Class D digital amplifier supplies 2500 watts RMS output power:

The RCF SUB8006-AS active subwoofer is ideal for live sound reinforcement & installed sound systems in live music venues as well as theatre sound systems and clubs and is suited to creating large subwoofer arrays.



  • 5000 Watt Peak power - 2500 Watt RMS
  • 141 dB max SPL
  • 30 Hz - 120 Hz frequency response
  • 2 x 18" Woofer
  • DSP controlled Input section with selectable presets
  • Delay control
  • Integrated mechanics for multiple configuration with HDL 20-A
  • Baltic birch tour grade cabinet
List Ex VAT: £4,246.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency Response (-10dB)

30Hz – 120Hz

Max SPL @ 1m

141dB

Transducers

Woofer: 2 x 18”, 4.0” voice coil

Input Signal

Balanced / Unbalanced

Input / Output Connectors

XLR

Input Sensitivity

-2dBu / +4dBu

Hi Pass Frequencies

100 Hz

Low Pass Frequencies

80 Hz

Protection

Thermal, RMS

Limiter

Fast Limiter

Controls

Phase Switch, Depp/Punch, Output Delay Settings, Crossover, Cardioid

Total power

5000 W Peak, 2500 W RMS

Cooling

Convection

Connections

Powercon IN / OUT

Construction

Baltic Birch Plywood Cabinet, Steel Grille

Colour

Black

Height

709mm / 27.91”

Width

1109mm / 43.66”

Depth

700mm / 27.56”

Weight

96.4g / 212.53 lbs

DOWNLOADS

RCF SUB 8006-AS Active Subwoofer Loudspeaker

Related Products

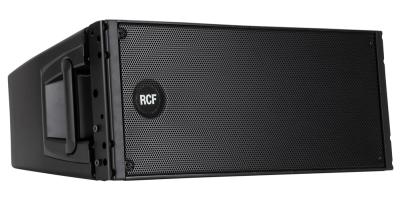

RCF HDL 20-A
