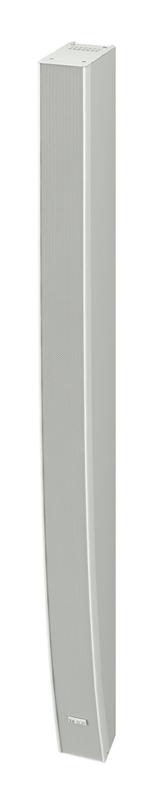

TOA SR-H3S

TOA SR-H3S

The TOA SR-H3S is a bass reflex design line aray loudspeaker with excellent directivity ideal for low impedance church sound systems. 120 watts RMS, 8 ohm.

The curved front design offers limited vertical dispersion of 20°.

The precise vertical control makes the TOA SRH3S is perfect for houses of worship and other large open acoustically challenging spaces, enabling speech to be projected over long distances.

Finished in white.

Directivity: Horizontal: 90°, Vertical: 20°

Also available with a flat front for 0° vertical dispersion. (SeeSR-H3L in  related products)

8ohms
List Ex VAT: £595.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power  Continuous program: 360 W
Impedance

8 Ω
SPL (1W/1m) 92 dB
Frequency Range (-10dB) 90 – 17,000 Hz (when using optional Digital processor)
Directivity Angle Horizontal: 90°, Vertical: 20° (within the range of speaker height)
Speaker component

7 cm (2.8") cone-type × 16
Colour White
Dimensions mm 84 (W) × 1177.2 (H) × 17 (D)mm (3.31" x 46.35" x 6.18")
Weight (kg) 7.9 kg

DOWNLOADS

TOA H Series Line Array Column Loudspeaker
