TOA SR-S4S

TOA SR-S4S

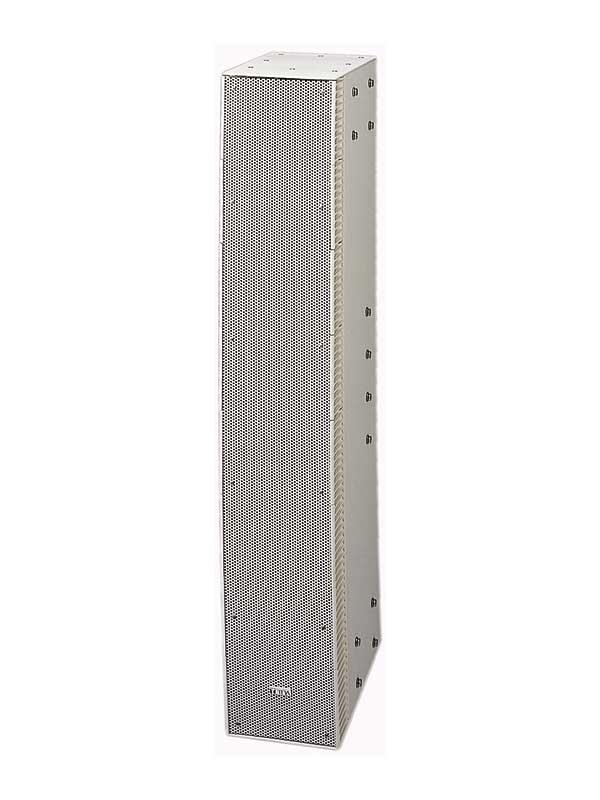

The TOA SR-S4S is a bass reflex design line aray loudspeaker with excellent directivity ideal for low impedance church sound systems. 200 watts RMS, 8 ohm.

The slightly curved front design offers limited vertical dispersion of 10°.

The precise vertical control makes the TOA SRS4S is perfect for houses of worship and other large open acoustically challenging spaces, enabling speech to be projected over long distances.

Finished in white.

Directivity: Horizontal: 90°, Vertical: 10°

Also available with a flat front for 0° vertical dispersion. (See SR-S4S in  related products)

8ohms
List Ex VAT: £1,149.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Enclosure Bass-reflex type
Power handling capacity Continuous program: 600W (single amp mode)
Low 240W, High 240W (biamp mode)
Rated Impedance

8Ω (single amp mode) / Low 8Ω, High 8Ω (biamp mode)
SPL (1W/1m) 93 dB
Frequency Range (-10dB) 70 – 20,000 Hz (when using optional Digital processor)
Directivity Angle Horizontal: 90°, Vertical: 10° (within the range of speaker height)
Speaker component

Low frequency: 10cm (4") cone-type × 8
High frequency: 2.5cm (1") balanced dome-type × 24
Material / Colour MDF, white painted cabinet, punched steel plate with white acrylic paint
Dimensions mm 160 (W) × 892 (H) × 303 (D)mm (6.30" × 35.12" × 11.93")
Weight (kg) 16 kg

DOWNLOADS

TOA SR-S4 Array Brochure
