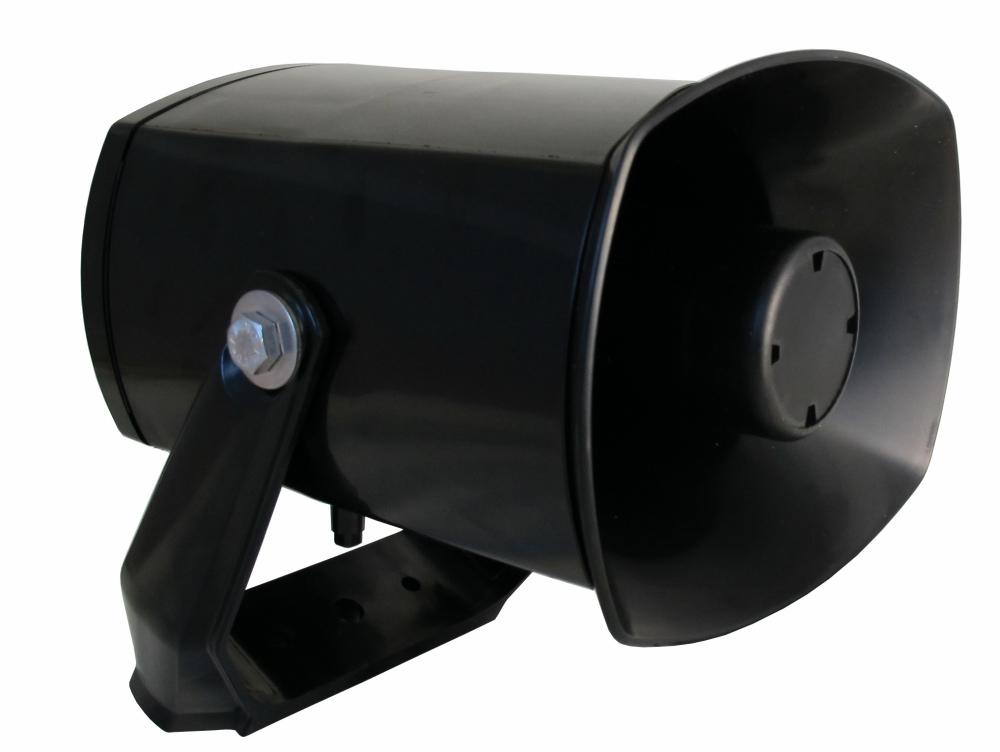

DNH DSP-15EExmNT

The DNH DSP-15EExmNT explosion proof 25 watt plastic horn loudspeaker with M20 cable entries in the back lid and extra termination space for easy installation.

Ex certified - Suitable for 100 volt line public address sound systems in hazardous environments with a potentially explosive atmosphere.

  • Zone 1 Explosion proof
  • Suitable for hazardous areas where explosion is a risk, for example spray booths, oil and gas production facilities

Supplied with mounting bracket.

IP 66 / 67 rated, the DSP15EExmNT horn is waterproof and weatherproof.

Constructed from black ASA material: an extremely tough plastic polymer.

Warranty: 2 Years

1a: 100V IPxx
List Ex VAT: £547.00
Log in for Trade Prices

Please contact us for availability

CONTACT US

SPECIFICATIONS

Rated Power (rms) 25W
Impedance 100 volt line
Transformer tappings 25W, 15W, 6.5W, 5W, 2.5W, 1.5W
SPL (1W/1m) 106dB
Max SPL (rated/1m) 118dB
Frequency Range (-10dB) 380HZ - 8KHZ
Dispersion 1K Hz / 4K Hz 120° / 37°
Termination e-chamber, push terminals
Max. / min. amb. temp 60°C / -50°C
IP Rating IP66 / 67
Material ASA
Colour Black
Weight (kg) 2.2 kg
Dimensions (W X H x D) mm 170 x 144 x 207
Mounting Bracket supplied
