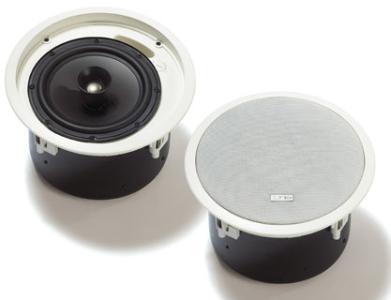

Bosch LC2-PC30G6-8

Bosch LC2-PC30G6-8

The Bosch LC2-PC30G6-8 premium sound 8" ceiling loudspeaker provides wide dispersion, high efficiency, high output and simple installation. Rated at 30 watts, 100 volt line.

The range of Bosch premium sound ceiling speakers provide a high performance sound with an unobtrusive presence and are ideal for fitness rooms in health clubs, as well as club, bar and restaurant sound systems. A compact ceiling mounted subwoofer is also available for an even more vibrant sound with punchy bass.

The coax loudspeaker in the LC2PC30G6-8 features a waveguide coupled titanium coated dome tweeter and the rear enclosure provides extended low frequency bass response.

Also available as a low profile version for use where the gap above the ceiling tile is restricted. See LC2-PC30G6-8L in Related Products.

Transformer tappings are via a switch mounted on the front baffle, at 30,15,7.5 and 3.75 watts. (+ 1.88W on 70 V)

Supplied and priced as a pair.

  • 8‑inch coaxial two‑way
  • Waveguide coupled Ti tweeter
  • Full bandwidth overload protection
  • Front baffle wattage tap adjustment
  • Tile bridge included
  • BS 5839‑8 and EN 60849 compliant
100V
List Ex VAT: £306.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Maximum power

75 w

Rated power

30 / 15 / 7.5 / 3.75 W (1.88 W only, 70 V).

Sound pressure level at 6 W / 1 W (1 kHz, 1 m)

106 / 91 dB (SPL)

Effective frequency range (-10 dB)

50 Hz to 20 kHz

Coverage (conical)

110°

Rated voltage

70V or 100 V

Rated impedance

167 or 333 or 8 ohm

LF transducer

200mm (8") polypropylene cone

HF transducer

25mm (1") Ti Mylar laminate

Connector

3‑pole screw terminal block

Diameter

300 mm (11.8 inch)

Maximum depth

LC2-PC30G6-8: 255 mm  (10 inch)

LC2-PC30G6-8L: 178 mm (7 inch)

Ceiling thickness

4 to 25 mm (0.16 to 1.00 inch)

Mounting cut-out

272 mm + 5mm (10.75 inch + 0.2 inch)

Weight

5 kg (11 lb)

Colour

White (RAL 9010)

DOWNLOADS

Bosch LC2-PC30G6-8 datasheet
EC Declaration of Conformity: LC2-PC30G6-4, 8, 8L, PC60G6-8H, 10, 12
