Commercial Audio - Bosch LC2-PC60G6-10

Bosch LC2-PC60G6-10

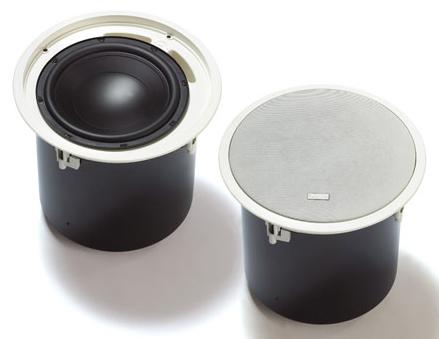

The Bosch LC2-PC60G6-10 premium sound 10" ceiling subwoofer loudspeaker is designed to enhance the bass response of an installation of Bosch LC2 high performance ceiling speakers. Rated at 60 watts, 100 volt line. The loudspeaker utilizes a second order crossover network to provide the correct band‑pass frequency response.

The range of Bosch premium sound ceiling speakers provide a high performance sound with an unobtrusive presence and are ideal for fitness rooms in health clubs, as well as club, bar and restaurant sound systems. This ceiling mounted subwoofer provides an even more vibrant sound with enhanced punchy bass.

The two way 10 inch coax high-excursion loudspeaker in the LC2PC60G6-8H and rear enclosure provide an optimum internal volume for extended low frequency performance.

Transformer tappings are via a switch mounted on the front baffle, at 60, 30, and 15 watts. (+ 7.5W on 70 V)

Supplied and priced as a pair.

10‑inch high-excursion loudspeaker for extended LF
Low pass network with overload protection
Front baffle wattage tap adjustment
Includes tile bridge and mounting ring for easy installation
BS 5839‑8 and EN 60849 compliant

List Ex VAT: £438.00

SPECIFICATIONS

Maximum power	100 w
Rated power	60 / 30 / 15 W (7.5 W only, 70 V).
Sound pressure level at 6 W / 1 W (1 kHz, 1 m)	112 / 94 dB (SPL)
Effective frequency range (-10 dB)	45 Hz to 150 kHz
Coverage (conical)	180°
Rated voltage	70V or 100 V
Rated impedance	83 or 167 or 8 ohm
LF transducer	254 mm (10 in.) Polypropylene cone
Diameter	350 mm (13.8 inch)
Maximum depth	303 mm (11.9 inch)
Ceiling thickness	4 to 25 mm (0.16 to 1.00 inch)
Mounting cut-out	322 mm + 5mm (10.75 inch + 0.2 inch)
Weight	7 kg (15.5 lb)
Colour	White (RAL 9010)

DOWNLOADS

Bosch LC2-PC60G6-10 Premium Sound Subwoofer Ceiling Loudspeaker

EC Declaration of Conformity: LC2-PC30G6-4, 8, 8L, PC60G6-8H, 10, 12

Related Products

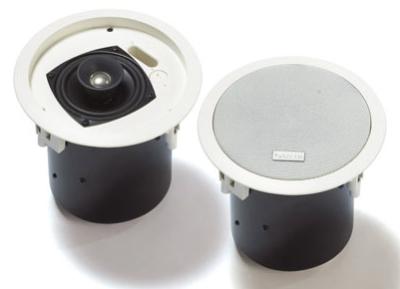

Bosch LC2-PC30G6-4

'Premium Sound' 4" ceiling speaker. Flush mount. 30 watts, 100 volt line.

Supplied as a pair.

List Ex VAT: £250.00

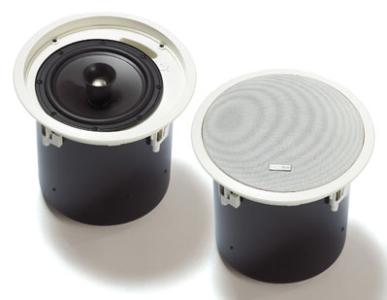

Bosch LC2-PC30G6-8

PAIR of "Premium Sound' 8" ceiling speakers. 8", 30 watts, 100V,

List Ex VAT: £306.00

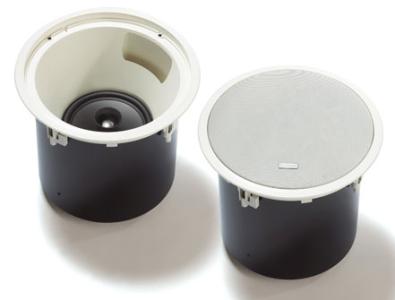

Bosch LC2-PC60G6-8H_pair
