Yamaha VXC3F

The Yamaha VXC-3F ceiling speakers feature a newly designed speaker unit, optimally tuned for music playback. 3.5" full range drive unit, program power 40 watts, and compatible with 8 ohm low impedance background music systems as well as high impedance sound systems. Tappings at 15w, 7.5w, 3.8w.

The low profile, lightweight construction and flexible design is ideal for restricted installation space and the speaker size has been carefully matched to the back box volume to ensure superb audio performance.

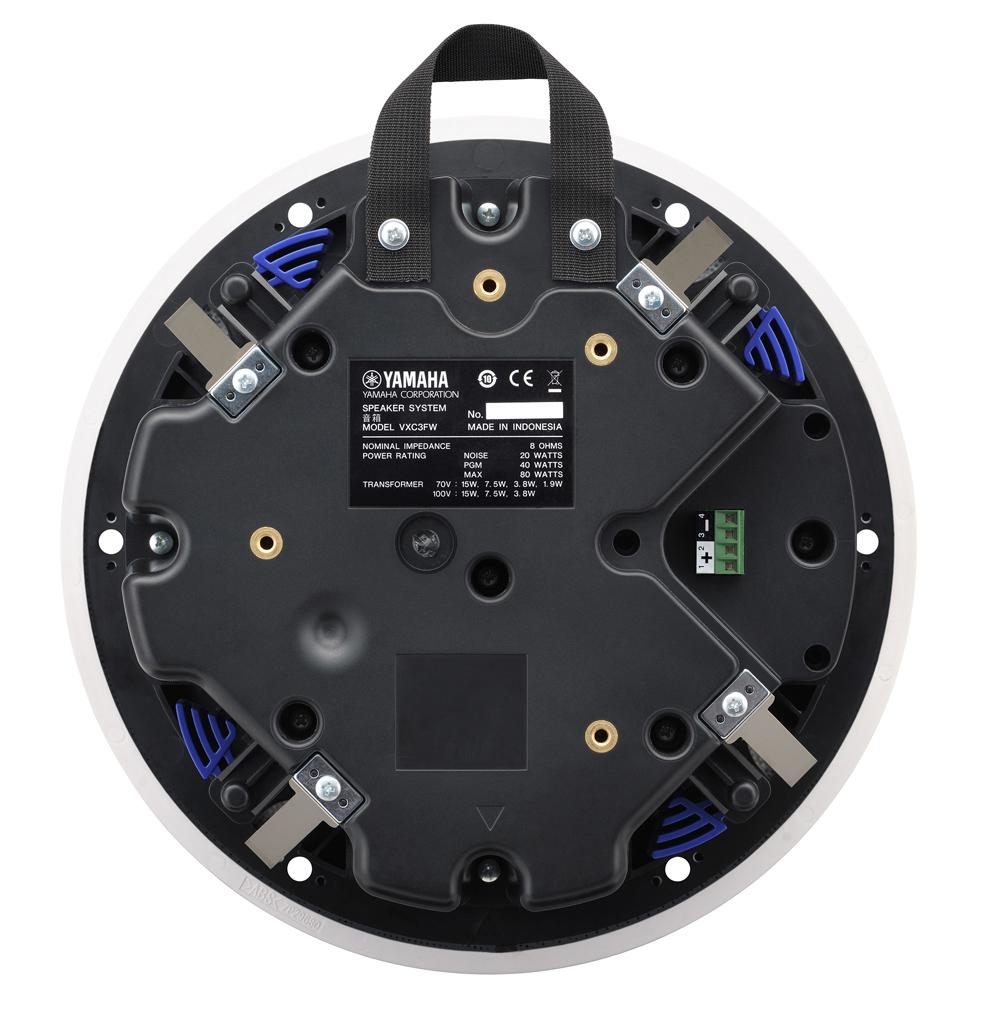

The design enables a safer, faster installation. A carry strap enables safe carrying of the speaker, especially when climbing ladders and an anti-drop tab mechanism holds the speaker in place whilst tightening the fast fix double threaded clamp screws.

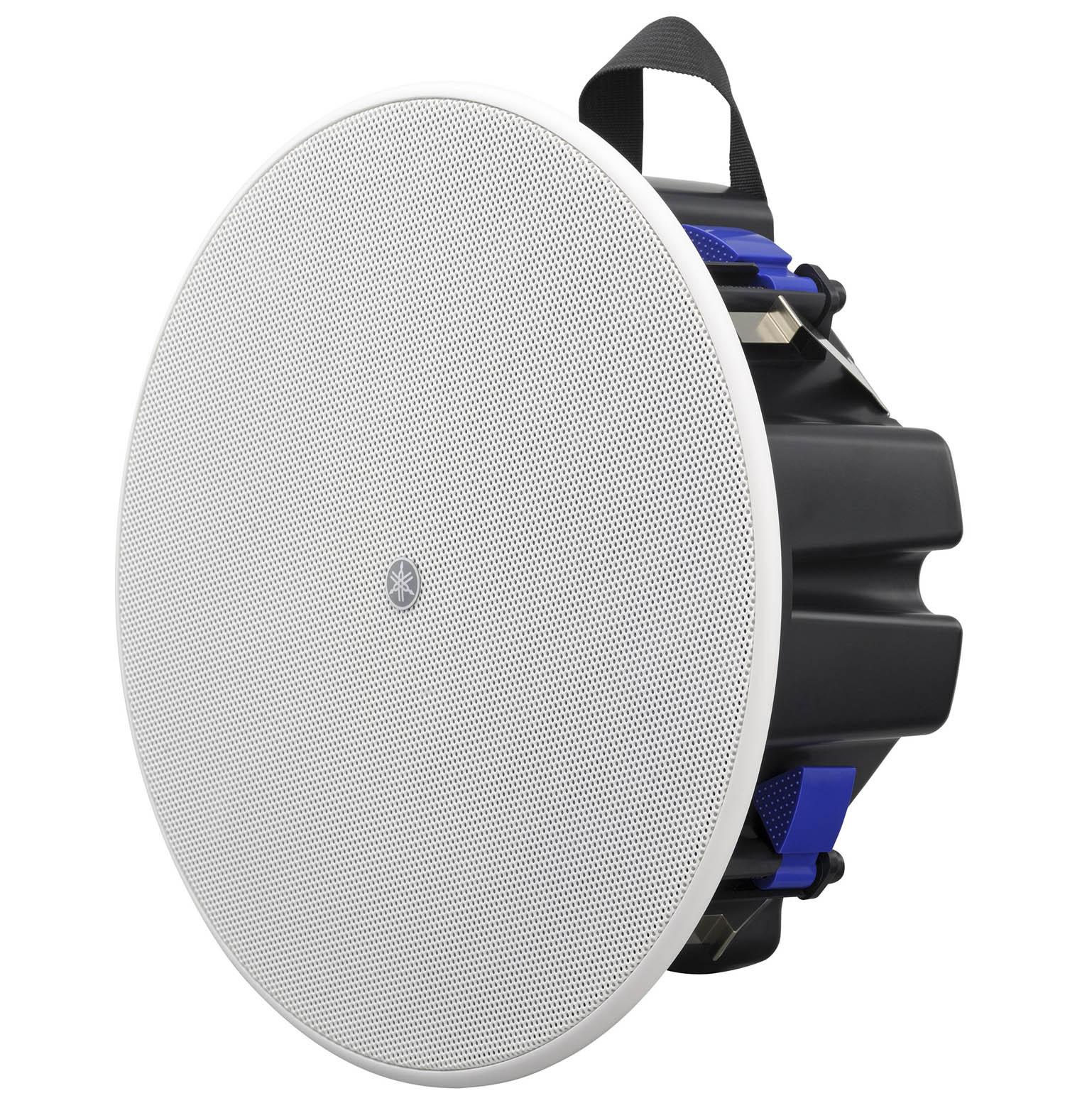

The tapping selector is mounted on the downward facing side of the loudspeaker, to enable easy adjustment after installation. The grille then simply clicks into place, held by powerful magnets (and a saftey wire) for a streamlined appearance.

Available in black or white.

  • 3.5” full-range speaker unit
  • Engineered for optimum BGM reproduction
  • Direct low-impedance or high-impedance connections
  • Low-profile design for installation in limited ceiling spaces
  • Built-in carrying band increases safety during installation
  • Anti-drop tab mechanism provide secure temporary positioning during installation
  • Double-threaded speaker clamp screws for speedy tightening
  • Paintable grilles with magnetic catches
  • Black and white versions available

*****SUPPLIED & PRICED IN PAIRS*****

100V 8ohms
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

General specifications VXC5F / VXC5FW VXC3F / VXC3FW
Speaker type Full range, Bass reflex Full range, Bass reflex
Frequency range (-10dB) 60 Hz - 20 kHz (Half-space:2ϖ) 71 Hz - 20 kHz (Half-space:2ϖ)
Nominal coverage 130° conical (Half-space :2ϖ) 140° conical (Half-space :2ϖ)
Components LF-HF 4.5” Full range unit 3.5” Full range unit
Power rating NOISE 40 W 20 W
PGM 80 W 40 W
PEAK 160 W 80 W
Nominal impedance 8 Ω 8 Ω
Transformer taps 100V 30 W, 15 W, 7.5 W, 3.8 W 15W, 7.5 W, 3.8 W
70V 30 W, 15W, 7.5 W 15 W, 7.5 W, 3.8 W, 1.9 W
SPL Sensitivity (1W; 1m on axis) 89 dB SPL (Half-space:2ϖ) 87 dB SPL (Half-space:2ϖ)
Peak (Calculated) 111 dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression) 106 dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)

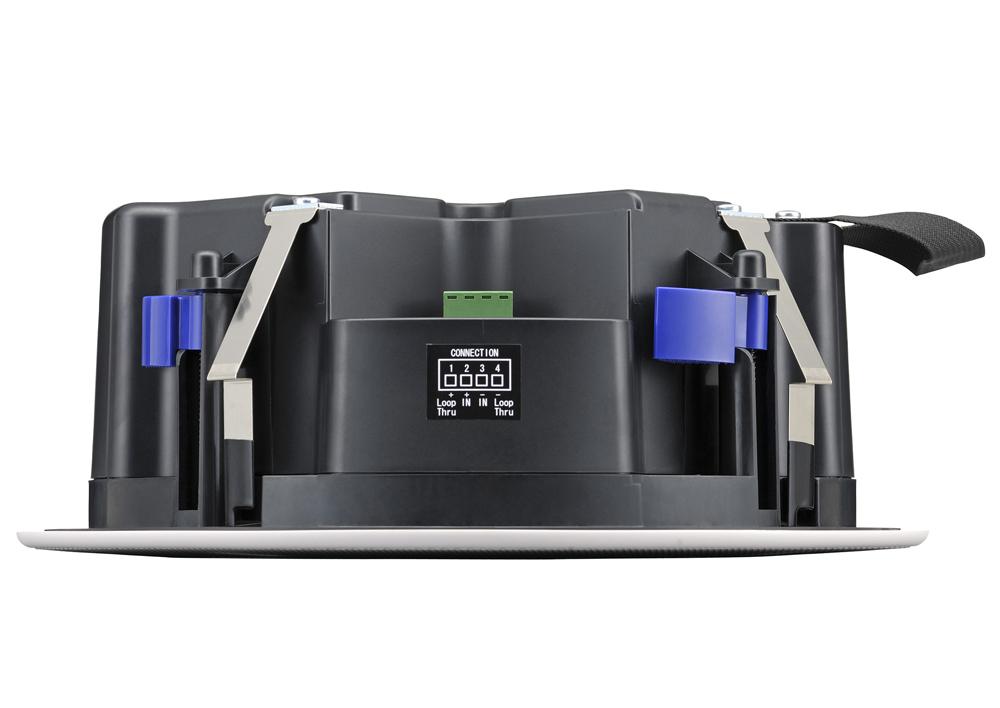

I/O connectors Euroblock (4 pin) x 1 (input: +/-, loop-thru: +/-) Euroblock (4 pin) x 1 (input: +/-, loop-thru: +/-)
Protection circuit Load protection Full-range power limiting to protect network and transducers Full-range power limiting to protect network and transducers
Finish VXC5F: Black (approx. Munsell N3), VXC5FW: White (approx. Munsell 9.3) VXC3F: Black (approx. Munsell N3), VXC3FW: White (approx. Munsell 9.3)
Dimensions Diameter 324 mm (12-13/16") 285 (11-1/4")
D 143 mm (5-11/16") 112 mm (4-7/16")
Net weight 3.1 kg (6.8 lbs) 2.5 kg (5.5 lbs)
Cutout size Ø285 mm (Ø11-1/4") Ø247 mm (Ø9-3/4")
Required ceiling board thickness 5 mm - 37 mm 5 mm - 37 mm
Accessories O-ring, Tile Rail, Cutout Template, Euro Block (4pin), Terminal Cover O-ring, Tile Rail, Cutout Template, Euro Block (4pin), Terminal Cover
Packaging Packaged in pairs Packaged in pairs
Certificate UL1480, NFPA70, CE, EAC, RoHS UL1480, NFPA70, CE, EAC, RoHS
Others Conduit tube: Ø15.4 mm - Ø21.3 mm Conduit tube: Ø15.4 mm - Ø21.3 mm
