Yamaha VXC4
Click to expand

Yamaha VXC4

The Yamaha VXC-4 ceiling speakers have 4" full range bass reflex drive unit, program power 60 watts, and are compatible with 8 ohm low impedance background music systems as well as high impedance sound systems. Tappings at  30w,15w & 7.5w.

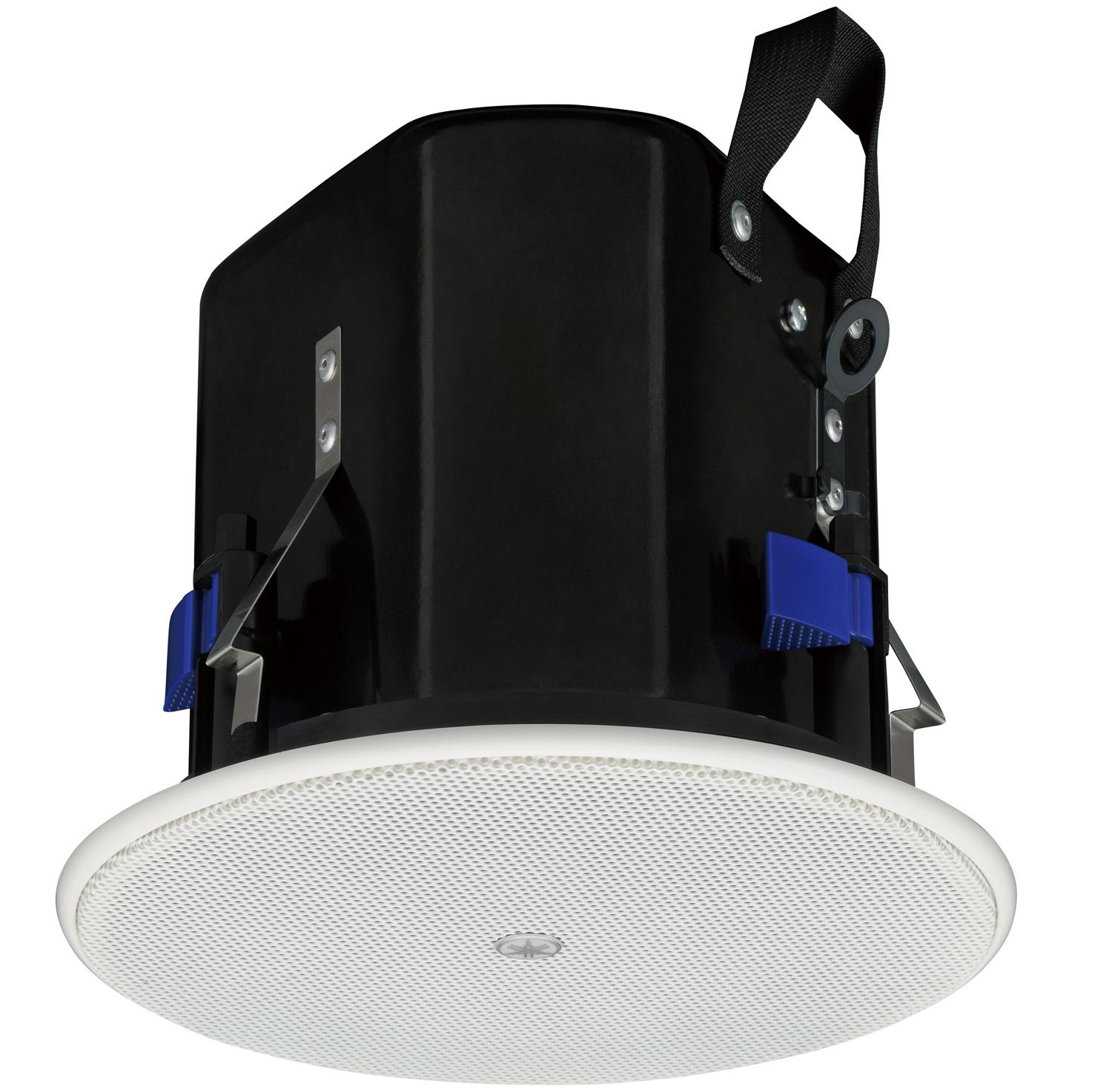

The design enables a safer, faster installation. A carry strap enables safe carrying of the speaker, especially when climbing ladders and an anti-drop tab mechanism holds the speaker in place whilst tightening the clamp screws.

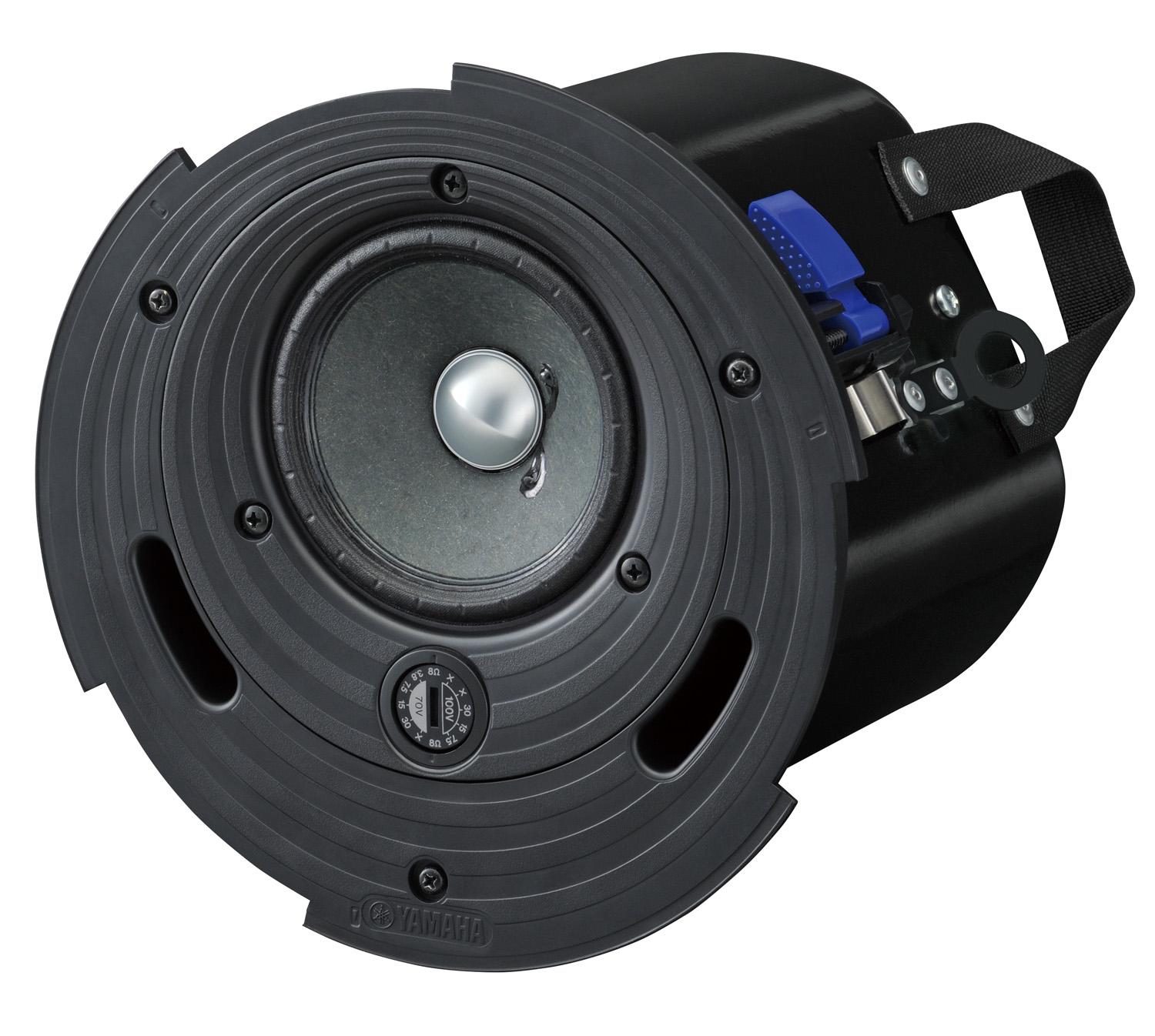

The tapping selector is mounted on the downward facing side of the loudspeaker, to enable easy adjustment after installation. The grille then simply clips into place for a streamlined appearance.

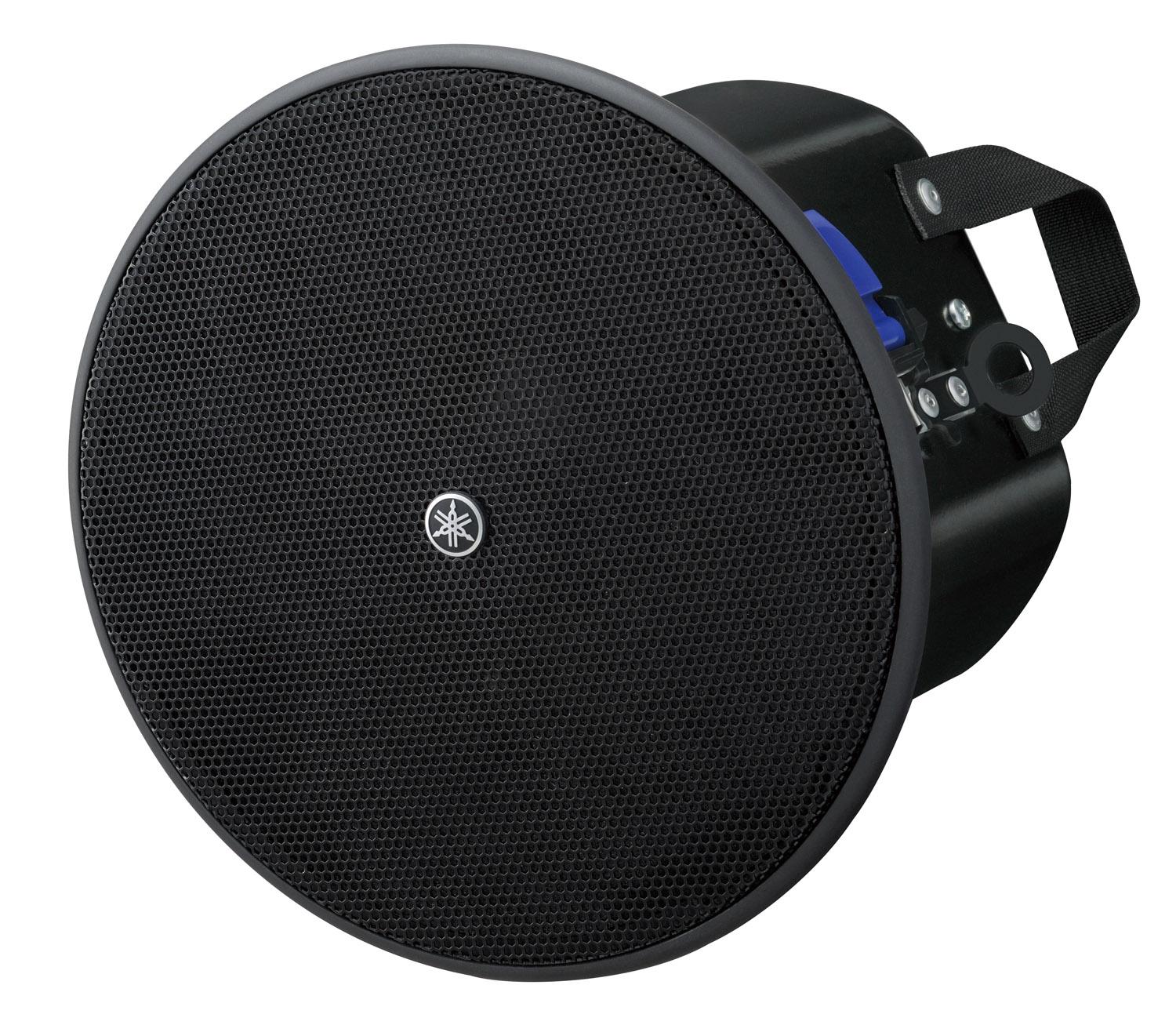

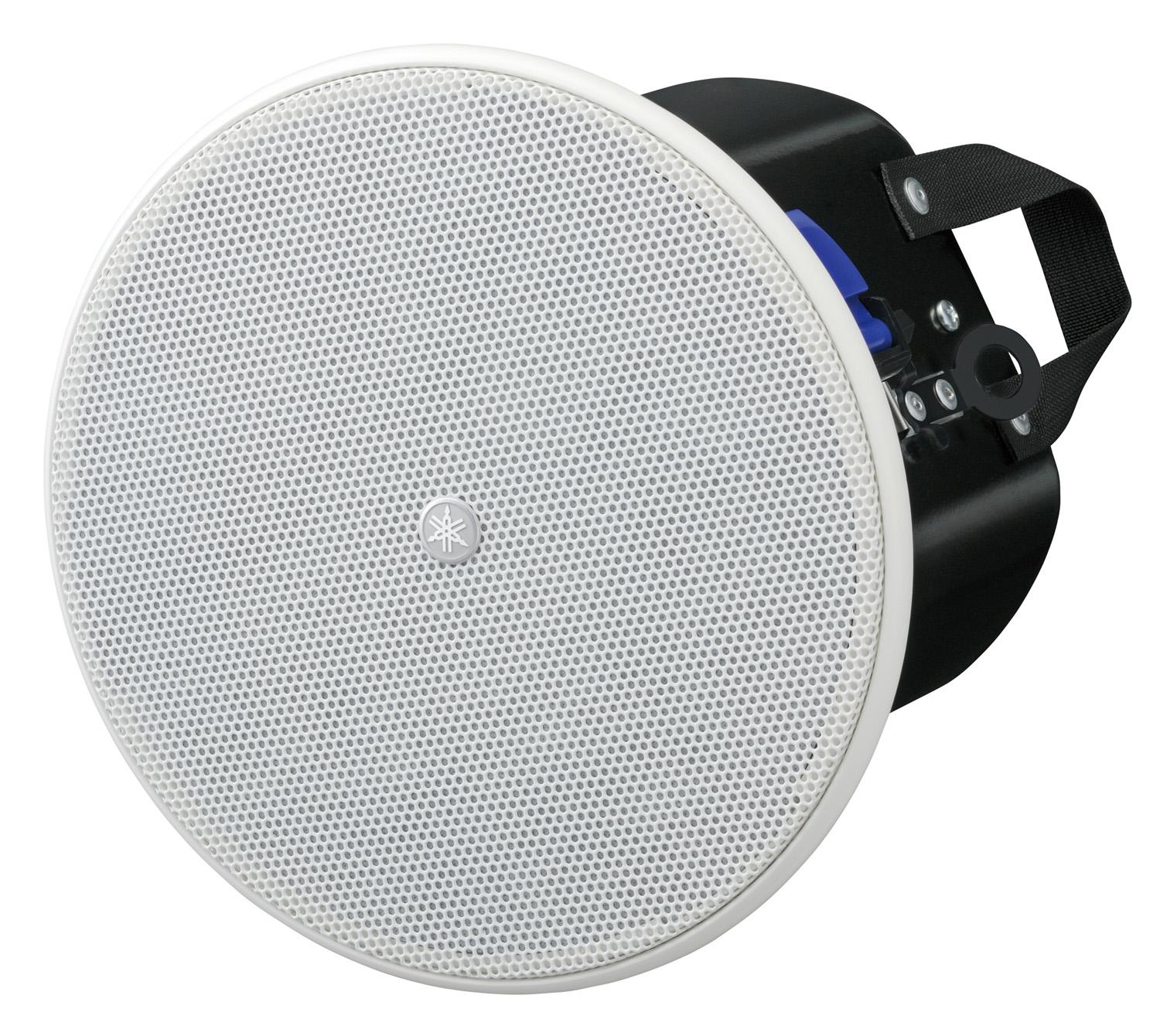

Available in black or white.

  • Features newly customized transducers for superb music reproduction as well as crystal clear announcements.
  • Designed with optimized bass-reflex tuning to offer a firm, tight low-end.
  • Equipped with internal transformers that allow both high and low impedance drive, which can be selected by simply switching the tap on the baffle.
  • Anti-Drop tab allows the speakers to be mounted temporarily in the ceiling for improved safety and ease of installation.
  • A flexible carrying band makes the speakers very portable and allows carrying multiple speakers at once.
  • Comes complete with O-rings and tile rails for safer and smoother installation.
  • Overload protection circuit provided to protect speaker components.

*****SUPPLIED & PRICED IN PAIRS*****

100V 8ohms
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

VXC4 / VXC4W



Speaker type

Full range, Bass reflex

Frequency range (-10dB)

80 Hz - 20 kHz

Nominal coverage

130° conical

Components: LF-HF

4” Full range unit

Power rating NOISE

30 W

Power rating PGM

60 W

Nominal impedance

8 Ω

Transformer taps: 70V

30 W, 15 W, 7.5 W, 3.8 W

Transformer taps: 100V

30 W, 15W, 7.5 W

Sensitivity (1W; 1m on axis)

87 dB SPL

Maximum Sensitivity

108 dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)

I/O connectors

Euroblock (4 pin) x 1 (input: +/-, loop-thru: +/-)

Finish

VXC4: Black, VXC4W: White

Diameter

225 mm (8.9")

Depth

195 mm (7.7")

Net weight

2.6 kg (5.7 lbs)

Accessories

O-ring, Tile Rail, Cutout Template, Screws, Manual

Packaging

Packaged in pairs
