Crown XLS 2502
Click to expand

Crown XLS 2502

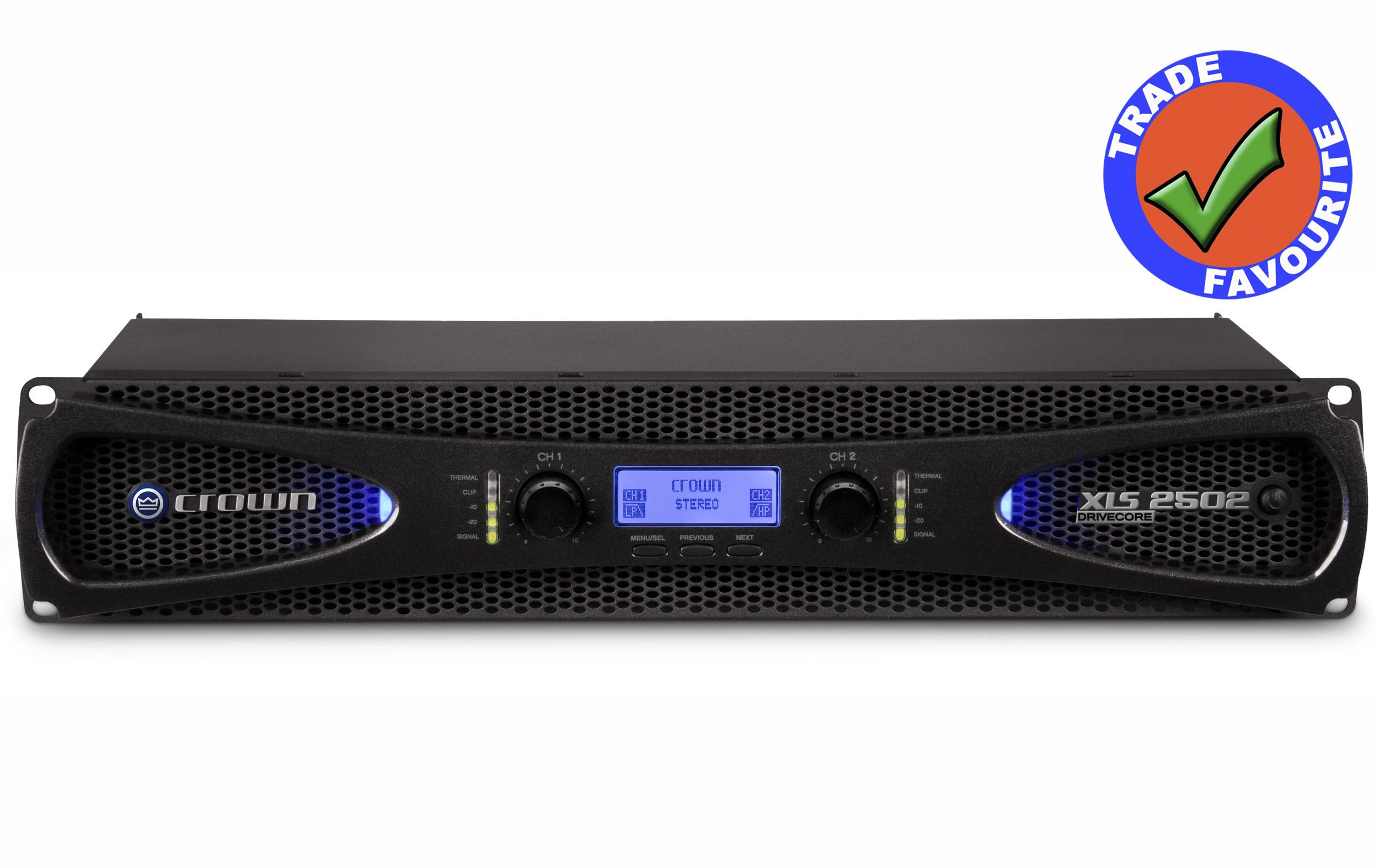

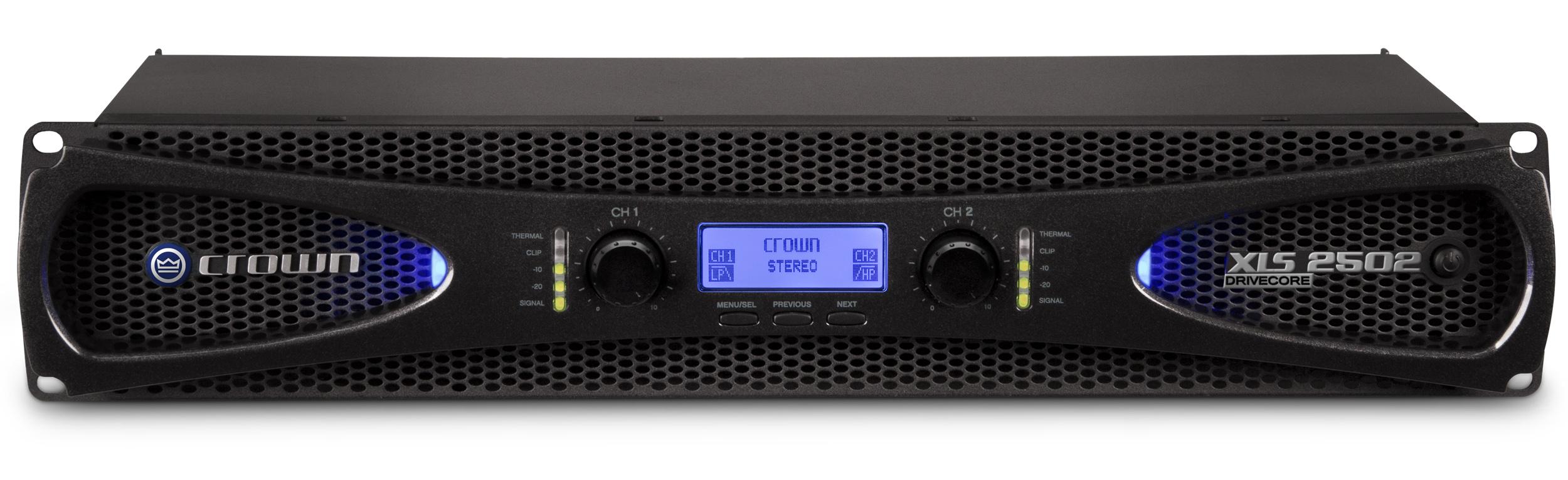

The Crown XLS 2502 low impedance stereo power amplifier, one of our favourite products, is ideal for live sound with superb bass response and clear high frequencies. Offering 2 x 775 watts per channel. Bridgeable for complete flexibiliy with a bridged output of 2400W.

Moving on from the original XLS DriveCore Series, the new XLS 2 series has a sleek new look, three times larger LCD display, and  more DSP with extended functionality.

Like its predecessor, the new XLS2502 is ultra-efficient with Crown’s patented DriveCore technology and can drive 2400W at 4Ω bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver powerful, pure sound experiences for any venue.

• Class D amp with Crown's ultra efficient DriveCore technology weighs less than 11 lbs (5 kg)

• Higher DSP capabilities: More control; has band pass filter per channel

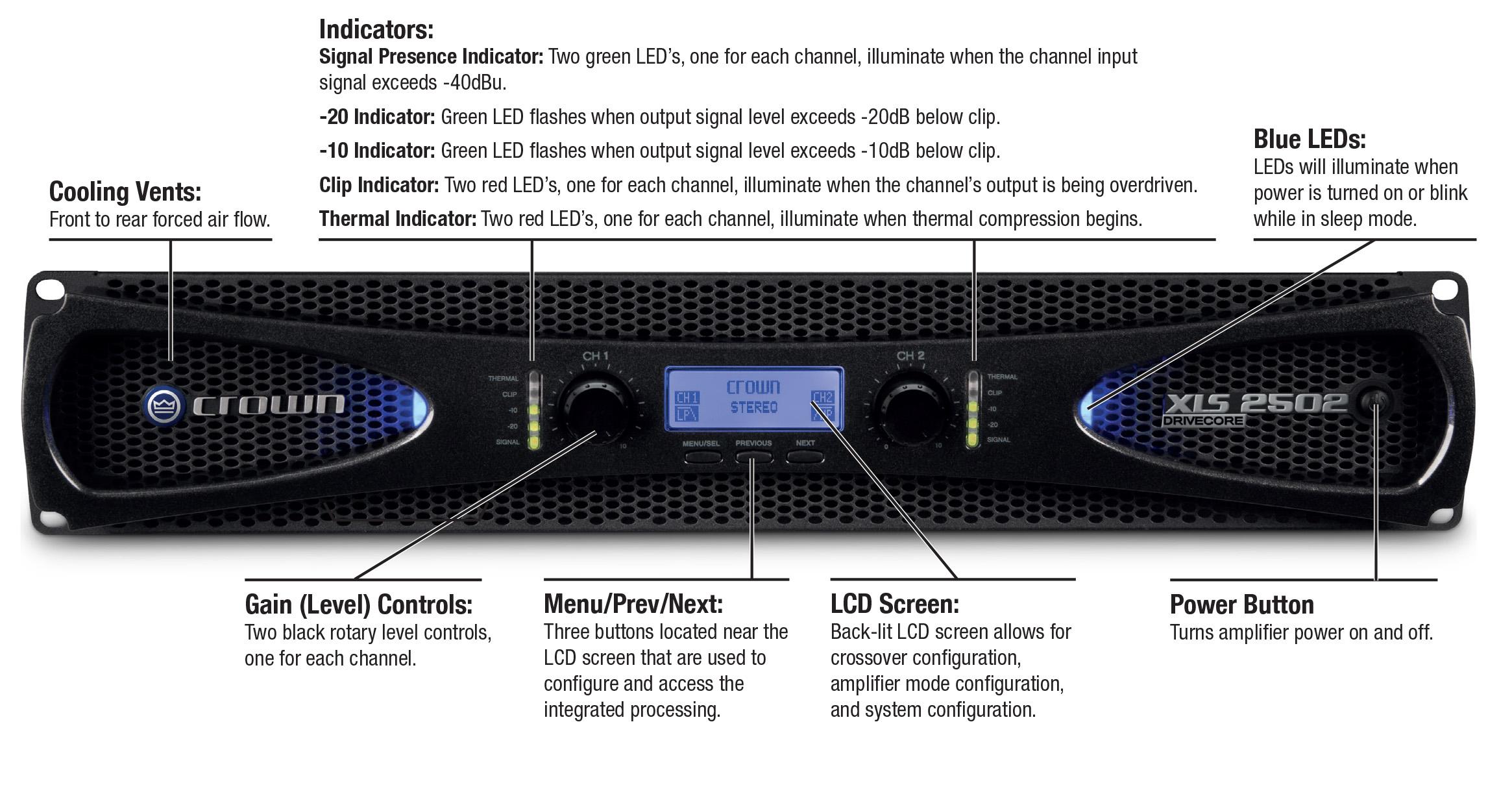

• Increased lighting functionality; turn off display or any/all LED indicators except clip and thermal to reduce distraction in dark venues

• Selectable input sensitivity; 1.4Vrms and .775Vrms options so that amp can be driven at full power

• Set display sleep mode after specified time without having to press a button

• Security setting disables menu buttons; menu locked/unlocked by entering button combination

• System reset allows factory settings to be restored

• Remote power trigger

• Peakx™ Limiters provide maximum output while protecting your speakers

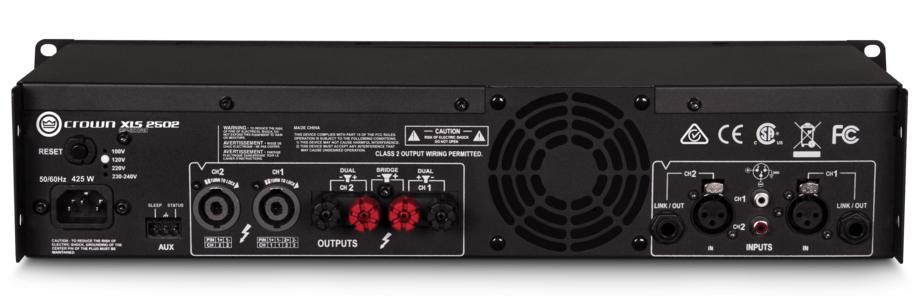

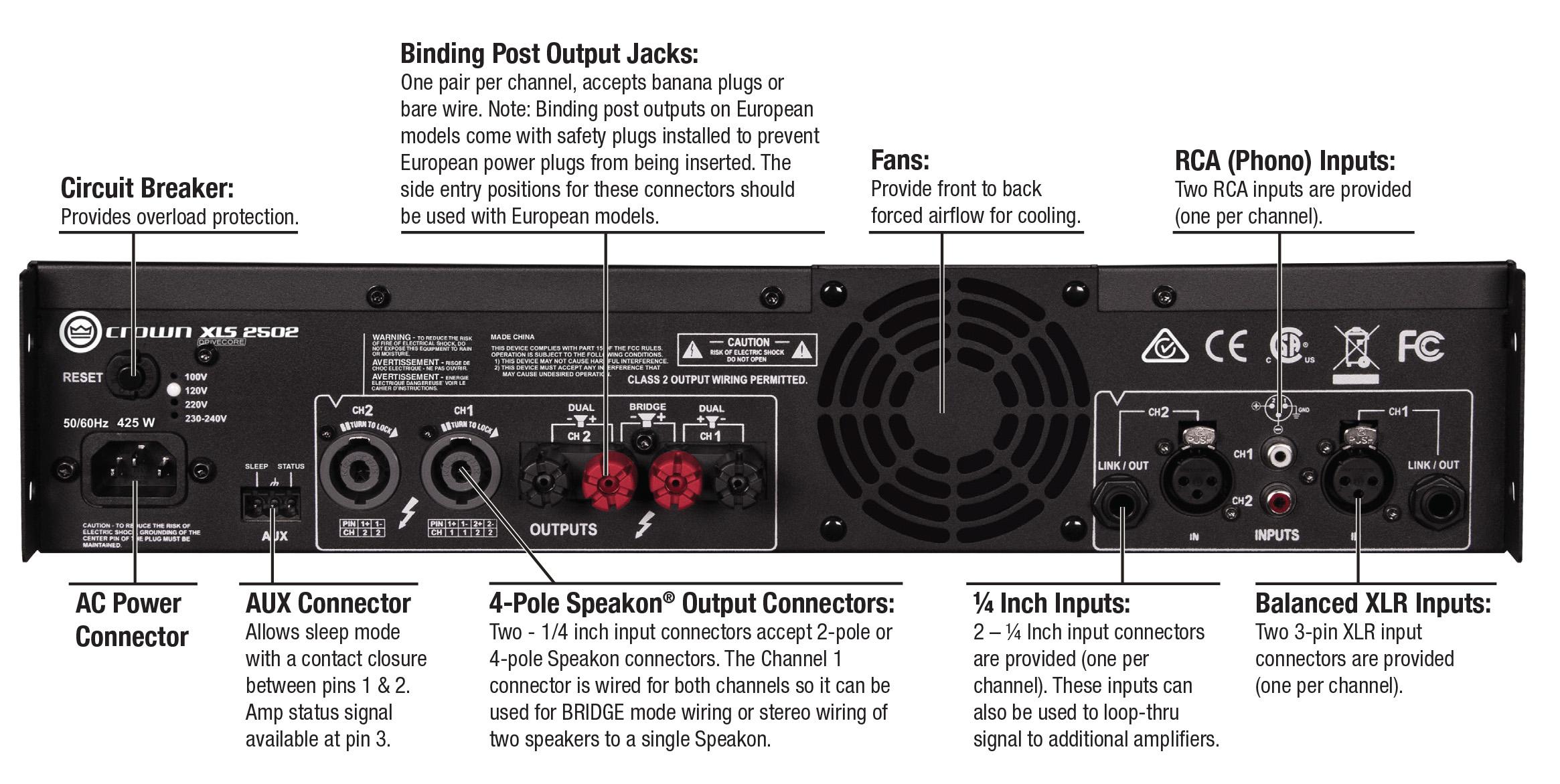

• XLR, 1/4", RCA inputs provide flexibility

• Integrated PureBand™ Crossover System for better performance and control

• Efficient forced-air fans prevent excessive thermal buildup

multi-ch 2U 4ohms 8ohms
List Ex VAT: £995.83
Log in for Trade Prices



Sensitivity (for full rated power at 4 ohms) 0.775Vrms or 1.4Vrms
Frequency Response (at 1 watt, 20 Hz - 20 kHz) +0dB, -1dB
Signal-to-Noise Ratio
Rated as dBr to full rated 8 ohm power output (A-Weighted):
 > 103dB
Total Harmonic Distortion (THD) <0.5%
Intermodulation Distortion (60Hz and 7kHz at 4:1) from full rated output to -30dB <0.3%
Damping Factor (8 ohm): 10 Hz to 400 Hz > 200
Crosstalk (below rated 8Ω power) At 1 kHz: > 85dB
At 20kHz: > 55dB

19" (48.3 cm) x 3.5" (8.9 cm) x 10.7" (27.2 cm)

Net Weight, Shipping Weight 10.8 lb (4.9kg), 15.8 lb (7.1 kg)
