Signet AKM3
Click to expand

Signet AKM3

The SigNET AKM3 induction loop kit is designed to provide hearing assistance for hearing aid users in a meeting or seminar room. The highly sensitive Audio Technica Pro45 hanging microphone offers a cardioid pick up pattern and is ideal for use in a boardroom, meeting room or small lecture theatre.

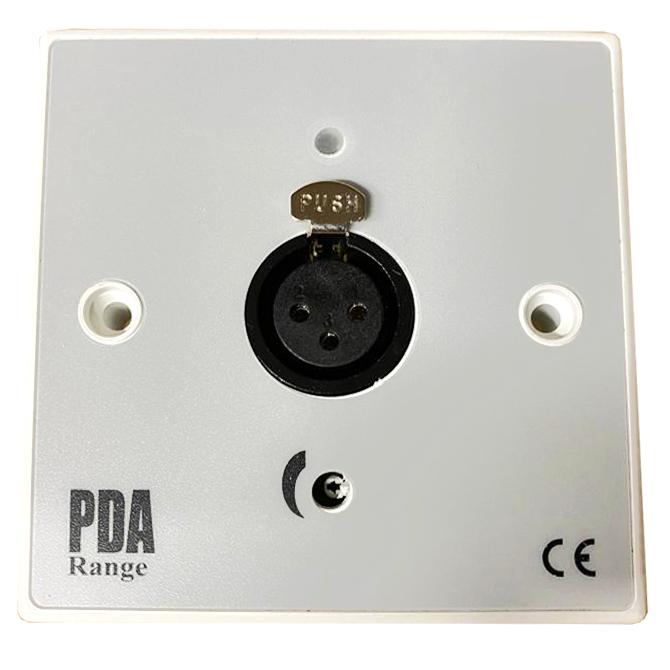

An APXM is now included - this is a wall mounted microphone socket from the SigNet range of outreach plates.

The kit is based around the SigNET PDA200E wall mounted induction loop amplifier which benefits from the following:

  • PDA200E wall mounted induction loop amplifier includes straightforward internal screw connectors
  • Wall-mounting metal enclosure for permanent installation
  • Internal drive, level and tone controls
  • Four inputs - microphone; line/outreach; alert (for doorbells, fire alarms, etc) and 100V line (for PA system connection)
  • Ideal for electrical contractors - no audio connectors or experience required.
  • Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed.

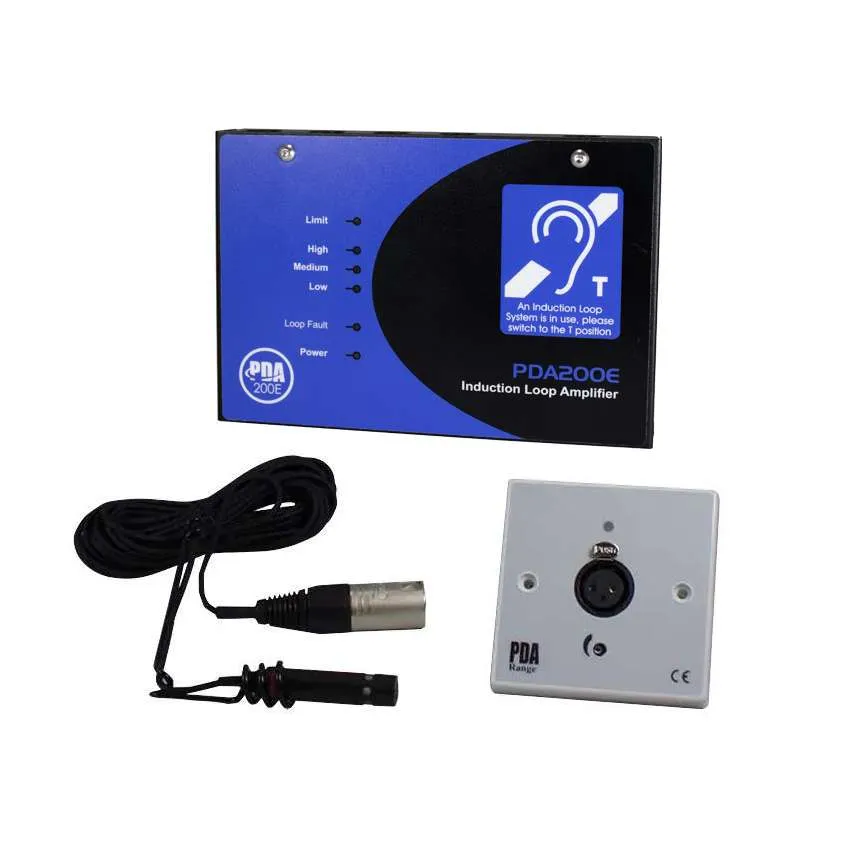

The SigNET AKM3 AFILS kit contains: PDA200E induction loop amplifier; Audio Technica PRO45 hanging mic, APXM outreach plate & 'AFILS fitted' sticker.

This self contained kit* will help you comply with the regulations which govern ‘help with hearing’, including the Disability Discrimination Act (DDA) which has now been absorbed into the Equality Act 2010 as well as British Standard BS8300 (2009), the Human Rights Act 1998 and the Care Standards Act 2000.

*You will need induction loop cable, available separately - see related products.

Loop
List Ex VAT: £624.45
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

PDA200E Induction Loop Amp Specification

Coverage

120m² approx.

Inputs

1 x Microphone, 1 x Line/Outreach, 1 x Alert, 1 x 100V

(all screw type connectors)

Indicators

Input level; loop drive meter; power on

Controls

Input level, loop drive, tone

Dimensions

W 271 x H 200 x D 77mm (amplifier only); 2.82kg


PRO45 Hanging Microphone Specification

ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 70-16,000 Hz
PHANTOM POWER REQUIREMENTS 9-52V DC, 2 mA typical
WEIGHT 0.5 oz (15 g)
DIMENSIONS 2.24" (56.9 mm) long,
0.47" (12.0 mm) head diameter
OUTPUT CONNECTOR 3-pin XLRM-type on cable
CABLE 25' (7.6 m) long, permanently attached
ACCESSORIES SUPPLIED AT8146(WH) windscreen; AT8451(WH) steel hanger
