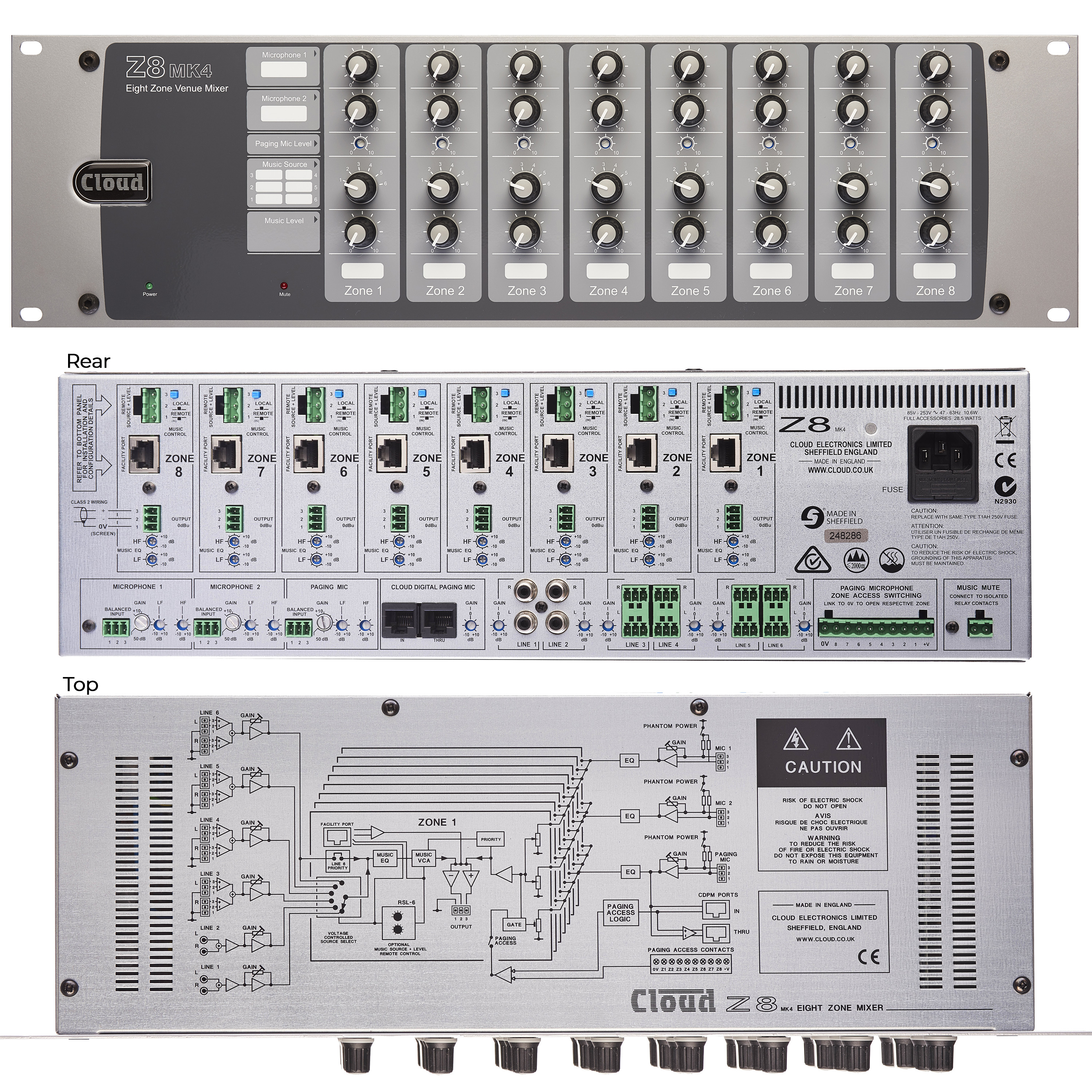

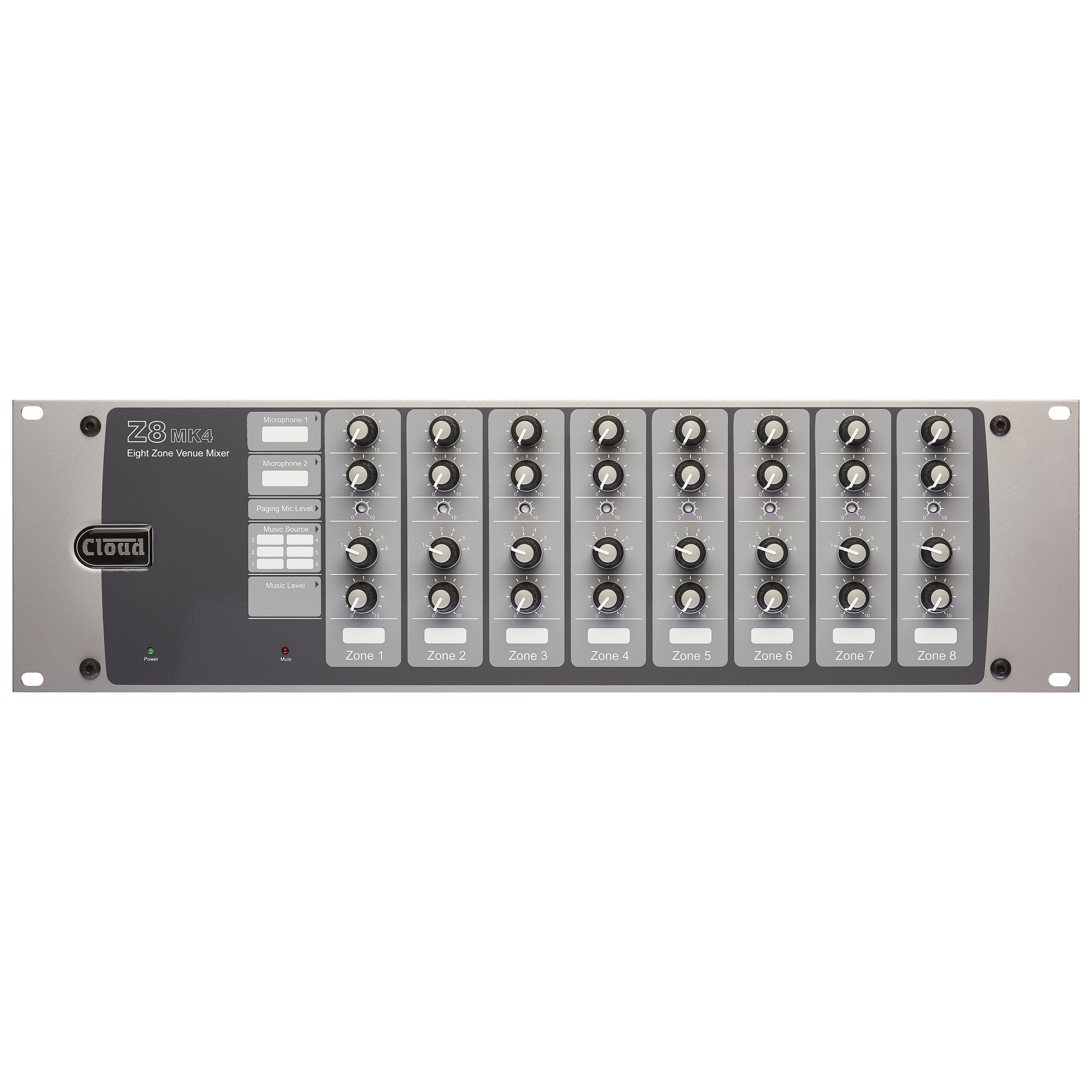

Cloud Electronics Z8mk4

The Cloud Electronics Z8mk4 8 zone venue mixer, one of our favourite products, offers direct connection of up to six music sources, two microphones and a paging mic, all of which can be selected to operate in up to eight different output zones, in any combination.

This latest upgrade benefits from the following new features:

NEW Digital Paging Interface for PM Paging Mics with IN/THRU Connections for Multi Mixer Configuration
NEW Uprated digital Switch Mode Power Supply (600mA Input to support optional accessories such as EQ cards and external devices such as LM-2 Line/Mic/Remote Mixer Modules and Paging Consoles
NEW Lines 1-6 now 2 x Unbalanced on PHONO + 4 x Balanced on Phoenix 3pin 3.5mm connectors
NEW Universal Power Supply (85-254v) allows the Z4MK4 to be installed anywhere in the world, regardless of mains supply

The RJ45 connectors enable easier wiring of the NEW LM-2 or LM-2A Active Facility Input Plates and the Mic Input Sockets have been changed from XLR to Phoenix style connectors.

The Cloud Z4MK4 is the ideal multi-zone, multi function zoned audio mixer for your venue offering a user friendly master control for the complete sound system.

Accepts input sources such as MP3, Hardisc, CD, Video, Satellite etc, and connecting an LM-2 or LM-2A active module further extends the versatility.

8 Zone Mono Mixer
Optional Paging Mic with Chime (PM-4 or PM-8)
Optional Paging & Message Announcer (PM-4SA or PM-8SA)
6 Line Inputs with Preset Gain Controls
Line 6 priority, can be selected on a Zone by Zone basis
Optional Facility input plates on all zones (LM-2/A, B&W) Now using RJ-45 Connectors for Cat-5 Screened Cabling
Zone Music Level and Source Selection via RSL-6/A (B&W) or RL-1/A (B&W) Wall Remotes
2 Mic Inputs with Volume Controls
Input for Paging Mic with Priority and Zone Selection
Separate EQ for Mic and Music
All Mics have Priority over Music
Fire Alarm “Music Mute” Interface
Optional custom equalizer modules for various loudspeakers brands can be fitted to any independent zone

List Ex VAT: £1,050.00

Log in for Trade Prices

CONTACT US

SPECIFICATIONS

Line inputs
Frequency Response	20 Hz - 20 kHz, ±0.5 dB
Distortion	<0.08%, 20 Hz to 20 kHz
Sensitivity	218 mV (-11.0 dBu) to 3.2 V (+12.5 dBu), +/-0.5 dBu
Input Gain Control range	20 dB (unbal inputs); 22 dB (bal inputs)
Input Impedance	47 kohms
Headroom	>20 dB
Noise	<-90 dB A-weighted, rel. 0 dB gain
Equalisation	LF: ±10 dB @ 50 Hz HF: ±10 dB @ 10kHz
Microphone inputs
Frequency Response	100 Hz (-3 dB filter) to 20 kHz, ±0.5 dB
Gain Range	10 dB to 50 dB
Input Impedance	>2 kohms (balanced)
Phantom power	+12 V (internal DIP switch for selection)
Headroom	>20 dB
Noise	-120 dB EIN, 22 Hz to 22 kHz (Z_S=150 ohms)
Equalisation	LF: ±10 dB @ 100 Hz, HF: ±10 dB @ 5 kHz
Facility inputs
Input Impedance	10 kohms (bal.); pin 3: ‘+’, pin 4: ‘-‘
Sensitivity	0 dBu (775 mV)
Noise Gate	Enabled by internal jumper
Outputs
Output Level	0 dBu (775 mV) balanced
Minimum load impedance	600 ohms
Maximum output level	+20 dBu (7.75 V)
General
Power Input	85 V to 253 V AC, 47 – 63 Hz
Fuse Rating	250 V – T1A H (high breaking capacity)
Fuse Type	20 mm x 5 mm 250 V
Dimensions (w x h x d)	482.6 mm x 132.5 mm (3U) x 160 mm 19” x 51/5” x 61/3”
Weight	Z8MK4: 4.40 kg / 9.7lbs Z4MK4: 3.83 kg / 8.4lbs
