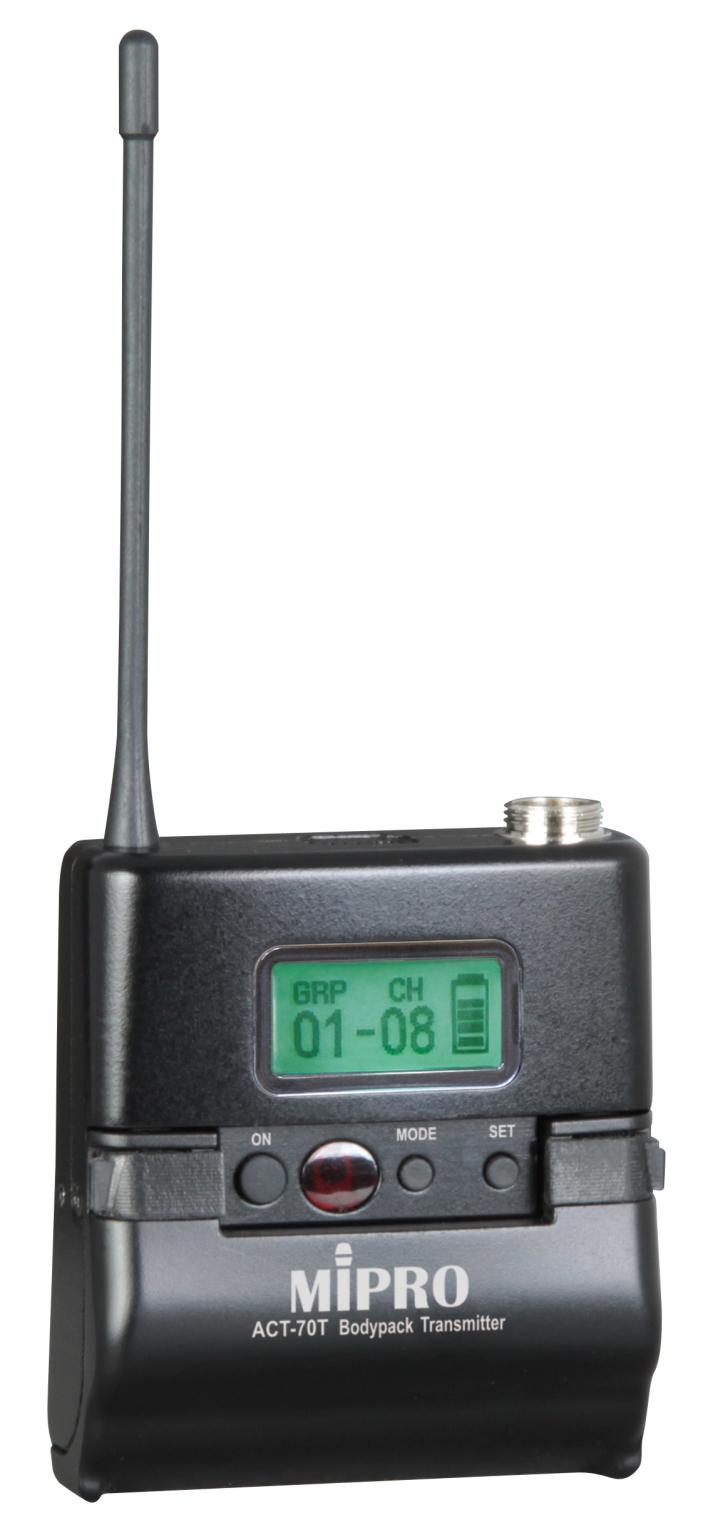

Mipro ACT-70T

The Mipro ACT-70T beltpack transmitter from the ACT 7 series is for use with a clip on lapel lavalier microphone, headset microphone or instrument cable. (Please see related products).

The on board LCD display indicates the remaining power and the group / channel and is also be used to display the frequency, input gain level, RF output power and mute mode during set up.

Channel 38 only - licence required.

A detachable and reversible belt clip enables the transmitter to be attached to a belt, clothing or guitar strap either way up.

  • Ultra slim bodypack transmitter with sturdy magnesium alloy housing.
  • On the top features mute switch, mini-XLR connector and antenna.
  • Backlit LCD displays all operational parameter information.
  • Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.
  • Mute button with remote-control jack for easy activation of mute function.
  • Stable PLL circuits. Automatically synchronized with the receiver’s frequency by MIPRO’s patented ACT™ function.
  • Can directly match to high-low input impedance for microphone or guitar without switching.
  • The input sensitivity is adjustable with six selectable gain settings.
  • Mini-XLR input with secure screw lock connector for lavaliere / headworn mics and guitar.
  • Adjustable belt clip allows wearing transmitter in up or down position.
  • High-efficiency circuitry design provides 12~14 hours of operation from 2 AA batteries (depending on the battery quality).
List Ex VAT: £309.00
Log in for Trade Prices

No video available.


Frequency Range UHF 480 – 934 MHz (country dependent)
Bandwidth 72 MHz
Channel Set-Up ACT Sync
RF Output Power  10 mW / 50 mW (switchable)
Deviation < ±40 kHz
Spurious Emissions ≦ -55 dBc
Oscillation Mode PLL Synthesized
Frequency Stability ≦ ±0.005% (-10 – +60℃)
LCD Display Group, Channel, Frequency, AF gain, Frequency band, RF power, Mute mode,
Lock status, Battery status and error codes
Gain Setting +12dB, +6dB, 0dB, -6dB, -12dB, -18dB (6 settings)
0 dB = input microphone sensitivity
Max. Input Level 0 dBV
Mute Connector Optional MJ-70 remote mute switch
Battery Type 2 AA alkaline
Current Consumption High Power: approx. 161 mA ; Low Power: approx. 120 mA
Dimensions (W × H × D) 63 × 70 × 25 mm / 2.5 × 2.8 × 1.0 "
Net Weight Approx. 81 g / 2.9 oz
