Mipro ACT-71
Click to expand

Mipro ACT-71

The Mipro ACT-71 single channel UHF radio mic receiver operates in the 72MHz transmission band (from 606 to 678MHz), channel 38 to 46 inclusive. Licence required.

There are 400 preset channels with a user defined group to save up to 16 channels.

48 compatible channels for maximum flexibility.

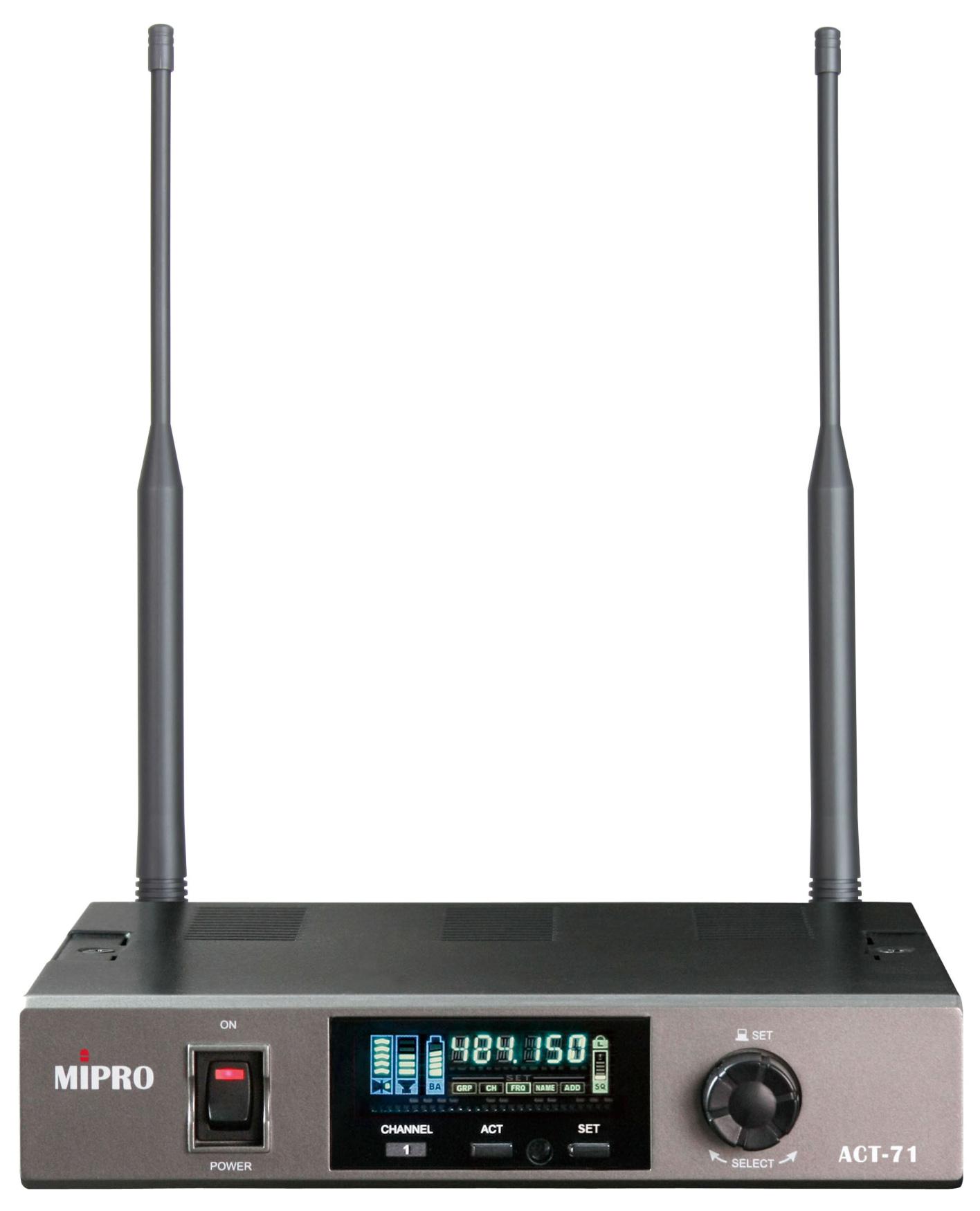

The colour VFD screen offers comprehensive system status information including: group, channel, frequency, name, RF & audio signal strength, diversity condition, transmitter battery level, squelch level and indication of interference.

True diversity operation ensures a long transmission range and freedom of movement and the Automatic Channel Targetting (ACT) feature makes system set up extremely  simple by matching and synchronising transmitters and receiver at the press of a button.

Rack mountable using the optional FB-71 rack mount ears - see related products.

The ACT-7 series receivers also have an advanced computer network-interfaced control feature which enables the system to be set up, controlled and monitored by PC using an optional Mipro hardware device via RS-232 or USB.


  • EIA standard 1/2U rack-mountable metal chassis with excellent heat dissipation & RF shielding characteristics.
  • UHF PLL-synthesized technology for enhanced RF stability, lowered spurious emissions and increased frequency agility.
  • 400 preset channels with 1-set of user-defined group that saves up to 16 channels.
  • Industry’s first ACT syncs automatically and quickly a working channel.
  • Dual "PiloTone & NoiseLock" circuits minimize interference.
  • Industry’s only full-color VFD screen delivers a bright, clear viewing in day/night environments with automatic lit (Working) and dim (Standby) display during performance.
  • All controls are intuitive and easily setup via a single rotary knob.
  • Industry’s only RF interference warning indicator for properly adjusts the SQ level. Increase sensitivity to extend receiving range; decrease the sensitivity to reduce interference.
  • Single channel output or mixed output and switchable three levels for the best sound quality options.
  • High dynamic range and high fidelity characteristics for transparent audio performance.
  • Receiver provides bias voltage for MIPRO antenna systems to enhance reception range and signal stability.
  • MIPRO RCS.Net software allows real-time computer set up, control and monitoring.
  • Built-in 100 – 240V AC switching power supply ensures system safety and stability.
List Ex VAT: £309.00
Log in for Trade Prices


Channel Single
Chassis EIA standard 19" 1/2U
Frequency Range UHF 482 – 698 MHz (US) / UHF 480 – 874 MHz (EU)
Bandwidth 72 MHz
Preset Channels 400 preset channels
Group 01 – 10: 16 compatible channels in each group
Group 11 – 15: 48 compatible channels in each group
Group 16: 16 channels can be saved & recalled (user-defined)
Receiving Mode True diversity
Oscillation Mode PLL synthesized
Sensitivity 6 dBμV at S/N > 80 dB
S/N Ratio > 108 dB(A)
T.H.D. < 0.5% @ 1 kHz
Frequency Response 50 Hz – 18 kHz, with high-pass filter
Squelch "PiloTone & NoiseLock" dual-squelch circuit
Audio Output Adjustment Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.
Max. Output Level Balanced: +16dBV / 0dBV / -6dBV; Unbalanced: +10dBV / 0dBV / -6dBV

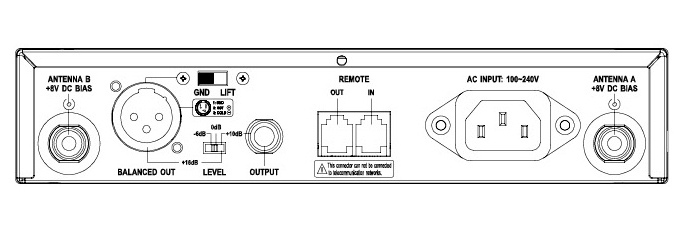

Output Connector Balanced XLR & Unbalanced 6.3 mm (1/4")
Output Switch Single channel output
Operation Manual or PC remote control via optional software
Power Supply Built-in 100 – 240 AC switching power
Power Consumption 8 W
Dimensions (W × H × D) 210 × 44 × 230 mm / 8.3 × 1.7 × 9 "
Net Weight Approx. 1.4 kg / 3.1 lbs
