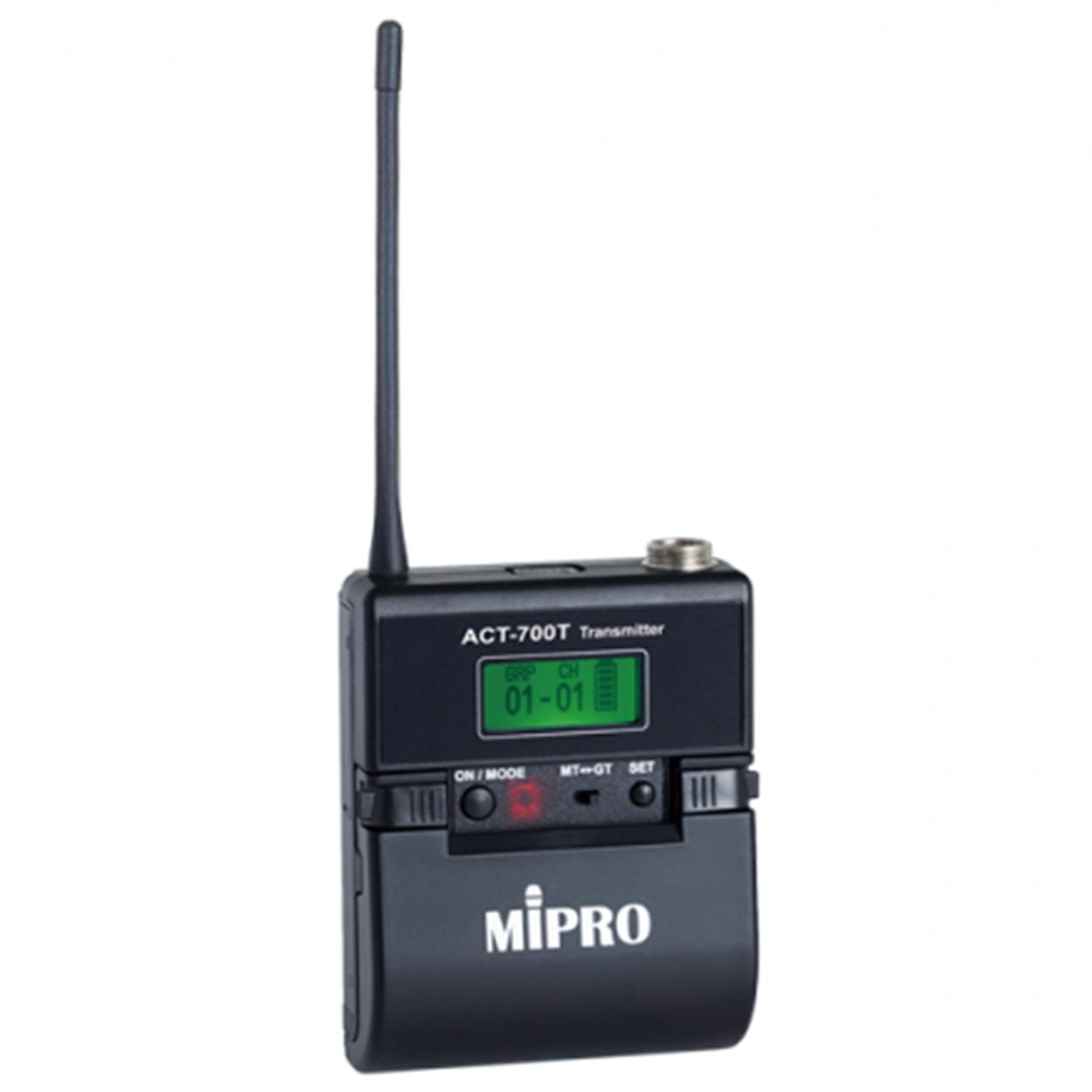

Mipro ACT-700T

The Mipro ACT-700T rechargeable beltpack transmitter from the ACT 7 series is for use with a clip on lapel lavalier microphone, headset microphone or instrument cable. (Please see related products).

This newly designed wireless beltpack transmitter is supplied with one ICR18500 rechargeable lithium battery which can be recharged via the USB Type-C connector. Alternatively the beltpack may be powered by 2 x AA batteries.

The on board LCD display indicates the remaining power and the group / channel and is also used to display the frequency, input gain level, RF output power (hi or Lo) and mute mode during set up.

72 MHz transmission.

Channel 38 only - licence required.

A detachable and reversible belt clip enables the transmitter to be attached to a belt, clothing or guitar strap either way up.

  • Ultra slim bodypack transmitter with sturdy magnesium alloy housing.
  • The top features mute switch, mini-XLR connector and antenna.
  • Backlit LCD displays all operational parameter information and battery status.
  • Mute button with remote-control jack for easy activation of mute function via optional accessory.
  • Mini-XLR input with secure screw lock connector for lavaliere / headworn mics and guitar.
  • Adjustable belt clip allows wearing transmitter in up or down position.
CH38 UHF
List Ex VAT: £359.00
Log in for Trade Prices
CONTACT US

No video available.

SPECIFICATIONS

Frequency Range UHF 480 – 934 MHz (country dependent)
Bandwidth 72 MHz
Channel Set-Up ACT Sync
RF Output Power  10 mW / 50 mW (switchable)
Deviation < ±40 kHz
Spurious Emissions ≦ -55 dBc
Oscillation Mode PLL Synthesized
Frequency Stability ≦ ±0.005% (-10 – +60℃)
LCD Display Group, Channel, Frequency, AF gain, Frequency band, RF power, Mute mode,
Lock status, Battery status and error codes
Gain Setting +12dB, +6dB, 0dB, -6dB, -12dB, -18dB (6 settings)
0 dB = input microphone sensitivity
Max. Input Level 0 dBV
Mute Connector Optional MJ-70 remote mute switch
Battery Type 1 ICR 18500 rechargeable lithium battery
Current Consumption High Power: approx. 161 mA ; Low Power: approx. 120 mA
Dimensions (W × H × D) 63 × 70 × 25 mm / 2.5 × 2.8 × 1.0 "
Net Weight Approx. 82 g / 2.9 oz

Related Products

Mipro MU-53HN & MU-53HNS

Uni-directional headset microphone for Mipro beltpack transmitter.

Black or beige. Sweat resistant - ideal for aerobics.

see more
List Ex VAT: £99.00

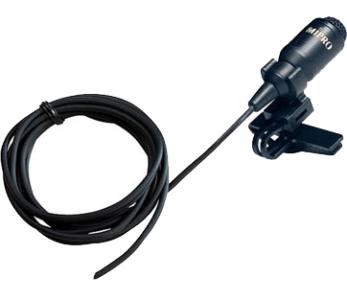

Mipro MU-55L

Tie clip / lapel lavalier microphone for use with Mipro beltpack transmitter.

Black or beige. Omni-directional pick-up.

see more
List Ex VAT: £65.00
Mipro MU-55HN & MU-55HNS

Omni-directional waterproof headset microphone for Mipro beltpack transmitter.

Black or beige.

see more
List Ex VAT: £119.00

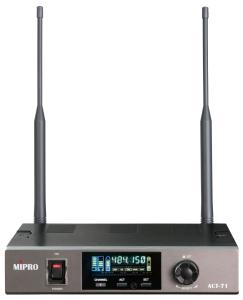

Mipro ACT-71
