Ecler eGPA8-150 Archived

Ecler eGPA8-150 Archived

This product is no longer available - please contact for advice on a suitable alternative.

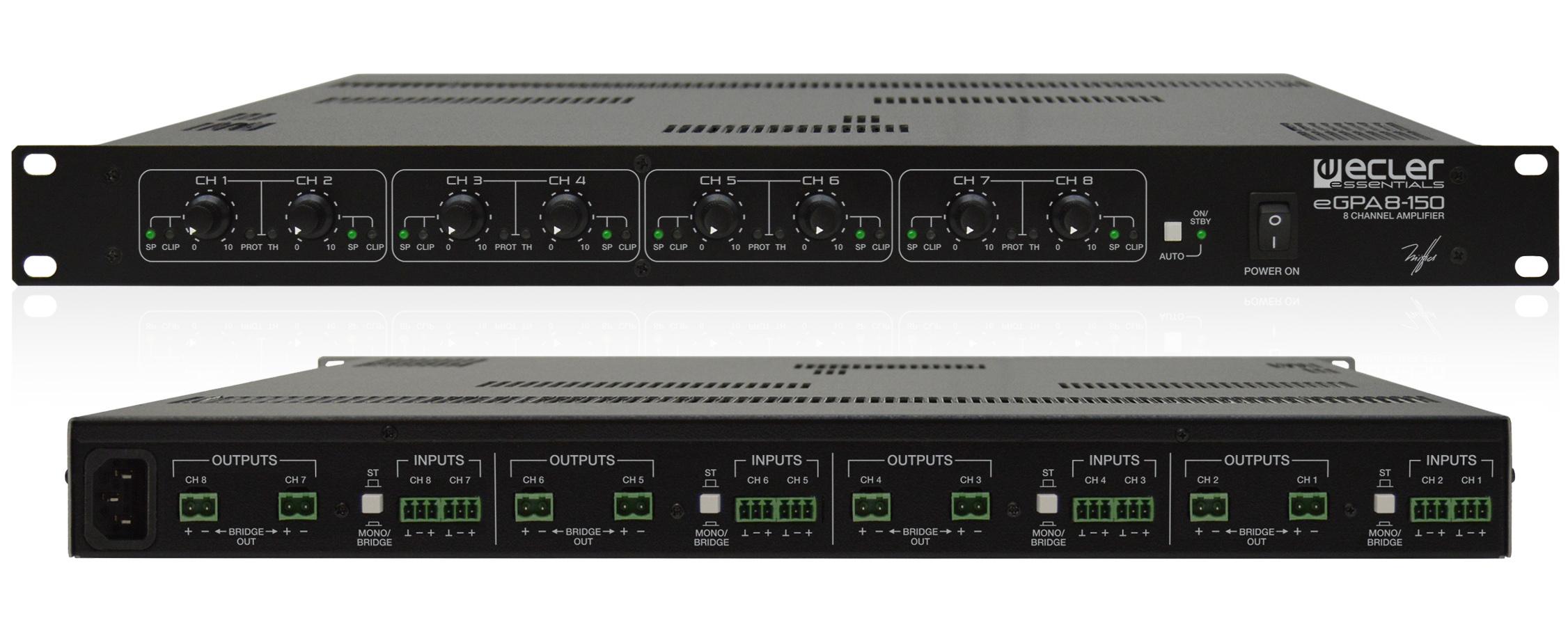

The Ecler eGPA8-150 multichannel low impedance power amp is rated at 8 x 150 watts rms at 4Ω.

The high efficiency Class D design uses convection cooling for fan free, silent operation and reliability.

  • 8 analogue audio inputs x 8 powered audio outputs
  • Euroblock input and output connectors
  • High efficiency, auto standby function and convection cooling (fanless, 100% silent)
  • BRIDGE mode ready
  • Thermal protection
  • Overload protection
  • Anti-clip system
  • Warranty: 5 Years
multi-ch 1c: 4ohms 1e: 8ohms 1U
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS



 POWER 20-20kHz 1% THD



1 Channel @ 4Ω (RMS)

140 W

1 Channel @ 8Ω (RMS)

70 W

All Channels @ 4Ω (RMS)

140 W

2 Bridged ch. @ 8Ω (RMS)

280 W

Frequency response (-1dB, -3dB)

20Hz - 25kHz

Dimensions H x W x D

44mm x 440mm x 341mm

Weight

2.60 Kg

DOWNLOADS

Ecler eGPA8-150 Power Amp datasheet
Ecler eGPA2-150, eGPA4-150, eGPA8-150 Power Amp User Manual
