RCF SUB 702-AS II
Click to expand

RCF SUB 702-AS II

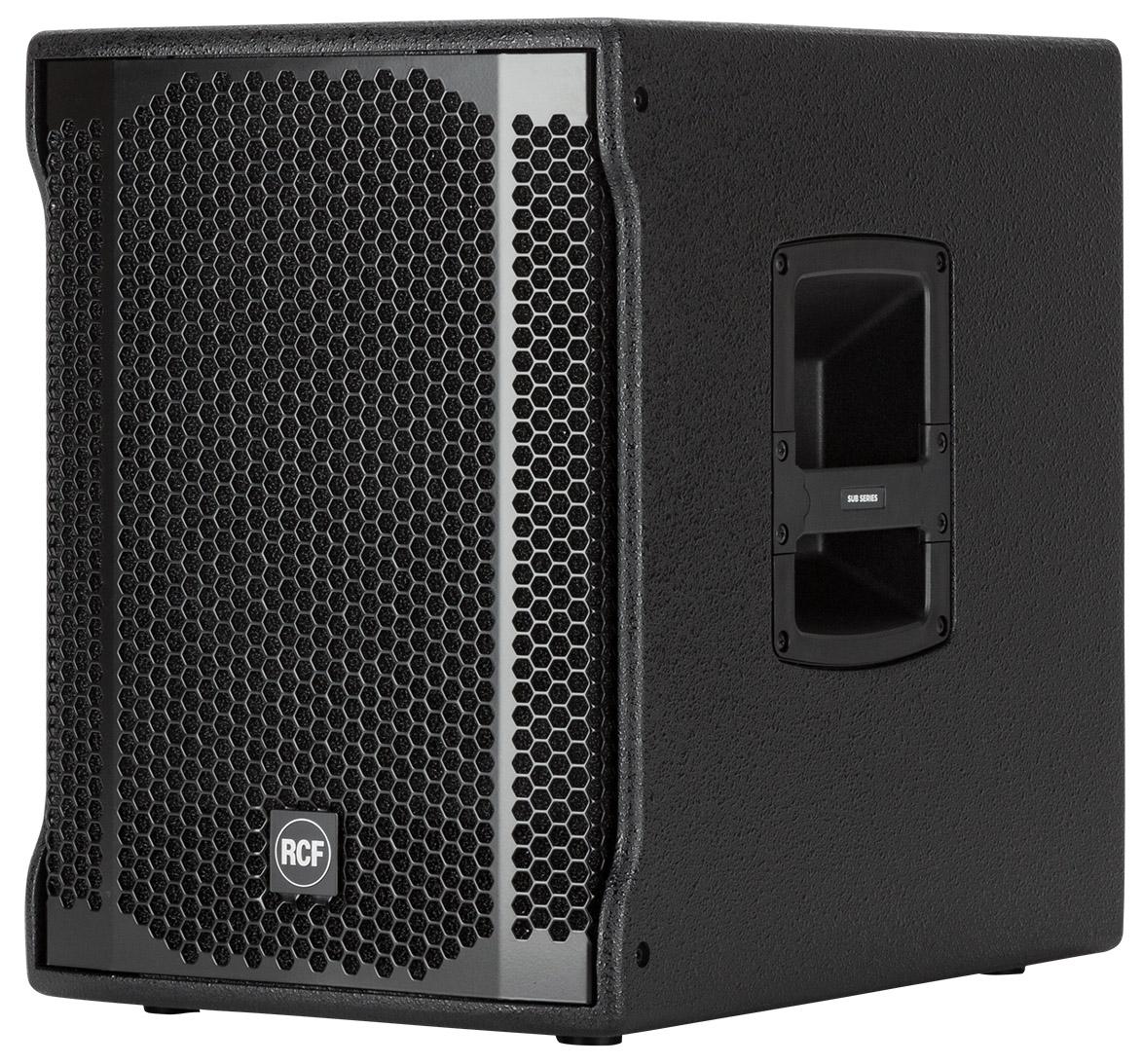

The RCF SUB 702-ASII subwoofer features a 12" woofer in a rugged yet compact cabinet with integral Class-D amplifier rated at 700 watts RMS.

The bass reflex design ensures a deep linear power response and the 2.5" voice coil design woofer offers the minimum of power compression.

SUB702-AS II is the perfect match for 8”, 10” or 12” satellite speakers. It is also the ideal companion subwoofer for the RCF ART 3, ART 7 or D-Line Series.

The built in amp produces a very high output with low distortion and natural sound. The solid machined aluminium structure helps to stabilize the amplifier during transportation as well as assisting in fan-less heat dissipation.

Two recessed handles are positioned on the sides of the speaker for easy handling.

An integrated steel pole mount enables the SUBs to be easily combined with another speaker easily.

Constructed from birch plywood with a black textured finish. The powder coated metal grille is lined with acoustically transparent foam to protect the drivers from dust.

  • 700 Watt RMS Digital Amplifier
  • 12” Woofer, bass reflex housing
  • Stereo crossover
  • Switchable crossover frequencies
  • Phase-reverse switch
  • Electronic equalization, soft limiter and protection

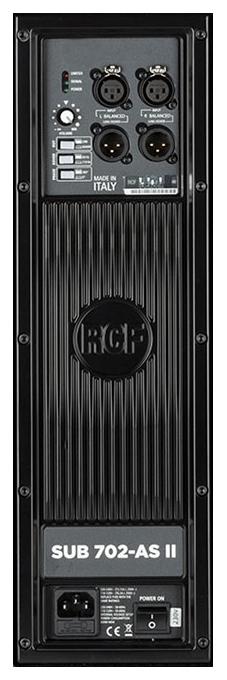

  • Stereo XLR input, Stereo XLR signal output
8ohms
List Ex VAT: £664.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency Response (-10dB)

40Hz – 120Hz

Max SPL @ 1m

129dB

System Sensitivity

98dB

Transducers

 Woofer: 12”, 2.5” voice coil

Input Signal

Balanced / Unbalanced

Input / Output Connectors

XLR

Input Sensitivity

-2dBu / +4dBu

Hi Pass Frequencies

110 Hz

Low Pass Frequencies

80 Hz

Protection

Thermal, RMS

Limiter

Soft Limiter

Controls

Volume, EQ, Phase, Crossover

Total power

1400 W Peak, 700 W RMS

Cooling

Convection

Construction

Birch Plywood Cabinet, Metal Grille

Colour

Black

Height

487mm / 19.17”

Width

354mm / 13.94”

Depth

498mm / 19.61”

Weight

19kg / 42 lbs
