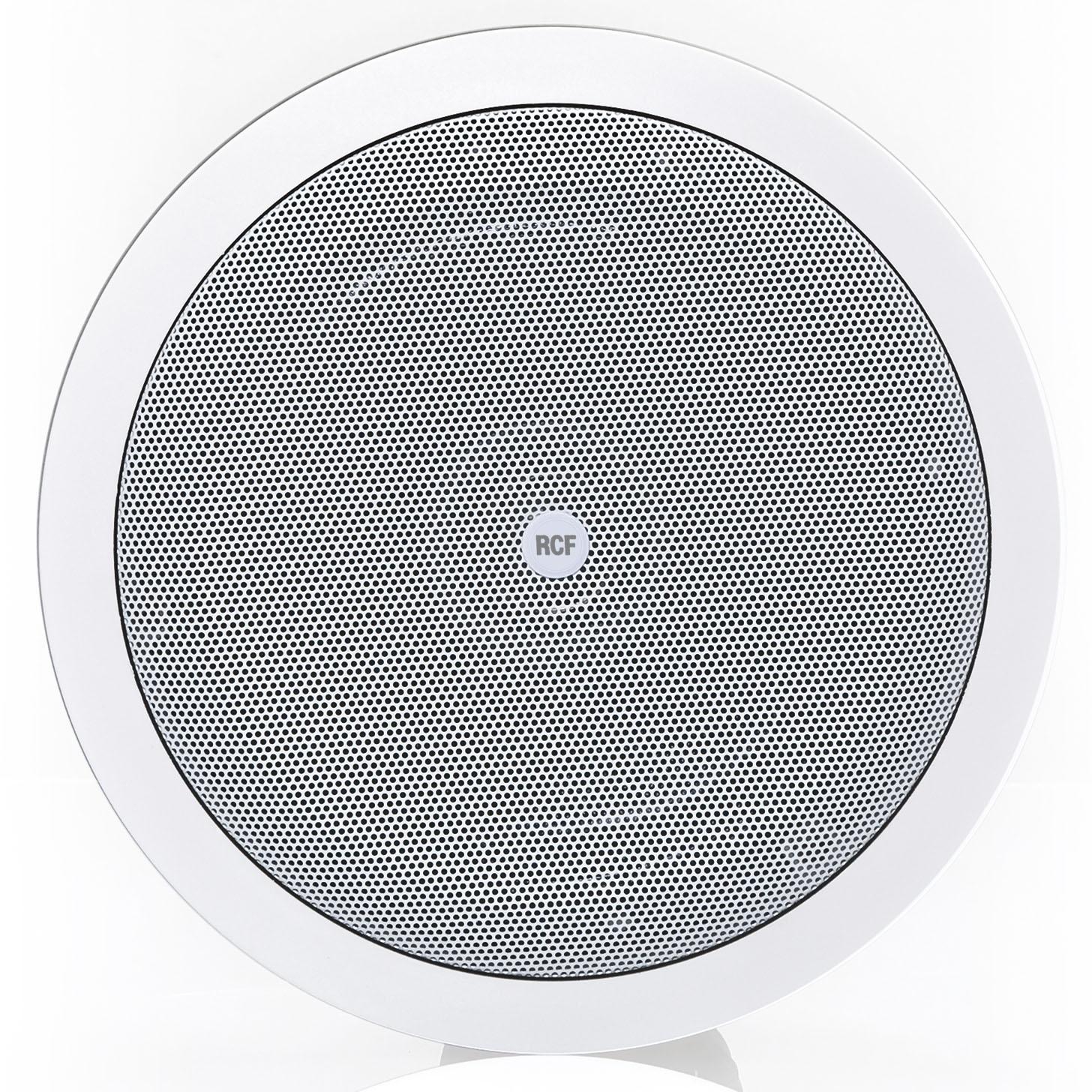

RCF PLP 50EN

The RCF PLP 50EN EN54-24 certified ceiling speaker incorporates a 5" dual cone wide band loudspeaker and is rated at 6 watts, 100 volt line.

Supplied with plastic fire dome.

Ideal for emergency message broadcasting in a voice evacuation system as part of a 100 volt line distributed sound system.

Safety features on the PL50EN include plastic fire dome, ceramic terminal block, thermal fuse and flameproof internal leads.

  • Ideal speaker for broadcasting high intelligibility voice alarm messages or background music
  • Power (selectable) at 100V: 6 W – 3 W – 1.5 W (power values are halved at 70 V)
  • 5" diameter wide band loudspeaker
  • Plastic protection fire dome, ceramic terminal strip for connecting flameproof input and output cables, thermal fuse, flameproof internal wiring
  • Conforms to EN 54-24 regulations

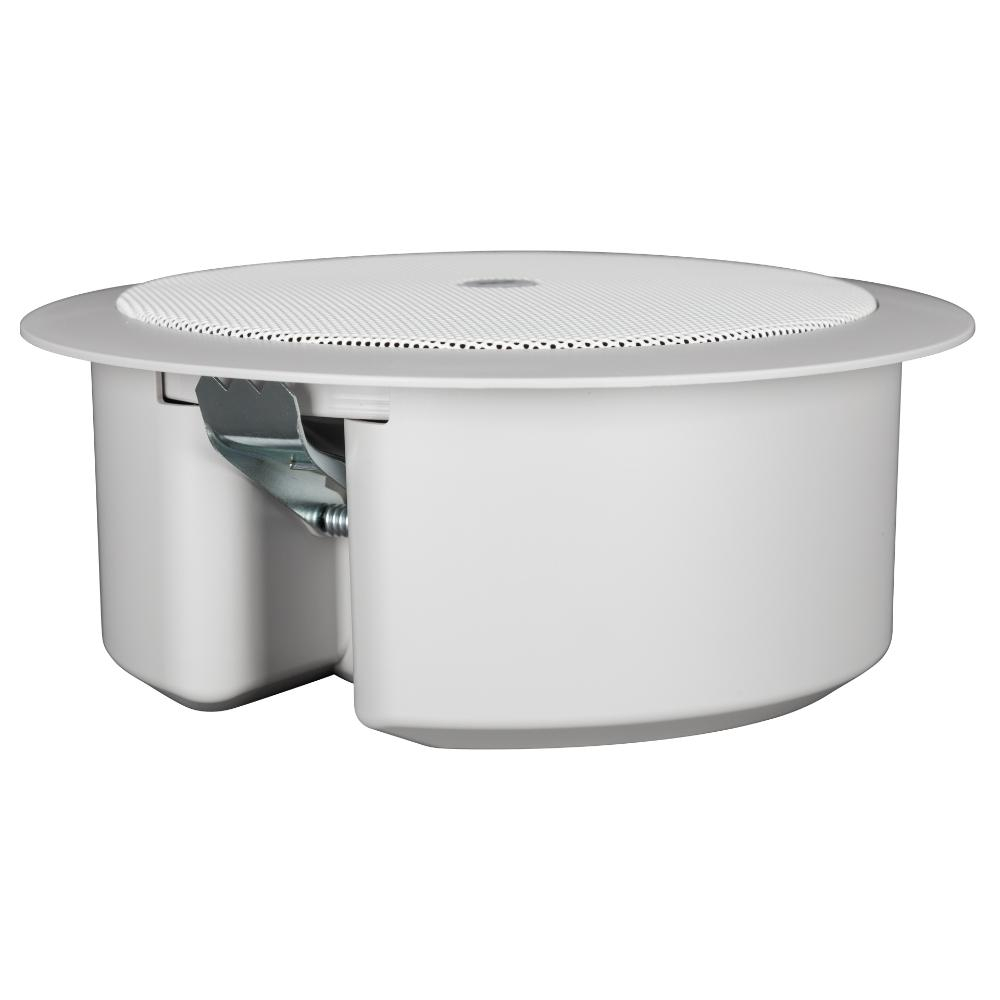

  • Plastic frame & back can with steel grille
  • RAL 9016 White with red dome
100V Evac
List Ex VAT: £38.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Loudspeaker

5” full range

Input voltage

100V - (70V)

Power

6 W - 3 W - 1.5 W (100V)

Input impedance

1.67 kΩ (6 W) – 3.33 kΩ (3 W) – 6.67 kΩ (1.5 W)

System sensitivity

93 dB (1 W / 1 m)

Max SPL @ 1m

101dB

Frequency response

130 Hz ÷ 15 kHz (–10 dB)

Connector

Ceramic screw terminal block

Material

Case: plastic / Grille: steel / Dome: plastic

Body & grille colour

White RAL 9016

IP rating

IP40

Main body / grille material

Steel

Dimensions mm

175 mm Ø x 71mm

Net weight

0.66kg

DOWNLOADS

RCF PLP 50EN Datasheet
