RCF DP 1420EN

The RCF DP 1420EN EN54-24  water resistant sound projector speaker incorporates a 5" full range speaker and is rated at 20 watts, 100 volt line.

The aluminium unidirectional projection speaker is water resistant, rated IP66 and is mounted using the supplied aluminium U shaped bracket.

Ideal for emergency message broadcasting in a voice evacuation system especially within train stations, underground stations, factories and warehouses.

Safety features on the DP1420EN include ceramic terminals, thermal fuse and internal fire resistant cable.





  • Unidirectional sound projector with high acoustic performance
  • EN 54-24 compliant with ceramic termination block, thermal fuse and internal fire-resistant cable
  • Water resistant, rated IP 66, suitable for outdoor use
  • Ideal for train stations, underground stations, car parks, factories, warehouses, and PA systems in general
  • Rated 20 W RMS with tappings at 20, 10 and 5 W (100V / 70V)



100V IPxx Evac
List Ex VAT: £144.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency Response (-10dB)

160Hz – 20kHz

Max SPL @ 1m

105dB

Max SPL @ 4m

93dB

Coverage Angle

155°

System Sensitivity

92dB

System Sensitivity 1W @ 4m

80dB

Power Handling

20W RMS

Peak Power Handling

80W Peak

Protection

Thermal Fuse

Input Connectors

Ceramic Screw Terminals

Output Connectors

Ceramic Screw Terminals

Constant Voltage Transformers

70/100V

Power Tappings

20, 10, 5, 2.5, 1.25W (100V)

IP Rating

IP66

EN54-24

Yes

Construction

Aluminium Cabinet, Grille & Bracket

Colour

Grey -  RAL7035

Depth

200mm / 7.87”

Diameter

146mm / 5.75”

Weight

2.73kg / 6.02lbs

Related Products

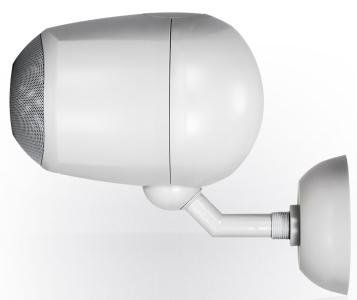

RCF DP 5EN
