Crown XTi 4002
Click to expand

Crown XTi 4002

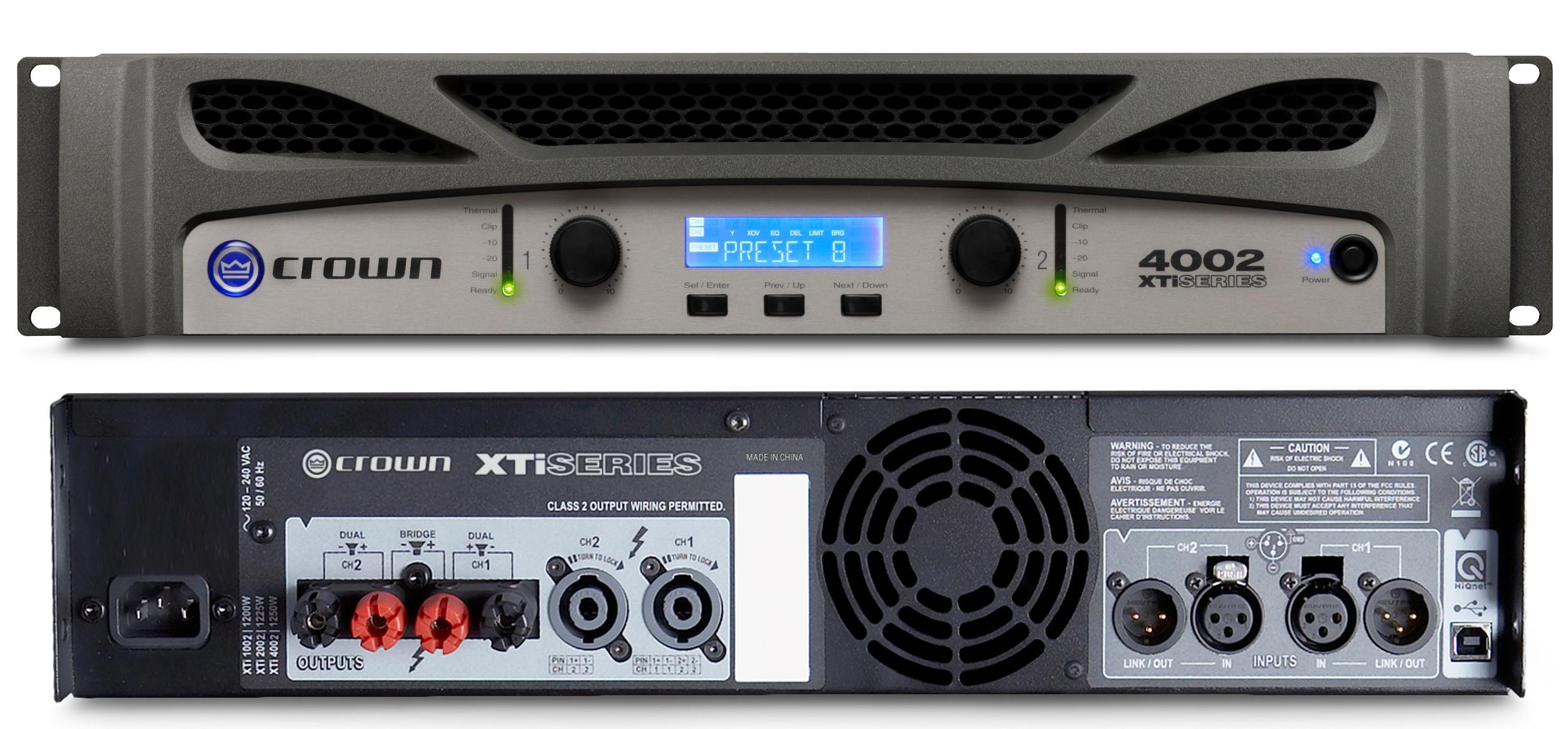

The Crown XTi 4002, one of our favourite products, is a two channel power amp with an output of 1200 watts per channel RMS (4 ohms) and up to 3200 watts bridged (4 ohms).

The rugged rack mountable chassis is cleverly designed with cooling vents in the front providing front to rear forced air flow cooling and the fan speed can be adjusted.

A HiQnet USB connector is provided to allow the connection of a computer for use with System Architect and Band Manager software.

On the front panel, an LED display shows presets and speaker processing such as Input Y, Crossover Frequency, EQ, Delay, Limiting and Stereo / Bridge-Mono. LED lights indicate power on, signal presence, clip and over temperature. A gain control is provided for each channel.

All front panel controls can be locked temporarily by pressing the Prev & Next buttons together to prevent unauthorised use and tampering. For additional protection, the controls can also be locked out via the software, although the gain controls will still operate.

Other models are available offering lower power output - see the XTi 1002 and XTi 2002.

  • Peakx Plus™ Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release
  • Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
  • 3 User-defined fan mode controls – normal, early and fullspeed – for matching fan performance to a specific application
  • New system monitoring provides software visibility of AC line voltage and power supply temperature
  • Integrated cast-aluminum handles for easy handling and enhanced durability
  • Locking power cord clip provides a secure connection between the amplifier and power cord
  • Updated HiQnet System Architect™ control software
  • Increased number of presets to a total of 50; 49 of which are user definable
  • Warranty: 3 Years
multi-ch 2U 4ohms 8ohms
List Ex VAT: £1,657.50
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Channels 2
Sensitivity 1.4V
Rated Power Output (per channel) 1600W 2Ω, 1200W 4Ω, 650W 8Ω
Signal to Noise Ratio (below rated 1 kHz power at 8 ohms) 100 dB (A-weighted)
THD < 0.5%
Frequency Response (at 1W, 20 Hz - 20 kHz) + 0 dB, -1 dB
Crosstalk (below rated power) 20 Hz to 1 kHz >70 dB
Dimensions 3.5" x 19" x 12.25"
Weight 18.5 lbs (8.4 kg)
Shipping Weight 21.5 lbs (9.8 kg)
IEC Power Connector 15A
