AMC iLive1-HH

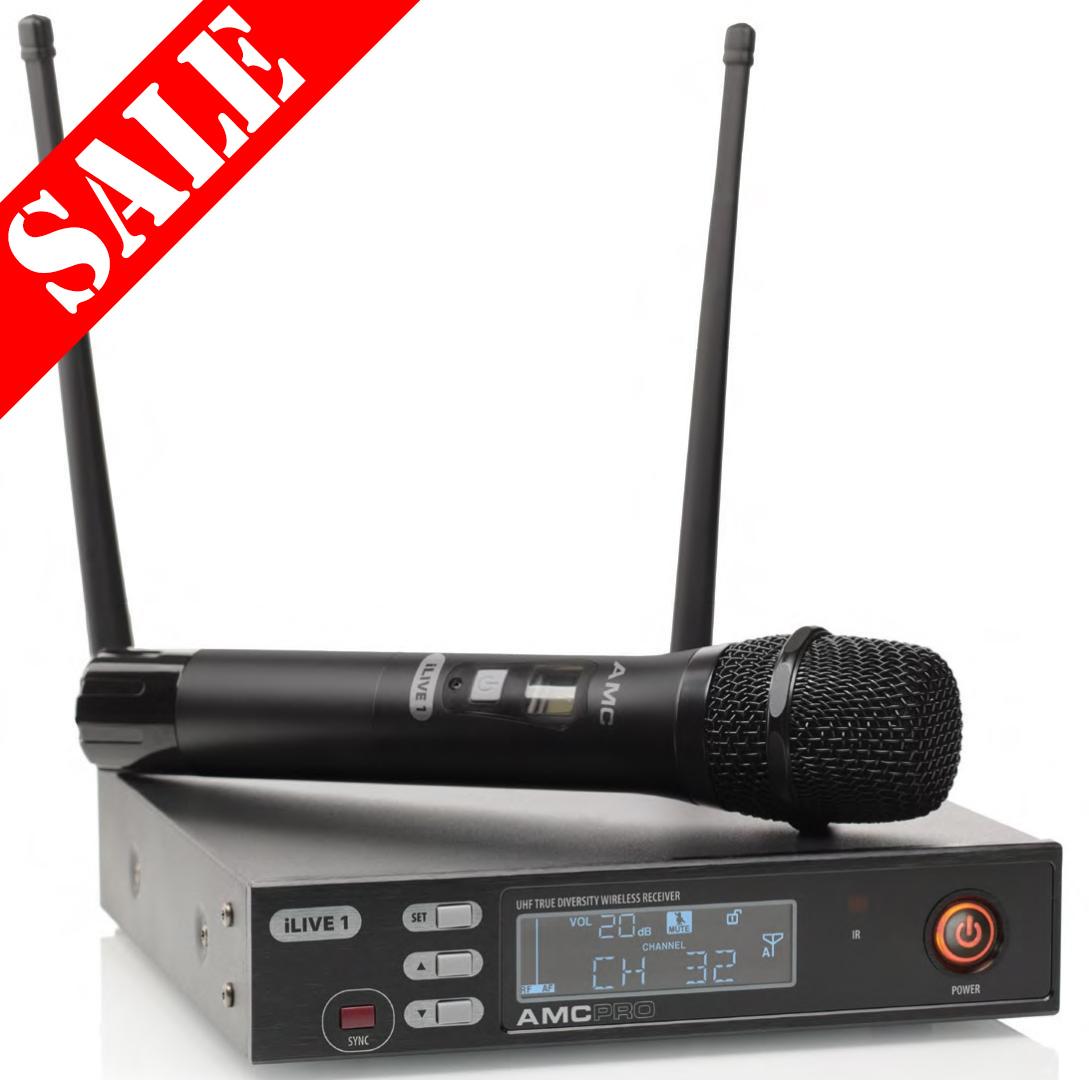

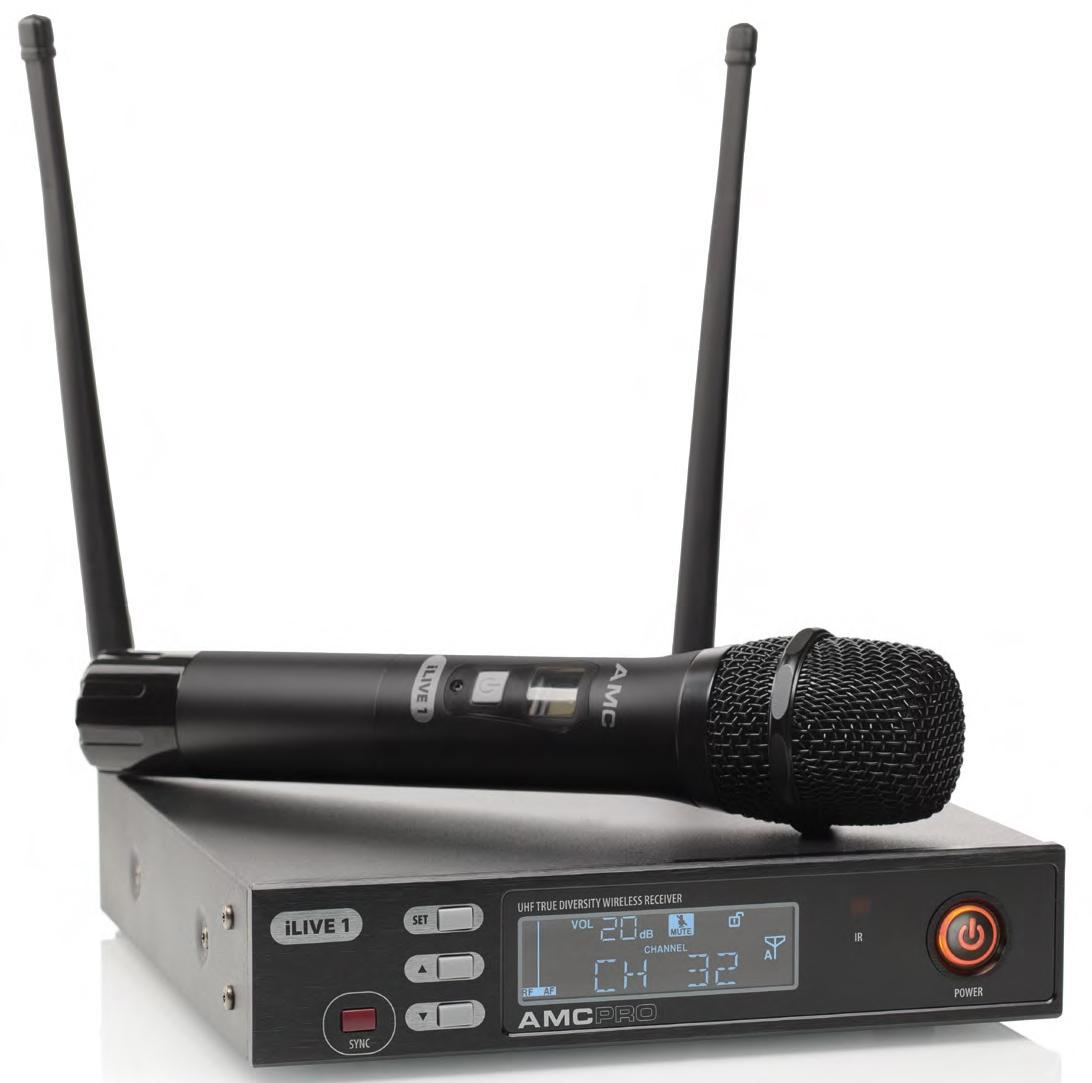

The AMC iLive1 handheld UHF wireless microphone system consists of a true diversity receiver and handheld transmitter and is available on licence free Channel 70.

Easy to set up with automatic channel synchronization and automatic frequency selection.

There are 11 selectable channels on the Channel 70 version, 4 of which are intermodulation free.

The handheld transmitter is constructed from aluminium and is supplied with a dynamic cardioid microphone capsule. A hi / lo power switch gives the option of reduced transmitter power to extend battery life whilst reducing operational distance - ideal if other systems are in use nearby to avoid interference. Setting the power to 'hi' is useful for larger areas where dropouts may become a problem, but will drain the batteries more quickly. The LCD display indicates the current frequency, channel and transmitter battery level.

The receiver features a high brightness LCD display with indications for RF / AF level, mute, selected channel or frequency, transmitter battery status, active antenna, volume level and lock function. Balanced XLR connectors and unbalanced 6.3mm TS jack connectors





CH70 UHF
List Ex VAT: £365.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Technical Specifications

iLIVE 1 handheld transmitter

  Channel 70 Version
Carrier frequency range 863.1 MHz - 864.9 MHz
Channels 11 (4 intermodulation free)
Modulation FM
Audio frequency response 45 Hz - 18 kHz
S/N ratio > 105 dB
Antenna Built-in spiral antenna
Transmitter’s power 15 mW
Working range

90m (Note: actual range depends on RF signal absorption,
reflection and interference)

Polar pattern  Cardioid
Battery 2 x 1,5 V AA Alkaline battery
Dimensions 240 mm (length)
Weight 302g
Material Aluminium




iLIVE 1 Receiver

Power Supply 12-15 V DC, 1.25 A
Output Balanced XLR , unbalanced 6,3 mm TS JACK
Receiver way Two frequency conversion super-heterodynes
Intermediate frequency  10.7 MHz
Antenna BNC
T.H.D. < 0,7 %
Sensitivity 6 dB μV
Image rejection 36dB
Max audio output 0dB
Dimensions (HxWxD) 45 mm x 210 mm x 206 mm
Weight 1.4kg
Material Steel enclosure, aluminium front panel
