AMC iLive1-Lapel

AMC iLive1-Lapel

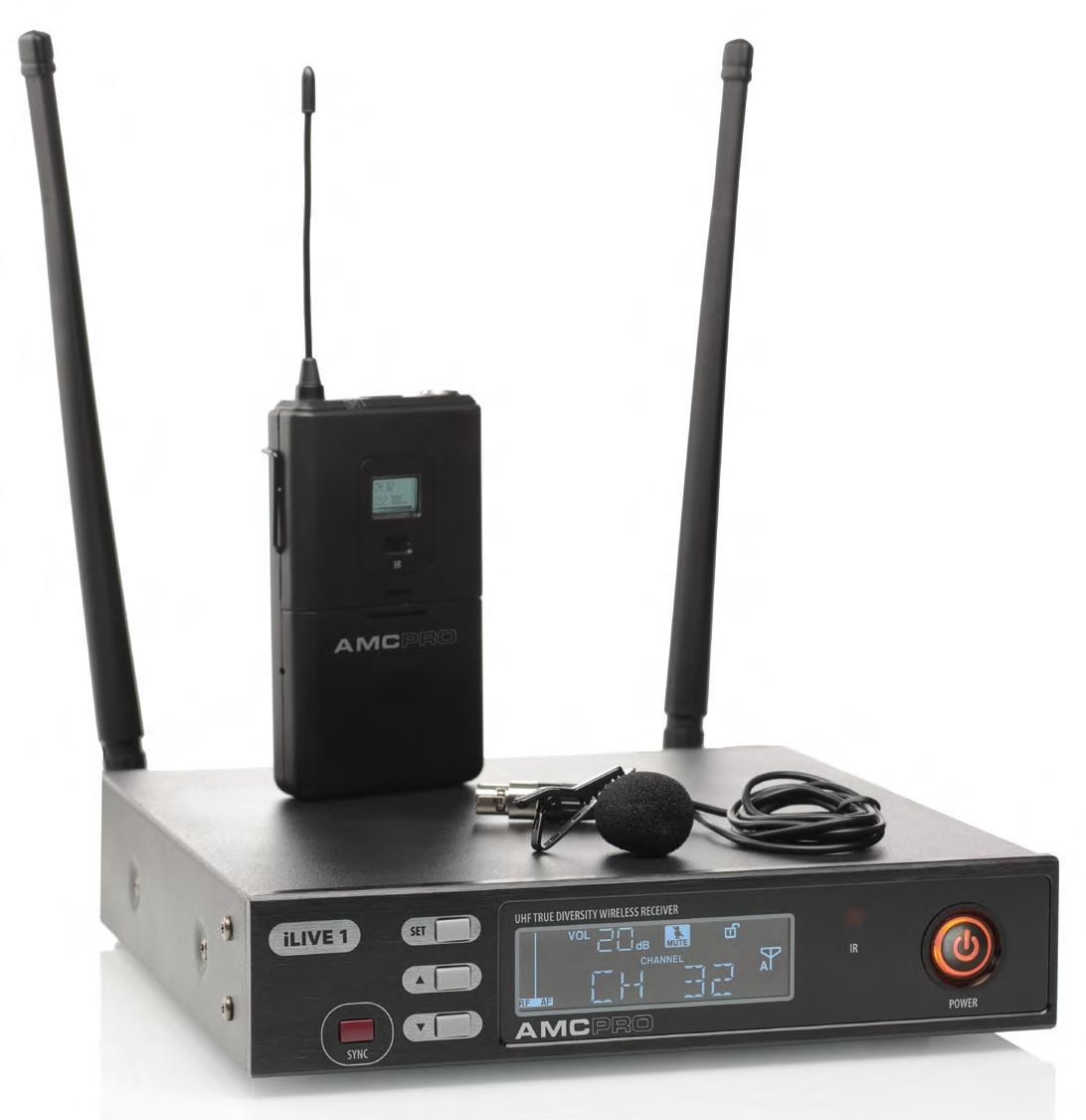

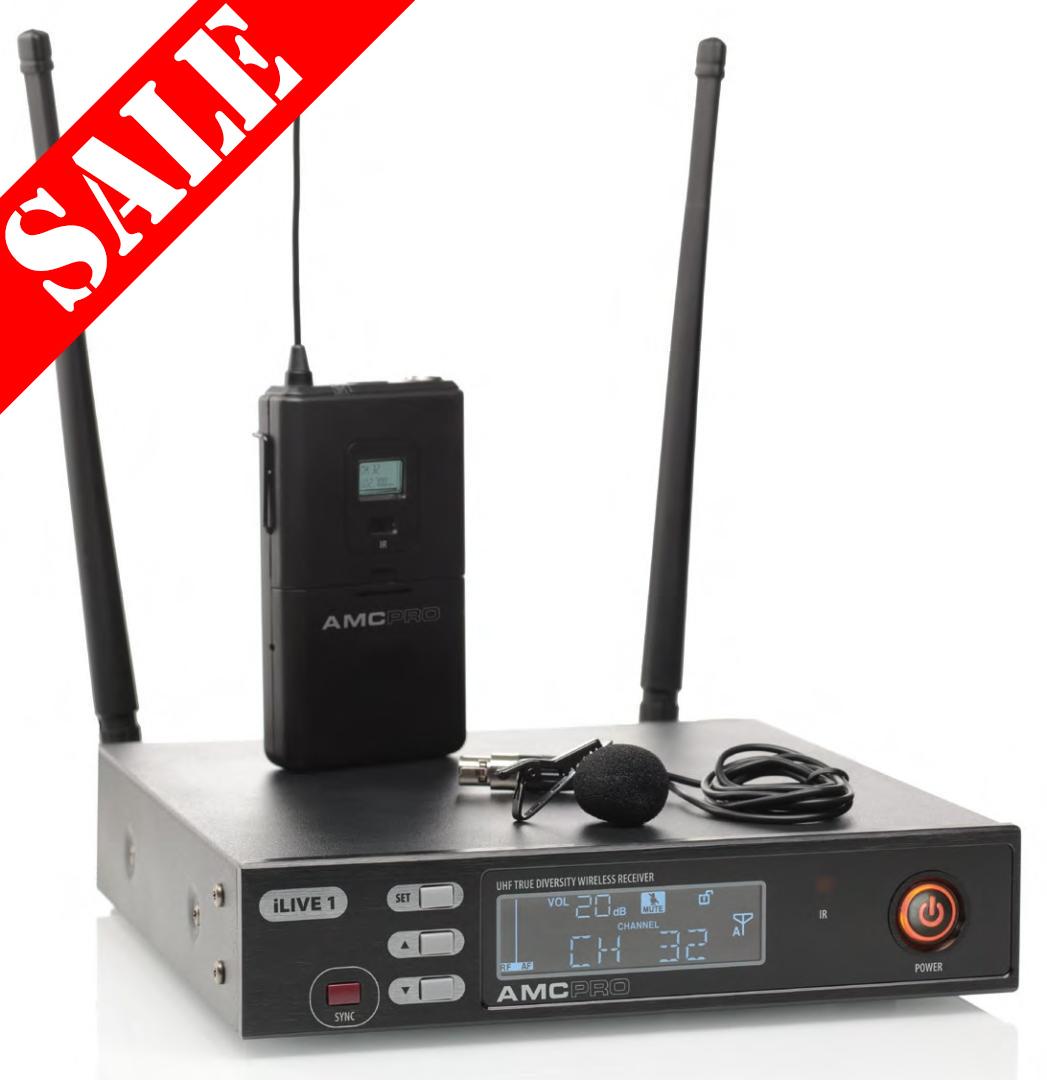

The AMC iLive1 lavalier UHF wireless microphone system consists of a true diversity receiver, lavalier microphone and beltpack transmitter and is available on licence free Channel 70.

Easy to set up with automatic channel synchronization and automatic frequency selection.

There are 11 selectable channels on the Channel 70 version, 4 of which are intermodulation free.

The receiver features a high brightness LCD display with indications for RF / AF level, mute, selected channel or frequency, transmitter battery status, active antenna, volume level and lock function. Balanced XLR connectors and unbalanced 6.3mm TS jack connectors.

The clip on lavalier cardioid condenser microphone is ideal for hands free presentations.

The beltpack transmitter operates on two AA batteries and benefits from an LCD display which indicates the current frequency, selected channel and low battery warning.





CH70 UHF
List Ex VAT: £365.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Technical Specifications

iLIVE 1 beltpack transmitter

  Channel 38 Version Channel 70 Version
Carrier frequency range 606 MHz - 621 MHz 863.1 MHz - 864.9 MHz
Channels 32 11
Modulation FM
Audio frequency response 45 Hz - 18 kHz
S/N ratio > 105 dB
Antenna 1/4 wave antenna
Input Connector 4 pin mini XLR connector
Transmitter’s power 3 mW
Working range

90m (Note: actual range depends on RF signal absorption,
reflection and interference)
Polar pattern  Cardioid
Battery 2 x 1.5 V AA Alkaline battery
Dimensions 110mm x 64mm x 25mm
Weight 165g
Material Plastic



iLIVE 12LM lavalier microphone

Capsule Type Condenser
Impedance 200 Ω
Sensitivity -46dB
Frequency 50 Hz - 18 kHz
Connectors 4 pin mini XLR connector
Phantom power voltage 5V DC
Cable length 1m
Weight 21g
Colour Black (RAL 1017)
Accessories Windscreen



iLIVE 1 Receiver

Power Supply 12-15 V DC, 1.25 A
Output Balanced XLR , unbalanced 6,3 mm TS JACK
Receiver way Two frequency conversion super-heterodynes
Intermediate frequency  10.7 MHz
Antenna BNC
T.H.D. < 0,7 %
Sensitivity 6 dB μV
Image rejection 36dB
Max audio output 0dB
Dimensions (HxWxD) 45 mm x 210 mm x 206 mm
Weight 1.4kg
Material Steel enclosure, aluminium front panel

DOWNLOADS

AMC iLive1 Lavalier Wireless Microphone System datasheet

Related Products

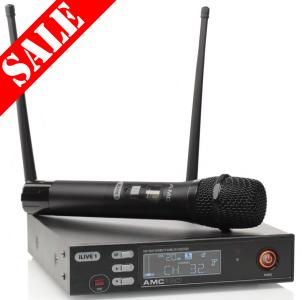

AMC iLive1-HH
AMC iLive1-HH

UHF wireless handheld microphone system with dynamic cardioid capsule.
Channel 70 (Licence free).

see more
List Ex VAT: £365.00

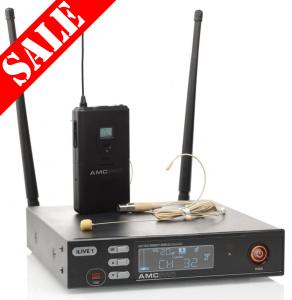

AMC iLive1-Headworn
