Bosch LB10-UC06V-D & LB10-UC06V-L
Click to expand

Bosch LB10-UC06V-D & LB10-UC06V-L

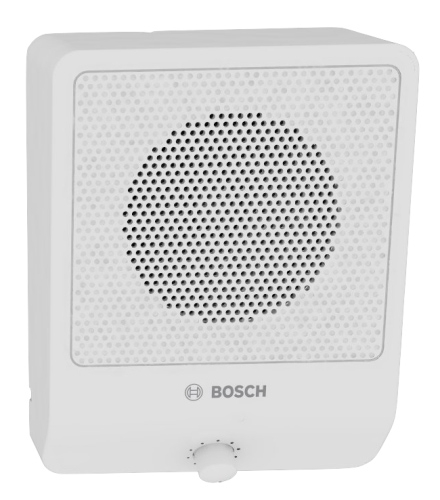

The LB10-UC06V is a neat ABS wall mounted cabinet speaker with a volume control ,offering good speech intelligibility and background music reproduction.

Suitable for 100 volt line sound systems, the transformer offers tappings of 6w, 3w, 1.5w and 0.75w.

Three keyholes on the rear of the cabinet enable quick and easy wall mounting.

Black: LB10-UC06V-D or White: LB10-UC06V-L. Sold and priced individually.

Also available without the volume control - see LB10-UC06-D and LB10-UC06-L.



100V
List Ex VAT: £30.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated power

6 / 3 / 1.5 / 0.75 W

Sound pressure level at 6 W / 1 W (1 kHz, 1 m)

99 / 91 dB (SPL)

Effective frequency range (-10 dB)

145 Hz to 18 kHz

Opening angle 1 kHz / 4 kHz (-6 dB)

165° / 88° (horizontal) / 165° / 88° (vertical)

Rated input voltage

100 V

Rated impedance

1667 ohm

Connector

4 pole screw terminal block

Dimensions (H x W x D):

207.2 mm x 160.5 mm x 73.2 mm

(8.16 in x 6.32 in x 2.88 in)

Weight

0.77 kg (1.70 lb)
