Ecler ARQIS208i
Click to expand

Ecler ARQIS208i

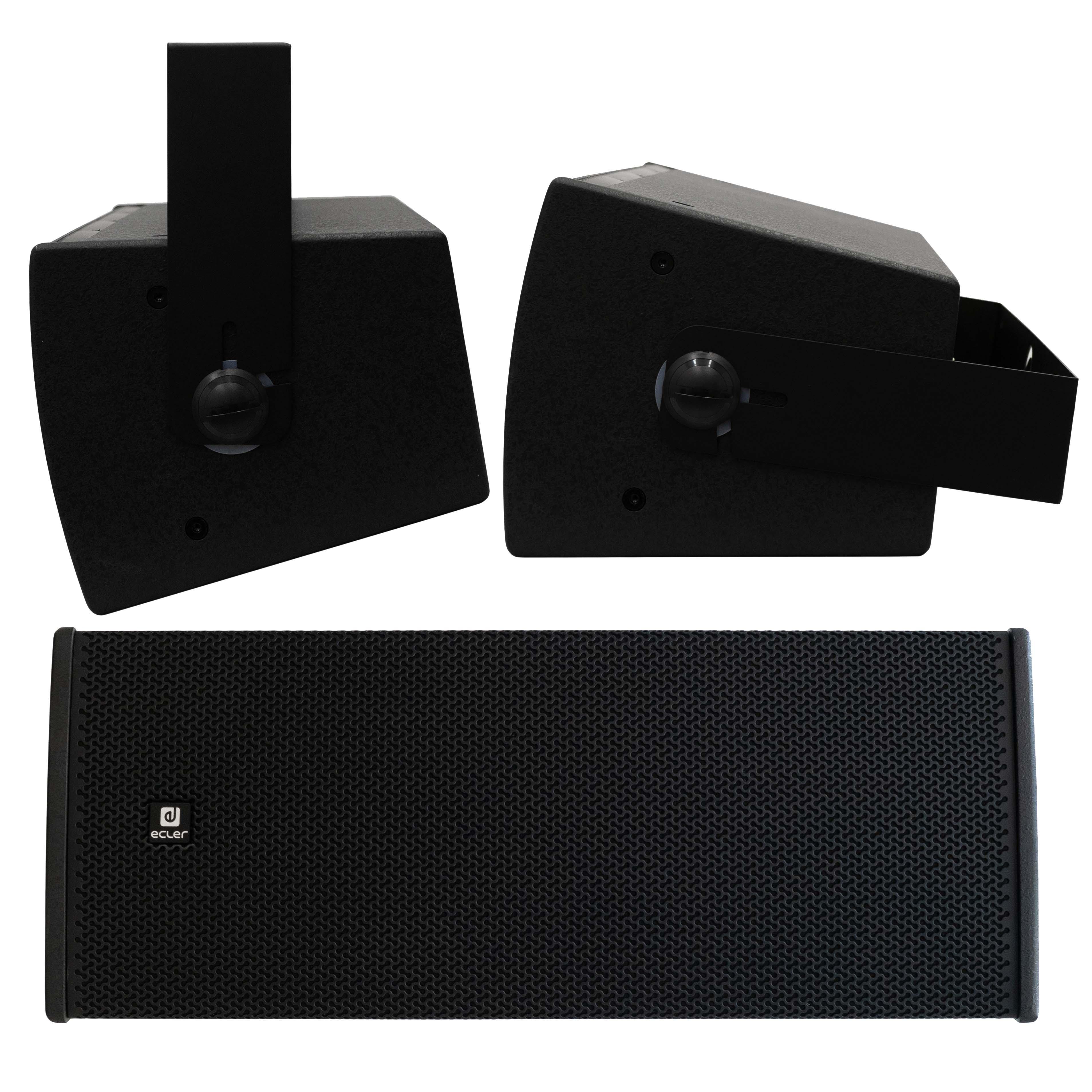

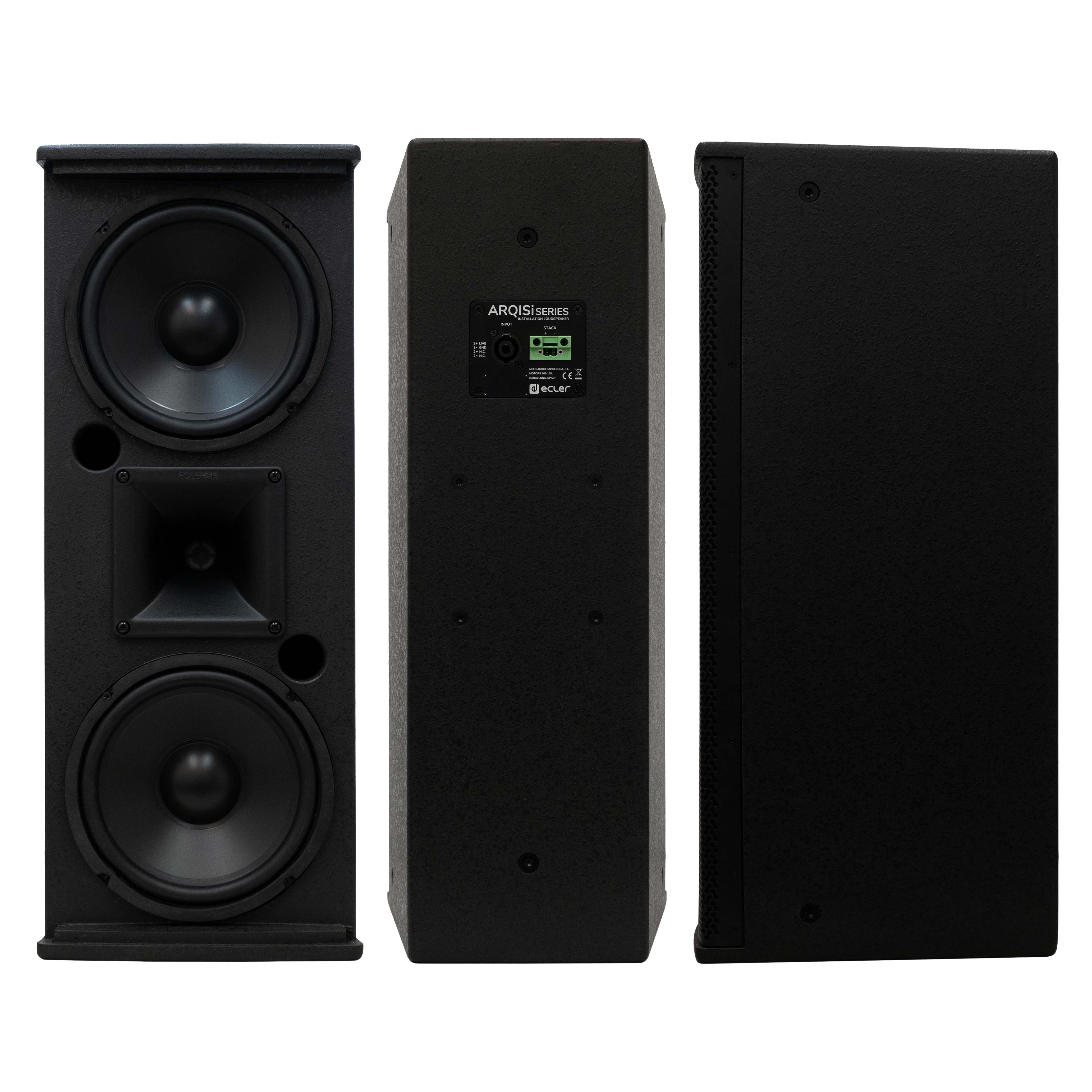

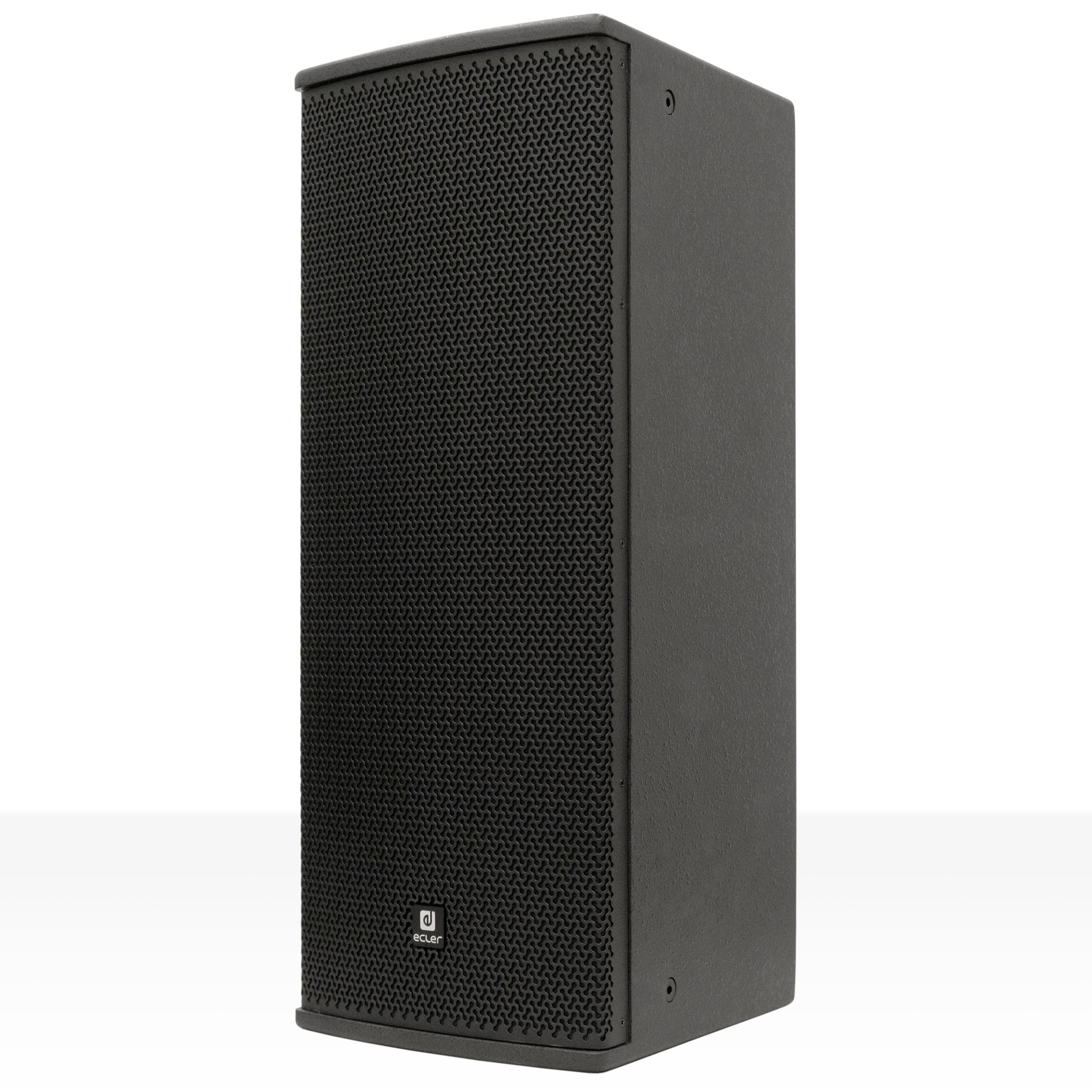

The ECLER ARQIS208i 2-way wooden cabinet loudspeaker is one of our favourite products. It offers excellent sound quality and long term reliability and is rated at 300 Watts RMS @ 8 Ω. Fitted with two 8" woofers and a rotatable 1" HF compression driver. The badge can also be rotated to suit horizontal or vertical mounting.

Available in black or white and supplied with a 'U' shape wall bracket which enables tilt adjustment.

Supplied and priced individually.

  • Full range, 2-way architectural loudspeaker
  • 300 WRMS @ 8 Ω

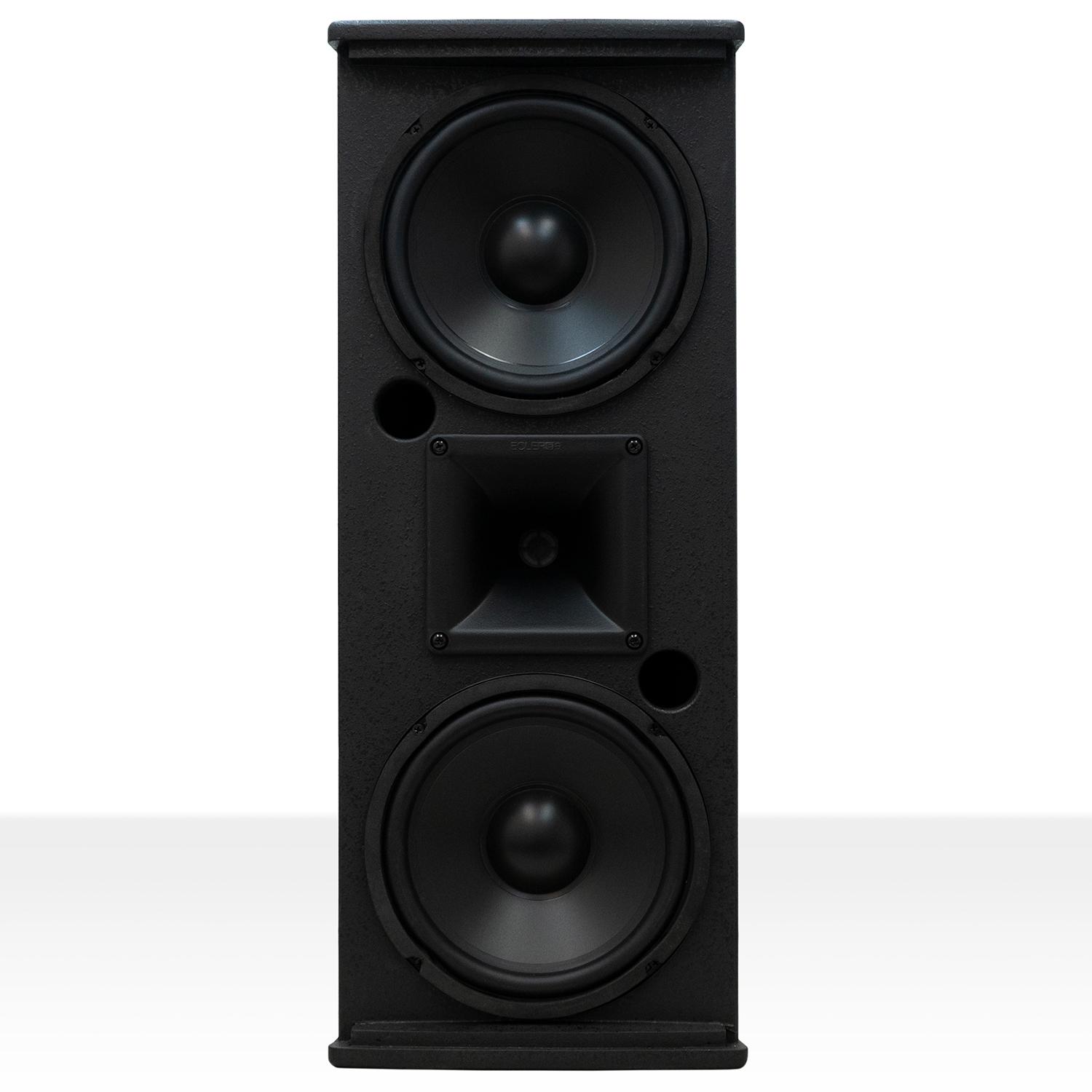

  • 2 x 8" low frequency woofer
  • 1" high frequency compression driver (rotatable)
  • Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection

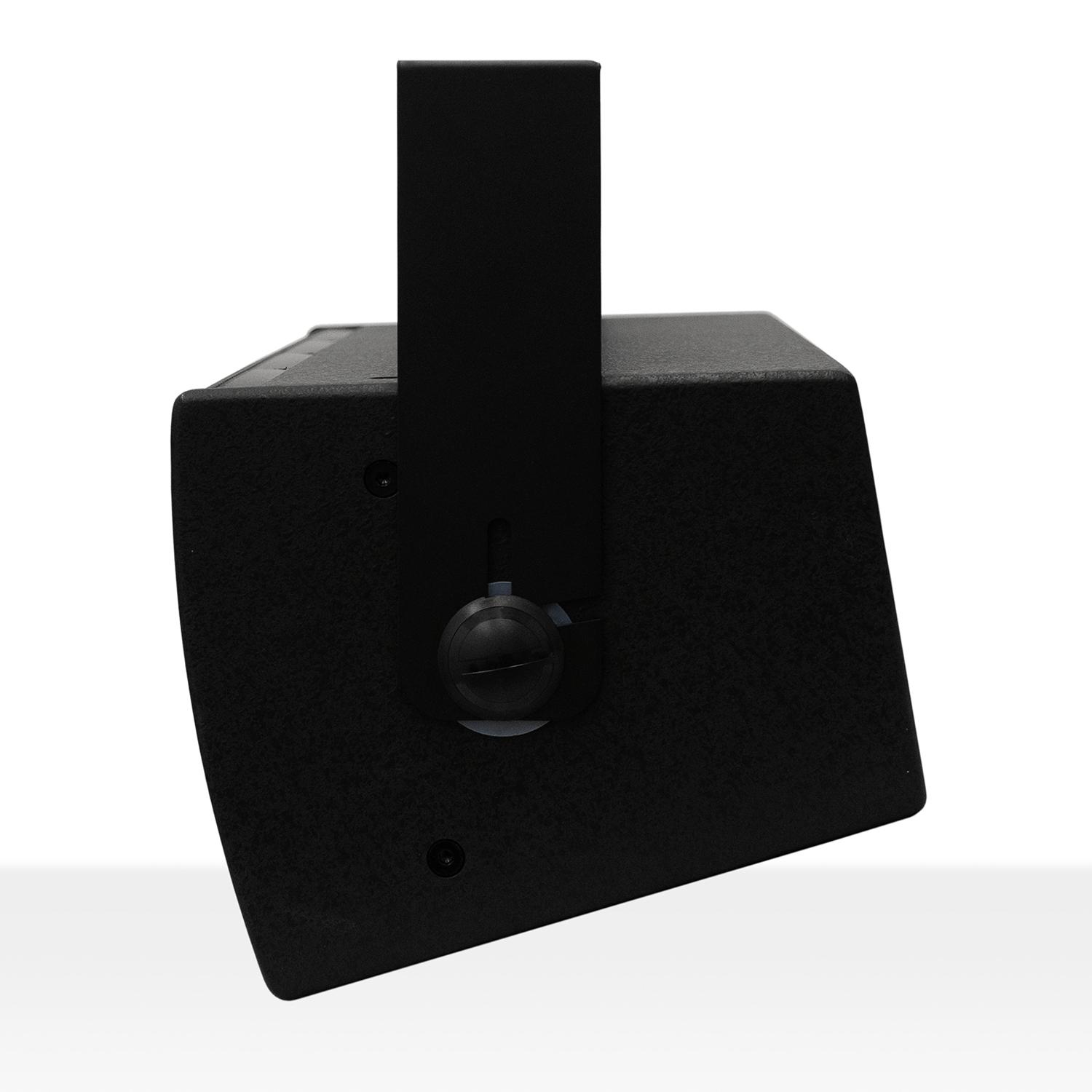

  • "U" Shape wall bracket included, allowing for tilt adjustment
  • 4 x M6 & 12 x M8 cabinet flying points.
  • Metal safety sling included, to avoid drops in case of accidental detachment from the wall surface

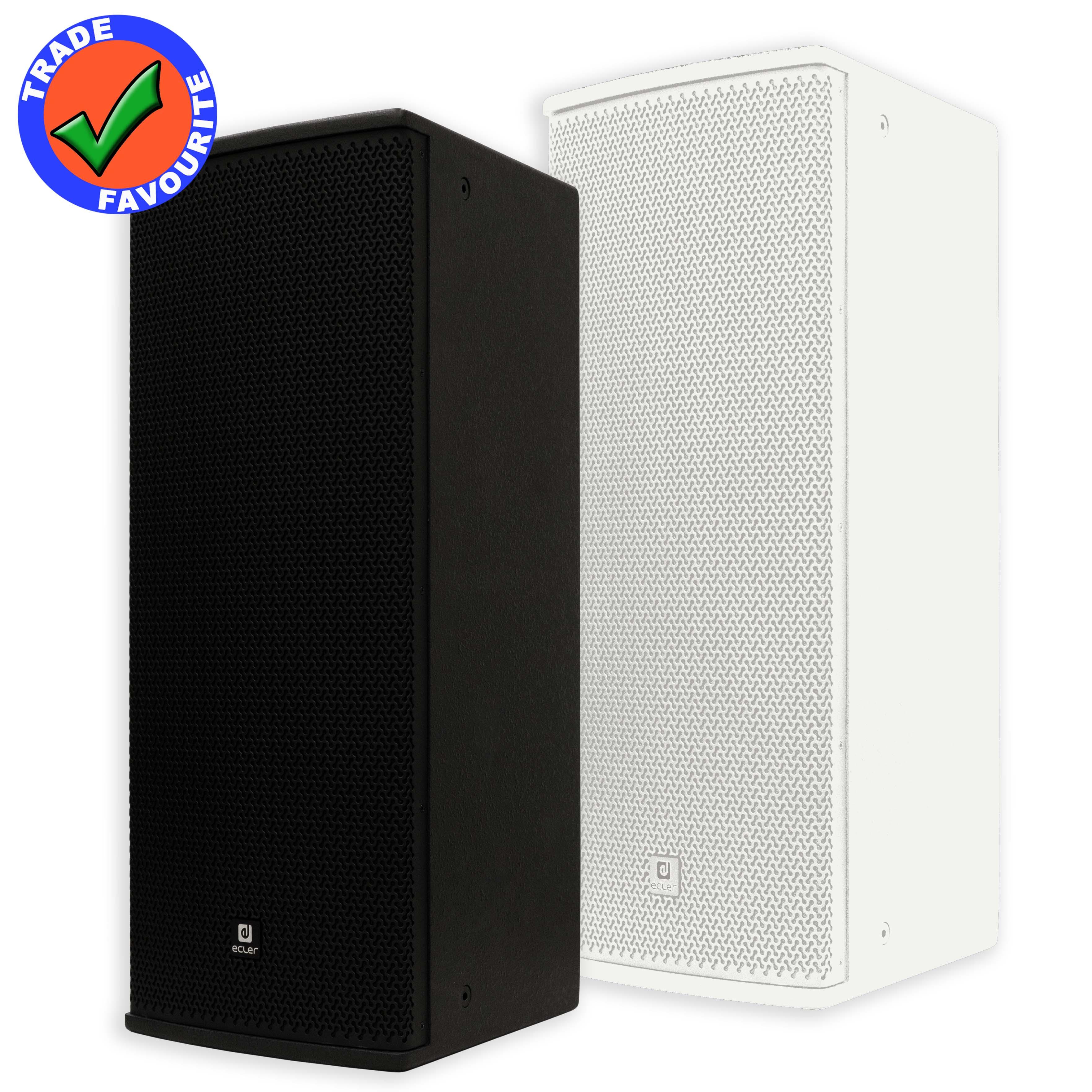

  • Available in black or white finish
  • EASE files available



8ohms
List Ex VAT: £528.09
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Power output (RMS)

300W RMS / 1200W peak

Maximum SPL (dB@1m)

119 dB continuous / 125 dB peak

Woofer Diameter

2 x 8”

HF driver

1” Compression driver (rotatable)

Sensitivity (dB@1m 1W)

94 dB

Frequency response

73 Hz - 20 kHz (-10dB)

Impedance

8Ω

Dispersion (HxV)

130⁰ x 30⁰

Connections

1 x Euroblock + 1 Speakon

Dimensions

610 x 244 x 280 mm / 24.01 x 9.60 x 11.02 in

Weight

14.8 kg / 32.62 lb

IP rating

IP31

Finished colour

Black (RAL9005) or White (RAL 9003)

Accessories included

U Bracket / 5mm Allen key / 6mm Allen key
