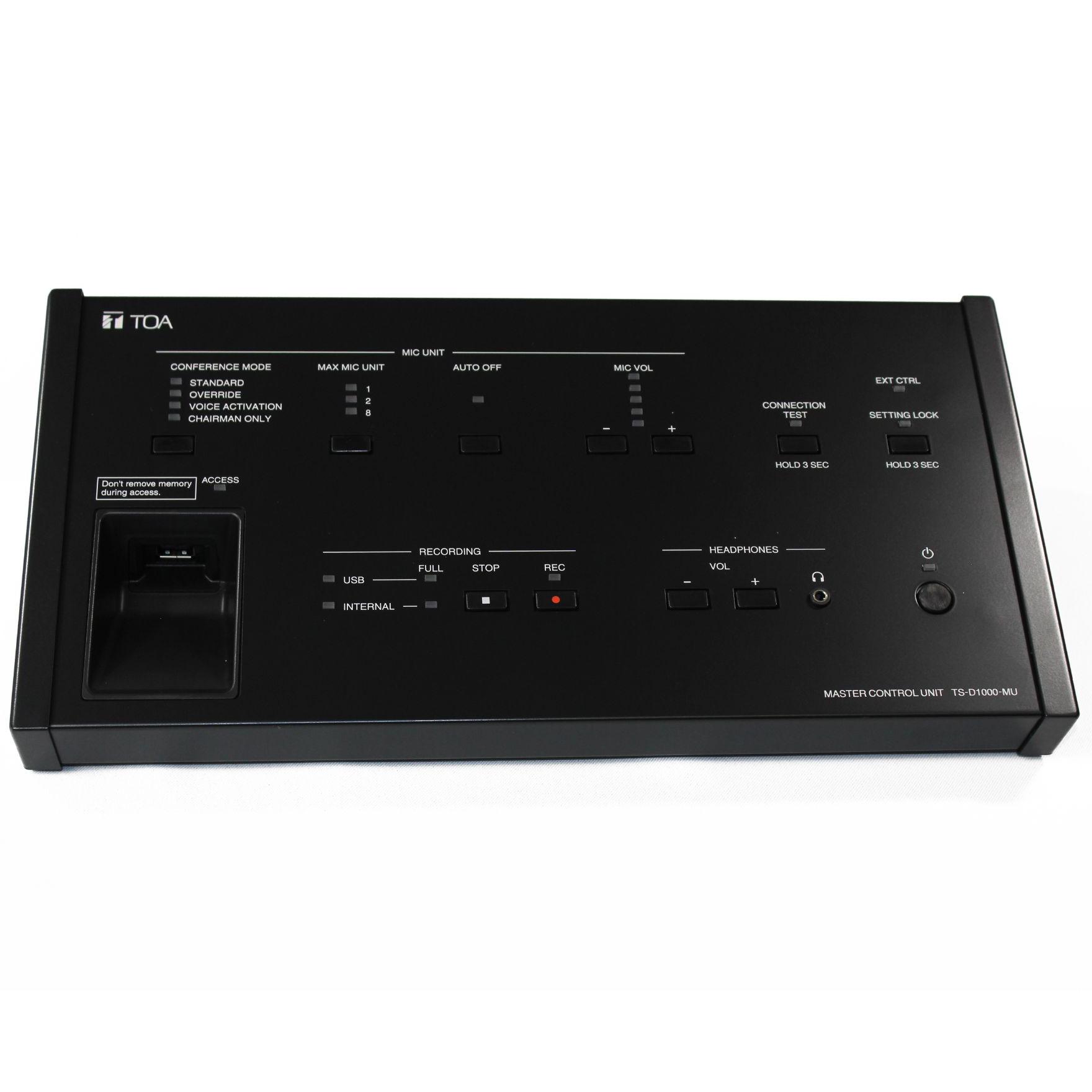

The TOA TS-D1000-MU master control unit is part of the D1000 wired digital conference system.

The master control unit, chairman and delegates microphones are all simply connected with easily-obtainable CAT5e STP LAN cables.

The TS-D1000-MU is equipped with a recording function, PC control (*1) and one-touch connection confirmation capability. Up to 32 Chairman/Delegate units can be connected in a simple daisy chain configuration. For further expansion, up to 5 TS-D1000-SU Sub control units can be added to the system making it possible to connect as many as 246 Chairman/Delegate units in one fully integrated conference system.

The TS-D1000-MU benefits from FBS (feedback suppression), for effective control of acoustic feedback and an MP3 recorder enables recording of all conference contents to either a USB memory drive or internal memory.

Rack mountable using an optional bracket, it can be mounted in an EIA standard equipment rack (4 unit size).

• Easy installation and operation
• Up to 246 conference units controllable
• Function setting – number of open microphones, auto mic-off function, speech priority selector, feedback suppressor
• 100 m (328,08 ft) maximum cable distance
• Recording capability to analog record devices, USB memory drive and internal memory
• Rack-mountable with MB-TS920 optional bracket

(*1) Relevant control software is supplied on a custom-made basis.
