TOA TS-D1000-SU

TOA TS-D1000-SU

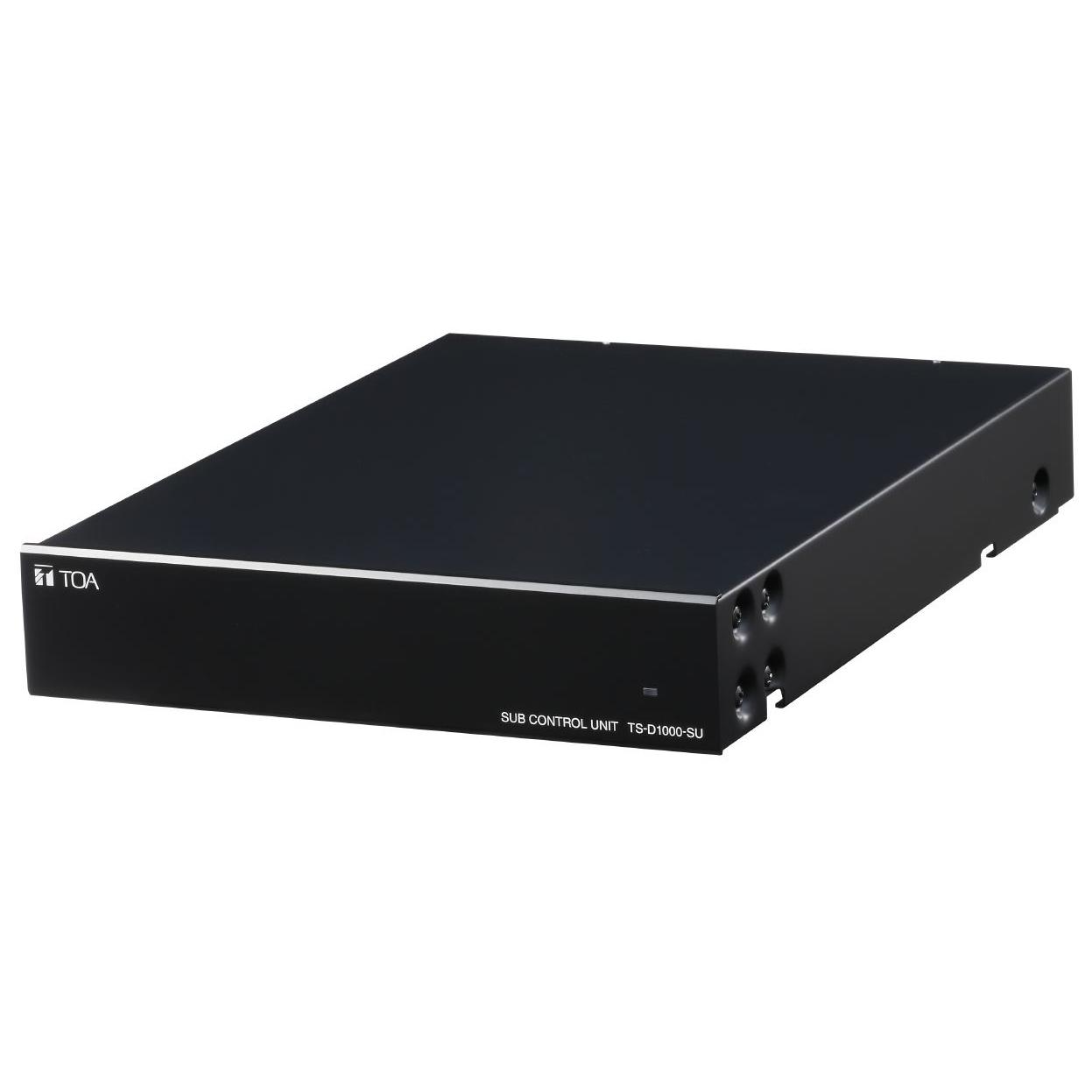

The TOA TS-D1000-SU sub control unit is part of the TS-D1100 & TS-D1000 wired digital conference system. It enables easy expansion of the system via the master control unit.

Up to 48 chairman and delegate units can be connected per sub control unit by using easily-obtainable CAT5e STP LAN cables. Up to 5 sub control units can be connected to the master control unit using the supplied LAN cable.

Rack mountable using an optional bracket.

  • 5 sub control units can be connected to the master unit
  • Add up to 48 conference units to the system
  • Rack mountable with MB-15B-BK or MB-15B-J
  • Compatible with TS-D1100-MU and TS-D1000-MU
  • Warranty: 1 Year
List Ex VAT: £1,295.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Specification
Power Source 100 - 240 V AC, 50 / 60 Hz (use of the applied AC adapter)
Power Consumption Max. 80 W
Operating Temperature 0℃ to +40℃ (32゜F to 104゜F)
Operating Humidity Under 90% RH (no condensation)
Finish Aluminium, Steel plate, 30% gloss, surface-treated, paint, black
Dimensions 210 x 45.8 x 294.8 mm (W x H x D)
Weight 1.6 kg
Accessory (included) AC adapter (Cord length: 1.8 m (5.91 ft) DC cord, and 2 m (6.56 ft) detachable AC cord)
Connection cable (Cat5e STP 1m)

DOWNLOADS

TOA TS-D1100 Brochure
TOA TS-D1000-SU Datasheet
TOA TS-D1000 Instruction Manual
