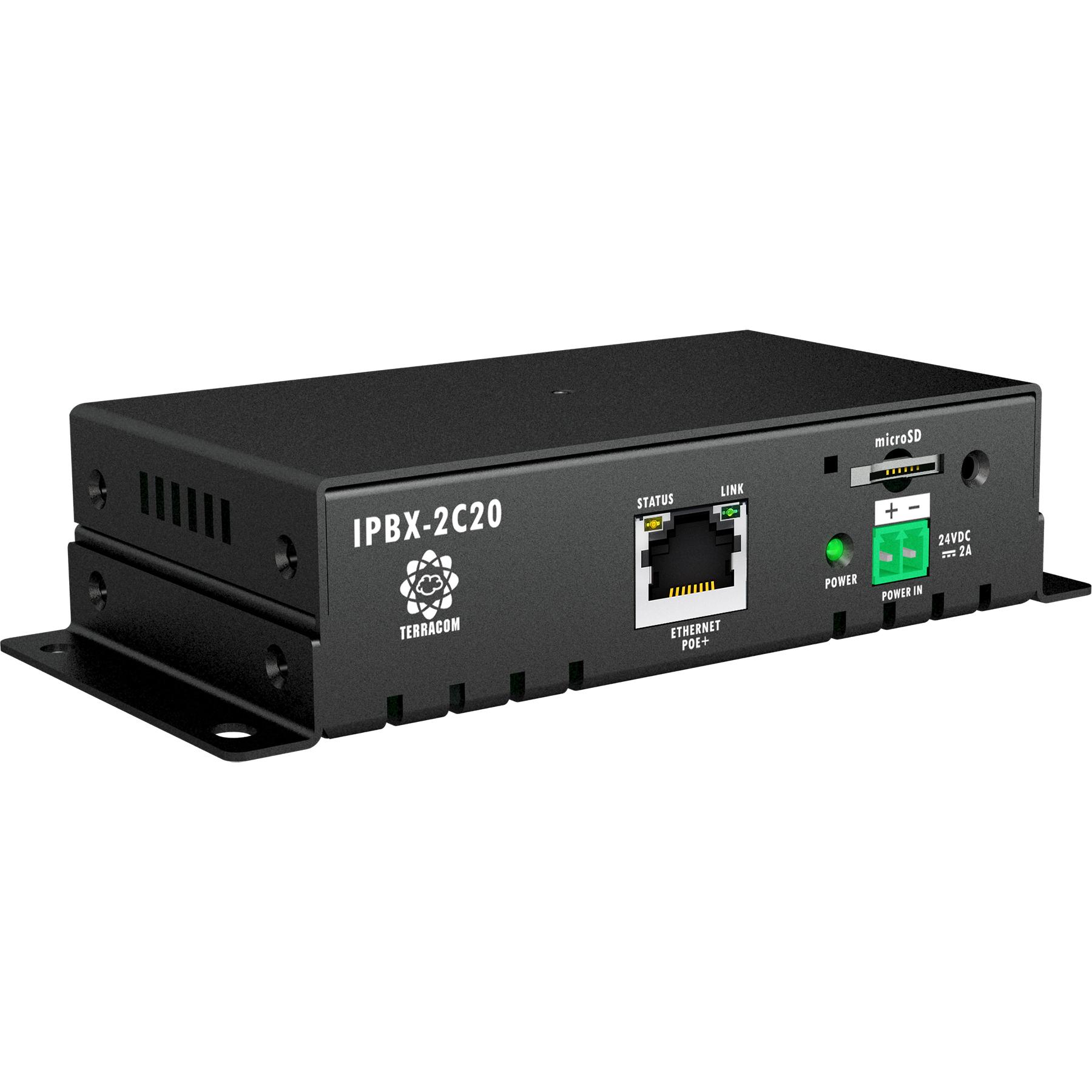

The TERRACOM IPBX-2C20 IP module can be used to convert any standard low impedance speaker, whether it’s a ceiling speaker, cabinet, projector or horn, into an IP addressable and power over Ethernet (PoE) loudspeaker.

While supporting PoE+ (power over ethernet), an external power adapter can also be used for further power (24VDC). By using an existing network with RJ45 connection, PoE+ offers a cost-effective solution for commercial audio by minimising the number of cables required.

Each IPBX-2C20 module has an integral Class D amplifier offering 2 x 20 Watt channels for 8 Ohm speakers (bridgeable to 40 Watts for 4 Ohm speakers) and it is possible to connect multiple speakers to a single module (assuming each speaker doesn't need to be individually addressable).

Control inputs can be used to operate the module with an RAC5/8 wall mount volume control & source selector. Other features include integrated DSP tools for audio enhancement and memory storage.

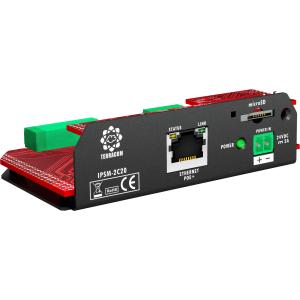

Please note that an alternative model is available without the enclosed casing; please see the IPSM-2C20.

• Support PoE+ and PoE power
• Standard RJ45 interface, PCB control and Class-D amp board (2 x 20w)
• Cost effective and simple installation with single cable deployment
• Easily configured, controlled, managed, and monitored via web browser
• Full DSP includes Ducker, AGC, PEQ, Hi/Low Pass, Compressor, Limiter, etc.
• IP based for music streaming, routing, paging and control over LAN/WAN
• VoIP call via SIP protocol
• Supports audio codecs G.711u, G.711a, G.722, PCM16K and MP3
• 3 control inputs, 1 contact output
• Internal storage (200mb) plus microSD card of up to 512GB available for message or music storage.
