LD Systems STINGER SUB 18 G3
Click to expand

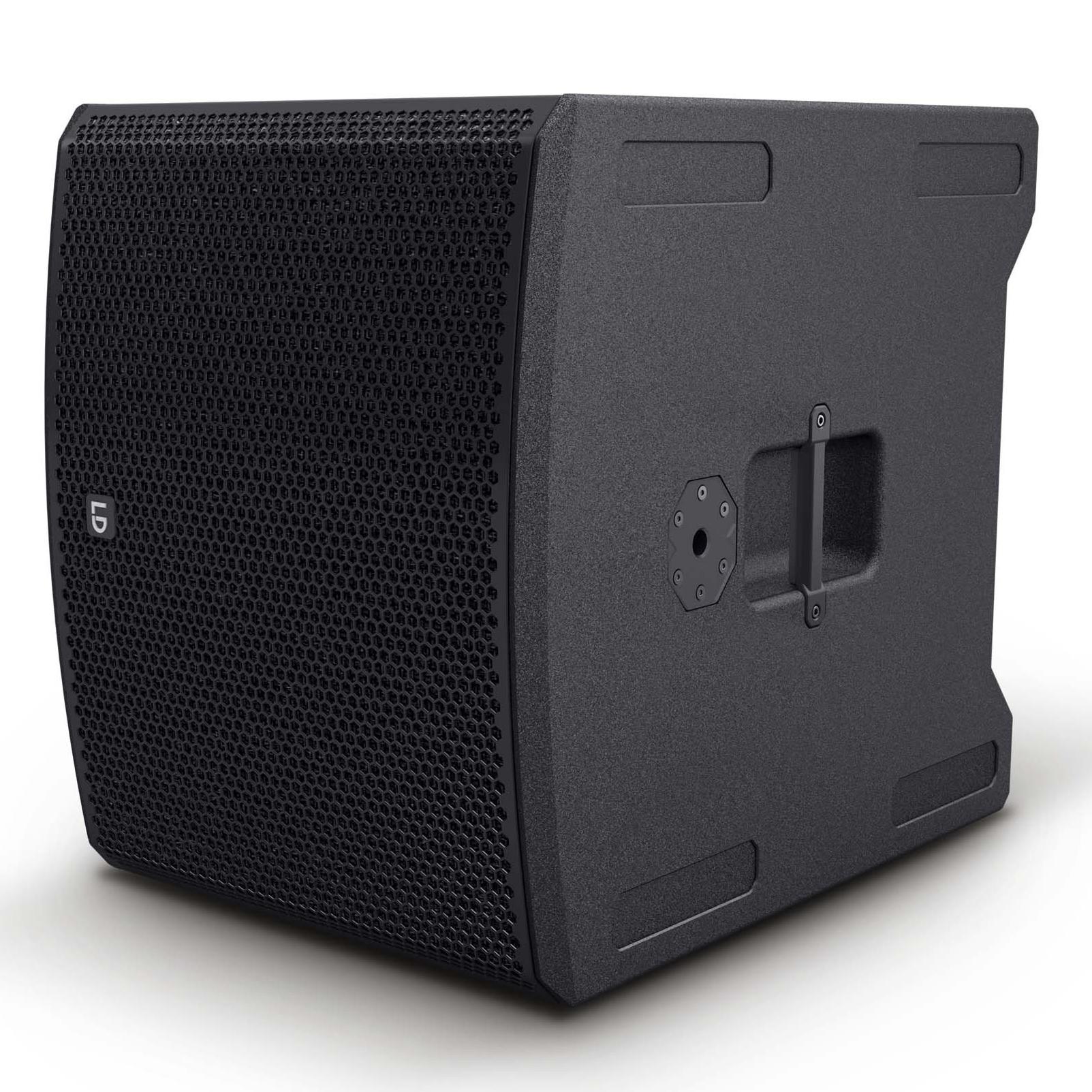

LD Systems STINGER SUB 18 G3

The LD Systems STINGER SUB 18 G3 18" passive subwoofer provides an output of 800 watts RMS with a maximum sound pressure level of 126 dB. Its specially developed 18" woofer emits the deepest bass sounds with extremely powerful and clear contours.

Designed as a real all-round workhorse with long-term reliability in mind, the strongly supported bass reflex cabinet is designed for horizontal and vertical use. The cabinet is constructed from robust 18 mm birch plywood with an extremely resilient polyurea coating for superb durability & the front is protected by a powder coated steel grille.

A threaded insert for M20-extension tubes, stacking dimples and ergonomic handles make the STINGER® SUB 18 G3 a versatile and affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.

  • Passive 18" bass-reflex PA subwoofer
  • 800 watts RMS
  • 129 dB maximum sound pressure level

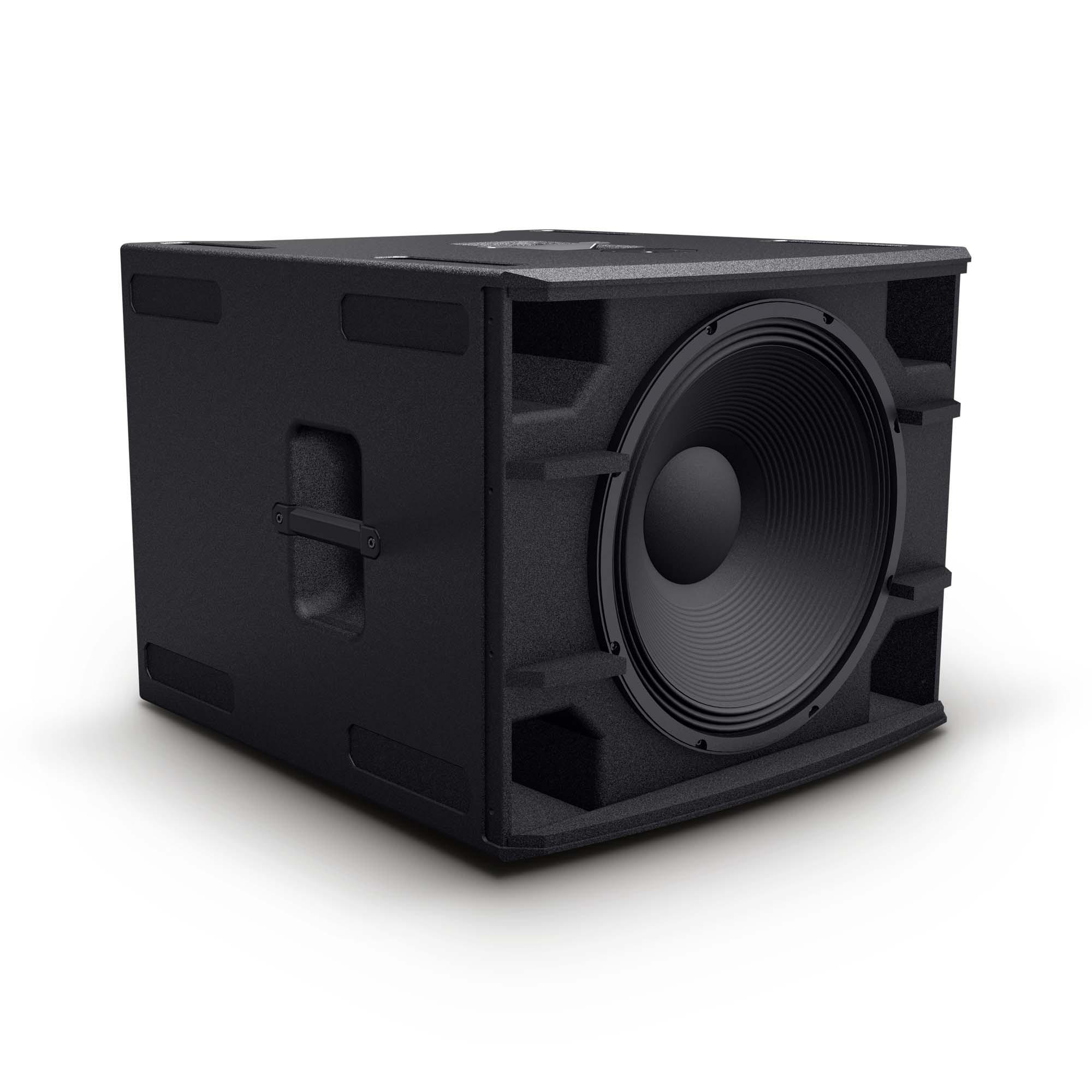

  • Deep basses down to 35 Hz, thanks to 18" custom-design woofer

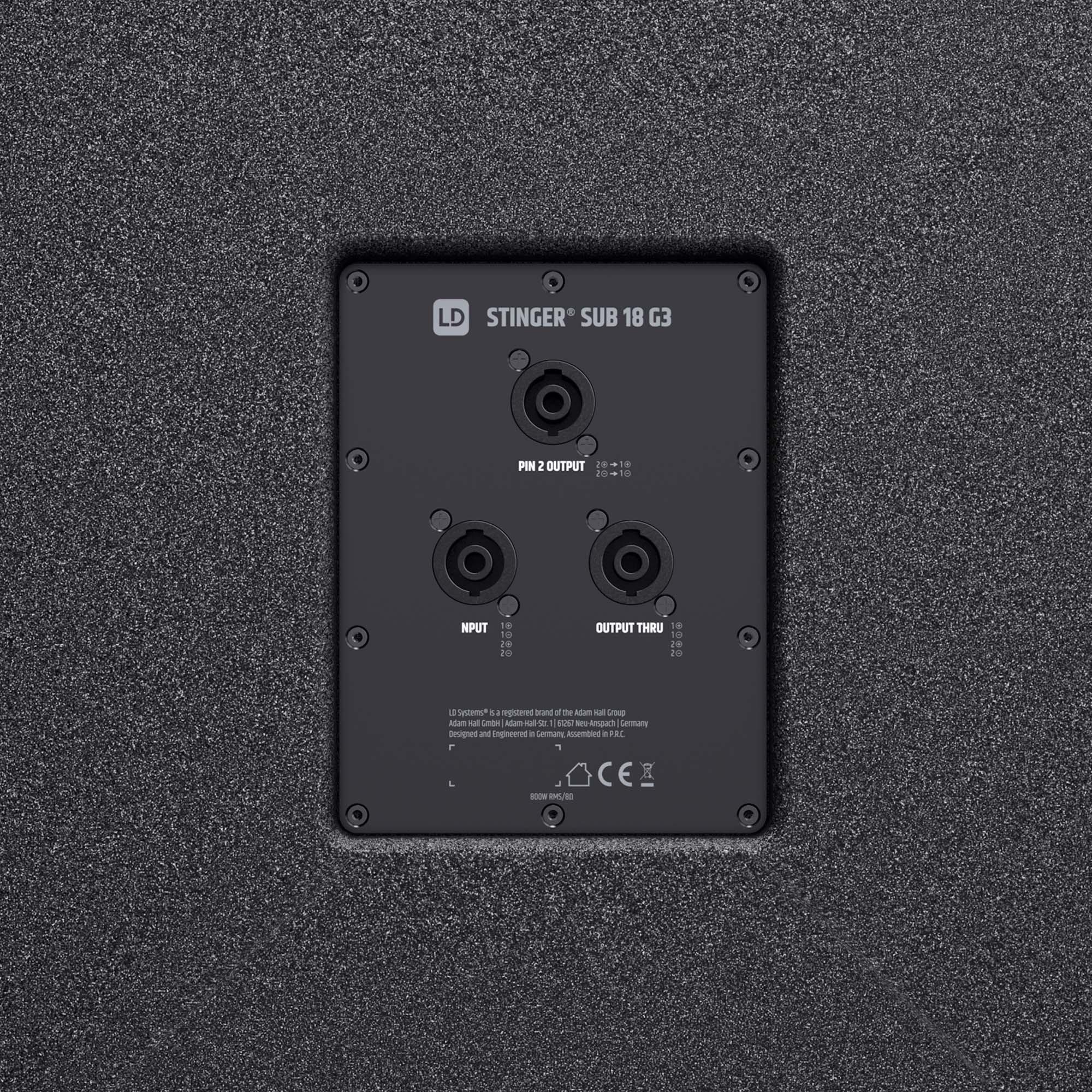

  • Speaker In, Satellite Out, Sub Thru sockets
  • Can be used horizontally or vertically
  • 18 mm birch plywood housing with extremely durable polyurea coating
  • Ergonomic handles and stacking dimples
  • Shock-resistant front grille for optimal protection of the speaker.
  • Compatible with extension tubes with M20 thread
  • Clever transport accessories
8ohms
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Low/mid Woofer dimensions

18 " (457.2 mm) + 4” (101.6mm) Voice Coil

Load Rating (RMS / Peak)

800W / 1600W

Frequency Response

35 - Crossover

SPL (1W/1m)

100dB

Max. SPL

129dB

Impedance

8 Ohms

Loudspeaker Inputs

1, Speakon compatible

Loudspeaker Outputs

1, Speakon compatible

Cabinet material

18 mm Plywood, Polyurea finish

Cabinet construction

Bass Reflex

Height x Width x Depth

677 mm x 547 mm x 740 mm

Weight

40.6 kg

Related Products

LD Systems STINGER 12 G3

2-Way Passive 12” Bass Reflex PA Loudspeaker

see more
List Ex VAT: Contact Us

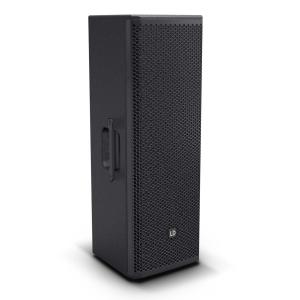

LD Systems STINGER 28 G3
