Bosch LB2-UC15-D1 & LB2-UC15-L1

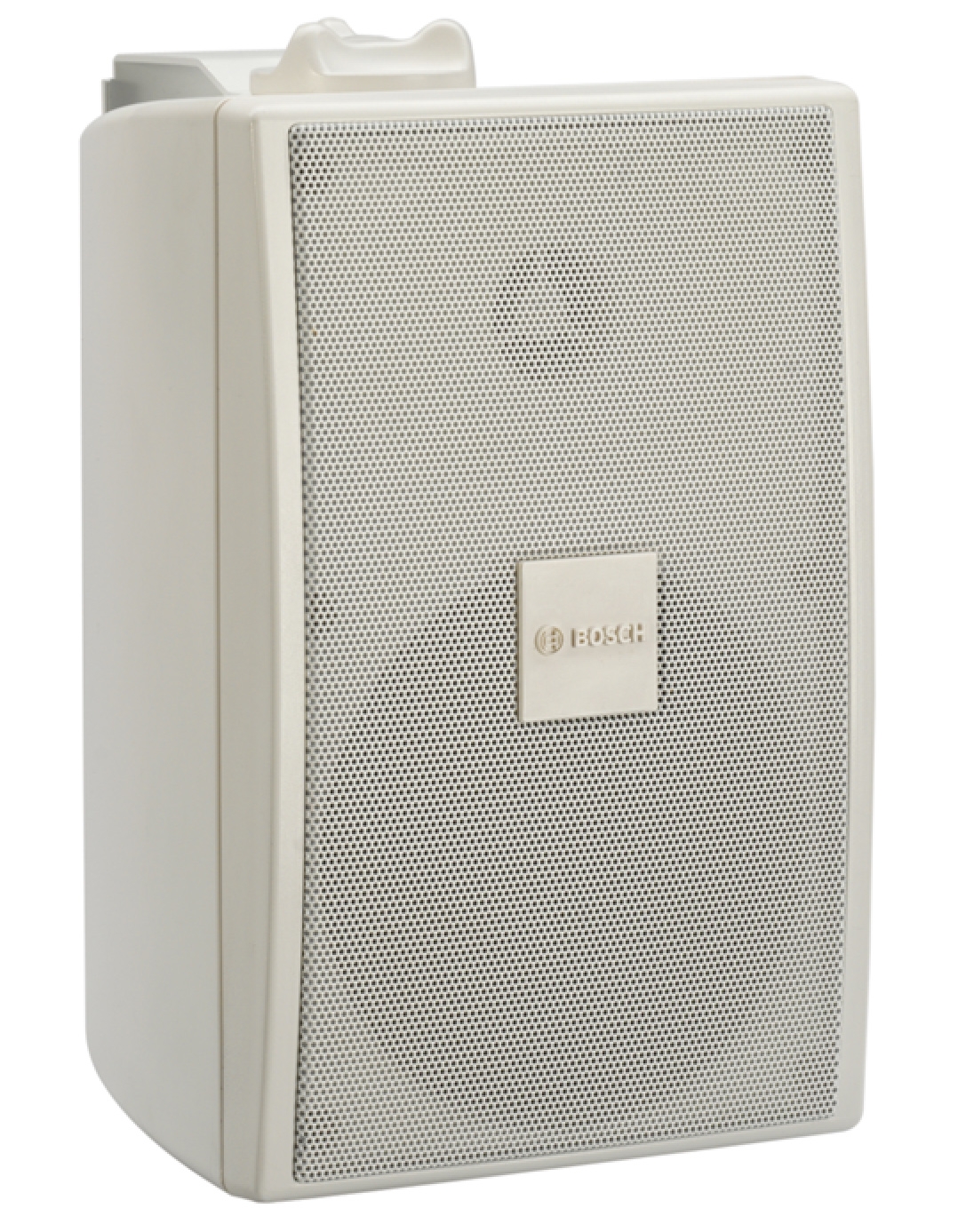

The LB2-UC15-D1 & LB2-UC15-L1 premium quality cabinet loudspeakers are ideal for clear reproduction of speech, foreground and background music in general indoor and outdoor applications.

Selectable 8 ohm, 70 V and 100 V inputs can be found on the rear of the LB2UC15 for complete flexibility.

Black: LB2-UC15-D1 or White: LB2-UC15-L1.

Also available in a 30 watt version - see LB2-UC30.

  • High-fidelity music and speech reproduction
  • Selectable 8 ohm, 70 V and 100 V inputs
  • Compact yet robust ABS enclosure
  • Supplied with adjustable mounting bracket
  • Water resistant. IP65 rated.
100V IPxx 8ohms
List Ex VAT: £60.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Maximum power

22.5 W

Rated power

15 W  (15 / 7.5 / 3.75 / 1.9 W)

Sound pressure level at 15 W / 1 W (1 kHz, 1 m)

98 / 86 dB (SPL)

Effective frequency range (-10 dB)

95 Hz to 19.5 kHz

Opening angle 1 kHz / 4 kHz (-6 dB)

179° / 101° (horizontal) / 168° / 35° (vertical)

Rated input voltage

11/70/100 V

Rated impedance

8 / 326 / 667 ohm

Transducers

101.6 mm (4”) woofer, 13 mm (0.51 “) dome tweeter

Dimensions (H x W x D):

205 x 136 x 117 mm (8.07 x 5.35 x 4.60 in)

Weight

1.9 kg (4.18 lb)
