Penton PH30/T

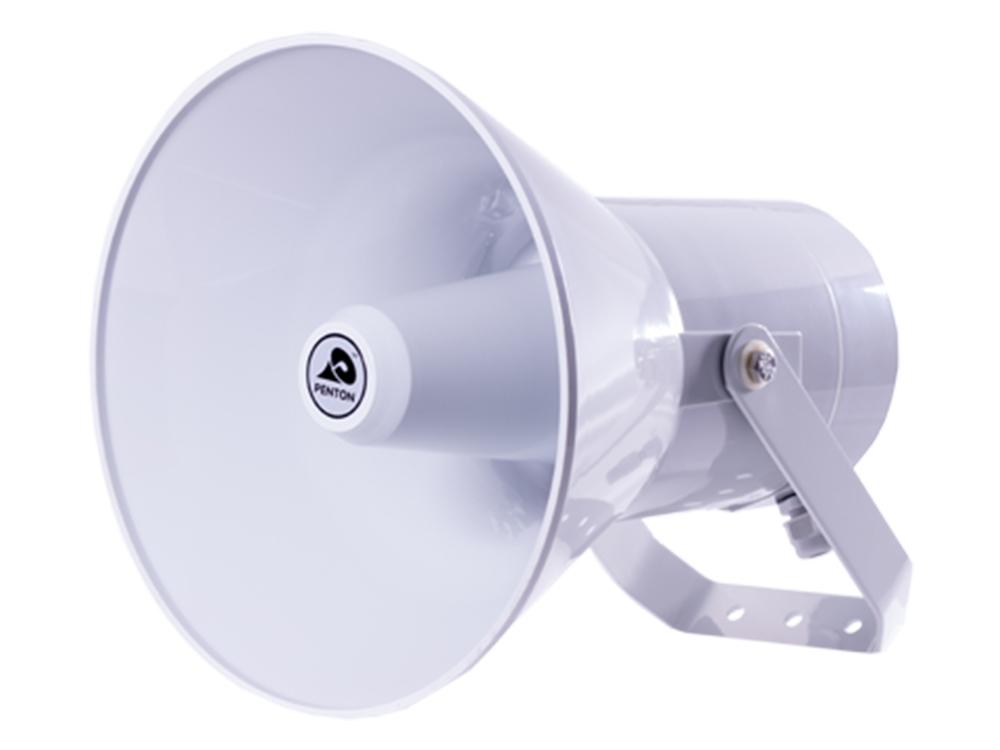

The Penton PH30/T weatherproof, lightweight plastic re-entrant horn is rated at 30 Watts, 100 Volt line.

IP66 rated, suitable for use outdoors.

Good speech clarity makes this horn suitable for communication or warning signals.

The PH30T horn is manufactured from a strengthened ABS moulded plastic with UV inhibitors and is supplied with an epoxy coated, stainless steel U bracket. These horns are ideal for marine and industrial use as they are non-corrosive and resistant to salt laden air.

Fitted, as standard, with 1 x PG9 gland but will open to 20mm + 1 x 20mm knockout allowing the installer to loop in & loop out the cabling without the need for an additional junction box.

Grey finish, RAL7035.

Warranty: 3 Years.

An EN54-24 compliant version is also available – please see APH30/T.

100V IP66
List Ex VAT: £98.28
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated power

30 Watts

Tappings, 100 volt line

30/15/7.5/3.75 Watts

Transformer Impedance

330/660/1.32k/2.64k Ohms (100V)

Tappings, 70.7 volt line

15/7.5/3.75/1.875 Watts

Driver impedance

20 Ohms

Effective Frequency Range

330Hz – 8KHz

S.P.L. 1watt/1m

103dB

Max S.P.L. rated/1m

118dB

Dispersion at 1k/2kHz

110/70 Degrees

IP Rating

66

Dimensions

Ø238 x 287 mm

Net Weight

2.3 Kg

Colour

Grey, RAL7035

Material

ABS plastic with UV inhibitors

Mounting

epoxy coated stainless steel U bracket
