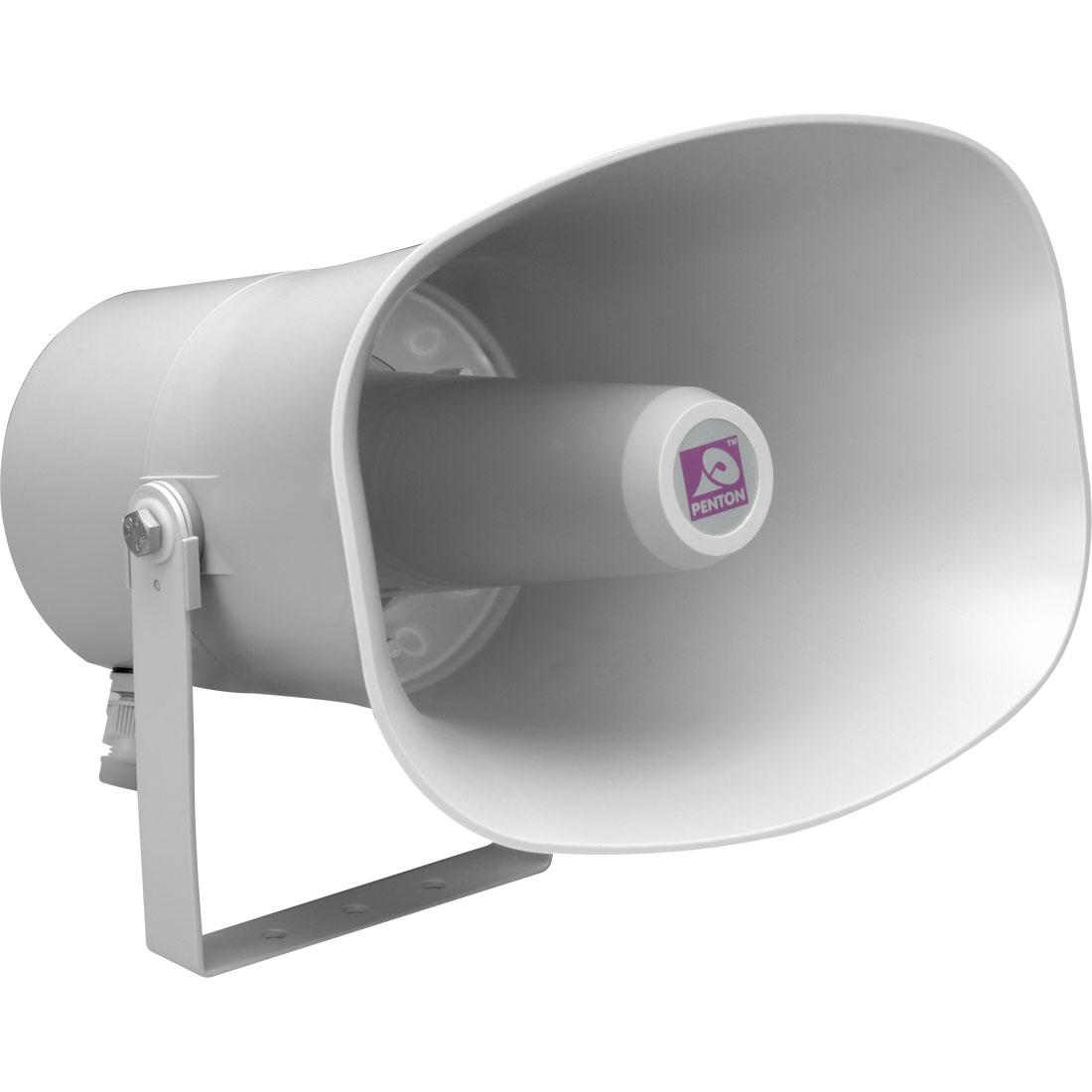

Penton APH30T/ENC

The Penton APH30T/ENC EN54-24 compliant, weatherproof, lightweight re-entrant horn is rated at 30 Watts, 100 Volt line.

Good speech clarity makes this horn suitable for communication or warning signals.

Water resistant & IP66 rated, the APH30T/ENC horn speaker is constructed from grey low smoke, zero Halogen UL-94V0 plastic with UV inhibitors & stainless steel hardware. It's mounted using the stainless steel U bracket supplied and is fitted with a capacitor for DC line monitoring.

These horns are ideal for marine and industrial use as they are non-corrosive and resistant to salt laden air.

Fitted, as standard, with 1 x PG9 gland but will open to 20mm + 1 x 20mm knockout allowing the installer to loop in & loop out the cabling without the need for an additional junction box.

Grey finish, RAL7035.

Also complies with BS5839 Part 8.

A non-EN54-24 compliant version is also available – please see PH30/T.

100V Evac IP66
List Ex VAT: £122.28
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated power

30 Watts

Tappings, 100 volt line

30/15/7.5/3.75 Watts

Transformer Impedance

330/660/1.32k/2.64 Ohms (100V)

Tappings, 70.7 volt line

15/7.5/3.75/1.875 Watts

Driver impedance

8 Ohms

Effective Frequency Range

260Hz – 16KHz

S.P.L. 1watt/1m

108dB

Max S.P.L. rated/1m

122dB

Dispersion at 1k/2kHz

105/49 Degrees Horizontal
142/68 Degrees Vertical

IP Rating

66

Dimensions W x H x D

258 x 180 x 280 mm

Net Weight

2.0 Kg

Colour

Grey, RAL7035

Material

Low smoke, zero Halogen UL-94V0 plastic with UV inhibitors

Mounting

epoxy coated stainless steel U bracket & hardware
