Signet APJ

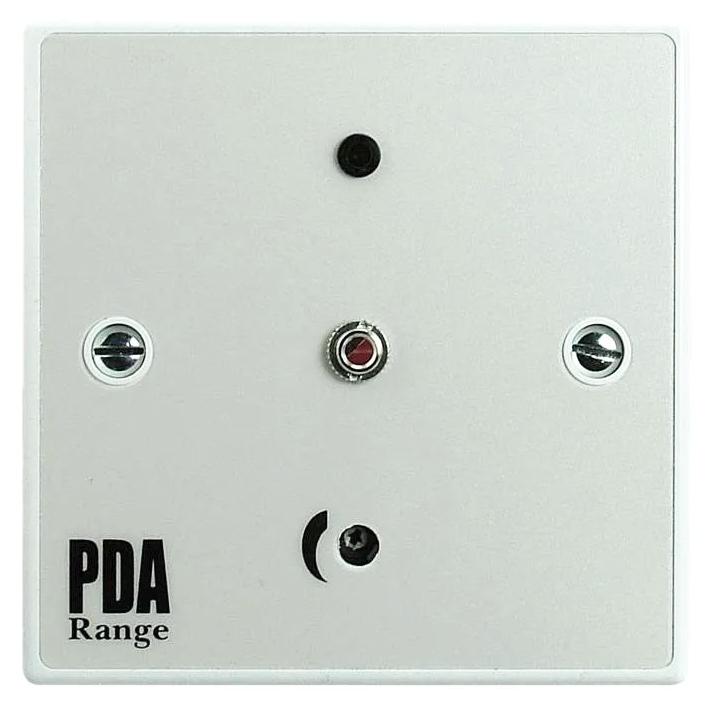

SigNET APJ Outreach plate with 3.5mm microphone jack socket.
The APJ forms part of the SigNET range of Outreach plates which can be used to extend the functionality of your induction loop system.
Mountable on 25mm back boxes, each plate features a built-in mixer, pre-amp, input level control and balanced output. Fitting at the most convenient point on an installation overcomes the need for long and potentially hazardous microphone/audio leads.
Typically, up to 10 Outreach plates (any mix) can be daisy-chained to one balanced line level input with cable lengths of up to 100m easily achievable using standard two-pair audio cable with no recognisable degradation of audio signal quality.
- Accepts balanced or unbalanced microphones
- 3.5mm Jack input
- On-board mic to line converter
- High gain pre-amplifier
- 8v phantom supply
- Single gang electrical face plate
- Mounts onto a 25mm standard UK single gang back box
Each outreach plate requires four wires, two balanced line (A +, A –), one ground (0V) and one power connection (12-32 V DC regulated).
