Ecler VEO-XRI2L
The Ecler VEO-XRI2L is a low latency 4K HDMI over IP extender receiver. Use in conjunction with the VEO-XTI2L Transmitter.
The impressive transmission distance of up to 120m over Cat.5e/6 cable can be increased to 2Km when using the fibre optic connection.
Ideal for all applications that require low latency video extension such as real time application or KVM.

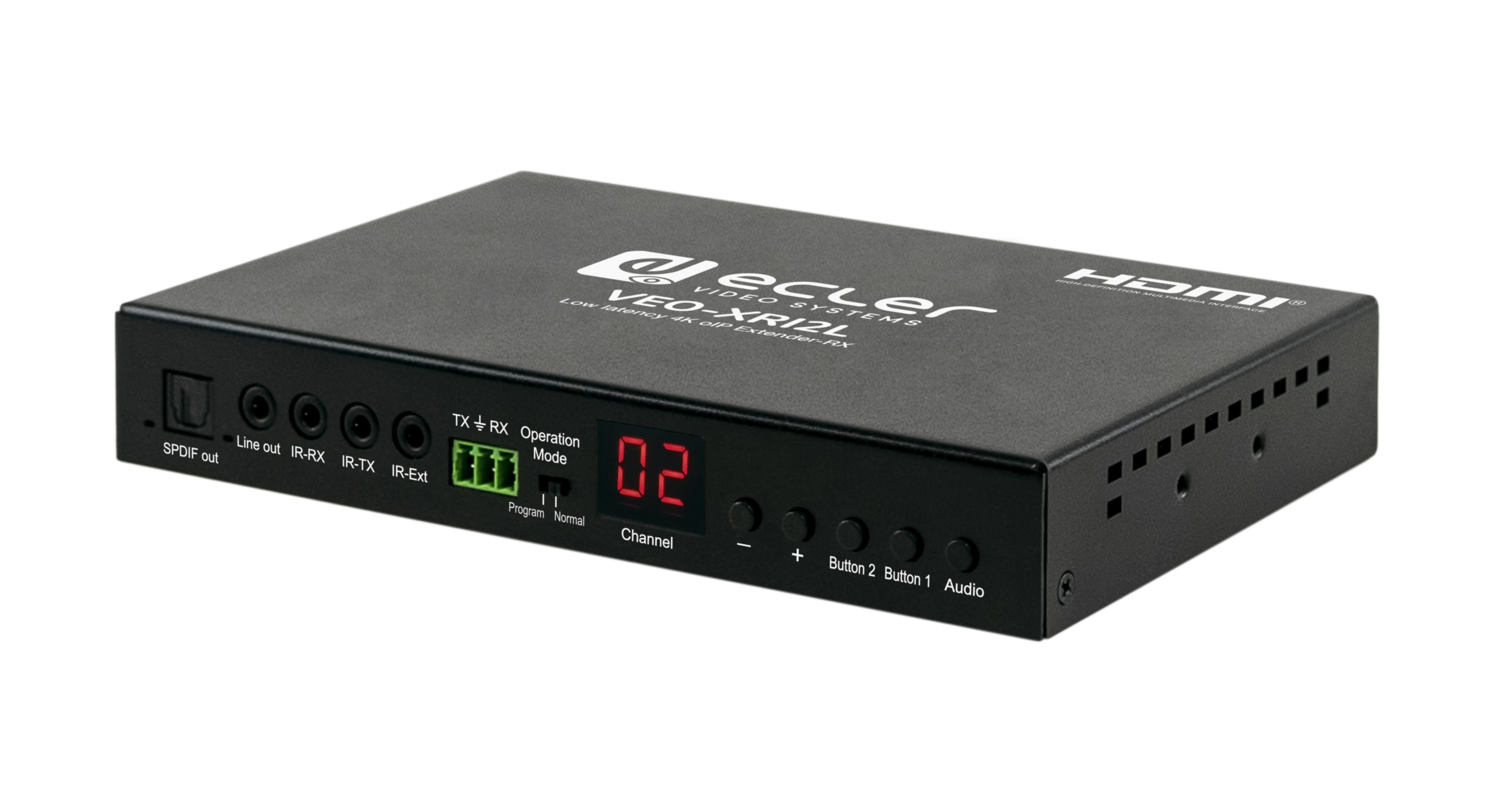

An intuitive user panel with LED display allows to select the stream channel straight out of the box, without the need of a PC.
Both VEO-XRI2L and VEO-XTI2L extenders can be powered via either PoE or the included external power supply.
Advanced settings and control can be accessed using the Web browser interface, PC tools and third party control protocol.
- Support Video Wall composition (Max 8x8)
- 4K UHD HDMI over IP/Fiber Extension
- Support point-to-point, point-to-multipoint and multipoint-to-multipoint configurations
- USB2.0 over IP extension for KVM
- Support transmission distances up to 120m over single Cat.5e/6 cable
- Support fiber optic extensions up to 60Km (Single Mode)
- Support up to 4K@60Hz YUV 4:2:0 input and 4K@30Hz outputs
- HDCP 2.2 / HDCP1.4 compliant
- Support Bi-Directional Wide Band IR (38kHz-56kHz) pass through
- Support RS-232 pass through and Telnet control (EclerNet Manager and third party remote control compatible).
- Include IR remote/ Frontal Panel control of Group ID channel, with LED display to show the Group ID in use
- Support Dolby True HD, DTS-HD Master Audio formats
- Support 3D video formats
- SPDIF 5.1 and L/R analog stereo embedding and de-embedding
- Easy installation over Gigabit IGMP compliant LAN Networks
- The extenders can be powered with PoE or with the included external power supply
- Warranty: 5 Years.
For further information, please download the Datasheet and/or User Manual.
To see more of the Ecler video range, please download the Ecler Video Brochure here or download the full Product catalogue below.
 |
