We no longer stock this product. Please contact us for details of suitable replacements.

The Audac MTX88 8 x 8 audio matrix mixer offers 8 output zones and is not only controllable using the frontend dials, but also using your web browser, iPhone or iPad. The Audac Touch App is free to download.

The MTX88 is the eight-zone version of the MTX series mixers, containing two balanced microphone inputs with priority function, phantom power possibility and three-band tone control.

Four stereo line-level inputs are provided to which any line-level music source such as a CD-player, Tuner or MP3 player etc can be connected.

The other two inputs of the matrix are the additional wall panel inputs for both line and microphone signals.

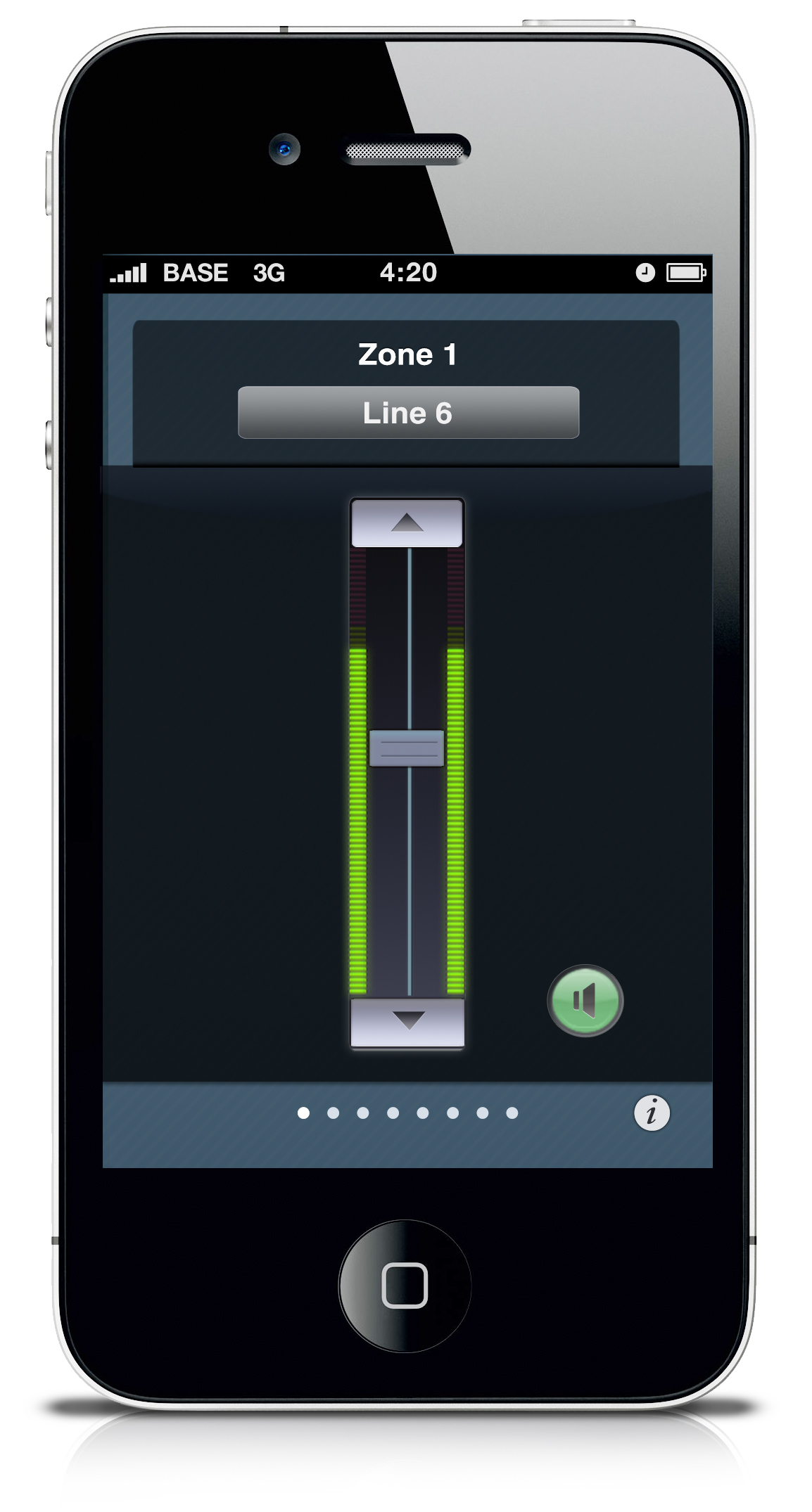

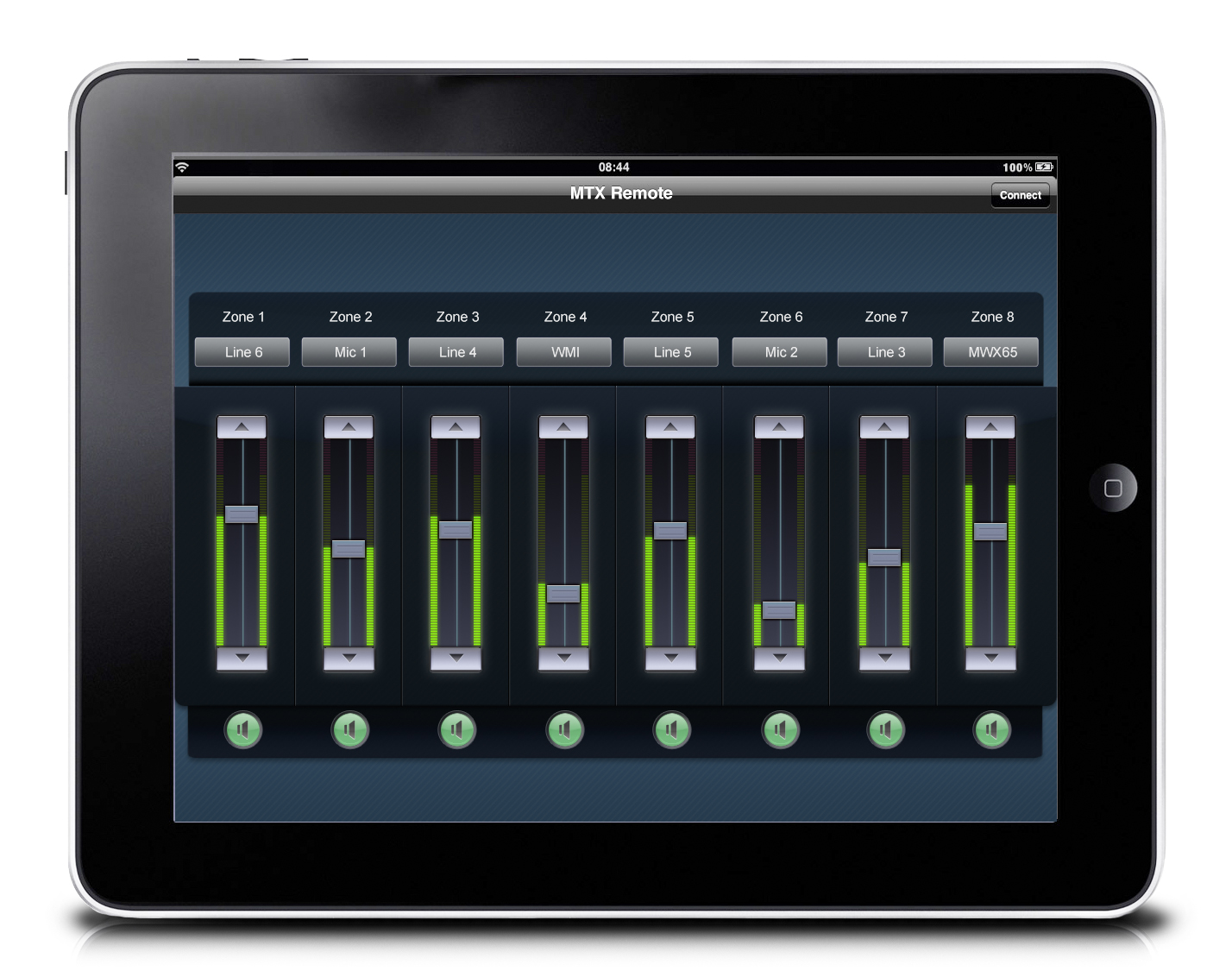

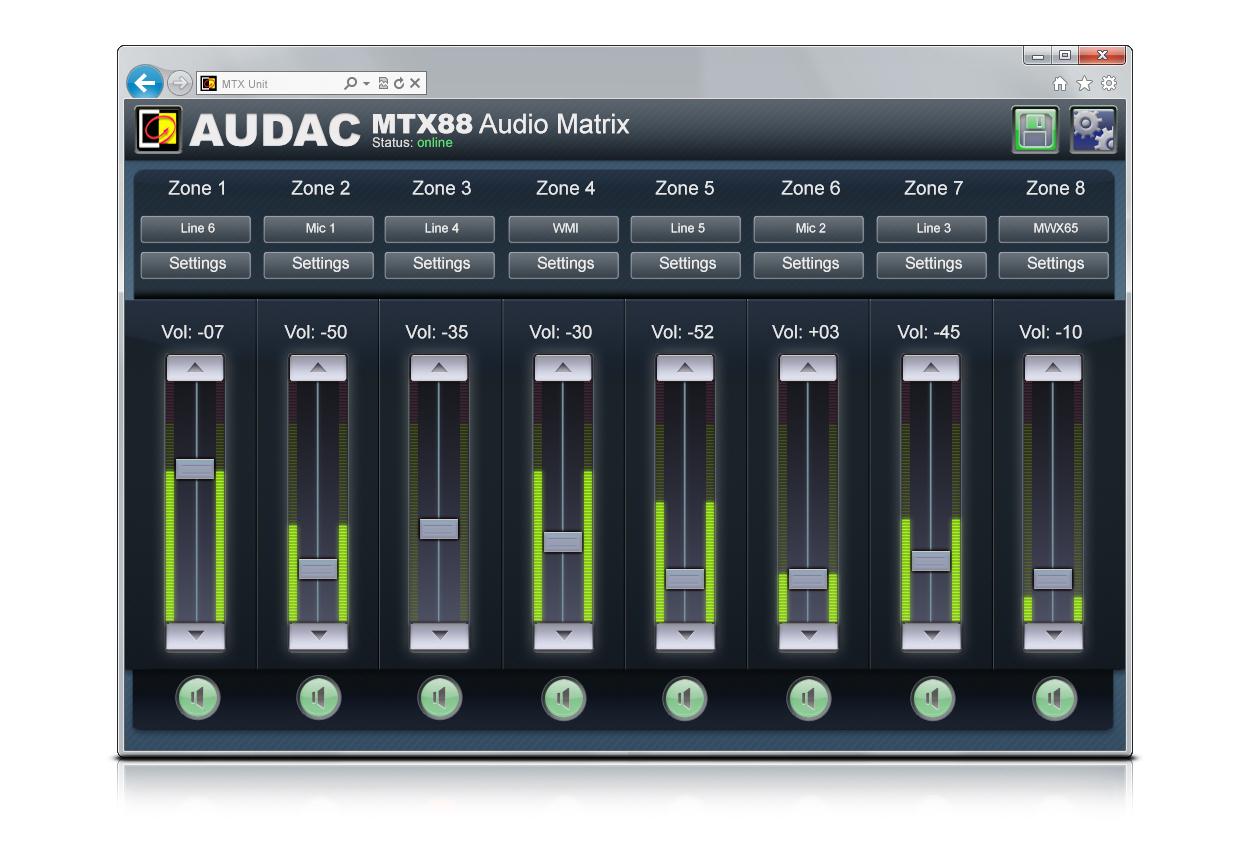

The MTX can be controlled by means of additional control panels, its fully functional web-based interface or the iPhone/ iPad Remote app.

The RS232 port makes the MTX compatible with any home or industrial automation systems supporting RS232.

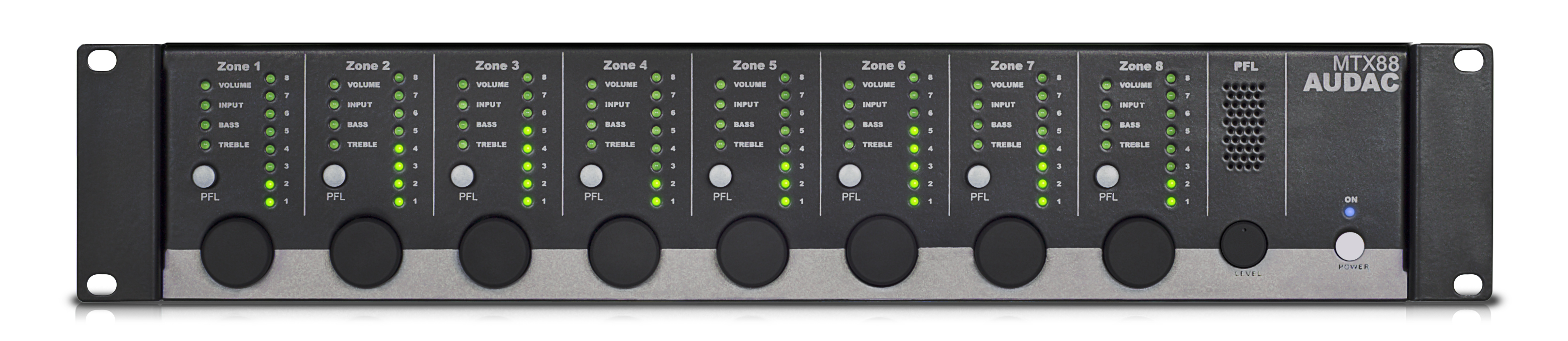

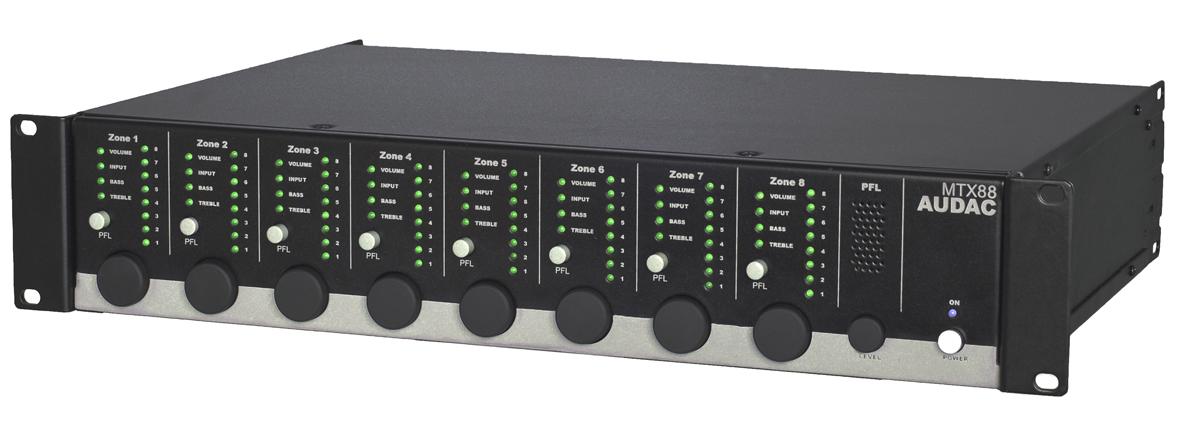

The front panel of the MTX shows a rotary button per zone with indication LEDs for accessing controls and settings.

A built-in PFL loudspeaker makes it possible to pre-listen every channel without the need for a headphone.

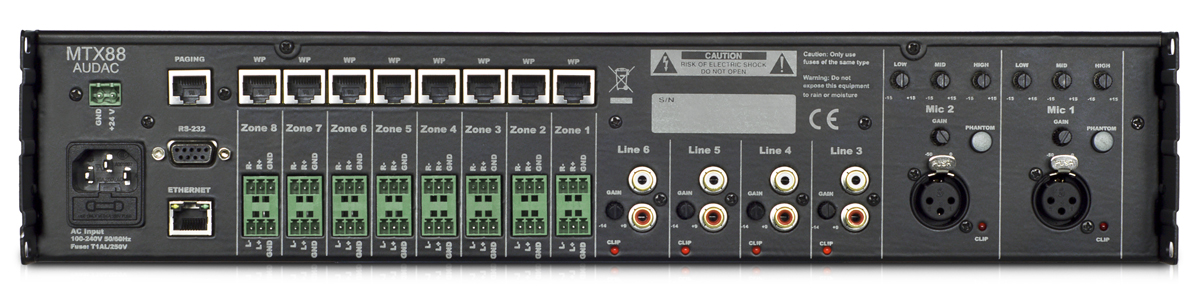

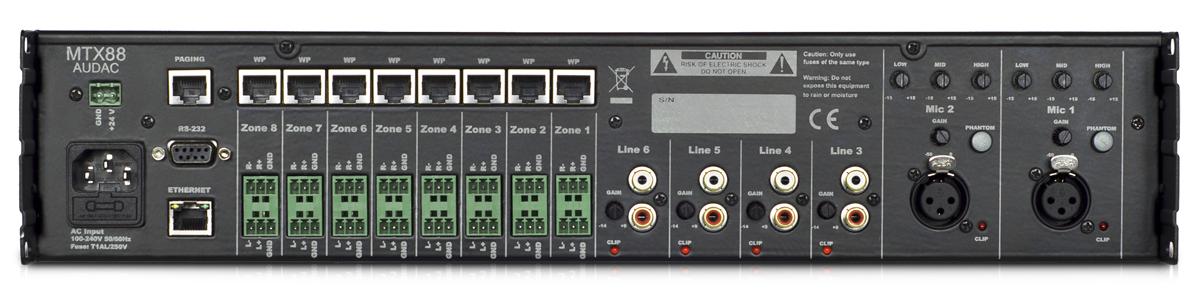

The balanced line-level zone output connections are performed using 3-pin Euro-terminal block connectors, each of them accompanied with an RJ45 connector for connecting additional wall panels for that zone.

A 24 volts power connection makes it possible to keep the MTX running on emergency power, even if the mains power is shut down.

• Remote App available for iPad and iPhone
• 8 Output zones
• 2 Microphone inputs with priority + 15V Phantom power and 3
• band tone control (15dB)
• 4 line inputs.
• Wall panel connections for each zone (input control)
• TCP/IP and RS232 control functions.
• 24 Volts operation possibility.
• Built-in PFL Speaker
• Controls: RS232, Ethernet, Wall Panel, Front
• Power: 110-240 V 50-60 Hz, 24V
• Height: 2 HE
• Power consumption: 12 Watt
• Weight: 5 kg
• Dimensions (W x H x D): 482 x 88 x 335 mm
