Cameo ROOT BAR BATTERY
Click to expand

Cameo ROOT BAR BATTERY

Rechargeable LED Light Bar | 12 x 4 W RGBW LEDs | 2,300 lm | Flexible Positioning | DMX / WDMX Control | EZchase DMX delay chase effects | Silent, fanless cooling

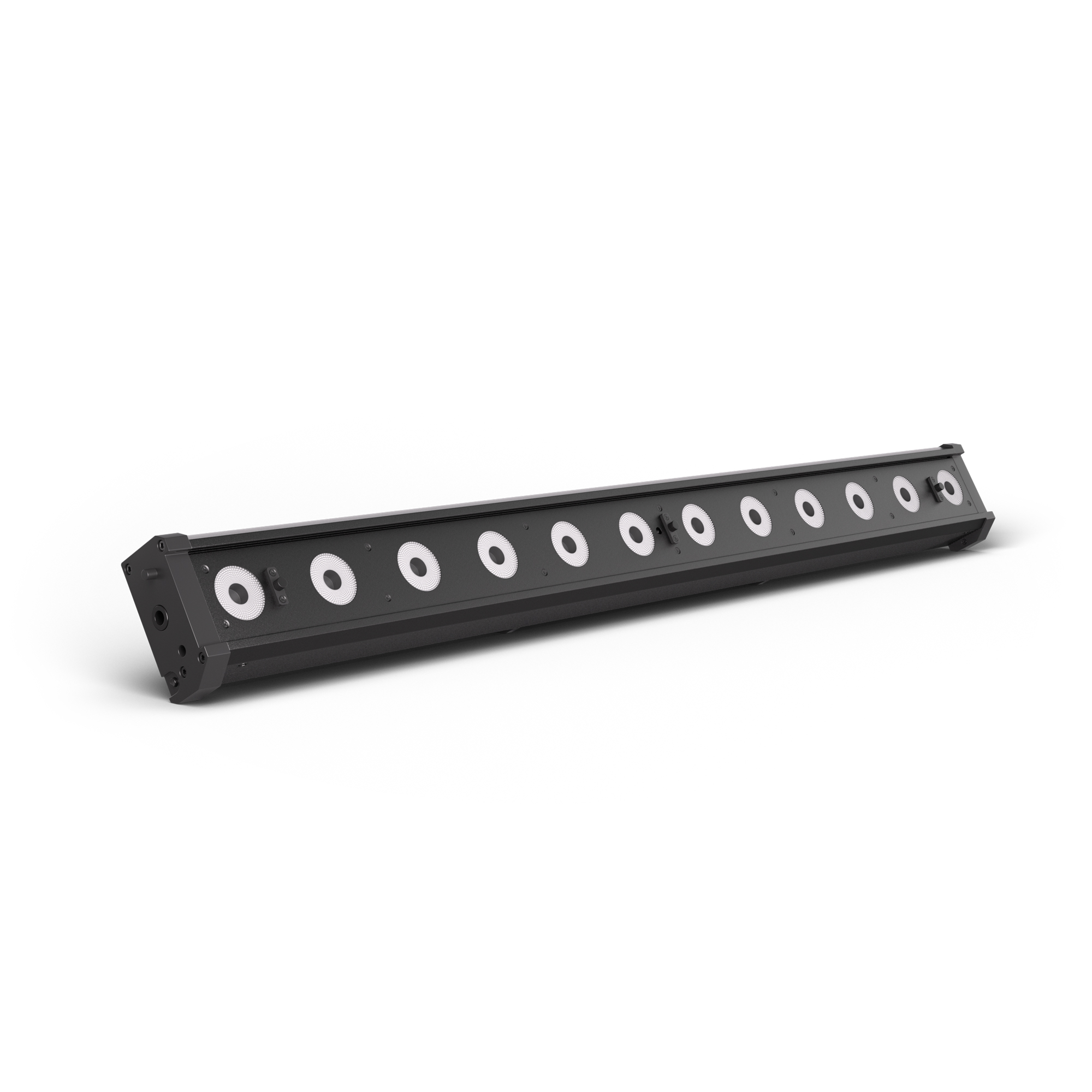

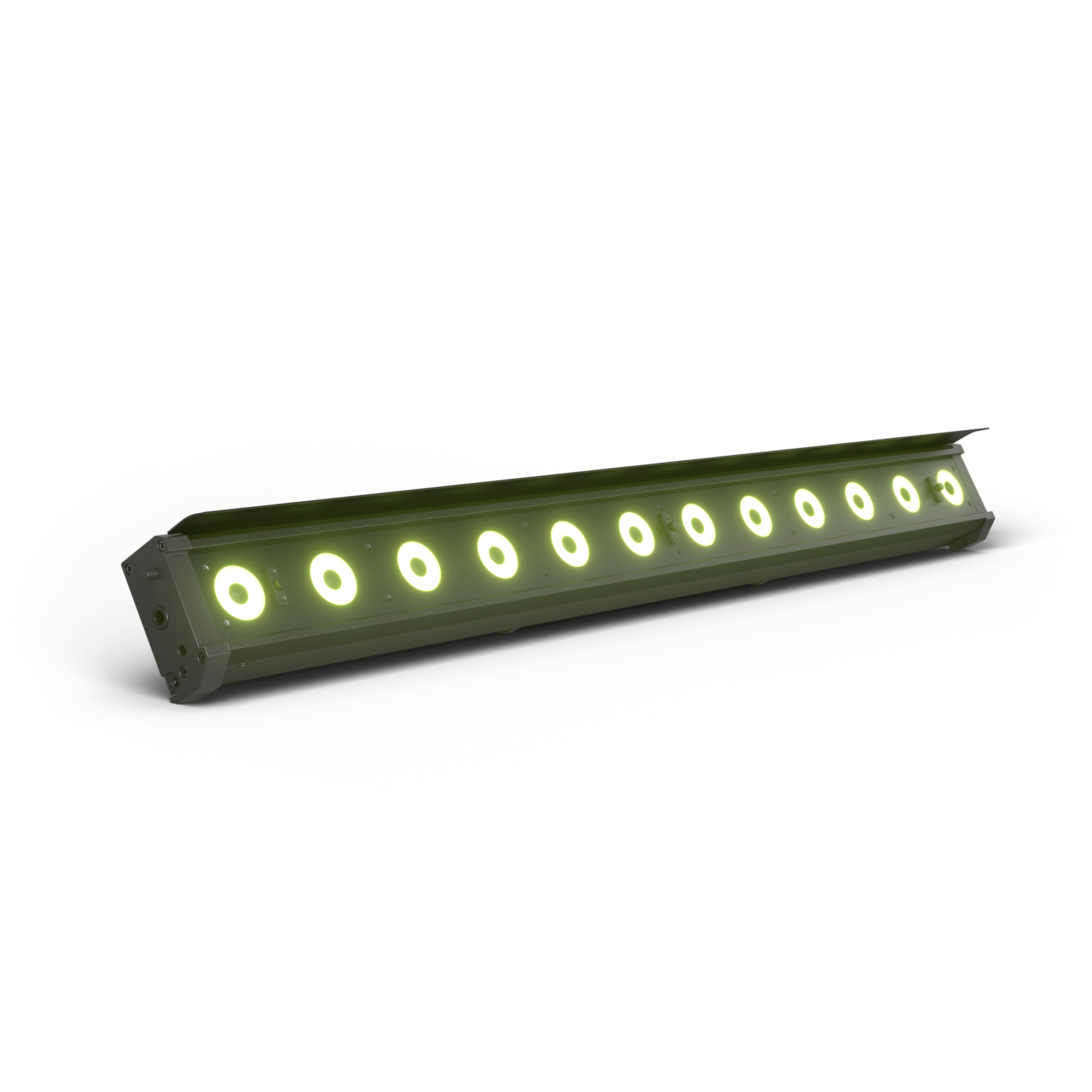

The Cameo ROOT BAR BATTERY is a linear LED light bar with integral rechargeable Li-Ion battery for use where mains power is inaccessible. The compact design and impressive versatility make it perfect for creative lighting in trendy clubs, small bars, or exclusive events, providing stunning lighting effects in any setting.

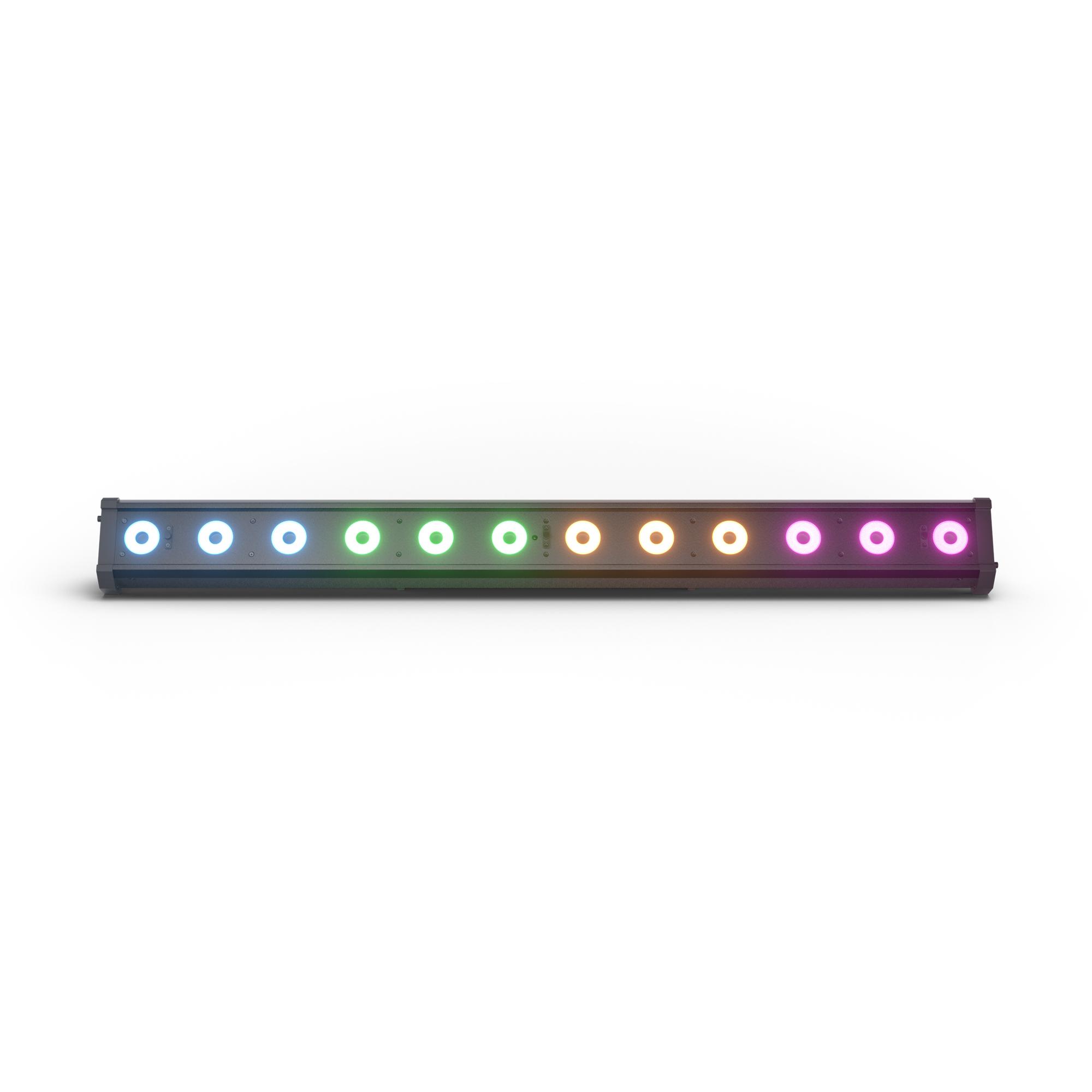

Twelve 4 Watt RGBW LEDs create good contrast and clear colour boundaries. The addition of white LEDs improves the creation of white and pastel colours.

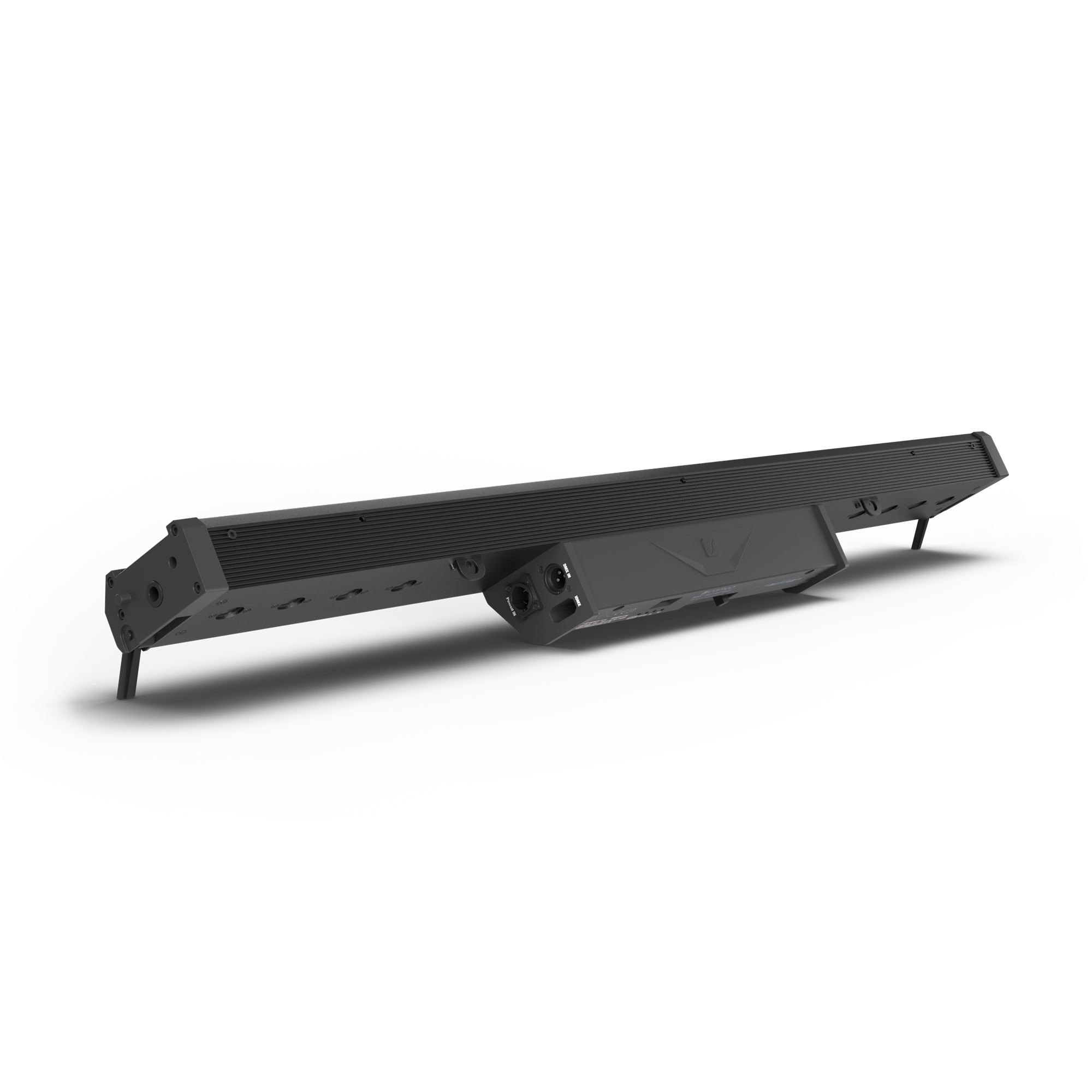

The clever housing design of the ROOT BAR BATTERY enables flexible positioning at various angles, with and without the included feet whilst a threaded mount enables both hanging and standing use.

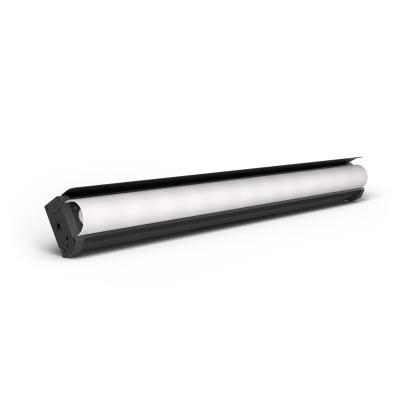

The magnetic Quick Alignment System & various Quick Lock options enable quick and precise alignment of multiple LED bar lights, creating seamless transitions and spectacular lighting installations. The included frost filters, neon tube filter, and glare shield provide numerous creative possibilities, adding impressive visual accents.

In addition to DMX protocol control, the ROOT® BAR can be remotely controlled via the optional IR remote. For wireless DMX connection via W-DMX™, the ROOT® BAR features a USB port for connecting the Cameo iDMX® Stick. Additionally, the unique patented EZchase® DMX delay function allows for the creation of captivating chase patterns and colour transitions with minimal programming effort.

The modern design, reliable, high quality Cameo ROOT BAR BATTERY sets new standards in event lighting and transforms any venue into an unforgettable experience.

  • Compact LED bar with 12 x 4W RGBW LEDs
  • Integral rechargeable Li-Ion battery for up to 5.5 hours runtime (ECO mode)
  • Flexible positioning at various angles, with or without feet
  • Magnetic Quick Alignment System for precise alignment of multiple units
  • Includes frost filter, neon tube filter, and glare shield for versatile lighting effects
  • Control via DMX, or W-DMX (with optional Cameo iDMX Stick)
  • Patented EZchase® DMX delay function for chase effects
  • 16-bit resolution for smooth dimming and high-performance RGBWA-UV LEDs

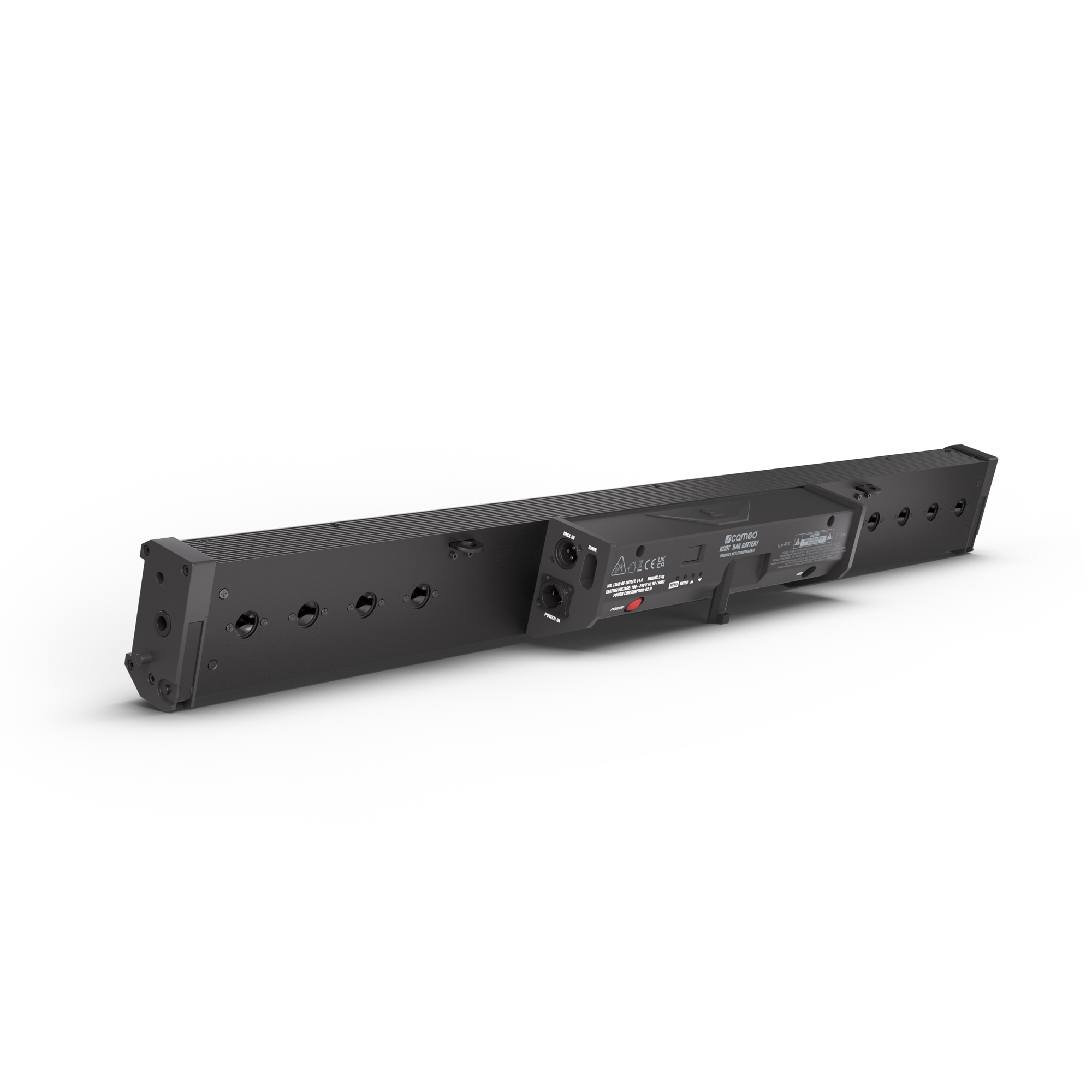

  • Power input via Seetronic and DMX connectors for daisy-chaining multiple units
  • Silent, fanless cooling design ideal for noise-sensitive environments
  • Part number: CLROOTBARBAT
  • Warranty: 2 Years
z:DMX z:Standalone z:WDMX z:RGBW
List Ex VAT: £439.36
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

LED data

12 x 4 W LED RGBW

Luminous flux

2,300 lm

Beam/Field angle

20° / 37°

LED PWM frequency

650 Hz, 1,530 Hz, 2,000 Hz, 4,000 Hz

Dimmer resolution

16 Bit

Colour mix functions

RGB

LED colours

Red, Green, Blue, White

Strobe

0 - 20 Hz

Controller protocols

DMX512

Additional DMX features

DMX delay, LED segment dimmer, System settings

Stand alone operating modes

Autorun, Master/slave, Static,

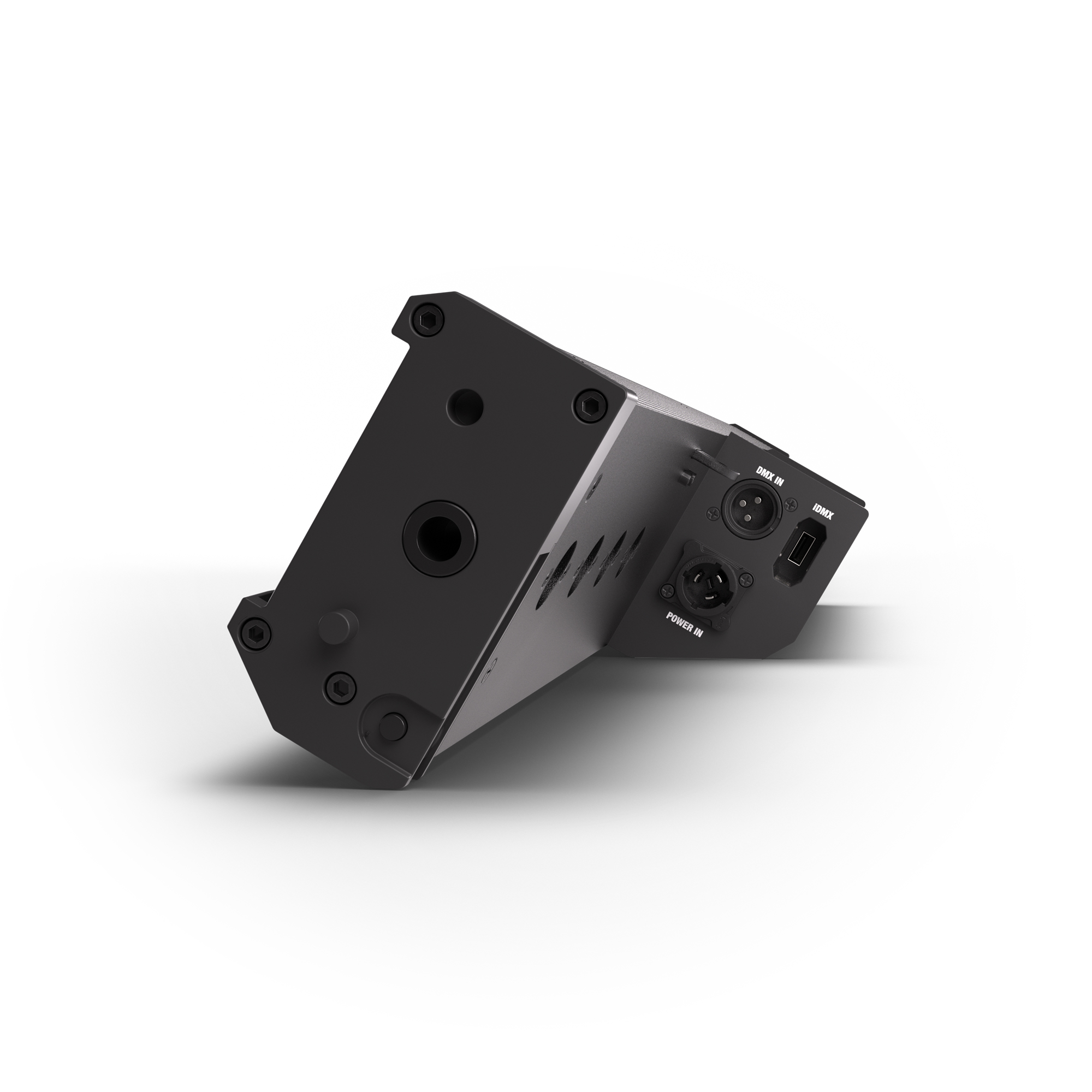

Data in connector

XLR 3-pole male

Data out connector

XLR 3-pole female

Mains operation voltage

100 V AC - 240 V AC / 50 - 60 Hz

Rated power

62 W

Battery Type

Lithium-Ion

Battery Life

3 h (FULL) - 5.5 h (ECO)

Chassis

Aluminium & Plastic. Black.

Cooling system

Convection cooling

Environmental Protection Class

IP20

Noise level in operation

0 dB

Dimensions (W x H x D)

1,042 mm x 116 mm x 106 mm

Weight

5 kg
