Cameo Root BAR 6

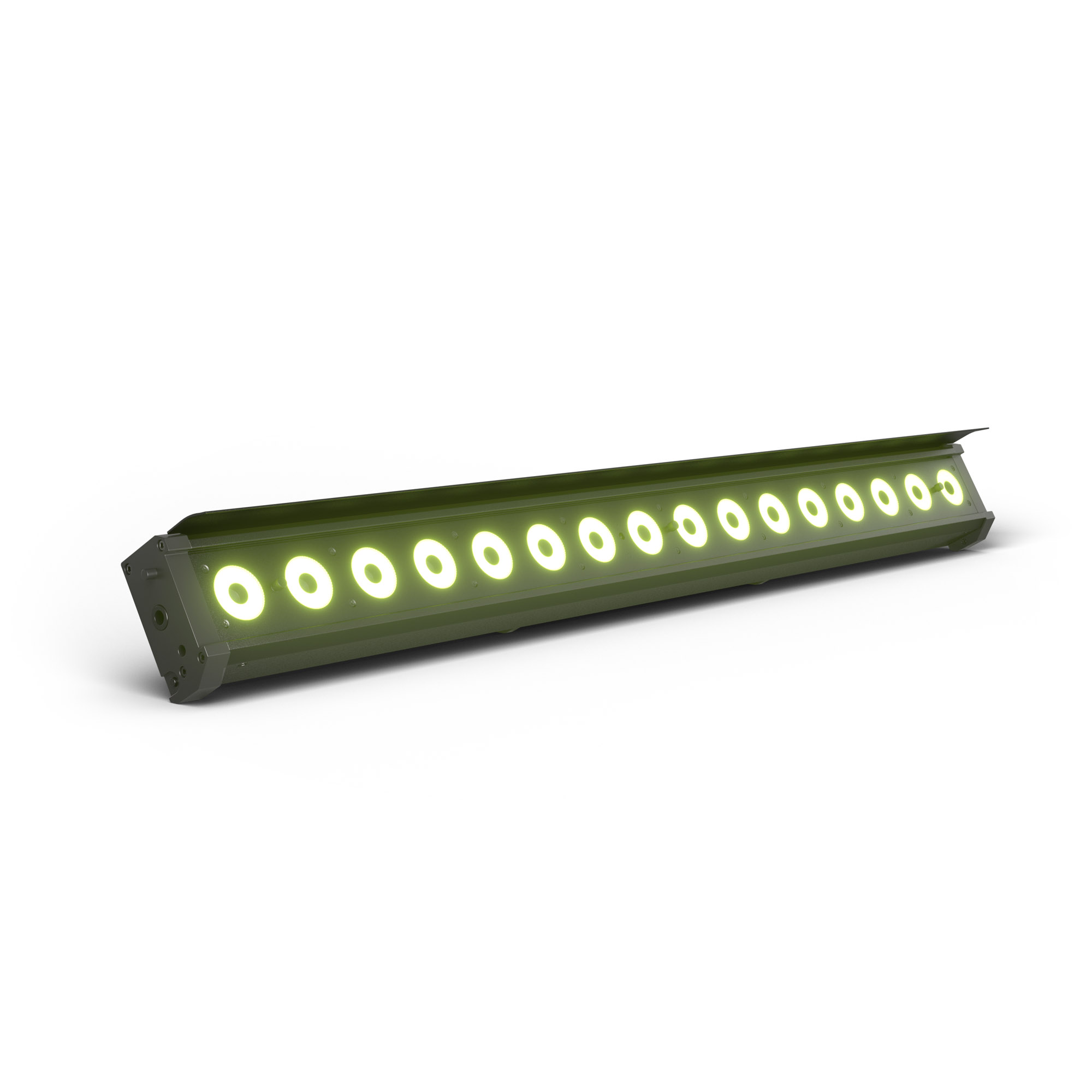

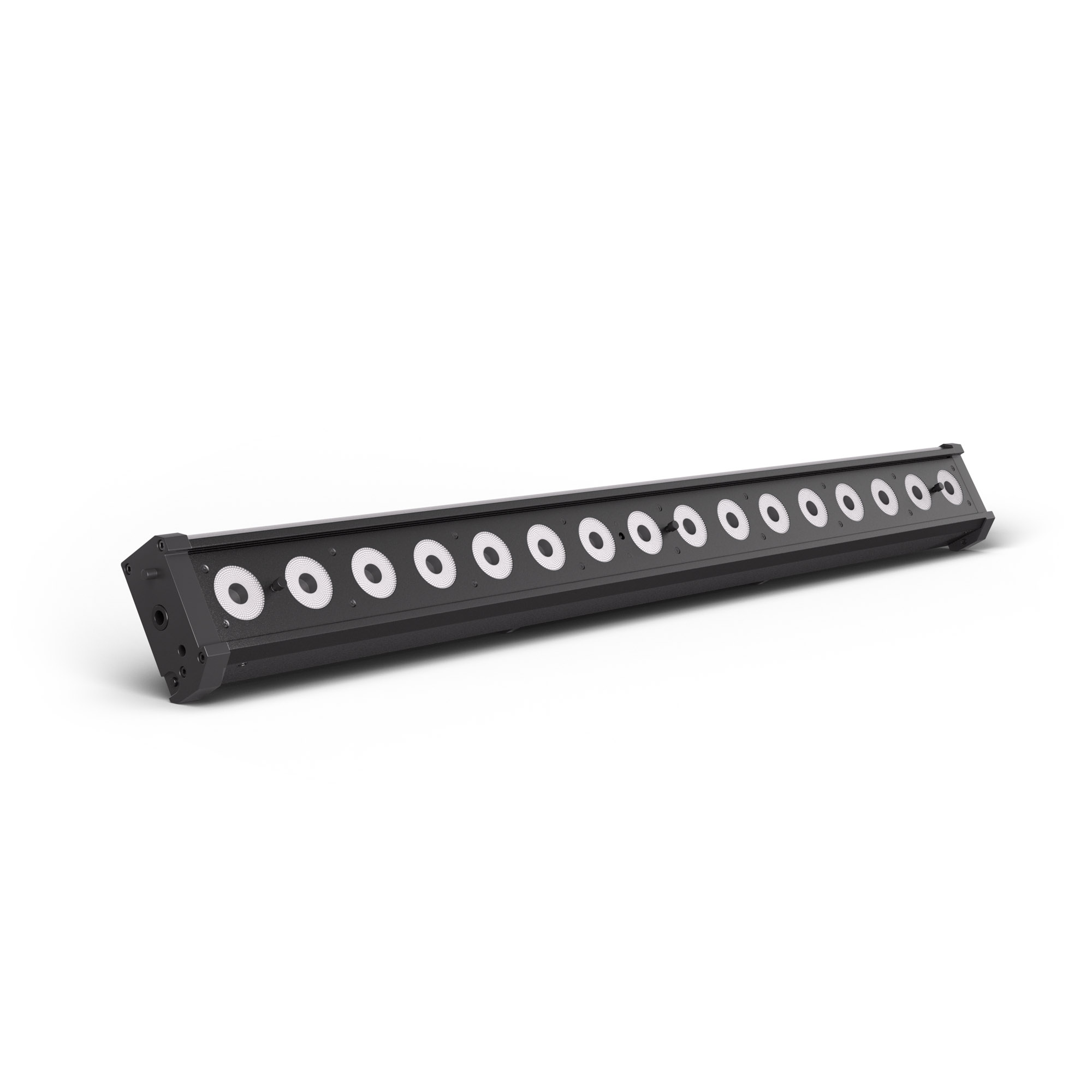

LED Light Bar | 16 x 12 W RGBAW + UV LEDs | 6,000 lm | Flexible Positioning | DMX / WDMX Control | EZchase DMX delay chase effects | Silent, fanless cooling

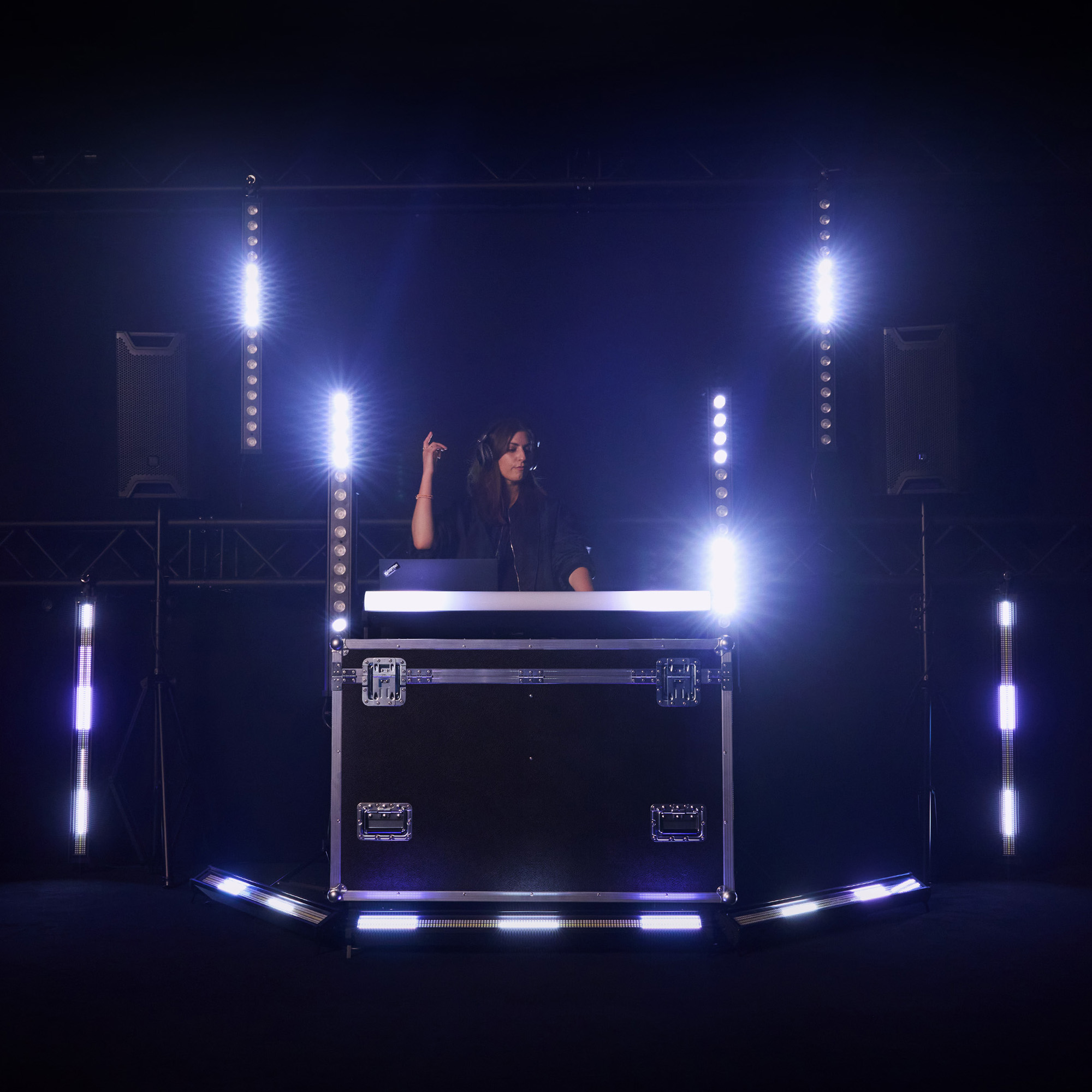

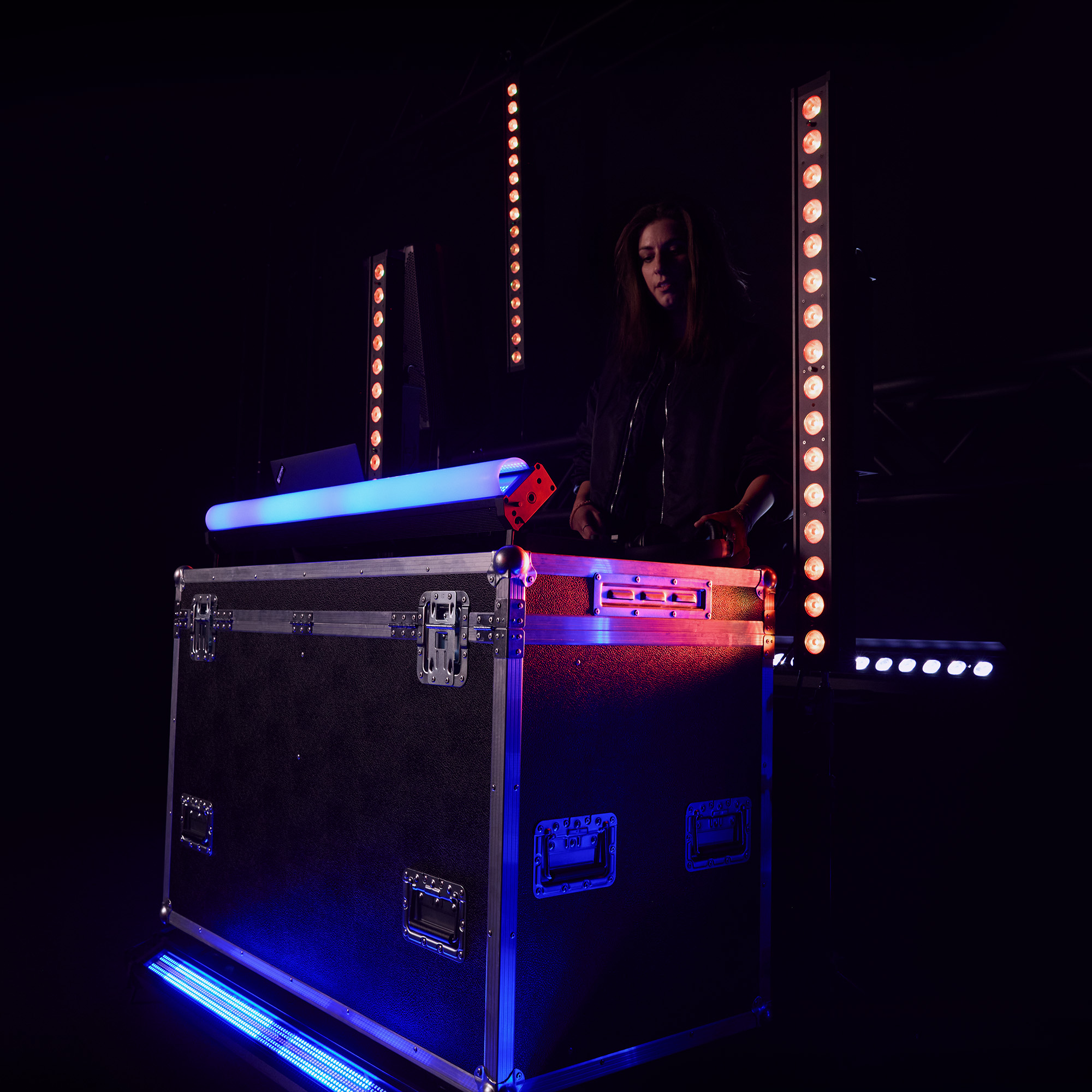

The Cameo ROOT BAR 6 is a linear LED light bar with a compact design and impressive versatility perfect for creative lighting in trendy clubs, small bars, or exclusive events, providing stunning lighting effects in any setting.

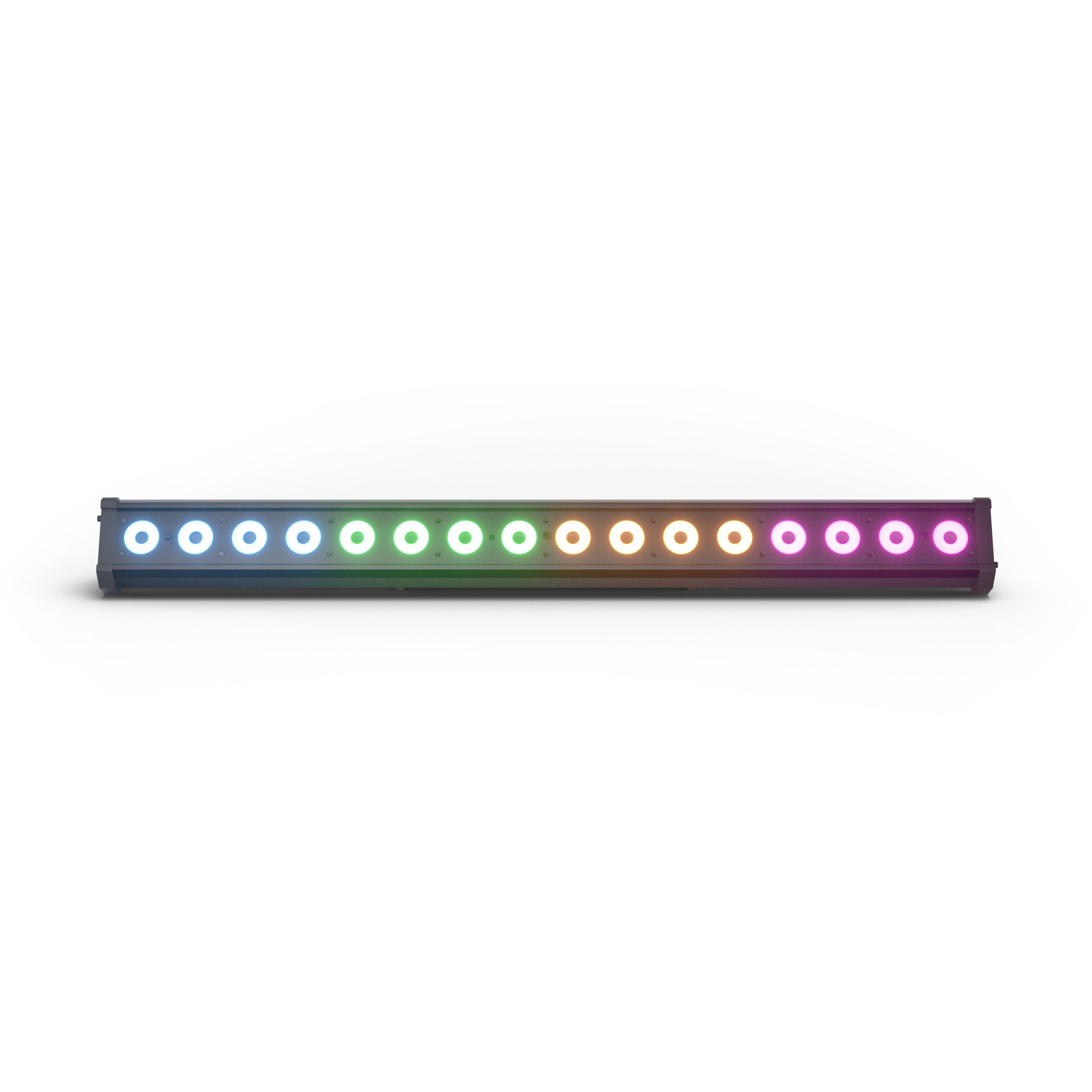

Sixteen 12 Watt RGBAW+UV LEDs expand the GB spectrum creating more saturation and contrast as well as clearer colour boundaries. The UV-LED is also a practical extra and an alternative to conventional black light.

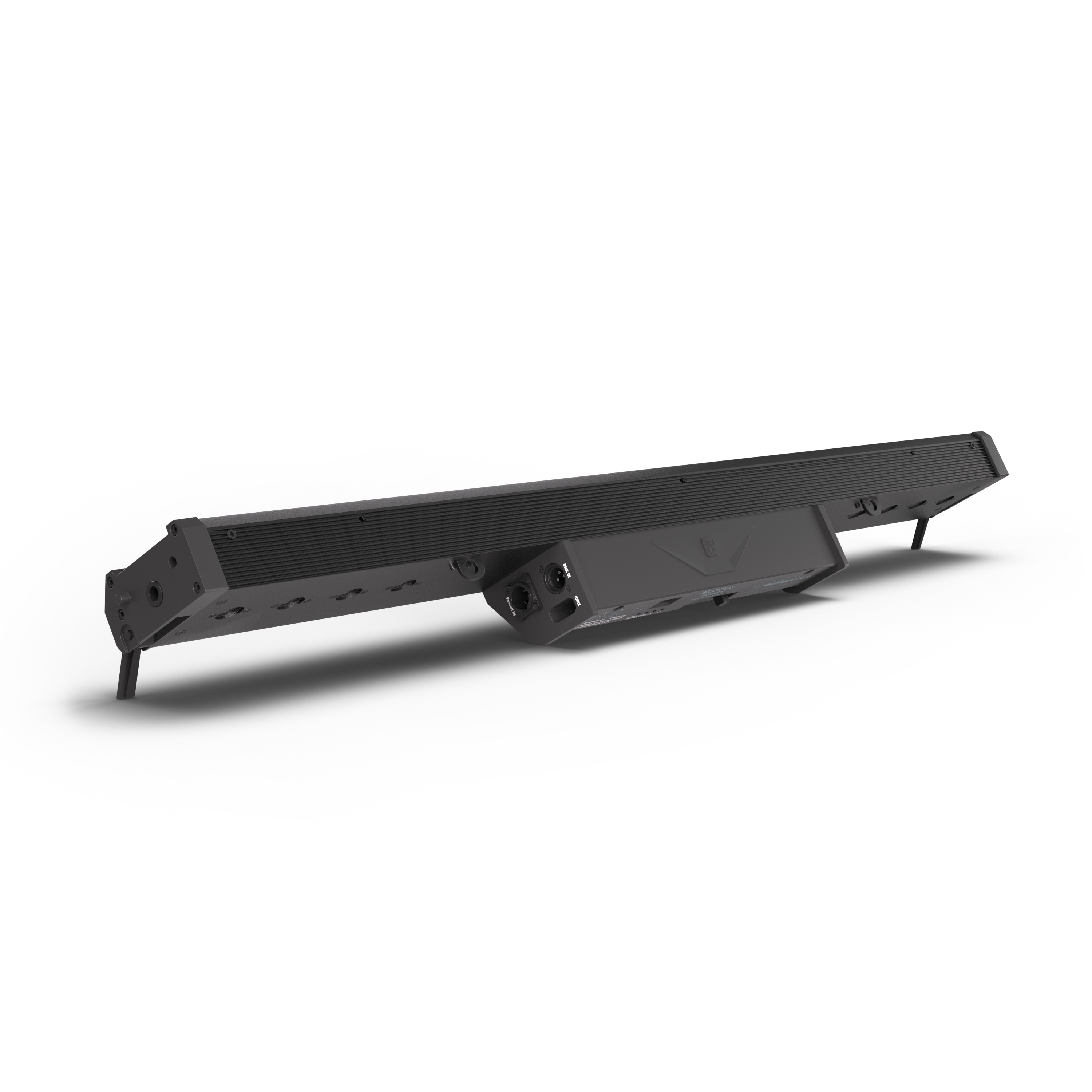

The clever housing design of the ROOT BAR 6 enables flexible positioning at various angles, with and without the included feet whilst a threaded mount enables both hanging and standing use.

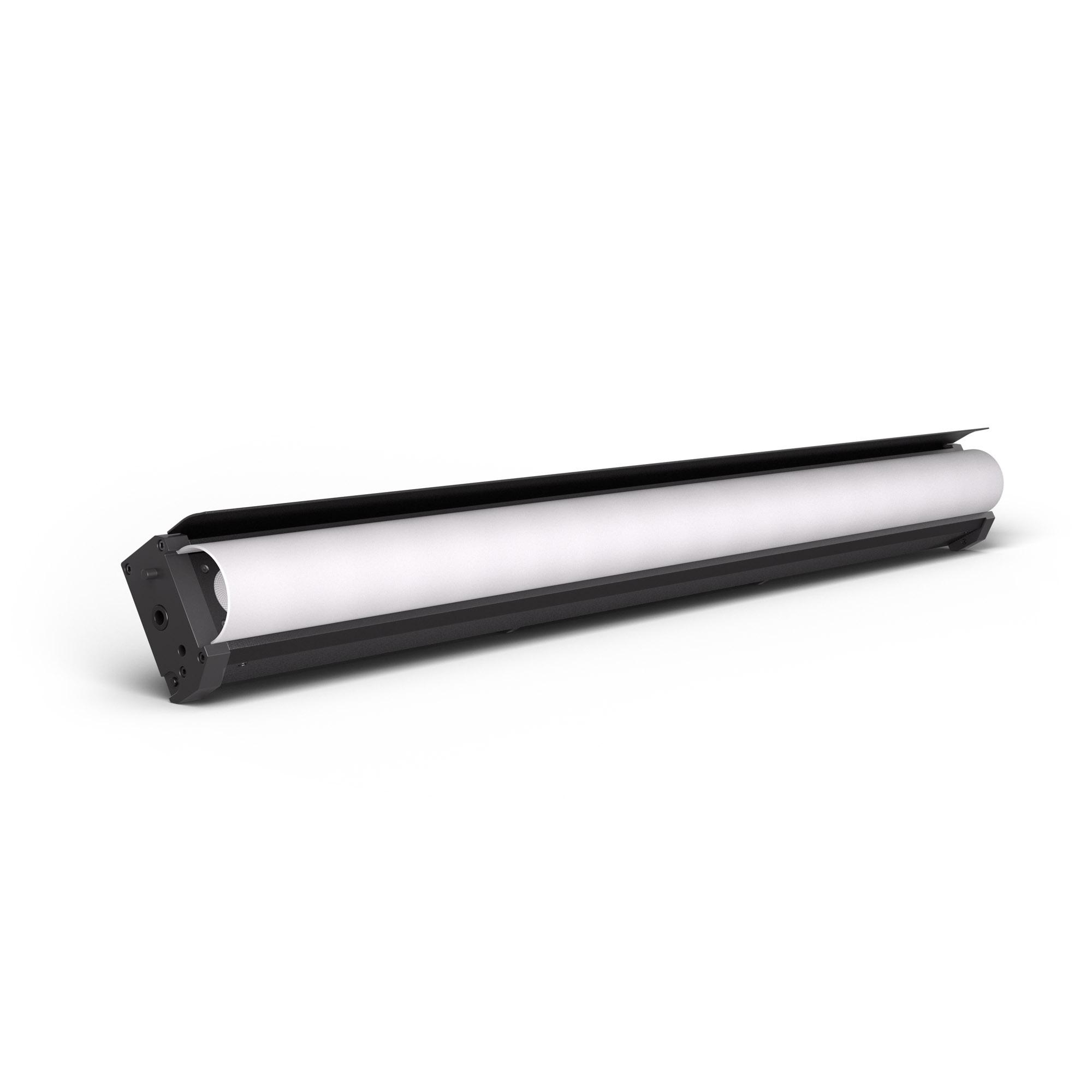

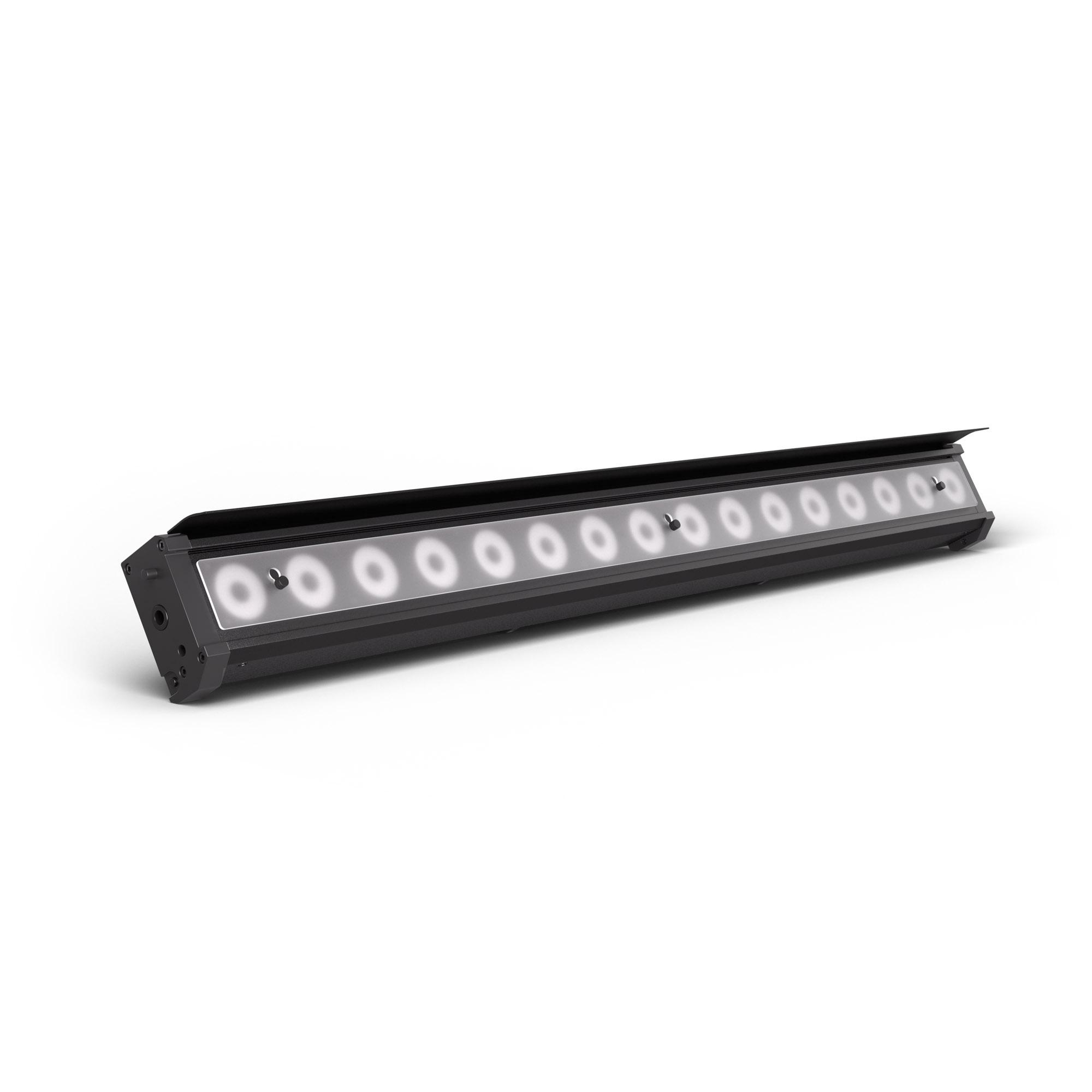

The magnetic Quick Alignment System & various Quick Lock options enable quick and precise alignment of multiple LED bar lights, creating seamless transitions and spectacular lighting installations. The included frost filters, neon tube filter, and glare shield provide numerous creative possibilities, adding impressive visual accents.

In addition to DMX protocol control, the ROOT® BAR can be remotely controlled via the optional IR remote. For wireless DMX connection via W-DMX™, the ROOT® BAR features a USB port for connecting the Cameo iDMX® Stick. Additionally, the unique patented EZchase® DMX delay function allows for the creation of captivating chase patterns and colour transitions with minimal programming effort.

The modern design, reliable, high quality Cameo ROOT BAR 6 sets new standards in event lighting and transforms any venue into an unforgettable experience.

  • Compact LED bar available with 16 x 12W RGBAW + UV LEDs
  • Flexible positioning at various angles, with or without feet
  • Magnetic Quick Alignment System for precise alignment of multiple units
  • Includes frost filter, neon tube filter, and glare shield for versatile lighting effects
  • Control via DMX, or W-DMX (with optional Cameo iDMX Stick)
  • Patented EZchase® DMX delay function for chase effects
  • 16-bit resolution for smooth dimming and high-performance RGBWA-UV LEDs

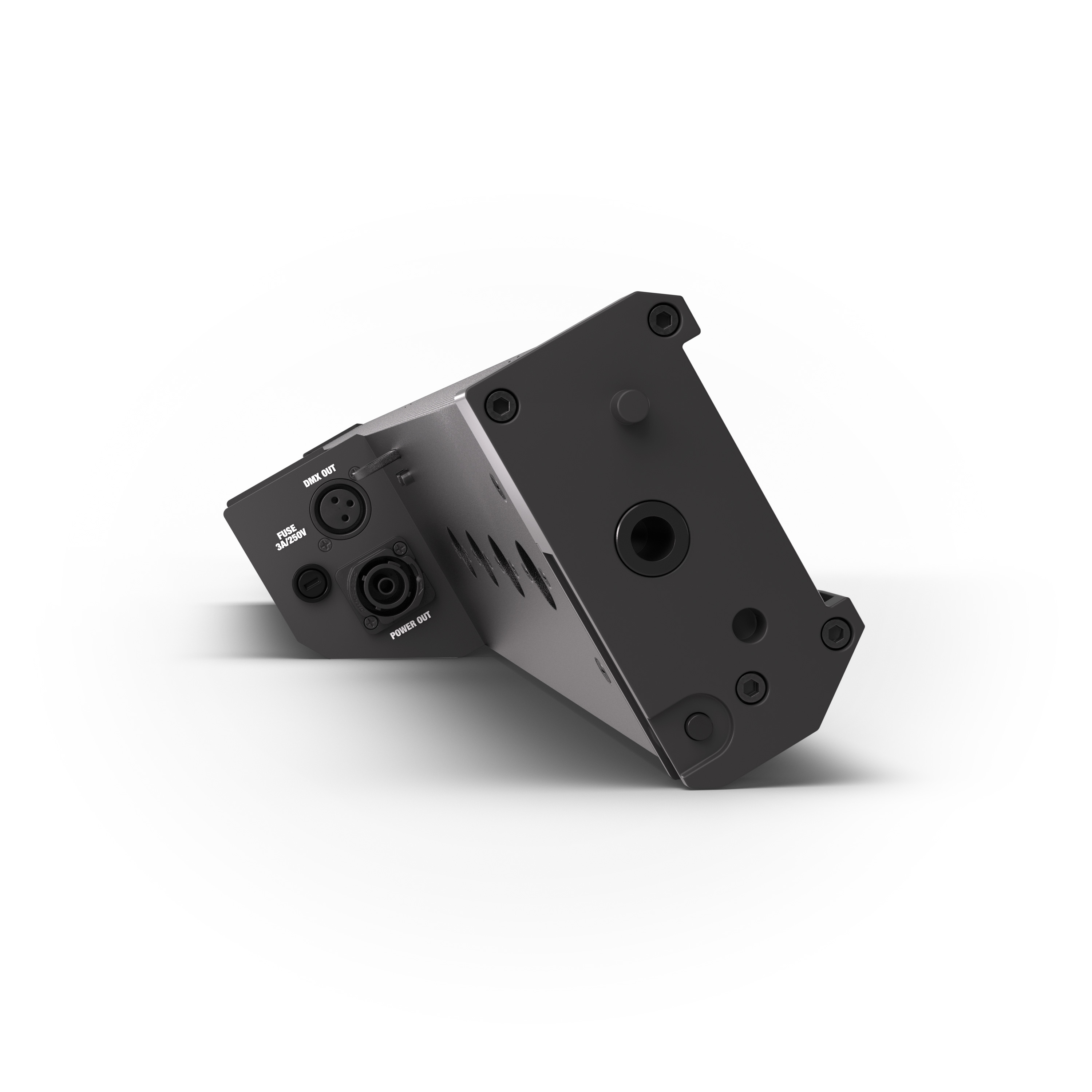

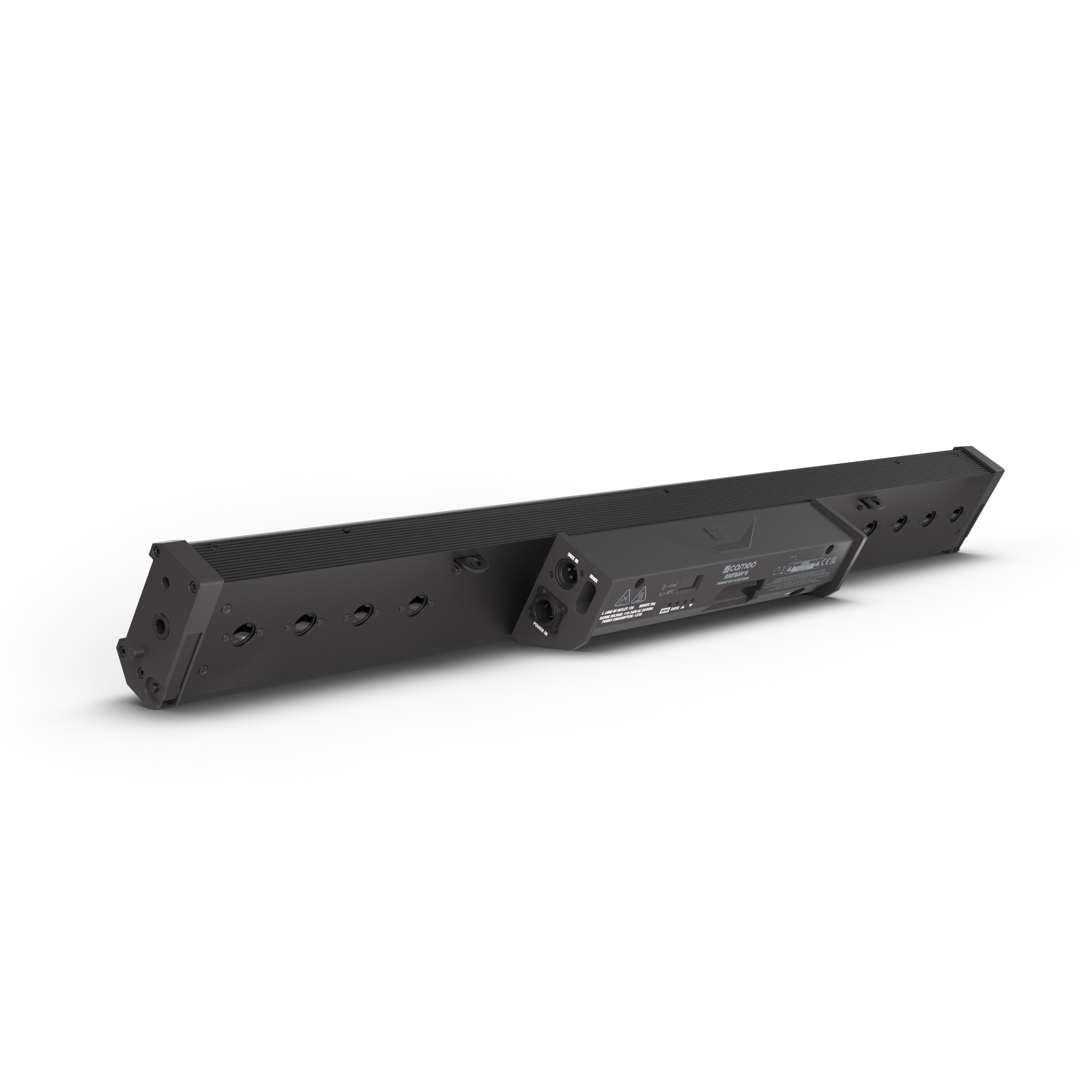

  • Power input via Seetronic and DMX connectors for daisy-chaining multiple units
  • Silent, fanless cooling design ideal for noise-sensitive environments
  • Warranty: 2 Years
z:DMX z:Standalone z:WDMX z:6-in-1
List Ex VAT: £363.83
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

LED data

16 x 12 W LED RGBWA+UV (4 x 4)

Luminous flux

6,000 lm

Beam/Field angle

19° / 36°

LED PWM frequency

650 Hz, 1,530 Hz, 2,000 Hz, 4,000 Hz

Dimmer resolution

16 Bit

Colour mix functions

RGB

LED colours

Red, Green, Blue, White, Amber, Ultra violet

Strobe

0 - 20 Hz

Controller protocols

DMX512

Additional DMX features

DMX delay, LED segment dimmer, System settings

Stand alone operating modes

Sound controlled, Autorun, Master/slave, Static, Endless loop

Data in connector

XLR 3-pole male

Data out connector

XLR 3-pole female

Mains operation voltage

100 V AC - 240 V AC / 50 - 60 Hz

Rated power

133 W

Chassis

Aluminium & Plastic. Black.

Cooling system

Convection cooling

Environmental Protection Class

IP20

Noise level in operation

0 dB

Dimensions (W x H x D)

1,026 mm x 157 mm x 105 mm

Weight

5 kg
