Channels

12

Mono Channels:

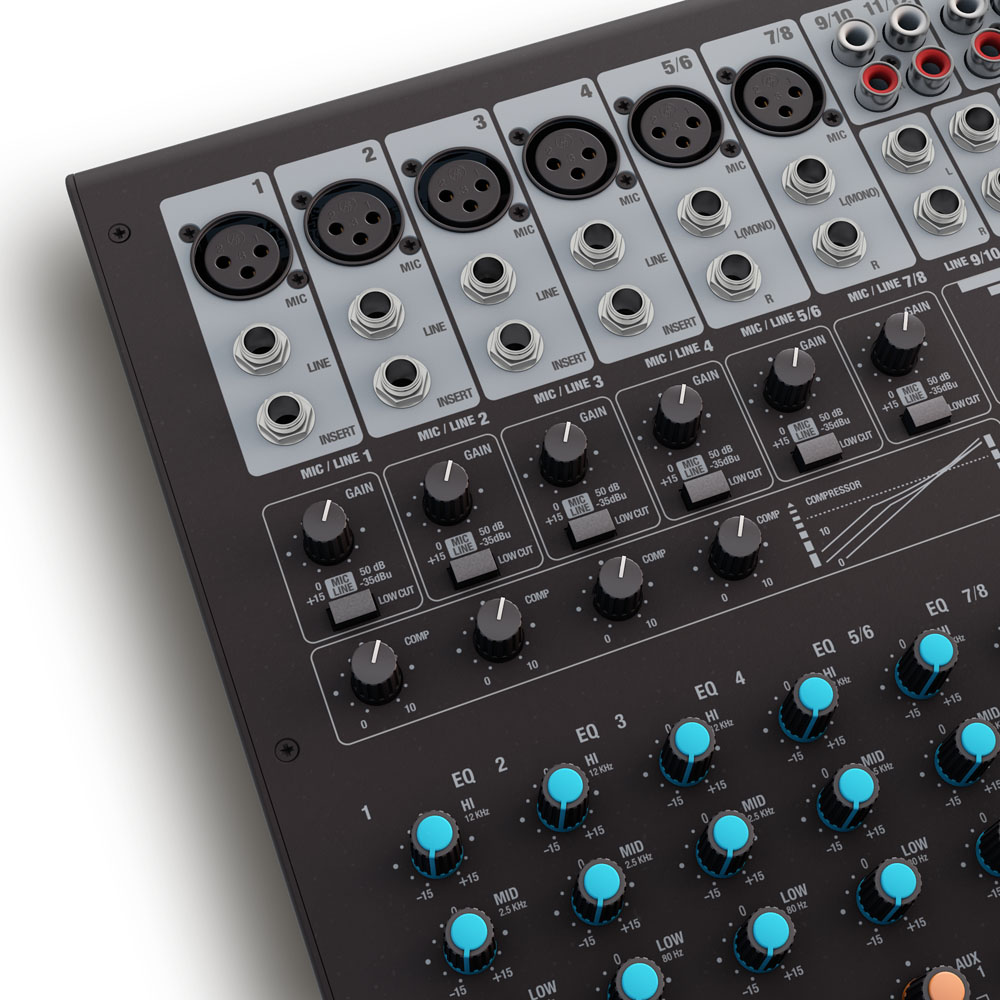

Mono Mic and Line Input Channels

4 x 6.3 mm TRS, XLR

Mono Mic Input Type

Electronically balanced

Mono Line Input Type

Electronically balanced

Mono Channel Equalizer High

+/- 15 dB @ 12000 Hz

Mono Channel Equalizer Mid

+/- 15 dB @ 2500 Hz

Mono Channel Equalizer Low

+/- 15 dB @ 80 Hz

Controls Mono Mic and Line Input Channels

Gain, 3-band EQ (High, Mid, Low), AUX 2 (DFX) Post, AUX 1 umschaltbar Pre/Post, Low Cut (75 Hz), DFX/AUX 1, Compressor, PFL

Phantom power

48 V DC switchable

Stereo Channels:

Stereo Line Input Channels

4 x RCA, 6.3 mm TRS

Stereo Line Input Type

Electronically balanced, Unbalanced

Stereo channel equalizer treble

+/- 15 dB @ 12000 Hz

Stereo channel equalizer mids

+/- 15 dB @ 2500 Hz

Stereo channel equalizer bass

+/- 15 dB @ 80 Hz

Controls Stereo Line Input Channels

AUX 2 (DFX) Post, Balance, Channel Volume, DFX/AUX 1, 2-band EQ (High,Low), 3-band EQ (High, Mid, Low), Low Cut, Gain, AUX 1 umschaltbar Pre/Post

Main Section:

AUX / Effects Send Channels

2 x 6.3 mm TRS

Stereo AUX Return Channels

1 x stereo (1 x 6.3 mm TRS)

Stereo Tape Out Channel

1 x stereo (2 x RCA (Cinch))

Stereo Tape In Channel

1 x stereo (2 x RCA (Cinch))

Balanced stereo Main Out

1 x XLR

Stereo Control Room Out

1 x 6.3 mm TRS

Headphones output

1 x 6.3 mm TRS

Digital Effects Processor

Yes, 24-bit AD/DA Resolution

Number of Presets

100

Footswitch Connector DFX Mute

6.3 mm TRS

Main section controls

DFX To Main Volume, Group 1-2 assignment to Main MIX, 2-track Assignment (Main, Contr. Room), PFL, Group 1-2 Volume, AUX 2 Send Volume, Stereo Return to AUX Volume, Power, presets, 2-track In Volume, Volume Control CTRL / Phones, Stereo Return to MAIN Volume, Master Volume, DFX TO AUX Volume, CTRL / Phones assignment (Main/Group 1-2), DFX Mute Schalter, Phantom Power

Indicators

PFL, DFX TO MAIN, Phantom Power, Power, DFX Peak

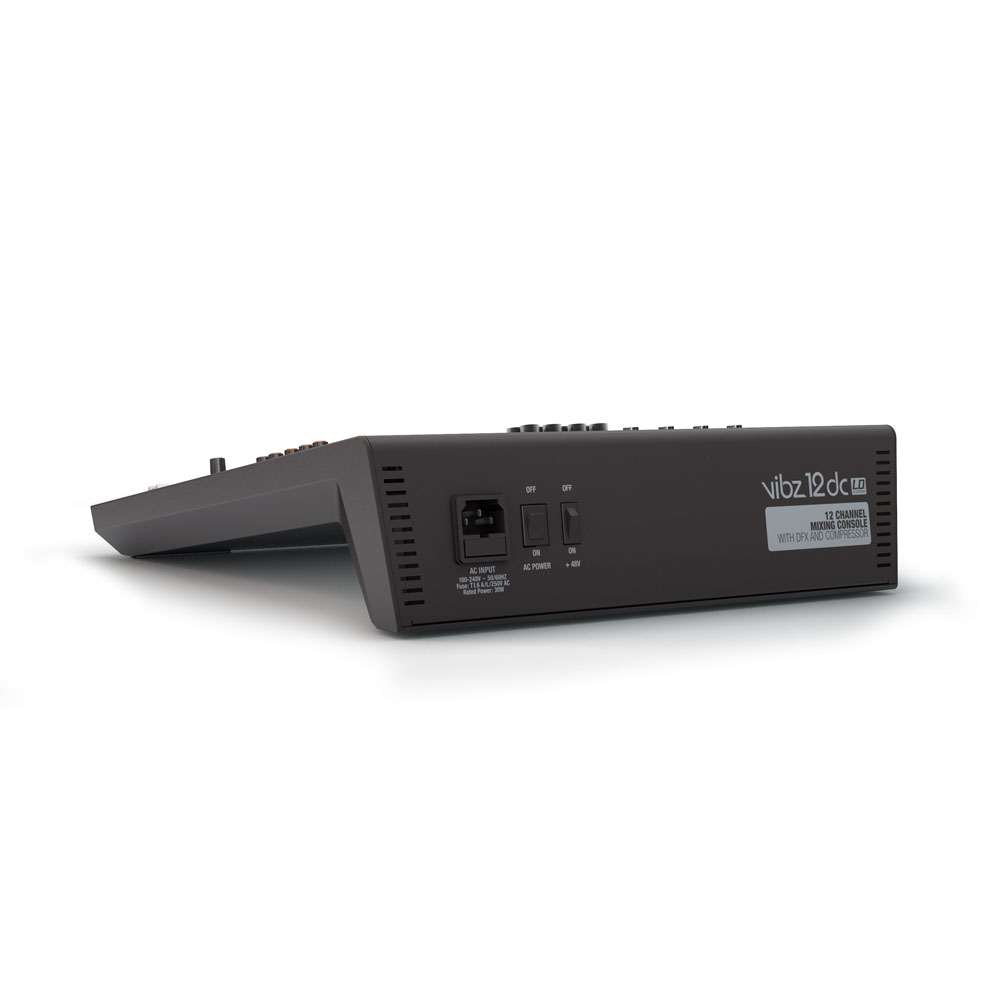

Power supply

100 V AC - 240 V AC, 50 - 60 Hz

Width x Height x Depth

350 mm x 98 mm x 440 mm

Weight

4.3 kg
